Crestron TSW-550-BBI Manuel utilisateur
Crestron TSW-550-BBI
Wall Mount Back Box for TSW-550
International Version
Installation Guide
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United
States and/or other countries. Other trademarks, registered trademarks and trade names may be used in this document to
refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in
the marks and names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2013 Crestron Electronics, Inc.
Crestron TSW-550-BBI Wall Mount Back Box for TSW-550
Installation Guide – DOC. 7519A Contents •i
Contents
Wall Mount Back Box for TSW-550: TSW-550-BBI 1
Description................................................................................................................................. 1
Installation ................................................................................................................................. 3
Resources...................................................................................................................................6
Further Inquiries .......................................................................................................... 6
Future Updates ............................................................................................................ 6
Return and Warranty Policies .................................................................................................... 7
Merchandise Returns / Repair Service ........................................................................ 7
Crestron Limited Warranty.......................................................................................... 7
Crestron TSW-550-BBI Wall Mount Back Box for TSW-550
Installation Guide – DOC. 7519A Wall Mount Back Box for TSW-550: TSW-550-BBI •1
Wall Mount Back Box
for TSW-550: TSW-550-BBI
Description
The TSW-550-BBI provides a recess wall-mounted metal back box for
the Crestron®TSW-550 5” Touch Screen. It is designed for installation in
concrete and masonry applications. Conduit knockouts are provided on
the top and bottom.
NOTE: Depending on the installation, forced ventilation may be
required.
Wall Mount Back Box for TSW-550 Crestron TSW-550-BBI
2•Wall Mount Back Box for TSW-550: TSW-550-BBI Installation Guide – DOC. 7519A
The dimensions of the TSW-550-BBI are shown in the following
illustrations.
TSW-550-BBI Overall Dimensions (Top, Front and Side Views)
77 mm
(3.00 in)
105 mm
(4.13 in)
68 mm
(2.65 in)
NOTE: Knockout holes are intended for Class 2 wiring only and are
20 mm (13/16”) diameter.
Crestron TSW-550-BBI Wall Mount Back Box for TSW-550
Installation Guide – DOC. 7519A Wall Mount Back Box for TSW-550: TSW-550-BBI •3
Installation
The hardware supplied with the TSW-550-BBI is listed in the following
table.
Supplied Hardware for the TSW-550-BBI
DESCRIPTION PART
NUMBER
QUANTITY
Assembly, Back Box, International 4518364 1
Screw, #06-32 x 1/2”, Flat, Phil
2007241
2
To install the TSW-550-BBI, use the following procedure:
1. If it has not already been done, separate the two halves of the
mounting bracket that comes with the TSW-550 by removing the
two 1 1/2” screws that hold them together. Refer to the following
illustrations.
Separate Halves of Mounting Bracket Mounting Bracket (After Separation)
Remove (2) 1 1/2” Screws
2. The rear part of the mounting bracket can be saved for possible use
in the future. Only the front part is required for installation of the
TSW-550-BBI.
Wall Mount Back Box for TSW-550 Crestron TSW-550-BBI
4•Wall Mount Back Box for TSW-550: TSW-550-BBI Installation Guide – DOC. 7519A
3. Use the two #06-32 x 1/2” screws (2007241) that come with the
TSW-550-BBI to install the front part of the mounting bracket
assembly onto the back box. Refer to the following illustration.

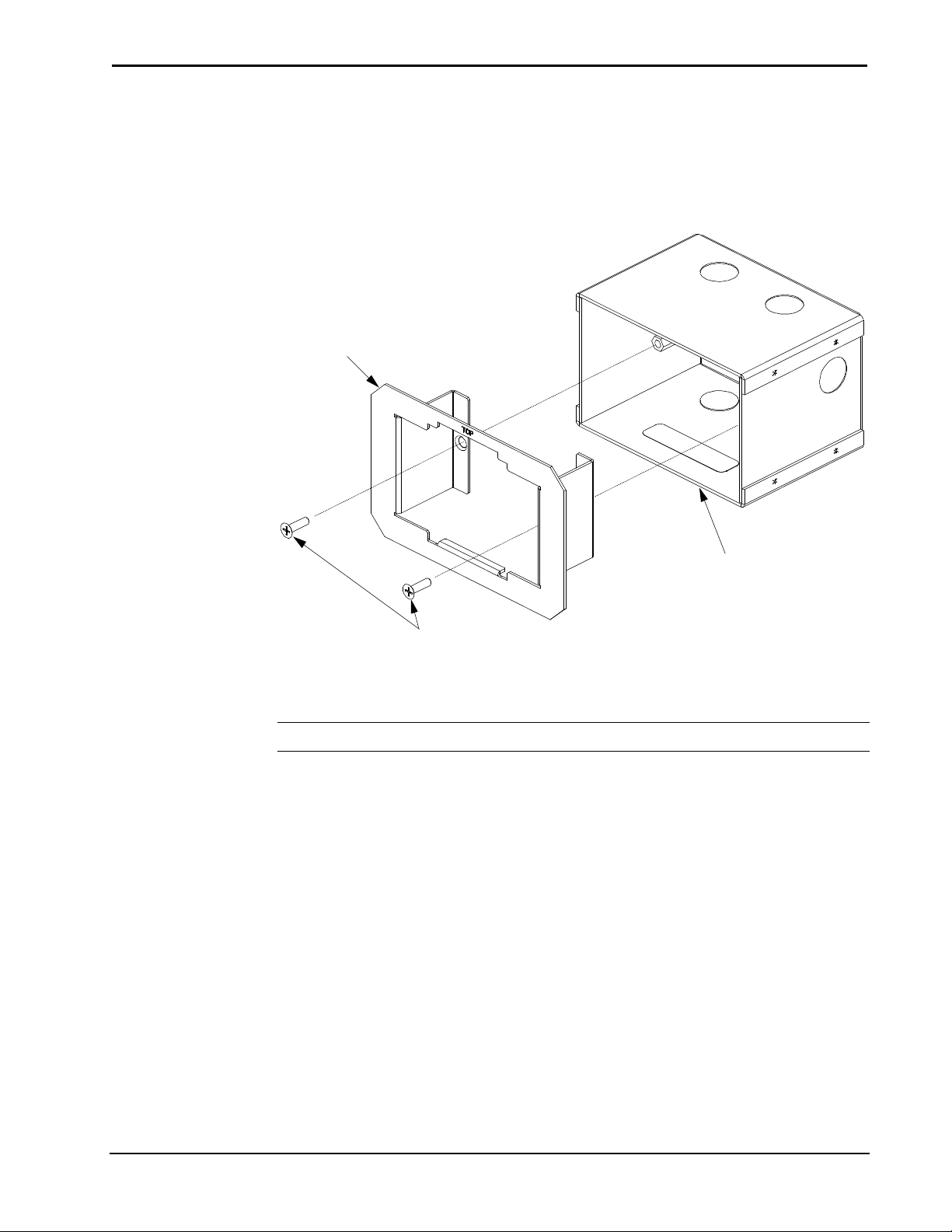

Install Mounting Bracket into TSW-550-BBI
Screws (2)
#06-32 x 1/2”
(2007241)
TSW-550-BBI
Metal Bracket
Included with
TSW-550
NOTE: Remove the appropriate knockouts before installation.
Crestron TSW-550-BBI Wall Mount Back Box for TSW-550
Installation Guide – DOC. 7519A Wall Mount Back Box for TSW-550: TSW-550-BBI •5
4. Make sure the “TOP” text on the inside of the back box is facing
upward. Mount the TSW-550-BBI as shown in the following
illustration. Depending on the installation, forced ventilation may
be required.

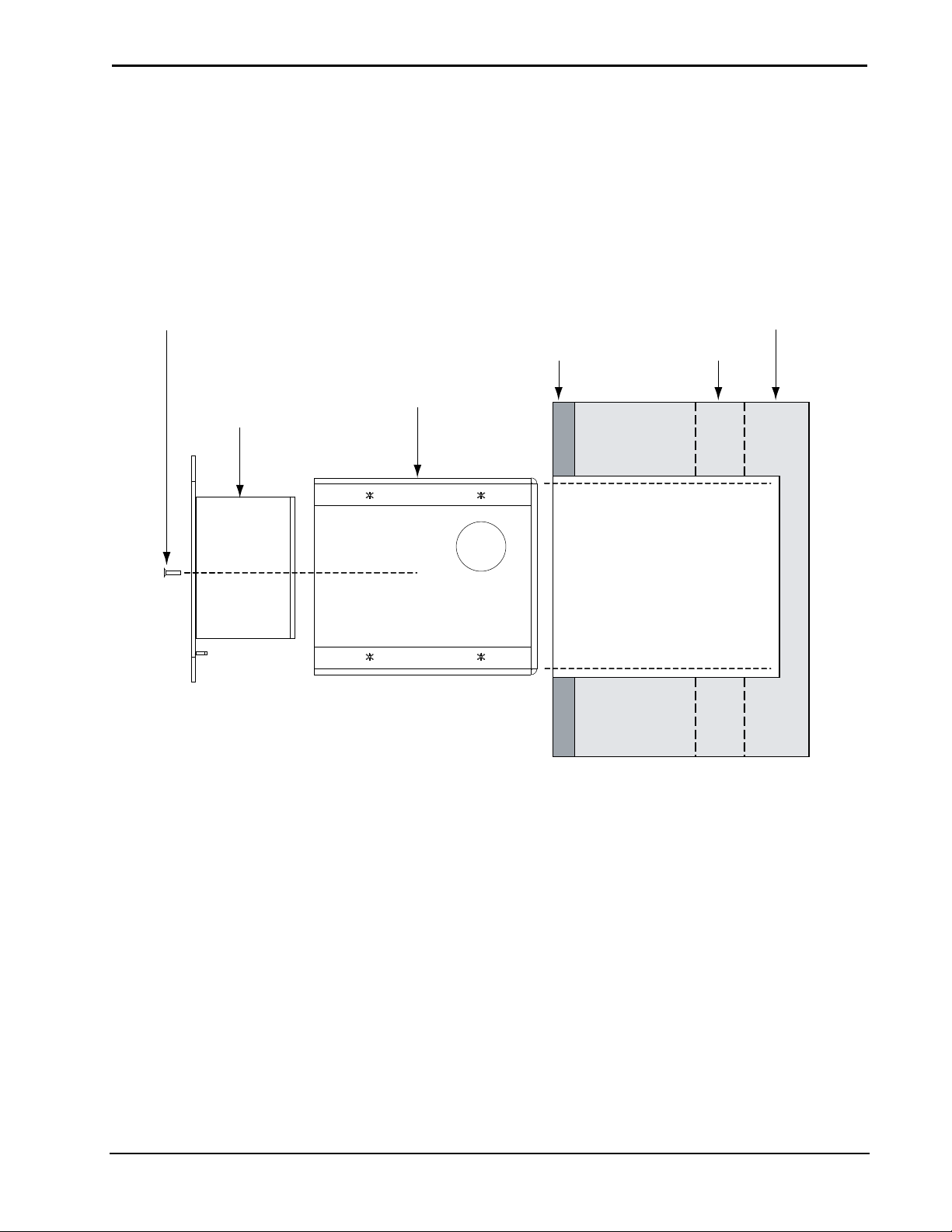

Mounting the TSW-550-BBI (Exploded View)
Solid Mounting
Surface Such As
Concrete or Masonry
Plaster
TSW-550-BBI
Metal Bracket
Included with
TSW-550
Screws (2)
#06-32 x 1/2”
(2007241)
Wiring
Cutout in
Mounting
Surface
Wall Mount Back Box for TSW-550 Crestron TSW-550-BBI
6•Wall Mount Back Box for TSW-550: TSW-550-BBI Installation Guide – DOC. 7519A
Resources
Further Inquiries
To locate specific information or resolve questions after reviewing this
guide, contact Crestron's True Blue Support at 1-888-CRESTRON
[1-888-273-7876] or refer to the listing of Crestron worldwide offices on
the Crestron Web site (www.crestron.com/offices) for assistance within a
particular geographic region.
To post a question about Crestron products, log onto the Online Help
section of the Crestron Web site (www.crestron.com/onlinehelp).
First-time users must establish a user account to fully benefit from all
available features.
Future Updates
As Crestron improves functions, adds new features and extends the
capabilities of the TSW-550-BBI, additional information may be made
available as manual updates. These updates are solely electronic and
serve as intermediary supplements prior to the release of a complete
technical documentation revision.
Check the Crestron Web site periodically for manual update availability
and its relevance. Updates are identified as an “Addendum” in the
Download column.
