Crestron C2N-IIF-SPMK
Intercom Interface Mounting Kit
Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2004 Crestron Electronics, Inc.
Crestron C2N-IIF-SPMK Intercom Interface Mounting Kit
Contents
Intercom Interface Mounting Kit: C2N-IIF-SPMK 1
Introduction......................................................................................1
Features and Functions ..........................................................1
Physical Description ..............................................................1
Assembly..........................................................................................4
Further Inquiries...............................................................................8
Future Updates .................................................................................8
Return and Warranty Policies ..........................................................9
Merchandise Returns / Repair Service ..................................9
CRESTRON Limited Warranty ............................................9
Installation Guide - DOC. 6265 Contents •i
Crestron C2N-IIF-SPMK Intercom Interface Mounting Kit
Intercom Interface Mounting Kit:
C2N-IIF-SPMK
Introduction
Features and Functions
The Crestron®Intercom Interface Mounting Kit (C2N-IIF-SPMK) is used
to install a C2N-IIF Intercom Interface into select door station products
from Holovision®. The kit includes a speaker, microphone, and mounting
hardware for attaching the C2N-IIF to door station plates from
Holovision (sold separately).
Functional Summary
• Complete kit includes mounting plate, speaker and microphone
assemblies, and mounting hardware
• Compatible with a variety of Holovision door station plates
Physical Description

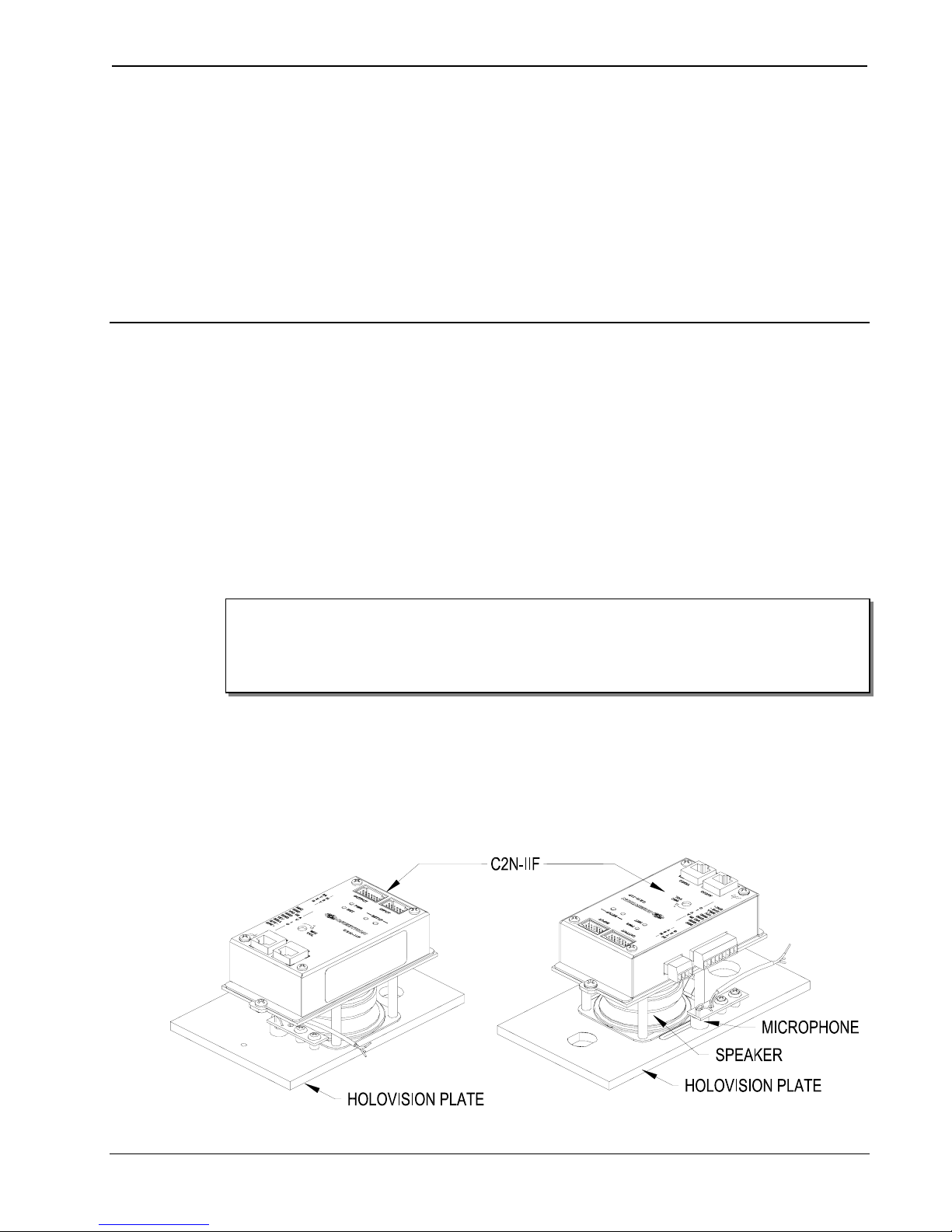

The C2N-IIF-SPMK can be used with Holovision’s gate entry boxes and
door station plates as shown in the following diagrams.
C2N-IIF Mounted on Gate Entry Plate(L) and on Door Station Plate (R)
Installation Guide - DOC. 6265 Intercom Interface Mounting Kit: C2N-IIF-SPMK •1
Intercom Interface Mounting Kit Crestron C2N-IIF-SPMK

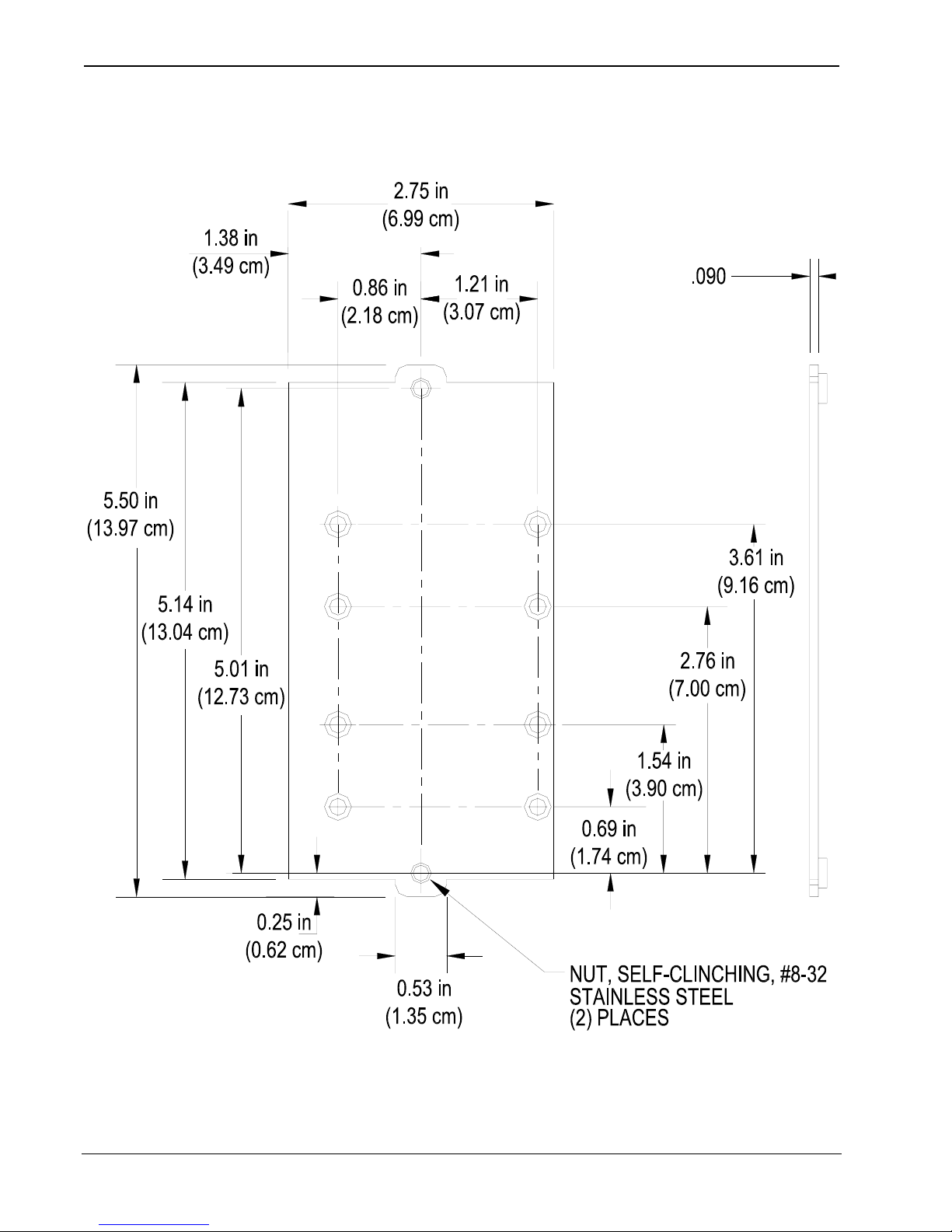

Dimensions for the C2N-IIF-SPMK are shown in the following diagram.
C2N-IIF-SPMK Physical Views
2 •Intercom Interface Mounting Kit: C2N-IIF-SPMK Installation Guide - DOC. 6265
Crestron C2N-IIF-SPMK Intercom Interface Mounting Kit
The C2N-IIF-SPMK includes all of the parts required for mounting a
C2N-IIF to a Holovision door station plate. The following table lists all
of the parts included with the C2N-IIF-SPMK.
Supplied Components
DESCRIPTION PART
NUMBER QUANTITY
Mounting Plate 2010173 1
Screw, 08-32, 1/4” L, pan phillips 2007264 2
Screw, 06-32, 1 3/4” L, flat phillips 2010428 4
Spacer, 06, 1 7/16” L, round, 1/4” OD 2010427 4
Speaker Assembly 4005371 1
Microphone Assembly 4005461 1
Screw, 04-40, 3/4” L, pan phillips 2007184 2
Spacer, 04, 3/8” L, round, 1/4” OD 2007088 2
Washer, flat 2007658 2
The C2N-IIF-SPMK is compatible with the following Holovision door
station models:
• Basic Model 100
• Camera Models 200 and 201
• Keyless Model 101
• Gate Entry Models: 300, 301, 302, and 303
NOTE: When ordering a Holovision plate, specify that the plate is to be
used with a Crestron C2N-IIF. Older Holovision plates may not have the
appropriate mounting provisions for the C2N-IIF-SPMK.
NOTE: If the C2N-IIF-SPMK is being used with a camera-capable door
station plate, the camera is not included with the C2N-II-SPMK.
NOTE: The C2N-IIF-SPMK cannot be used with Holovision plates that
use a camera hidden behind the speaker grate.
Installation Guide - DOC. 6265 Intercom Interface Mounting Kit: C2N-IIF-SPMK •3
Intercom Interface Mounting Kit Crestron C2N-IIF-SPMK
Assembly
Tools Required
• #2 Phillips tip screwdriver
• Tin Snips (for installation with a rough-in box)
Complete the following procedure in the order provided.
NOTE: When installing the C2N-IIF-SPMK with Holovision’s keypad-
equipped plates, refer to Diagram A. For all other compatible Holovision
plates, refer to Diagram B.
NOTE: Observe the orientation of all components in the assembly
diagrams to ensure proper fit.

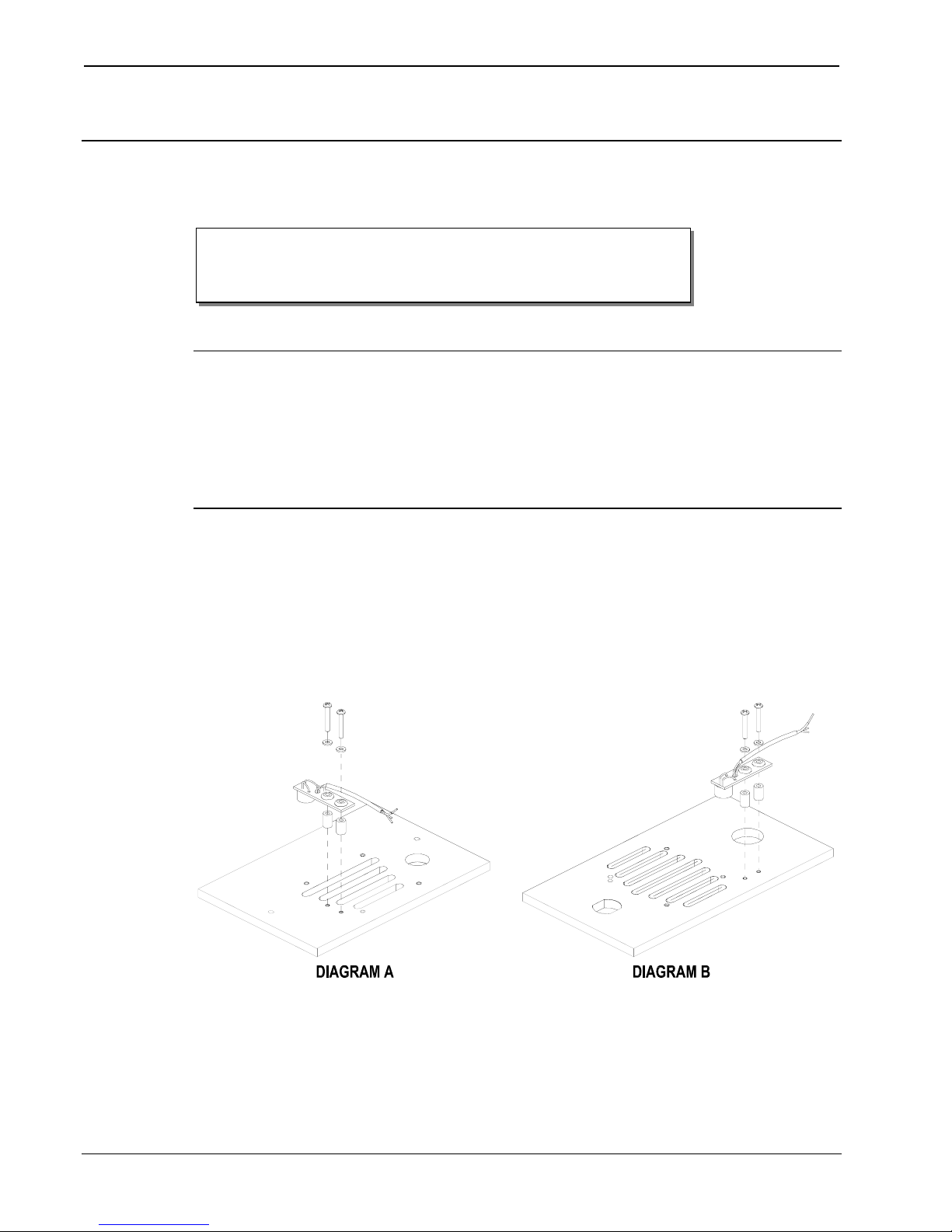

1. Using the supplied 3/4” screws, washers, and 3/8” spacers,
mount the microphone to the indicated location on the door
station plate as shown in the following diagram. Tighten the
screws ¾ turn after making contact with the washers. Do not
overtighten.
Securing the Microphone
4 •Intercom Interface Mounting Kit: C2N-IIF-SPMK Installation Guide - DOC. 6265
Crestron C2N-IIF-SPMK Intercom Interface Mounting Kit

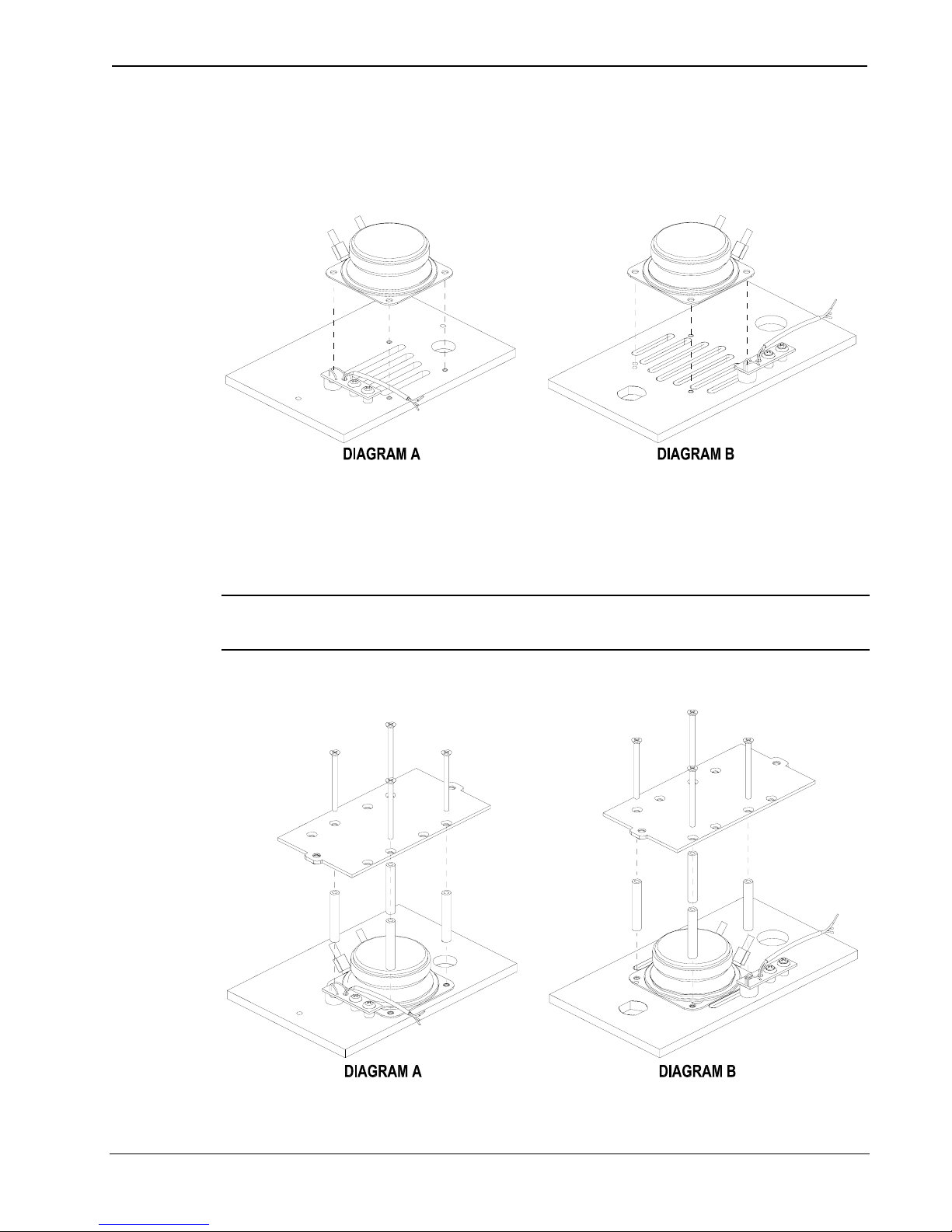

2. As shown in the following diagram, position the speaker over
the mounting holes in the door station plate.
Positioning the Speaker
3. Position the supplied 1 7/16” spacers over the speaker mounting
holes as shown in the following diagram. Using the supplied
1 3/4” screws, secure the door station plate, speaker, and
spacers to the appropriate holes on the mounting plate.
NOTE: Use a toothpick or small dowel to line up the parts during
assembly.
Securing the Mounting Plate
Installation Guide - DOC. 6265 Intercom Interface Mounting Kit: C2N-IIF-SPMK •5
Intercom Interface Mounting Kit Crestron C2N-IIF-SPMK
NOTE: The nuts that are built in to the mounting plate should face the
door station plate.
NOTE: Diagram A and Diagram B use different holes on the mounting
plate to mount to the door station plate.

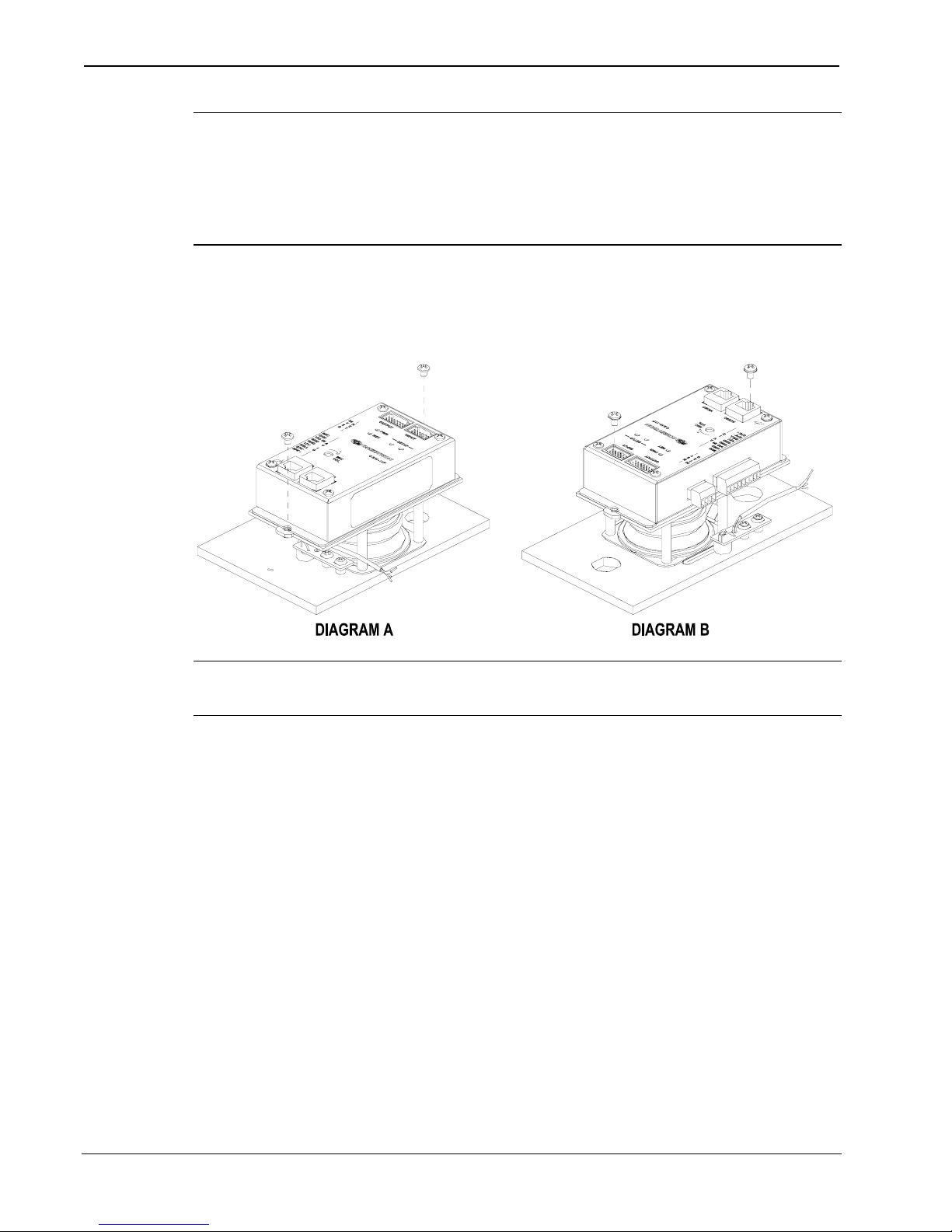

4. Using the supplied 1/4” screws, secure the C2N-IIF to the
mounting plate as shown in the following diagram.
Attaching the C2N-IIF to the Mounting Plate
NOTE: The C2N-IIF must be placed on the mounting plate with the
orientation shown in the diagrams.
6 •Intercom Interface Mounting Kit: C2N-IIF-SPMK Installation Guide - DOC. 6265
