Crestron DMF-CI-8 Manuel utilisateur

The Crestron® DMF-CI-8 provides a rack-mounted solution for extending

multiple 4K video signals over Gigabit Ethernet and fiber-optic cables.

In the Box

1 DMF-CI-8, DigitalMedia™ Chassis for DM NVX™ Series Cards

Additional Items

2 Bracket, Rack Ear, 2U (2045460)

4 Foot, 0.5 in. x 0.5 in. x 0.23 in., Adhesive (2002389)

1 Power Cord, 6 ft. 7 in. (2 m) (2001134)

4 Screw, 6-32 x 3/8 in., Undercut Head, Phillips (Rear Mounting)

(2007235)

Install the Device

The DMF-CI-8 can be mounted into a rack or placed onto a flat surface.

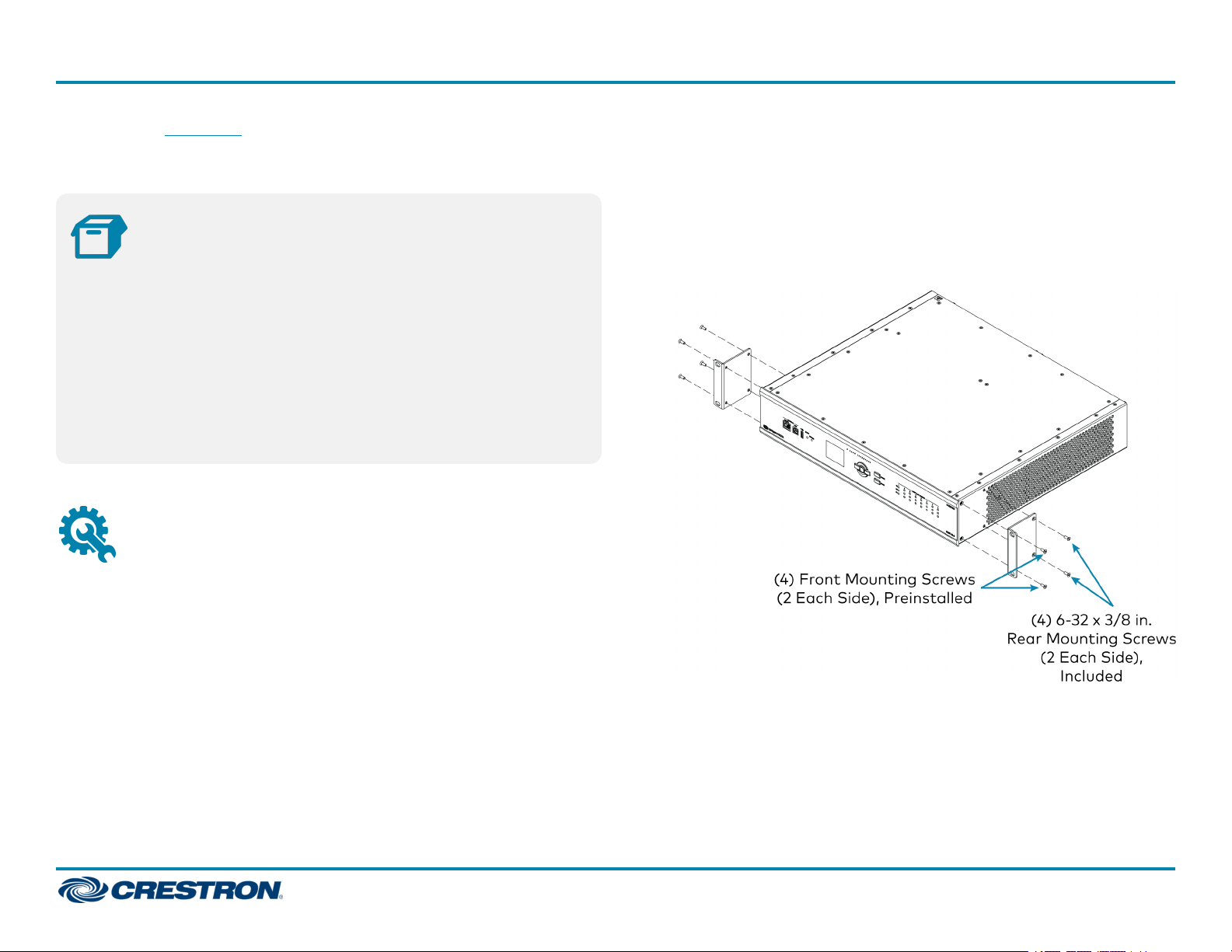

Mounting into a Rack

To mount the device into a rack:

1. Using a #1 or #2 Phillips screwdriver (not included), remove the two

front mounting screws from the left or right side of the device.

2. Align a rack ear with the front and rear mounting holes on the device.

3. Insert the two front mounting screws removed in step 1 through the

rack ear into the front mounting holes of the device.

4. Secure the rack ear by inserting two included 6-32 x 3/8 in. rear

mounting screws through the rack ear into the rear screw holes of the

device.

5. Repeat steps 1-4 to attach the remaining rack ear to the other side of

the device.

6. Mount the device into the rack using four mounting screws

(notincluded).

Mounting into a Rack

Placing onto a Flat Surface

When placing the device onto a flat surface or stacking it with other

equipment, attach the four included feet near the corners on the

underside of the device.

DMF-CI-8 Quick Start

Install and Connect the Cards

The DMF-CI-8 provides eight card slots that can be used to

accommodate DM NVX™ Series cards.

CAUTION: To prevent damage to a card that is connected to cables,

disconnect all cables from the card before installing the card into a

card slot or removing the card from a card slot.

NOTES:

lIn a new DMF-CI-8 installation, Crestron recommends that

cards be installed before applying power. In an existing

DMF-CI-8 installation, cards can be added or replaced without

the need to shut down the DMF-CI-8 (the cards are hot

swappable).

lWhen installing cards into a partially populated DMF-CI-8,

install the cards into slots 5-8 before using slots 1-4. Doing so

ensures better cooling and lower power consumption. In

addition, always cover empty slots using the filler plates

provided with the DMF-CI-8.

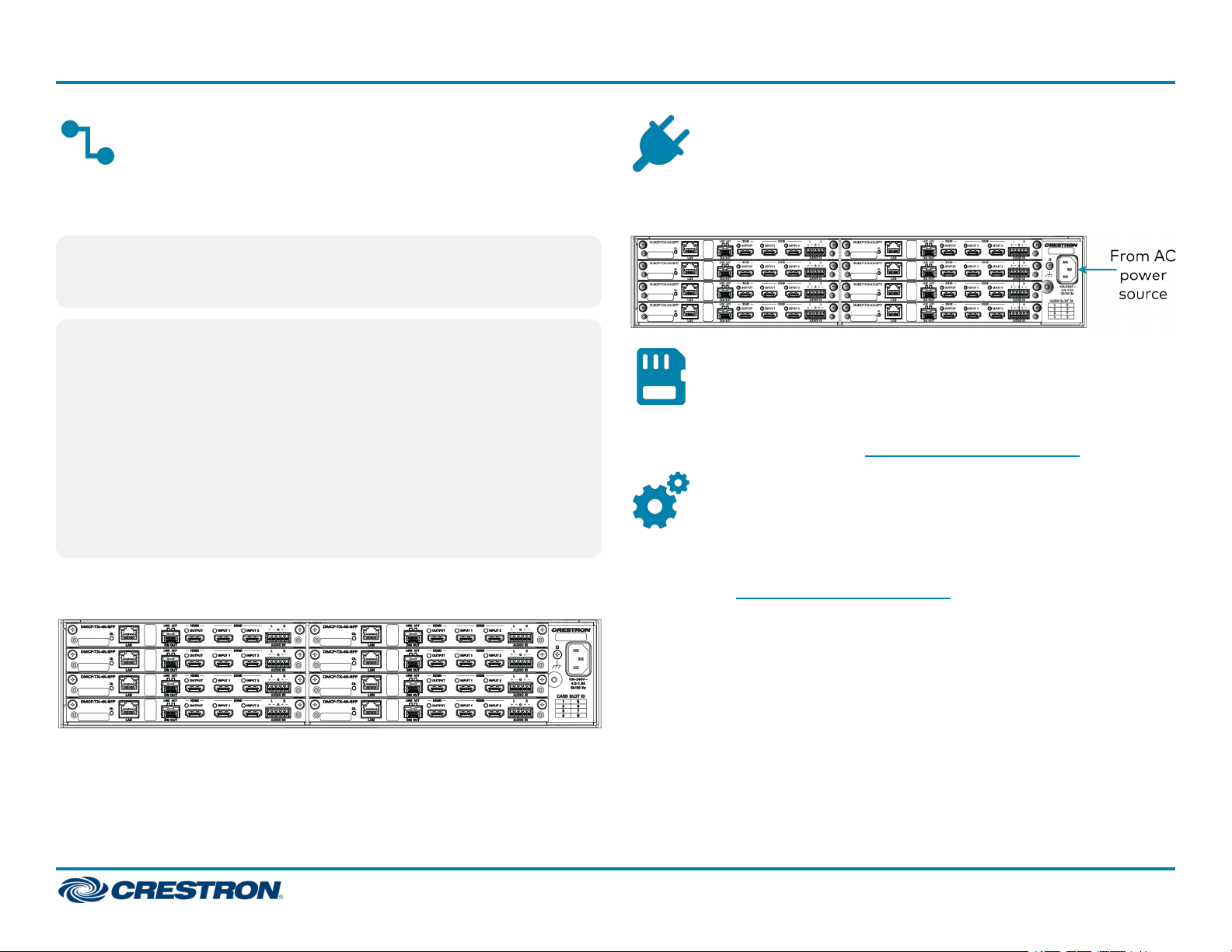

The illustration below provides a view of a fully occupied DMF-CI-8

containing eight cards.

Apply Power to the Device

To apply power to the DMF-CI-8, connect the included AC power cord to

the AC power inlet on the device and to an AC power outlet.

Configure the Cards

For configuration information, refer to the Web Interface Guide for the

corresponding DM NVX card at www.crestron.com/manuals.

Configure the Device

To configure the DMF-CI-8, use the menu on the front panel display.

For detailed information, refer to the DMF-CI-8 Supplemental Guide

(Doc. 7861) at www.crestron.com/manuals.

DMF-CI-8 Quick Start

Visit the Product Page

Scan the QR code to visit the product page.

www.crestron.com/model/6507968

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, DigitalMedia, and DM NVX are either trademarks or

registered trademarks of Crestron Electronics, Inc. in the United States and/or other

countries. Other trademarks, registered trademarks, and trade names may be used in

this document to refer to either the entities claiming the marks and names or their

products. Crestron disclaims any proprietary interest in the marks and names of

others. Crestron is not responsible for errors in typography or photography.

Doc ID 7860D

(2054879)

01/17/20

DMF-CI-8 Quick Start
