Creality Sprite Extruder Pro Kit Manuel utilisateur

V1.0

Sprite Extruder Pro Kit User Manual

Sprite Extruder Pro Kit 使用手册

深圳市创想三维科技股份有限公司

Parts List 零件清单

Sprite Extruder Pro (including adapter board)

Sprite Extruder Pro (包括转接板）

Mounting Backplate Kit

安装背板套件

Flat Cable (1.3m)

排线 (1.3m)

M3×6 Hexagon Round Head Screw *5

M3×6内六角圆柱头螺丝*5

Copper Alloy Nozzle (0.4mm)

铜合金喷嘴 (0.4mm)

FAN+

HEAT1

CR-Touch

K-FAN

FAN-

Installation instructions 安装步骤

1. Remove the original hotend kit, and install mounting backplane kit on X-axis proﬁle.

拆掉机器原有喷头后，将安装背板套件安装在X轴型材上。

X-axis

X轴

Mounting Backplate Kit

安装背板套件

2. Select a appropriate slot on the mounting backplane according to

timing belt length. Adjust the eccentric nut so that mounting

backplane kit slides freely on the X-axis proﬁle without shaking.

根据同步带长度，在安装背板上选择合适的卡位，调节偏心螺母，使安装背

板套件在 X 轴型材上不晃动且自由滑动。

3. Fix Sprite Extruder Pro on mounting backplane with 4pcs M3×6

hexagon round head screws.

将 Sprite Extruder Pro 通过 4 颗 M3×6 内六角圆柱头螺丝螺丝固定在安

装背板上。

4. Connect terminal to corresponding interface on motherboard

according to the cable label(Terminals without labels are redundant

and do not need to be connected to motherboard. Please disconnect

printer power when wiring). Then connect the other end of the cable

to Sprite Extruder Pro.

按排线线标将对应端子接在主板相应位置（无线标的端子为冗余，无需接在

主板上，接线时请断开机器电源）。然后再将排线另一端连接到 Sprite

Extruder Pro。

E-motor/E电机

Hotend Therminstor

喷头热敏电阻

Hotend Therminstor

喷头热敏电阻

Non-control Fan

不可控风扇

Non-control Fan

不可控风扇

Control Fan/可控风扇

Control Fan

可控风扇

Heating Tube

加热管

Heating Tube

加热管

HEAT+

HEAT-

FAN+

FAN-

FAN+

HEAT+

HEAT-

CR-Touch

K-FAN

FAN-

CR-Touch

自动调平套件

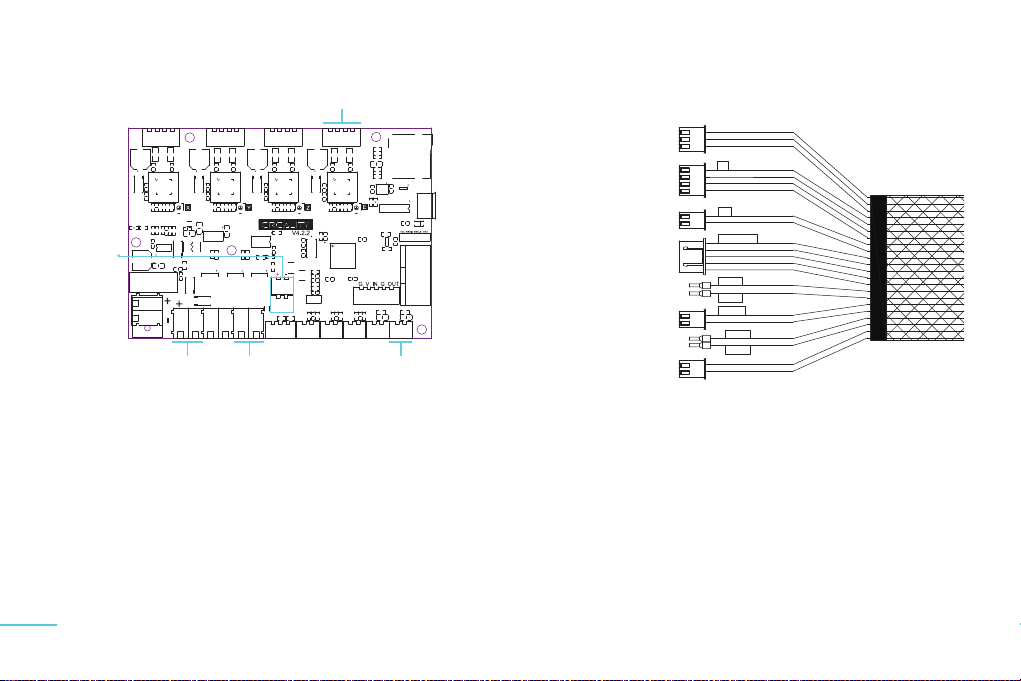

Motherboard Wiring Diagram 主板接线示意图

5. Adjust the printer’s Esteps value to 424.9 (the value is for

reference only and can be ﬁne-tuned according to the actual printing

situation), and then click "Store Settings".

将机器 Esteps 数值调节到 424.9（参考数值，可根据实际打印情况微调此

值），然后点击“存储设置”。

If the printer does not support adjusting the Esteps value to 424.9,

you can make it with the following 4 steps.

1.Create a new text ﬁle (txt) and type "M92 E424.9" in the text.

2.Press “Enter” to continue typing "M500".

3.Save the ﬁle as the gcode format, and copy it into TF card.

4.Insert the TF card into the printer and click to print this ﬁle. At

this time, the printer’s Esteps value has been adjusted to 424.9.

若机器不支持将 Esteps 数值调节到 424.9，可通过以下四步调节：

1. 新建一文本文档（txt），键入“M92 E424.9”；

2. 回车继续键入“M500”；

3. 将文件另存为 gcode 格式，拷入 TF 卡；

4. 插入机器点击打印此文件，此时机器 Esteps 数值已调节为 424.9。

1. After installation, you need to level printing platform again.

2. The side adjusting screw on the Sprite Extruder Pro can adjust the

clamping degree between extrusion gear and ﬁlament. Clockwise is for

tightening and anticlockwise is for loosening.

3. The withdrawal distance must be less than 3mm.

1. 安装完成后，需对打印平台重新进行调平。

2. 可通过调节 Sprite Extruder Pro 侧面调节螺丝，调节挤出齿轮与耗材夹紧程度，

顺时针调紧，反之调松。

3. 回抽距离需小于 3mm。

The speciﬁc values of printing parameters need to be adjusted according to ﬁlaments of diﬀerent manufacturers.

Retraction speed: 35-45 mm/s

Retraction distance (direct drive) for rigid materials (PLA): 0.8 mm

Retraction distance (direct drive) for soft materials (TPU-95): 2 mm

Sprite Extruder Pro Kit Material Guide

CR-PLA

CR-TPU

HP-TPU

0.8mm

2mm

40mm/s

60℃

200℃

230℃

210℃

50mm/s

Material Printing with

enclosure

recommended

Dry box

recommended Retraction

distance Retraction

speed

Heatbed

temperature

(+- 5°C)

Recommended

printing speed

Nozzle

temperature

(+- 5°C)

Caution: ① All wires must not be clamped during machine assembly;

② For parameter conﬁguration and more advanced conﬁgurations,

please refer to the oﬃcial website: www.creality.com

具体打印参数需要根据不同耗材生产商做调整。

回抽速度：

硬质耗材（PLA）回抽距离(近端挤出): 0.8mm

软质耗材（TPU-95）回抽距离(近端挤出): 2mm

Sprite Extruder Pro Kit 耗材指引

CR-PLA

CR-TPU

HP-TPU

0.8mm

2mm

40mm/s

60℃

200℃

230℃

210℃

50mm/s

耗材使用

保温罩使用

耗材干燥盒回抽距离回抽速度热床温度

(+- 5°C) 推荐打印速度

喷嘴温度

(+- 5°C)

提示: ① 安装过程中，所有线不能缠绕。

② 更多参数和高级设置，请参考官网: www.creality.com

If 3D printer restarts during hotend heating up,

please reverse the heating tube connectors on mainboard.

若打印模型加热喷头时，3D打印机出现重启现象，将加热管主板端

接头位置对调。

Leveling Tip 调平指引

× ×

This paper can be used for manual leveling or auxiliary leveling. thickness 0.1mm.

本页纸可用于手动调平或备用，厚度0.1mm。

0.1mm

Due to the diﬀerences between models, product images and description only for reference purpose, please see the

subject produce. The ﬁnal explanation rights shall be reserved by ShenZhen Creality 3D Technogy Co., Ltd.

因每款机型不同，实物与图可能有所差异，请以实物为准，最终解释权归深圳市创想三维科技股份有限公司所有。
