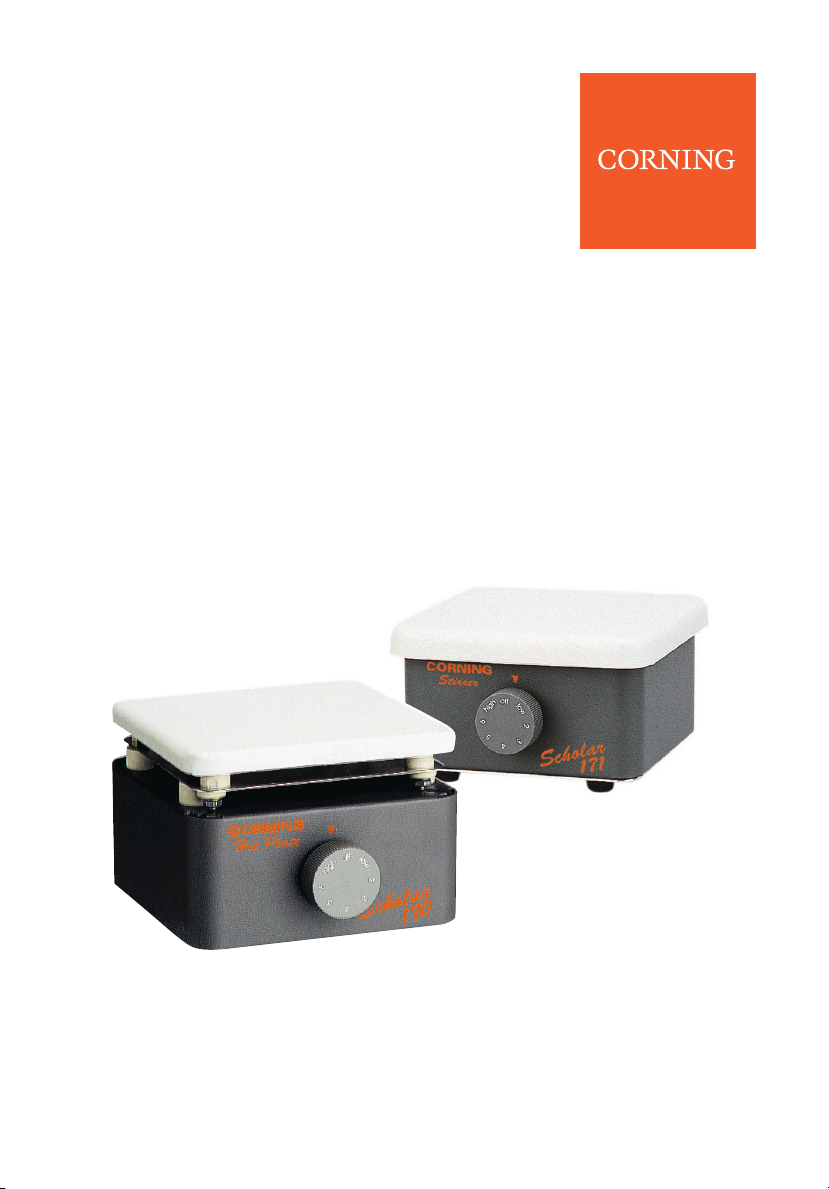

CORNING PC-170 Manuel utilisateur

Corning®Scholar

PC-170 Hot Plates

and PC-171 Stirrer

Instruction Manual

Catalog Numbers:

Hot Plates: Model No. PC-170

6795-170, 120V

6797-170, 100V

Stirrer: Model No. PC-171

6795-171, 120V

This manual is available in additional languages at www.corning.com/lifesciences.

2CORNING SCHOLAR 170 HOT PLATE AND SCHOLAR 171 STIRRER

Table of Contents

1.0 International Symbols .........................................................................................3

2.0 Product Description..............................................................................................3

3.0 Operating Conditions...........................................................................................3

4.0 Warnings.................................................................................................................4

5.0 Heating Operation and Controls.......................................................................4

6.0 Stirring Operation and Controls........................................................................4

7.0 Inspection Procedure ...........................................................................................5

8.0 Preventive Maintenance .....................................................................................5

 9.0 TechnicalSpecications.......................................................................................5

10.0 Technical Support/Service ..................................................................................5

11.0 Limited Warranty ..................................................................................................6

12.0 Equipment Disposal .............................................................................................7

Instruction Manual 3

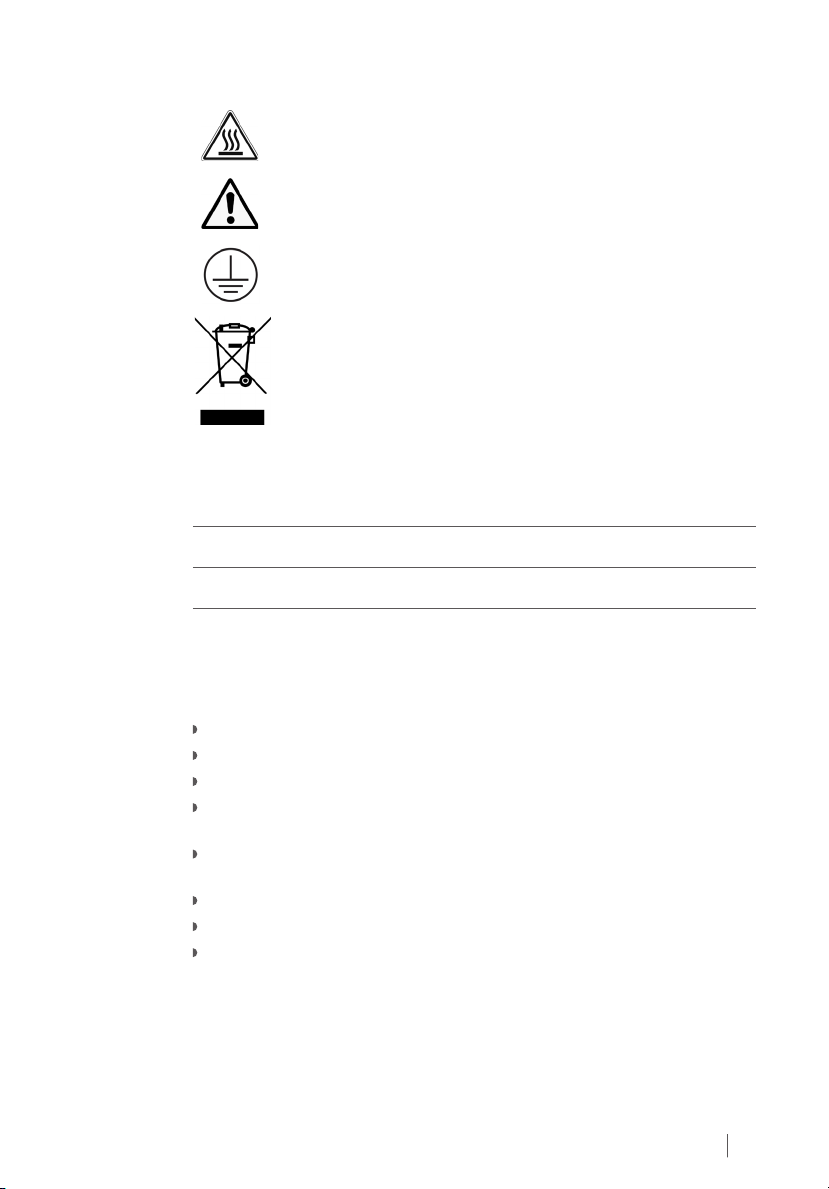

1.0 International Symbols

Hot surface indicator, surfaces on this unit may be hot

to the touch.

This unit may cause the emission of toxic gasses due to heating

of certain materials.

Protective earth; protective ground.

Indicates disposal instruction. DO NOT throw this unit into

a municipal trash bin when this unit has reached the end of

its lifetime. To protect the global environment and minimize

pollution, please recycle this unit.

2.0 Product Description

Model Top Style Top Size (H x W x D) Dimensions (H x W x D)

Corning® Scholar

PC-170 Hot Plate Enameled 5 x 5 in.

(12.7 x 12.7 cm) 4 x 5 x 5 in.

(10.2 x 12.7 x 12.7 cm)

Corning Scholar

PC-171 Stirrer Plastic 5 x 5 in.

(12.7 x 12.7 cm) 3.2 x 5 x 5 in.

(8.1 x 12.7 x 12.7 cm)

3.0 Operating Conditions

The Corning Scholar Hot Plates and Stirrer are designed to be safe when

used under the following conditions:

Indoor use

Altitude up to 2,000 meters

Temperature of 0°C to 40°C

Maximum relative humidity of 80% for temperatures up to 31°C decreasing

linearly to 50% relative humidity at 40°C.

Position at least 12” from walls, 48”from ceiling, and 12” between hot plates

if using multiple units.

 Mainsupplyvoltageuctuationsnottoexceed±10%ofthenominalvoltage.

Installation Category II

Pollution Degree 2

4CORNING SCHOLAR 170 HOT PLATE AND SCHOLAR 171 STIRRER

4.0 Warnings

Do not immerse unit for cleaning.

Do not remove or modify ground power plug. Use only properly grounded

outlets to avoid shock hazard.

Do not use insulating materials, such as a sand bath, on top of this product

when heating.

Use caution when heating volatile materials, top surface and element can

reach the “Flash Point” temperature of many chemicals.

Not explosion-proof or spark-proof.

Use appropriate hand and eye protection when handling hazardous chemicals.

Do not modify the unit electrically or mechanically without Corning’s

written approval as personal injury or product damage may occur.

5.0 Heating Operation and Controls

To operate the unit, turn the dial until the dial indicator lines up with the

desired dial setting. The Corning® Scholar PC-170 Hot Plate will not heat

when the dial setting is turned to the “OFF” position. The following table

details approximate temperatures for various dial settings.

Dial

Setting Approx. Temp. (°C)

Low 60

2 100

3 140

4 160

5 200

6 230

High 360

NOTE: Temperatures shown are approximate “no load” values. Variables

affecting actual temperature may include environment conditions, dial setting

position, and top loading.

6.0 Stirring Operation and Controls

To operate the unit, turn the dial until the dial indicator lines up with the

desired dial setting. The stir range is 100 to 1,600 rpm. The Corning Scholar

PC-171 Stirrer will not stir when the dial setting is turned to the “OFF”position.

Instruction Manual 5

7.0 Inspection Procedure

Look for etching or chipping on the top plate. If any of these conditions are

present, discontinue use and contact Corning for additional instructions.

Check if the power cord is damaged. If the cord is damaged, do not

modify the grounded power plug to avoid shock hazard or any other unit

component.Serviceshouldalwaysbedonebyqualiedtechniciansusing

Corning instructions. Contact Corning for additional instructions.

8.0 Preventive Maintenance

Disconnect power by unplugging the unit before performing any

maintenance or service.

Always use a grounded power outlet.

Keep the top surface clean and dry. Unplug the unit and use non-abrasive

cleaner. Contact Corning if you have any questions about the compatibility

of decontamination or cleaning agents.

Clean spills promptly. If liquid or solid material gets inside the product,

immediately disconnect power to the product, use non-abrasive cleaner,

and discontinue use. Contact Corning for additional instructions regarding

interior spills.

9.0TechnicalSpecications

Cat. No. Model Power Temp. Range Stir Range (rpm)

6795-170 PC-170 Hot Plate 120V, 50-60Hz,

250W, 2.1A 60°C to 360°C N/A

6797-170 PC-170 Hot Plate 100V, 50-60Hz,

250W, 2.5A 60°C to 360°C N/A

6795-171 PC-171 Stirrer 120V, 50-60Hz,

30W, 0.25A N/A 100 to 1,600

10.0 Technical Support/Service

If you have a question or a service inquiry about the Corning® Scholar

PC-170 Hot Plates or PC-171 Stirrer, contact Corning Customer Service

immediately at 1.800.492.1110 (United States and Canada), 1.978.442.2200

(outsidetheUnitedStates),orContactyourlocalCorningsalesofce.

Before returning any unit for service, a Return Authorization (RA) number

mustrstbeobtained.Equipmentsentinwithoutourpriorauthorization

will be returned at the customer’s expense. When returning a unit to

Corning for service, it should be sent in the original packaging. If this is not

possible,besurethattheunitissufcientlypacked.Anydamageresulting

from improper packaging is the responsibility of the customer. A written

explanation should accompany the unit along with the RA number.

6CORNING SCHOLAR 170 HOT PLATE AND SCHOLAR 171 STIRRER

11.0 Limited Warranty

Corning Incorporated (Corning) warrants that this product will be free

from defects in material and workmanship for a period of two (2) years

from date of purchase. CORNING DISCLAIMS ALL OTHER WARRANTIES

WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES

OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. Corning’s

sole obligation shall be to repair or replace, at its option, any product or

part thereof that proves defective in material or workmanship within

thewarrantyperiod,providedthepurchasernotiesCorningofanysuch

defect. Corning is not liable for any incidental or consequential damages,

commercial loss, or any other damages from the use of this product.

This warranty is valid only if the product is used for its intended purpose

andwithintheguidelinesspeciedinthesuppliedinstructionmanual.

This warranty does not cover damage caused by accident, neglect, misuse,

improper service, natural forces, or other causes not arising from defects

in original material or workmanship. This warranty does not cover motor

brushes,fuses,lightbulbs,batteries,ordamagetopaintornish.Claimsfor

transitdamageshouldbeledwiththetransportationcarrier.

Intheeventthisproductfailswithinthespeciedperiodoftimebecauseof

a defect in material or workmanship, contact Corning Customer Service at:

USA/Canada 1.800.492.1110, outside the U.S. +1.978.442.2200, visit

www.corning.com/lifesciences,orcontactyourlocalsupportofce.

Corning Customer Service will help arrange local service where available

or coordinate a return authorization number and shipping instructions.

Products received without proper authorization will be returned. All items

returned for service should be sent postage prepaid in the original packaging

or other suitable carton, padded to avoid damage. Corning will not be

responsible for damage incurred by improper packaging. Corning may elect

for onsite service for larger equipment.

Some states do not allow limitation on the length of implied warranties

or the exclusion or limitation of incidental or consequential damages.

Thiswarrantygivesyouspeciclegalrights.Youmayhaveotherrights

which vary from state to state.

No individual may accept for, or on behalf of Corning, any other obligation

of liability, or extend the period of this warranty.

For your reference, make a note of the model number, serial number, date

of purchase, and supplier here.

Model No. ________________________ Date Purchased _________________________

Serial No. _________________________ Supplier_______________________________

Instruction Manual 7

12.0 Equipment Disposal

According to Directive 2012/19/EU of the European Parliament and Council

of 4th July 2012 on waste and electronic equipment (WEEE) as amended,

the Corning® Scholar PC-170 Hot Plates and Corning Scholar PC-171 Stirrer

are marked with the crossed-out wheeled bin and must not be disposed

of with domestic waste.

Consequently, the buyer shall follow the instructions for reuse and recycling

of waste electronic and electrical equipment (WEEE) provided with the

products and available at the following link: www.corning.com/weee.

For a listing of trademarks, visit www.corning.com/clstrademarks. All other trademarks are the property of their respective owners.

For additional product or technical information, visit www.corning.com/lifesciences or

call 800.492.1110. Outside the United States, call +1.978.442.2200 or contact your local

Corningsalesofce.
