CORNING LSE 6709 Manuel utilisateur

Corning®LSE™

Digital Vortexer

Instruction Manual

Catalog Numbers:

6709, 120V

6710, 230V

Table of Contents

1.0 Overview ...................................................................... 1

2.0 Safety Precautions.............................................................. 1

3.0 Technical Specifications......................................................... 1

4.0 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

4.1 Unpacking ..................................................................2

4.2 Selecting the Location.......................................................3

4.3 Attaching the Power Cord ...................................................3

4.4 Installing Vortexer Platforms ................................................3

5.0 Operating Instructions..........................................................4

5.1 Controls.....................................................................4

5.2 Basic Operation .............................................................5

5.3 Additional Operations .......................................................7

6.0 Troubleshooting................................................................8

7.0 Maintenance and Cleaning .....................................................8

8.0 Limited Warranty...............................................................8

9.0 Equipment Disposal ............................................................9

Instruction Manual

1.0 Overview

The Corning® LSE™ Digital Vortexer is intended for vortexing microliter plates, tubes, bottles,

flasks, dishes, and other laboratory vessels. The vortexer is driven by asynchronous motors,

which enable silent operation and constant shaking speed, independent of the load or power

supply fluctuations.

Each vorexer consists of two main components:

Motor with eccentric mechanism

Control electronics

The motor drives the vortexer’s eccentric mechanics and generates the shaking effect. The

electronics control the motor RPM, Time, and keyboard functions.

2.0 Safety Precautions

Always plug the unit into a properly grounded and fused outlet.

Do not use the device near water sources. Take care so that water will not fall on the

device, especially during cleaning procedures.

Do not use the device in a caustic or explosive atmosphere.

There are no user serviceable parts in the unit. Opening the unit may void the warranty.

Incase of a malfunction or liquid being spilled into the unit, unplug the device from its

power outlet and contact Corning Customer Service.

NOTE: In the case that the device does not function properly even if you have

exactly followed the instructions described in this manual, contact Corning

Customer Service. If the equipment is used in a manner not specified by this

manual, the equipment may become unsafe to operate, could harm the user or the

device, and may void the warranty.

Do not shake inflammable or explosive samples or use the unit in an inflammable or

explosive environment.

3.0 Technical Specications

The vortexer housing is made from a high-grade, cold rolled steel plate and painted with a

highly resistant polyurethane lacquer.

Electrical

120V

230V

120V ± 10%, 50/60Hz

230V ± 10%, 50/60Hz

Motor Power 15W

Fuse

120V

230V

2 x 1AT, 120V

2 x 0.25AT, 230V

Ambient Operation Range 5°C to 40°C, up to 85% RH, non-condensing

2CORNING LSE DIGITAL VORTEXER

RPM (Digital Load Independent) 100 to 1,200 rpm in 10 rpm intervals

Motion/Orbit Size Circular, 3 mm

Timer 30 sec. to 99 min. 50 sec. in 10-second steps (under 10 min.

in 1-second steps), timer HOLD function

Maximum Load 4.4 lbs. (2 kg)

Dimensions (W x L x H) 10.3 x 13.3 x 5.1 in. (26.2 x 33.7 x 13 cm)

Weight 16 lbs. (7.3 kg)

NOTE: The supply cord shall be with PE conductor and cross section at least 3 x 1.00 mm2or

3x AWG 18 (USA/CANADA).

The unit can be connected to external installation with overcurrent protective device max.

value 16A or 20A (USA/CANADA). This device is intended for use in a basic electromagnetic

environment (Basic, class B), and it is in compliance with IEC 61326-1:2020. The device may

experience a restart during overvoltage events (surges) or voltage interruptions in mains

power supply.

The Corning® LSE™ Digital Vortexer is designed to be safe at least when operated under the

following conditions:

Indoor use

Altitude up to 2,000 meters

Pollution Degree 2

4.0 Installation

4.1 Unpacking

Before starting installation, carefully examine the vortexer for damage or missing parts.

Open the box and lift the device together with the inner packing out of the box.

Remove the inner packing and check that the vortexer has not been visibly damaged during

transportation. Keep the packing material until you are sure that the vortexer works properly.

Check information on the rear data label and verify the following are correct:

• Model

• Serial number

• Electrical rating

Should any kind of damage have occurred during transportation, contact the carrier

immediately. The carrier is responsible for shipping damage.

Instruction Manual

4.2 Selecting the Location

Put the device on a horizontal, leveled, and stable surface.

Leave enough space around the device for normal air circulation (4 in./10 cm minimum).

Leave enough space around the device for easy access and maintenance.

Do not use the device in surroundings where there are major temperature and humidity

fluctuations. Also avoid locations in direct sunlight or places near devices that produce heat.

Avoid locations with excessive vibrations.

4.3 Attaching the Power Cord

Fit the main power cord, which is included in the package, into the power receptacle on the

vortexer. Connect the other end of the cord to a properly grounded wall outlet. To avoid

interference from noise, surges, and spikes, a dedicated line is preferred. If no such line is

available, avoid lines to which powerful electric motors, refrigerators, and similar devices are

connected.

Be careful when you plug the cord to a grounded wall socket. Do not touch plug

with wet hands. Do not pull the plug by the cord.

4.4 Installing Vortexer Platforms

Cat. No. Description

48010 Platform for 4 microplates

48011 Platform with non-slip rubber mat

48012 Spring loaded platform for flasks, bottles, or tube racks

The Corning® LSE Digital Vortexer requires the installation of the selected platform. Please

follow the instructions below for installing the platform.

Grease

Sliding Stabilizers

0.7 mm

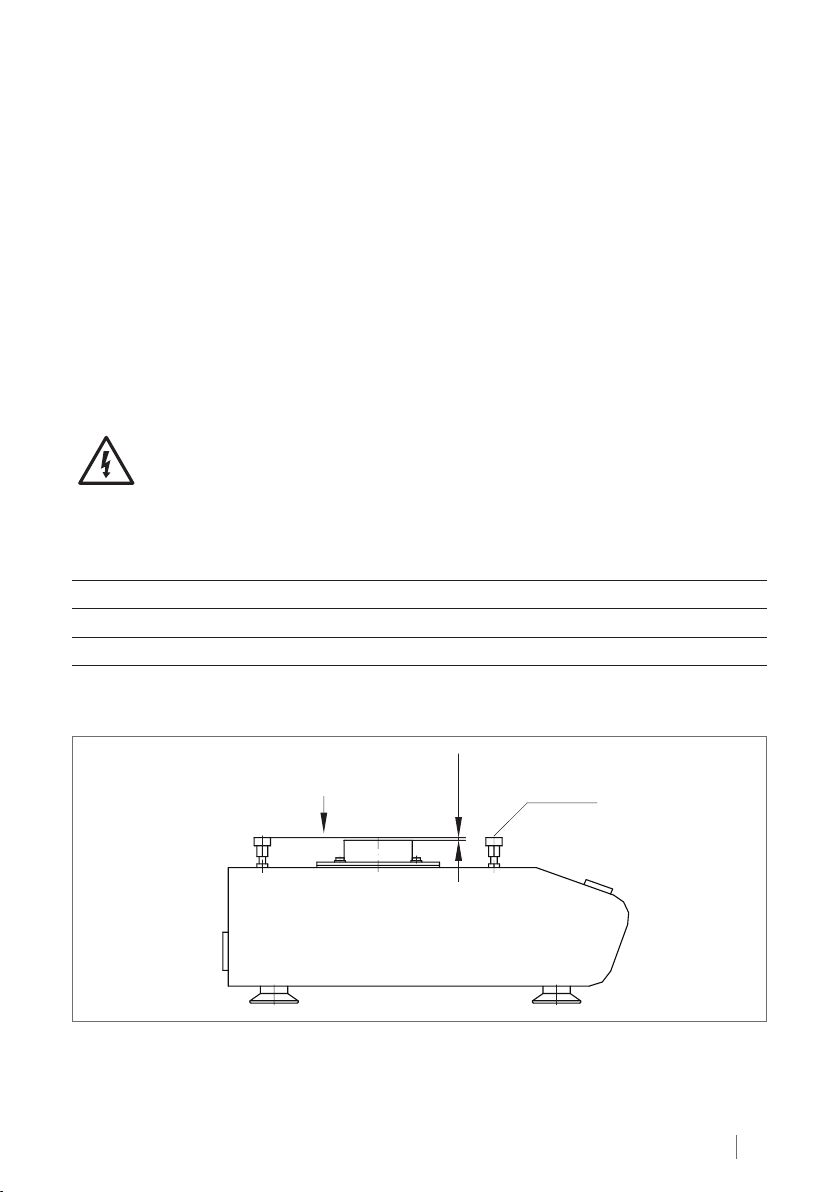

Before you attach the platform, make sure that the slide stabilizers are properly fastened,

adjusted, and lubricated with the included grease.

4CORNING LSE DIGITAL VORTEXER

The flat mat platform has a circle cut-out in the rubber and screw holes in the center. Remove the

cut-out rubber circle and screw down the 4 screws onto the vortexer. After attaching the platform,

remove the non-adhesive backing paper on the rubber circle, and paste it back into place.

The grease is used to lubricate the slide stabilizers. It is sufficient for 1,000 working hours

(approx. 1 year). After that time you should remove the platform and clean, adjust, and

re-grease the slide stabilizers. If they are worn out, you should replace them with new

stabilizers and set to appropriate height.

5.0 Operating Instructions

5.1 Controls

Power

Run Time Speed

Start

Stop

PUSH

(Time/Speed)

ENCODER

1 2 3 4 5 6

Speed(RPMx10) Time (min)

1. POWER switch: Turns the vortexer ON (power switch illuminates) or OFF.

2. RUN green light: Illuminates when the vortexer is running.

3. TIME yellow light: Illuminates when the vortexer is set on Time.

4. SPEED/RPM yellow light: Illuminates when the vortexer is set on RPM.

5. ENCODER: By rotating the encoder knob right (+) or left (-) you can change the set Time or

RPM. Push the encoder knob to switch between Time and RPM set values. If you rotate the

encoder knob fast, the values go up or down on the display very quickly.

6. START/STOP button: Start or Stop operation.

Instruction Manual

5.2 Basic Operation

Speed(RPMx10) Time (min)

Power

Run Time Speed

Start

Stop

PUSH

(Time/Speed)

ENCODER

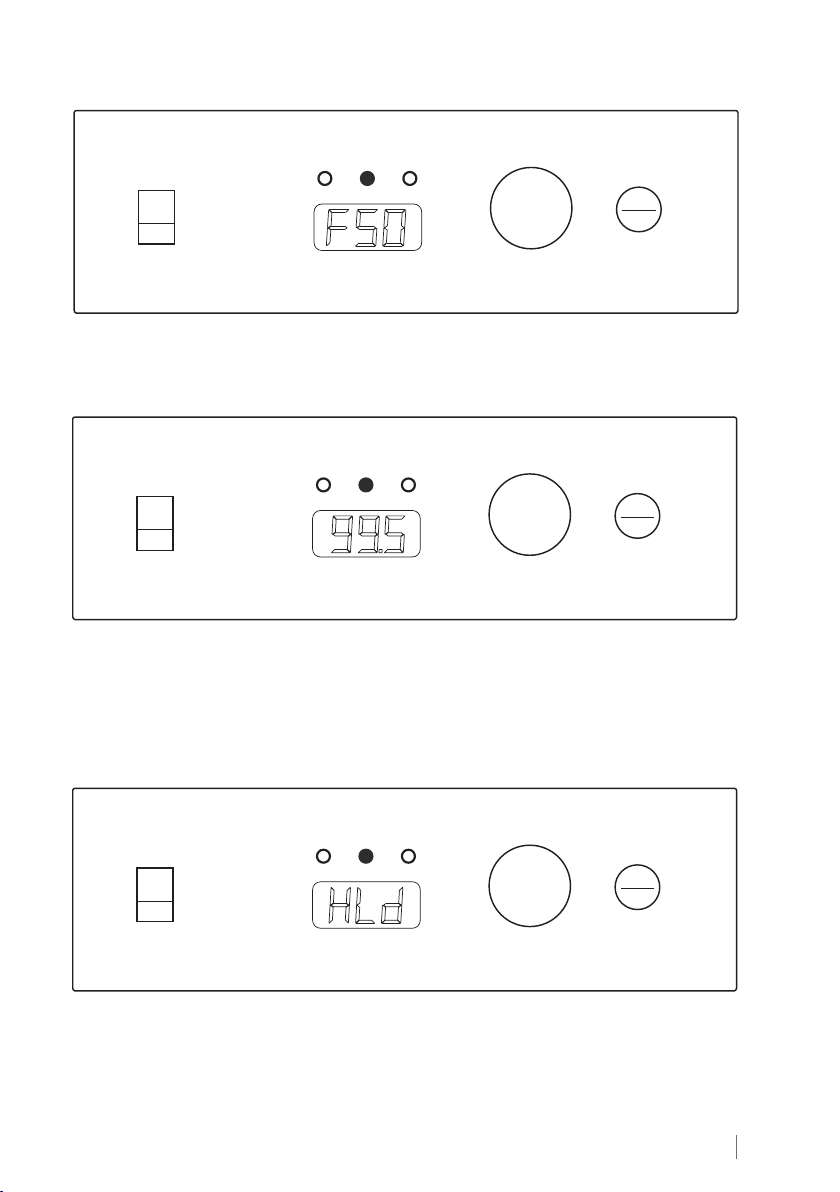

Press the Power switch on the control panel. The vortexer automatically detects supply

frequency of 50 or 60Hz, and displays F50 or F60. Then the display switches to show the set

Time and illuminates the Time light.

Speed(RPMx10) Time (min)

Power

Run Time Speed

Start

Stop

PUSH

(Time/Speed)

ENCODER

Time signal light is on. By rotating the encoder knob right (+) or left (-) the set time can be

selected from 30 seconds to 99 minutes 50 seconds:

• 99.5 = 99 minutes 50 seconds

• 9.59 = 9 minutes 59 seconds

• 0.30 = 30 seconds

Speed(RPMx10) Time (min)

Power

Run Time Speed

Start

Stop

PUSH

(Time/Speed)

ENCODER

If you want to set the timer to hold – turn the knob left or right until HLd is displayed. You

can reach the HLd function by setting to under 0.30 or above 99.5.

Push the encoder knob to switch modes between Time set mode and RPM set mode.

6CORNING LSE DIGITAL VORTEXER

Speed(RPMx10) Time (min)

Power

Run Time Speed

Start

Stop

PUSH

(Time/Speed)

ENCODER

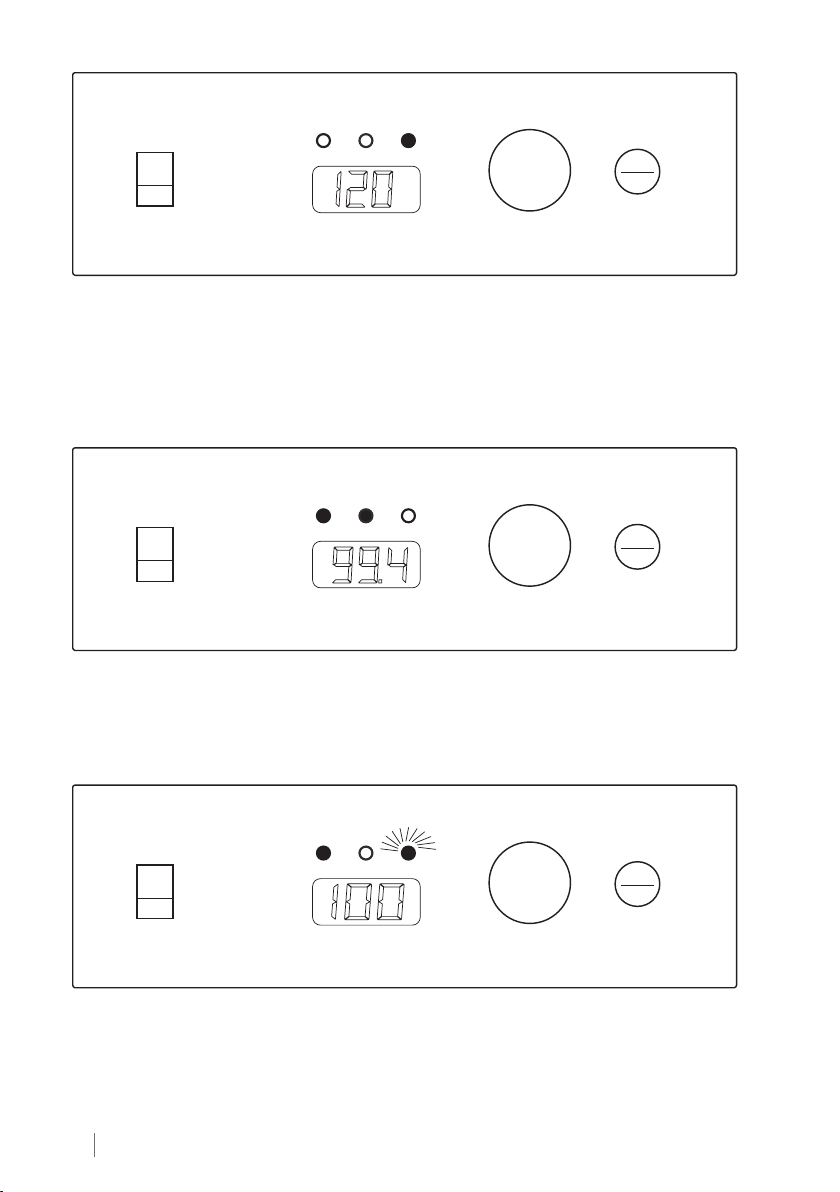

RPM signal light is on. By rotating the encoder knob right (+) or left (-) the desired RPM can

be selected:

• 34 = 340 rpm

• 120 = 1,200 rpm

Press the Start/Stop button to start operation.

Speed(RPMx10) Time (min)

Power

Run Time Speed

Start

Stop

PUSH

(Time/Speed)

ENCODER

Run and Time signal lights are on. The vortexer runs and counts down the time from the

set value.

NOTE: You cannot modify the set time during vortexing. However, you can stop the unit with

the Start/Stop button and then reset the time.

Speed(RPMx10) Time (min)

Power

Run Time Speed

Start

Stop

PUSH

(Time/Speed)

ENCODER

If you want to change the RPM during vortexing, push the encoder knob to put the vortexer

into RPM set mode (RPM signal light will be on). Rotate the encoder knob right (+) or left

(-) to set the desired value. In the meantime RPM signal light will flash. When you stop

rotating the encoder knob, the signal light for RPM will stop flashing after 2 seconds.

Instruction Manual

Speed(RPMx10) Time (min)

Power

Run Time Speed

Start

Stop

PUSH

(Time/Speed)

ENCODER

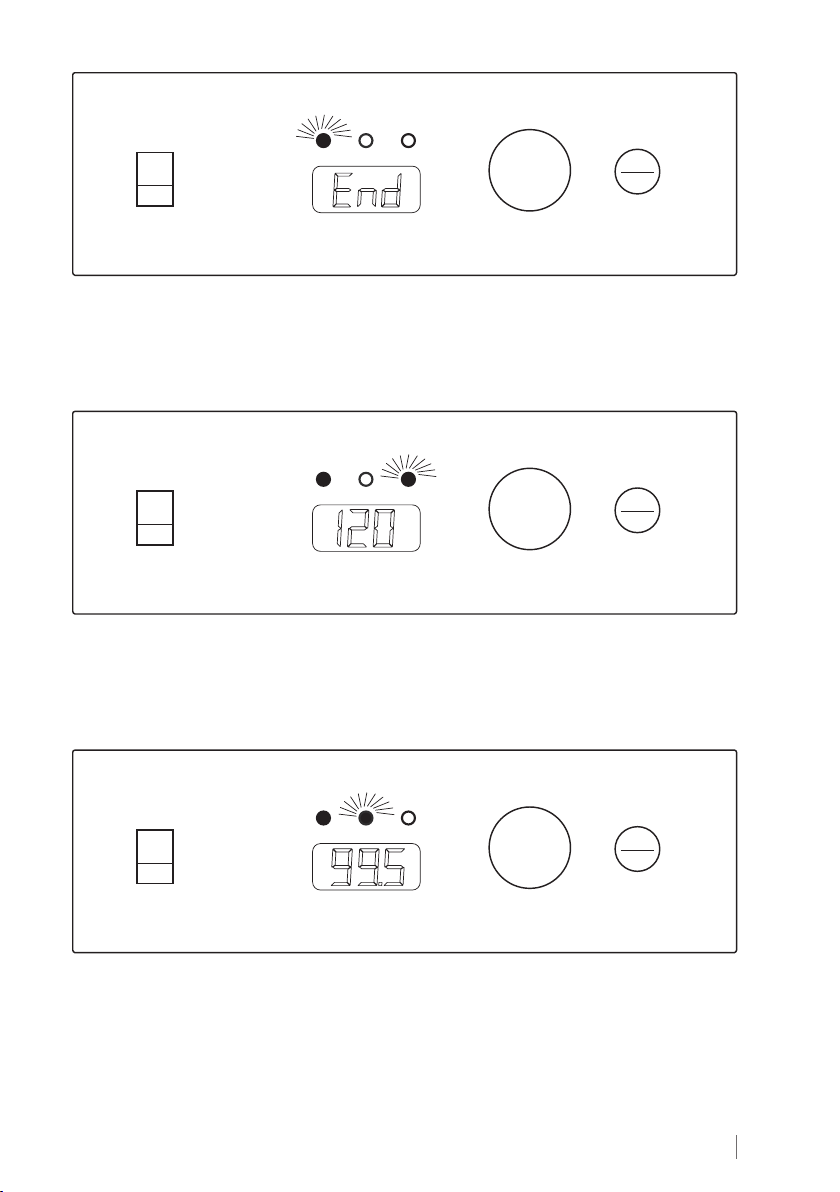

When the run time has elapsed or when you press the Start/Stop button, End will show on

the display and the Run light will flash. When the vortexer completely stops the set speed

and time will return to the last programmed values.

5.3 Additional Operations

Speed(RPMx10) Time (min)

Power

Run Time Speed

Start

Stop

PUSH

(Time/Speed)

ENCODER

If you want to view the set value for RPM during vortexing, rotate the encoder knob for

ONE CLICK right (+) or left (-). The RPM signal light will flash for 2 seconds, and the display

will show the set RPM. After 2 seconds the RPM and the signal light will stop flashing.

NOTE: The vortexer must be in RPM mode – RPM signal light must be on.

Speed(RPMx10) Time (min)

Power

Run Time Speed

Start

Stop

PUSH

(Time/Speed)

ENCODER

If you want to view the set value for Time during vortexing, rotate the encoder knob ONE

CLICK right (+) or left (-). The Time signal light will flash for 2 seconds, and the display will

show the set Time. After 2 seconds the display will return to the count Time, and the signal

light will stop flashing.

NOTE: The vortexer must be in the Time mode – the Time signal light must be on.

8CORNING LSE DIGITAL VORTEXER

6.0 Troubleshooting

Problem Solution

Power key does not light Check the power source.

Check fuses.

Vortexer stalls – Message Er1 Power the unit down, then restart.

Display does not light Contact Corning Customer Service.

Message Er2 on display

Message Er3 on display

Message Er4 on display

7.0 Maintenance and Cleaning

With the exception of the occasional maintenance described in Section 4.0 of this manual,

no scheduled maintenance is normally required. However, an experienced technician

should regularly check the device operation at least once a year to make sure it is operating

correctly.

Regular cleaning of the housing is recommended.

The housing of the vortexer can be cleaned with special cleaners for polyurethane (plastic)

surfaces. A damp (not wet) cloth is recommended.

NOTE: Do not use any aggressive or abrasive cleaners (acetone, nitro, polish, etc.) because its

surface can be permanently damaged.

Before cleaning the device, unplug the main cord from the wall socket.

8.0 Limited Warranty

Corning Incorporated (Corning) warrants that this product will be free from defects in

material and workmanship for a period of five (5) years from date of purchase. CORNING

DISCLAIMS ALL OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY

IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE.

Corning’s sole obligation shall be to repair or replace, at its option, any product or part thereof

that proves defective in material or workmanship within the warranty period, provided the

purchaser notifies Corning of any such defect. Corning is not liable for any incidental or

consequential damages, commercial loss, or any other damages from the use of this product.

This warranty is valid only if the product is used for its intended purpose and within the

guidelines specified in the supplied instruction manual. This warranty does not cover damage

caused by accident, neglect, misuse, improper service, natural forces, or other causes not

arising from defects in original material or workmanship. This warranty does not cover motor

brushes, fuses, light bulbs, batteries, or damage to paint or finish. Claims for transit damage

should be filed with the transportation carrier.

Autres manuels pour LSE 6709

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels CORNING Équipement de laboratoire

CORNING

CORNING PC-611 Manuel utilisateur

CORNING

CORNING Gosselin S-Blender 1 Fiche d'information produit

CORNING

CORNING Lambda EliteMax Manuel utilisateur

CORNING

CORNING Axygen Axypet Manuel utilisateur

CORNING

CORNING SCF-1296 Manuel utilisateur

CORNING

CORNING LSE 6703 Manuel utilisateur

CORNING

CORNING LSE 6703 Manuel utilisateur

CORNING

CORNING PC-611 Manuel utilisateur

CORNING

CORNING 6928 Manuel utilisateur

CORNING

CORNING Spin-X UF 6 Manuel d'instructions

CORNING

CORNING AXYGEN AxySpin R Manuel utilisateur

CORNING

CORNING Matribot 6150 Manuel utilisateur

CORNING

CORNING Lambda EliteMax Manuel utilisateur

CORNING

CORNING Axygen Axypet Pro Manuel utilisateur

CORNING

CORNING Matribot Bioprinter Manuel utilisateur

CORNING

CORNING MicroDEN Manuel utilisateur

CORNING

CORNING Matribot Bioprinter Manuel utilisateur

CORNING

CORNING Axygen MotoPet Manuel utilisateur

CORNING

CORNING Lambda EliteTouch Manuel utilisateur

CORNING

CORNING LSE Manuel utilisateur

CORNING

CORNING LSE 6770 Manuel utilisateur

CORNING

CORNING Labnet Prism R Manuel utilisateur

CORNING

CORNING PC-170 Manuel utilisateur

CORNING

CORNING LSE 6765-HS Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

IKA

IKA IC control Manuel utilisateur

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur
