STANDARD RECOMMENDED PROCEDURE 003-873 | ISSUE 2 | APRIL 2016 | PAGE 1 OF 18

OptiTect®Indoor Local

Convergence Point Cabinet

related literature |

003-763 Instruction, OptiTect LS Splitter Module

EVO-1072-EN OptiTect Indoor Local Convergence Cabinet Specication Sheet

Table of Contents

1. Carton Contents.............................................................. 2

2. Tools and Materials ........................................................... 3

2.1 Tools .................................................................. 3

2.2 Materials ............................................................... 3

3. Storage and Transportation ..................................................... 3

4. Unpackaging the Cabinet and Components ........................................ 3

5. Installing the Cabinet .......................................................... 4

5.1 Mounting Cabinets with up to 432 Fibers on a Wall .............................. 6

5.2 Mounting Cabinets with up to 432 Fibers into a Rack ............................ 6

5.3 Mounting Cabinets with more than 432 Fibers to the Floor ........................ 6

6. Opening the Cabinet .......................................................... 7

7. Grounding the Cabinet......................................................... 7

8. Managing Fiber .............................................................. 8

8.1 Field-installed Unconnectorized Feeder and Distribution Cable Option ............... 8

8.2 Preinstalled Connectorized Feeder and Distribution Cable Option .................. 8

9. Installing Unconnectorized Cable Into Cabinet ...................................... 8

9.1 Install Braided Tubing .................................................... 12

9.2 Install Grounding Hardware to Armored Cable ................................. 14

9.3 Secure Metallic Strength Members.......................................... 14

9.4 Install Strain-relief Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

9.5 Ground Cable .......................................................... 16

10. Splicing ................................................................... 16

11. Installing Splitter Modules ..................................................... 17

12. Connector Care and Cleaning .................................................. 18

13. Securing the Cabinet ......................................................... 18

STANDARD RECOMMENDED PROCEDURE 003-873 | ISSUE 2 | APRIL 2016 | PAGE 2 OF 18

Figure 1— OptiTect Local Convergence Cabinet, LS-series

1. Carton Contents

• (1) OptiTect Local Convergence Point Cabinet, LS-series, prestubbed with distribution and

feeder cables in lengths specied by the customer (other congurations available)

• (1) Installation Instruction (SRP 003-873)

• Bag with extra adapter and connector dust caps

• Grounding kit (factory-installed) (P/N FDH-GRND-KIT)

• Feeder and distribution cable installation kit

• Feeder and distribution cable strain-relief kit

• Wall-mount and rack-mount kit (Only included with smaller indoor cabinet)

• Installation frame kit (Only included with larger indoor cabinet)

• Splice trays (ONLY in eld-splice applications: number of trays included depends upon

conguration)

Cable Entry Ports

Slack

Storage

Radius

Guides

Splitter

Module

Location

Input

Fiber

Field

Splice Housing

(Optional)

Removable Door

216B Tool

Pawl Latch

(Optional

Padlock)

Storage/

Parking

Panel for

Unmated

Connectors

TPA-3693

Lifting Eye

Stored position

of lifting eyes

STANDARD RECOMMENDED PROCEDURE 003-873 | ISSUE 2 | APRIL 2016 | PAGE 3 OF 18

2. Tools and Materials

2.1 Tools

The following tools may be required:

• Hoist or lifting device capable of lifting at least 400 pounds (largest cabinet’s weight,

including packaging)

• Forklift or handtruck

• 216B tool or a 7/16-inch nut driver (for entry into the interior of the cabinet)

• Crescent wrench

• 9/16-inch nut driver or socket

• 3/4-inch nut driver or socket

• Phillips-head screwdriver

• Dry-process connector cleaning supplies

Depending upon the ber and splicing congurations, the following tools may also be required:

• Drill and drill bits

• Lint-free wipes

• Appropriate hardware for wall, if wall-mounting

• Isopropyl alcohol

• Flat-tipped screwdriver

• Fiber stripping tools

• Splicing equipment and supplies

2.2 Materials

Mounting hardware to attach the cabinet to the wall is not provided. The hardware needed is

dependent upon the surface to which the cabinet is being installed.

3. Storage and Transportation

The shipping container and its contents must be stored

indoors in a vertical position in the original packaging. A

forklift or handtruck capable of lifting approximately 150

pounds is required to unload or transport the product in

its shipping container prior to unpacking. Observe all local

safety precautions when moving the container. Do not

double-stack shipping containers.

4. Unpackaging the Cabinet and

Components

Step 1: Place the container near the site prepared

for installation of the cabinet. Remove the

installation instruction.

Step 2: Remove the shrinkwrapping from around the

cabinet (Figure 2).

Step 3: Cut the bands holding the cabinet to the pallet.

Figure 2 — Remove Exterior Packaging

TPA-3694

Lifting

Eye

Cut

Bands

Here

STANDARD RECOMMENDED PROCEDURE 003-873 | ISSUE 2 | APRIL 2016 | PAGE 4 OF 18

Step 4: Ensure that a lifting device, such as a hoist or crane, capable of lifting at least 400

pounds (largest cabinet’s weight) is available to lift the cabinet into position.

WARNING: Only certied operators should operate the crane. Ensure that the stabilizers are

extended and rmly positioned before lifting. Avoid overhead obstructions or power lines when

lifting.

CAUTION: The cabinet is heavy and required two people to maneuver it. Observe all safety

precautions while using. Make sure the door is locked in the closed position. Failure to do so

may result in personal injury or damage to the cabinet or cables.

CAUTION: Fiber optic cable is sensitive to excessive pulling, bending, and crushing forces.

Consult the cable specication sheet for the cable you are installing. Do not bend the cable

more sharply than the minimum recommended bend radius. Do not apply more pulling force

to the cable than specied. Do not crush the cable or allow it to kink. Doing so may cause

damage that can alter the transmission characteristics of the cable; the cable may have to be

replaced.

Step 5: If the unit shipped with cables preinstalled, clip

the ties from the cables. Roll out the cables

when removing them from the packaging to

avoid putting twists into the cable. Then loop

the cables in a “gure-8” pattern next to the

mounting location as shown in Figure 3 before

placing the unit.

Figure 3 — Loop Cables in Figure-8 Pattern

5. Installing the Cabinet

Contact a Corning customer care representative to place an order for this product inthe

conguration required by your network installation plan.

• The dimensions for each of the cabinet sizes are shown in Figure 4. Ensure that sufcient

space is available at the installation site to accommodate the cabinet. Allow 23 inches in

front and 20 inches on each side of the cabinet to enable the door to open fully.

• The installing company should obtain rights-of-way from property owners and permits or

other approvals from public authorities prior to installation of the cabinet.

• Select an appropriate site per your design plan and follow standard local practices for

installation of the cabinet. The mounting location should be able to withstand the weight of a

fully loaded cabinet.

KPA-0731

Lift

Cabinet

STANDARD RECOMMENDED PROCEDURE 003-873 | ISSUE 2 | APRIL 2016 | PAGE 5 OF 18

144F = 26.25 in

288F = 26.25 in

432F = 35.34 in

ILCP Cabinet with

Stubbed Cables ILCP Cabinet with

Optional Splice Housing

TPA-3700

ILCP Cabinet with

Optional Splice Housing

576/864F

= 59.67 in

Top View

144- to 432-fiber cabinets

576- to 864 -fiber cabinets

Cabinet installed

into frame

Parameter 144/288-ber unit 432-ber unit 576/864-ber unit

Height (H) inches

31.33

(26.25 w/o splice

housing)

44.31

(35.34 w/o splice

housing)

59.67

(50.70 w/o splice

housing)

Width (W) inches 22.41 22.41 22.41

Depth (D) inches 19.28 19.28 23.44

Splice housing (SH)

inches

5.08 8.97 8.97

Weight (empty) 70 lb 80 lb 264.5 lb

Number of Ports 11 11 16

Figure 4 — Cabinet Dimensions

STANDARD RECOMMENDED PROCEDURE 003-873 | ISSUE 2 | APRIL 2016 | PAGE 6 OF 18

5.1 Mounting Cabinets with up to 432 Fibers on a Wall

Step 1: For standard installation

on a wall, secure a

4-foot by 8-foot by 1/2-

inch sheet of plywood to

the studs of the wall in

the mounting location,

with the top of the

plywood approximately

80 inches above the

oor (Figure 5) at the

height specied in

your standard local

procedures.

Figure 5 — Install Mounting Brackets

Step 2: Using appropriate

hardware (not

provided), attach the

mounting bracket to the

plywood approximately

75 inches above

the oor. Ensure the

bracket is level and

secured to the wall to

support the weight of

the cabinet.

Step 3: Attach the wall-mount

brackets to the rear of

the cabinet as shown in

Figure 5.

Step 4: Using the hoist or lifting

device, lift the cabinet

and hook the mounting

bracket over the bracket on the wall (Figure 6).

IMPORTANT: Lower edge of the cabinet or splice chamber should be approximately 36 inches above

the oor.

Step 5: Screw the bottom bracket into the plywood and move the lifting eyes to their stored

position (Figure 6).

Step 6: If desired, remove and reinstall the lifting eyes in their stored position.

5.2 Mounting Cabinets with up to 432 Fibers into a Rack

Use the rack-mount kit (P/N 07-033330-001) to secure a cabinet with up to 432 bers to a

23-inch rack. Follow instructions provided with the kit.

5.3 Mounting Cabinets with more than 432 Fibers to the Floor

Use a forklift or handtruck to move the frame-mounted cabinet into position in the lineup. Secure

the frame to the oor using your company’s approved procedures.

KPA-1783 Attach mounting brackets to cabinet.

Attach mounting bracket to plywood.

Attach plywood to wall.

Floor

Plywood

Wall Studs

Sheetrock

80 inches

KPA-0057

Floor

36 inches

Figure 6 — Mount Cabinet on the Wall

STANDARD RECOMMENDED PROCEDURE 003-873 | ISSUE 2 | APRIL 2016 | PAGE 7 OF 18

6. Opening the Cabinet

Step 1: If the cabinet door is closed, use a 26B tool

or a 7/16-inch nut driver on the latch to open

it as shown by the inset in Figure 7. If desired

to ease work operations, follow the remaining

steps in this section to remove the exterior

door.

Step 2: Remove nuts holding ground strap; then

remove strap. Replace nuts on studs to

prevent losing them.

Step 3: Lift door off the hinges and set aside.

Step 4: Reverse these steps to reinstall door after

work operations inside the cabinet are

complete.

Figure 7 — Remove Door (Optional)

7. Grounding the Cabinet

Step 1: Unlock panel and swing it

open.

Step 2: Open the splice chamber

door and pedestal skirt, if

equipped with these items.

Slide splice trays out.

Step 3: Bring ground cable up

through the grommet in the

base of the splice housing

and/ or through the grommet

in the base of the cabinet

(Figure 8).

Step 4: Attach the ground wire to the

ground bar on the wall of the

cabinet.

Step 5: Close the splice chamber

door and/or pedestal skirt

door, if opened previously.

Step 6: Close the panel and secure

the latch as shown in the

inset in Figure 8.

Figure 8 — Ground the Cabinet

Step 7: Attach ground wire to building ground per standard codes and local practices.

TPA-3695

Lift Door

Off Hinges

Remove Strap

Unlock Door

TPA-3696

Ground

Bar

Unlock Splice Chamber

with 216B Tool;

Lower Door Slide Splice Trays Out

Unlock Panel

Swing Panel Open

TPA-3696

STANDARD RECOMMENDED PROCEDURE 003-873 | ISSUE 2 | APRIL 2016 | PAGE 8 OF 18

8. Managing Fiber

The cabinet can be ordered in several cable congurations. Before beginning work operations,

read the instructions that follow to determine which operations are required for your unit.

If feeder or distribution cable is eld-installed

(unconnectorized),

Proceed to

Section 8.1, then to Section

If feeder or distribution cable is preinstalled

(stubbed)

Section 8.2, then to Section

8.1 Field-installed Unconnectorized Feeder and Distribution Cable Option

When the cabinet is ordered without feeder or distribution cable preinstalled at the factory,

the installer is responsible for installing, strain-relieving, splicing and mating connectors in the

distribution and feeder adapter elds.

8.2 Preinstalled Connectorized Feeder and Distribution Cable Option

When the cabinet is ordered with the fully connectorized cable conguration, the feeder cable

will be mated in the factory to the rear of the input ber eld. The connectorized distribution

cable will also be installed in the factory and the connectors willbe mated in the rear of the

distribution eld. If splitter modules are factory-installed, their input bers will be mated to the

front of the input ber eld and the output bers will be mated to the front of the storage/parking

panel.

Step 1: Once service has been ordered, remove the appropriate connector from the “stored/

parked” position, clean the end face and adapter as described in Section 15, and

mate the connector in front of the distribution eld.

Step 2: Record the distribution ber connection information on the label provided on the front

door of this cabinet.

9. Installing Unconnectorized Cable Into Cabinet

Key Notes for Cable Installation

• Watertight tting must be installed on the cable and entry port to prevent water intrusion.

One kit for each cable size is included.

• Cable strain-relief will be employed at the entry/exit port.

• Routing and splicing techniques are applicable to feeder and distribution cables and to

pigtails.

Key Notes for Splicing

• Rotational access is provided to the splice trays within the splice housing.

Cabinet up 432 Fibers Cabinet with 576/864 bers

Maximum number of

splice trays

7 14

1 tray for

feeder splicing

6 trays for

distribution splicing

2 trays for

feeder splicing

12 trays for

distribution splicing

Loose tube Ribbon Loose tube Ribbon

Splice tray capacity 24 ber 72 ber 48 ber 72 ber

• If splicing ribbon, each splice tray holds six heatshrink mass fusion splices for a maximum of

72 splices per tray.

• Feeder splicing occurs in the bottom splice tray(s) in the splice housing with distribution

splicing in subsequent trays above.

STANDARD RECOMMENDED PROCEDURE 003-873 | ISSUE 2 | APRIL 2016 | PAGE 9 OF 18

• Two-sub-units (jacketed or braided tubing) with three 12-ber ribbons per sub-unit can be

strain-relieved to each feeder splice tray.

• Two sub-unit pigtails from the back of the Input Fiber Field panel to the feeder splice tray are

pre-routed at the factory and stored for splicing.

• Two sub-units (jacketed or braided tubing) with three 12-ber ribbons per sub-unit are strain-

relieved to each distribution splice tray.

• Two sub-unit pigtails from the back of the distribution panel to the distribution splice tray are

pre-routed at the factory and stored for splicing

CAUTION: Fiber optic cable is sensitive to excessive pulling, bending, and crushing forces.

Consult the cable specication sheet for the cable you are installing. Do not bend the cable

more sharply than the minimum recommended bend radius. Do not apply more pulling force

to the cable than specied. Do not crush the cable or allow it to kink. Doing so may cause

damage that can alter the transmission characteristics of the cable; the cable may have to be

replaced.

Step 1: Unlock panel and swing it open (Figure 8).

Step 2: Determine where the cable willenter the cabinet and

remove the appropriate knockout.

Step 3: Loosely install a watertight tting into the hole where the

knockout was removed (Figure 9). Select the appropriate

feeder or distribution cable installation kit for the cable

being installed. One kit for each cable size is provided.

Step 4: Feed the cable through the tting into the cabinet

(Figure 10).

Step 5: Measure the cable and remove cable sheath from the

end of the cable as indicated in Figure 11 and Table 1.

Prepare cable at the sheath removal point according to the

instructions provided with the cable.

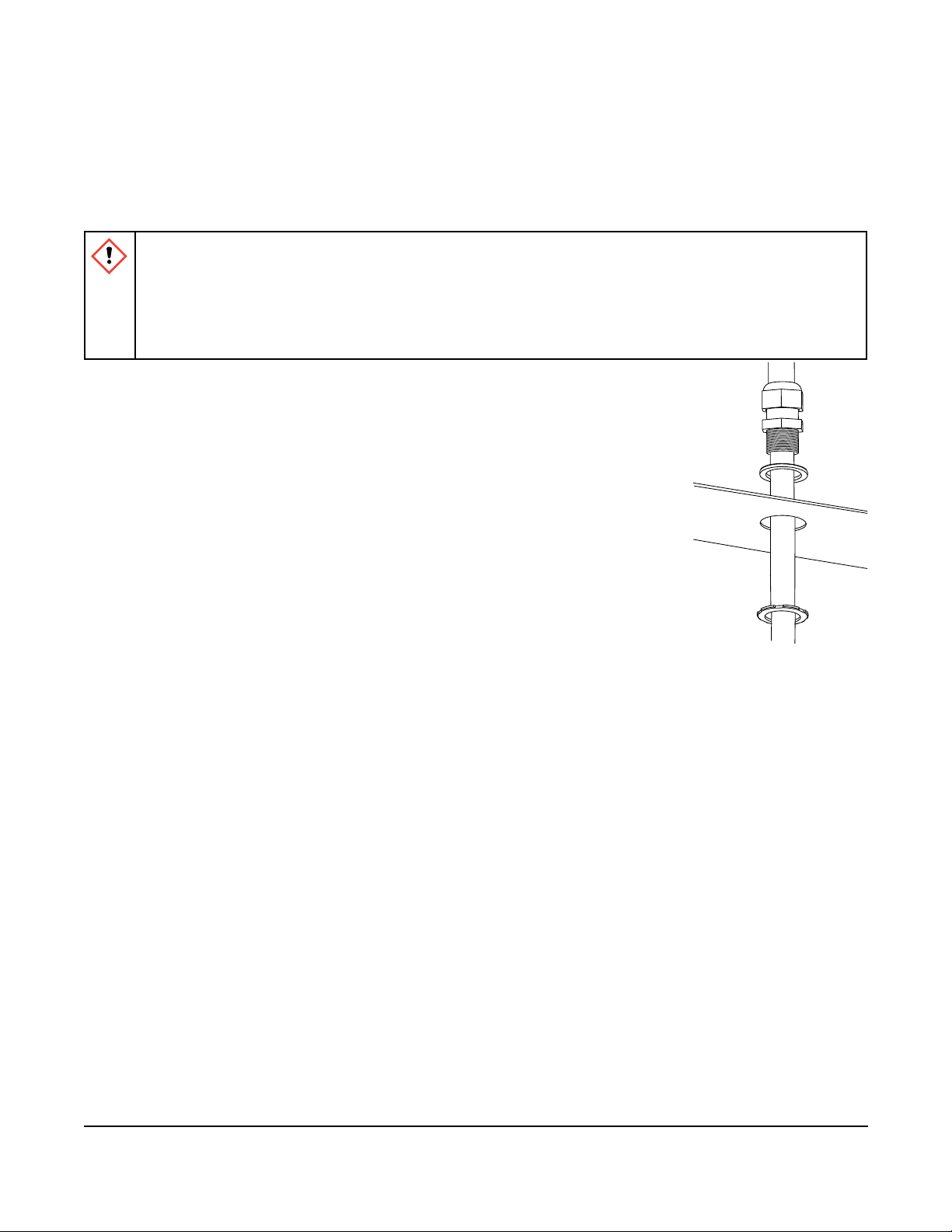

Figure 9 — Watertight Fitting

Cabinet

Interior

TPA-3698

Locknut

O-ring

Watertight

Fitting

STANDARD RECOMMENDED PROCEDURE 003-873 | ISSUE 2 | APRIL 2016 | PAGE 10 OF 18

Figure 10 — Measure and Strip Cable Sheath

Step 6: Loosely tighten the watertight tting to allow for cable adjustment during braided

tubing installation and strain-relief activities.

Cabinet Capacity Distribution Cable(s) F2 Feeder Cable(s) F1

144-bers 9.5 feet 10.5 feet

288-bers 10 feet 11 feet

432-bers 10.5 feet 11.5 feet

Table 1: : Cable Sheath Removal Lengths

TPA-3696

Ground

Bar

TPA-3697

Route large

or small

diameter

F2 cable

as shown

Table des matières

Autres manuels CORNING Équipement de laboratoire

CORNING

CORNING LSE 6780-FP Manuel utilisateur

CORNING

CORNING LSE 6703 Manuel utilisateur

CORNING

CORNING SCF-1296 Manuel utilisateur

CORNING

CORNING Spin-X UF 6 Manuel d'instructions

CORNING

CORNING LSE 6783 Manuel utilisateur

CORNING

CORNING LSE 6755 Manuel utilisateur

CORNING

CORNING LSE 6783 Manuel utilisateur

CORNING

CORNING LSE Manuel utilisateur

CORNING

CORNING Labnet Prism R Manuel utilisateur

CORNING

CORNING Spin-X UF 500 Manuel d'instructions

CORNING

CORNING Gosselin S-Blender 1 Fiche d'information produit

CORNING

CORNING LSE 6709 Manuel utilisateur

CORNING

CORNING PC-611 Manuel utilisateur

CORNING

CORNING LSE 6785-SB Manuel utilisateur

CORNING

CORNING Axygen Axypet Manuel utilisateur

CORNING

CORNING LSE 6775 Manuel utilisateur

CORNING

CORNING 6928 Manuel utilisateur

CORNING

CORNING LSE Series Manuel utilisateur

CORNING

CORNING Axygen Manuel utilisateur

CORNING

CORNING Matribot Bioprinter Manuel utilisateur

CORNING

CORNING Lambda EliteTouch Manuel utilisateur

CORNING

CORNING LSE 6770 Manuel utilisateur

CORNING

CORNING Lambda EliteMax Manuel utilisateur

CORNING

CORNING Lambda EliteMax Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

IKA

IKA IC control Manuel utilisateur

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur
