LV-670 series

User’s Manual

Edition 1.3

all rights are reserved. The information in this document is subject to change

without prior notice to make improvements to the products.

This document contains proprietary information and protected by copyright.

No part of this document may be reproduced, copied, or translated in any

form or any means without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are

property of their respective owners.

Disclaimer

Taiwan Commate Computer Inc. shall not be liable for any incidental or

consequential damages resulting from the performance or use of this product.

Taiwan Commate Computer Inc. does not issue a warranty of any kind,

express or implied, including without limitation implied warranties of

merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the

specifications of the product described within it at any time without notice and

without obligation to notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any question please visit our website at http://www.commell.com.tw.

LV-670 series User’s Manual 1

Packing List

LV670 :

Hardware

LV-670 Motherboard......................................................... X 1

Cable Kit

40-pin ATA100 IDE Flat Cable.......................................... X 1

34-pin Floppy Cable.......................................................... X 1

Dual-USB Port Cable........................................................ X 1

DB9 COM Port Cable........................................................ X 1

Audio Cable.……………………………………………………… X 1

I/O Shield………………………………………………………… X 1

Printed Matter and Software

User’s Manual................................................................... X 1

Driver CD.......................................................................... X 1

LV670LVDS :

Hardware

LV-670LVDS Motherboard................................................ X 1

Cable Kit

40-pin ATA100 IDE Flat Cable.......................................... X 1

34-pin Floppy Cable.......................................................... X 1

Dual-USB Port Cable........................................................ X 1

DB9 COM Port Cable........................................................ X 1

Audio Cable.……………………………………………………… X 1

I/O Shield………………………………………………………… X 1

Printed Matter and Software

User’s Manual................................................................... X 1

Driver CD.......................................................................... X 1

LV-670 series User’s Manual

Table of Content

CHAPTER 1. INTRODUCTION............................................................5

1.1 PRODUCT OVERVIEW................................................................5

1.2 SPECIFICATION.........................................................................6

1.3 COMPONENT PLACEMENT .........................................................9

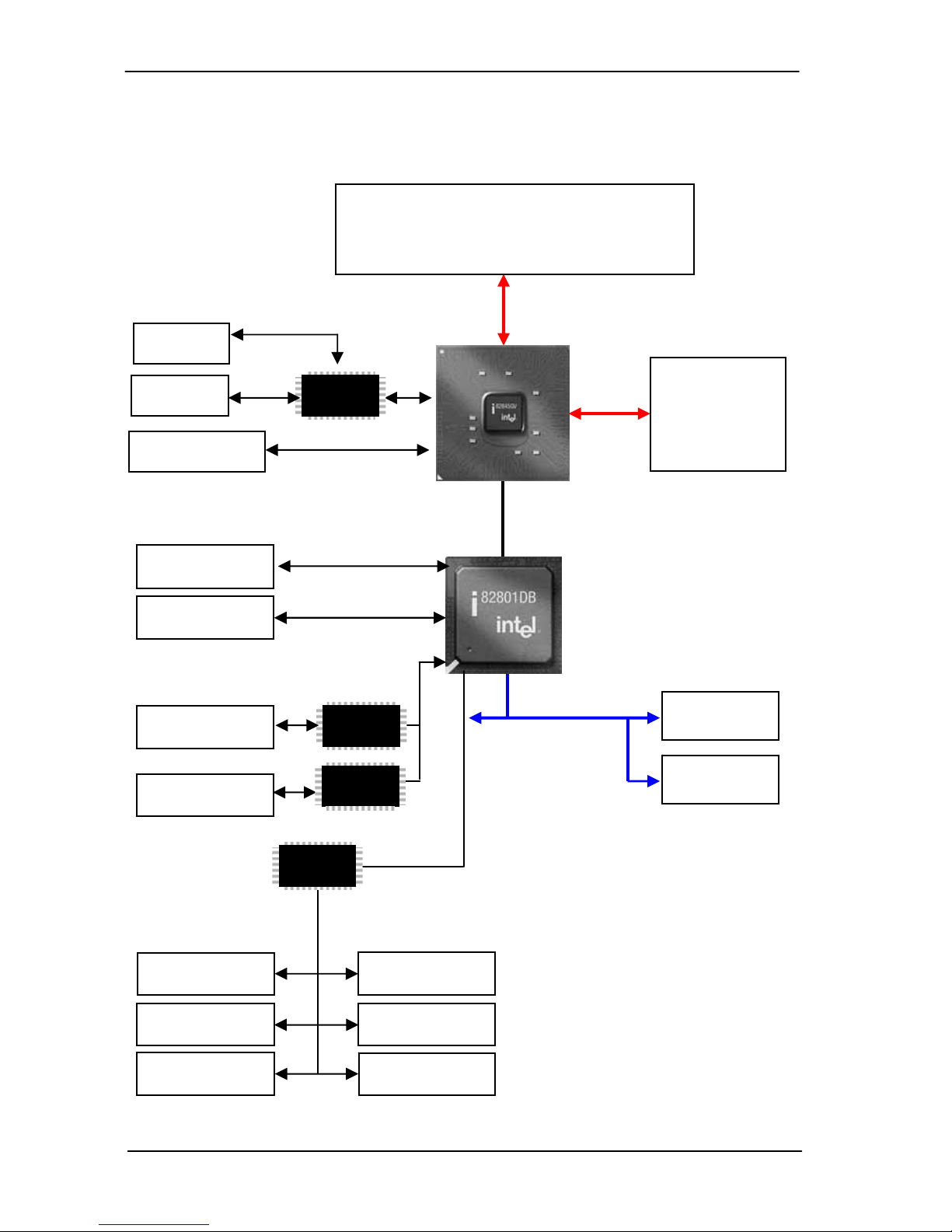

1.4 BLOCK DIAGRAM ....................................................................10

CHAPTER 2. HARDWARE SETUP ...................................................11

2. 1 CONNECTOR LOCATION...........................................................11

2.1.1 Jumper Reference..................................................................13

2.1.2 Connector Reference ............................................................14

2.2 CPUAND DRAM SETTING......................................................15

2.3 CMOS SETTING.....................................................................15

2.4 WATCHDOG TIMER SETTING....................................................16

2.5 EMBEDDED SOLID STATE DISK ................................................17

2.6 POWER AND FAN CONNECTOR.................................................18

2.7 VGAINTERFACE.....................................................................19

2.7.1 Analog VGA Interface............................................................19

2.7.2 Digital VGAInterface (LV-670LVDS only)...........................20

2.8 ETHERNET INTERFACE ............................................................22

2.9 AUDIO INTERFACE...................................................................23

2.10 SWITCH AND INDICATOR ..........................................................25

CHAPTER 3. BIOS SETUP................................................................27

CHAPTER 4 AUDIO CHANNEL CONFIGURATION.........................29

CHAPTER 5. DISPLAY SETTINGS ...................................................31

LV-670 series User’s Manual 3

APPENDIX. A I/O PORT PIN ASSIGNMENT.....................................35

A.1 IDE Port................................................................................... 35

A.2 Floppy Port.............................................................................. 37

A.3 Serial Port............................................................................... 37

A.4 USB Port................................................................................. 38

A.5 IrDA Port.................................................................................. 38

A.6 VGA Port................................................................................. 39

A.7 LAN Port.................................................................................. 39

APPENDIX B. FLASH THE BIOS......................................................41

B.1 BIOSAUTO FLASH TOOL ........................................................41

B.2 FLASH METHOD......................................................................41

APPENDIX C. SYSTEM RESOURCES .............................................43

C.1 I/O Port Address Map............................................................ 43

C.2 Memory Address Map........................................................... 44

C.3 System IRQ and DMA Resource......................................... 45

CONTACT INFORMATION ...................................................................48

LV-670 series User’s Manual

Chapter 1. Introduction

1.1 Product Overview

LV-670 series (Include LV-670 and LV-670LVDS) is an all-in-one

industrial compact Pentium 4 level motherboard based on Mini-ITX form

factor at 170 x 170 mm of dimension. Based on Intel 845GV and ICH4

chipset, LV-670 series offers the compact, embedded, value and high

performance solution with Intel Pentium 4 CPU, 533 / 400 MHz of FSB, 1

GBytes DDR200/266/333 SDRAM, Intel 845GV GMCH built-in Intel Extreme

Graphics, Intel PRO/100+ LAN, Hi-Speed USB 2.0, IEEE 1394, 5.1 channel

and S/P DIF 3D audio, TV-out and embedded flash disk interfaces.

Compact Mini-ITX Form Factor @ 170 x 170 mm

LV-670 series is based on the ultra compact mini-ITX form factor at only

170 x 170 mm of dimension, meets the demand of compact and powerful

computing platform. With this feature, LV-670 series should be the ideal

solution for the high-end, Pentium 4 level book-size, slim type and other

embedded PC systems.

Powerful Pentium 4 Computing Platform

With Intel Socket 478 Pentium 4 / Celeron CPU at 533/400 MHz FSB

and 1GBytes DDR200/266/333 SDRAM of system memory, LV-670 series

offers the high-end industrial computing platform with low cost Intel integrated

solutions.

Value / High Performance Multi-media Solution

The Intel 845GV GMCH chipset built-in Intel Extreme Graphics, 6

channel and S/P DIF AC97 3D audio make LV-670 series be the high

performance but low cost multi-media AV platform. With this feature, LV-670

series should be the ideal solution for VoD (Video on Demand), DVR (Digital

Video Recorder), digital video broadcasting (DVB), streaming, surveillance,

compression (MPEG), interaction server, POS, Kiosk, ATM, Panel PC,

transaction workstation and terminal applications.

Hi-Speed USB 2.0 and IEEE 1394 Interface

Intel ICH4 built-in Hi-Speed USB 2.0 controller and onboard IEEE 1394

chipset let LV-670 series offer up to 480 Mbps of Hi-Speed USB 2.0 and

100/200/400 Mbps of IEEE 1394 interfaces.

LV-670 series User’s Manual 5

1.2 Specification

General Specification

Form Factor Mini-ITX at 170 x 170 mm (L x W)

CPU Intel Socket 478 Pentium 4 / Celeron @ 533/400 MHz FSB

Support Northwood / Willamette Pentium 4 / Celeron CPU

Memory 1GBytes DDR200/266/333 SDRAM on one 184-pin DIMM

socket

Chipset Intel 82845GV GMCH and 82801DB ICH4

BIOS Phoenix-Award 2Mb PnP flash BIOS

Green Function Power saving mode includes doze, standby and suspend

modes. ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock Intel ICH4 built-in RTC with lithium battery

Enhanced IDE PCI enhanced IDE interface supports dual channels and up

to 4 ATAPI devices at UltraATA/100

One 40-pin and one 44-pin IDE port

DiskOnModule (DOM) embedded flash disk up to 1GBytes

Expansive Slot One PCI slot supports up to 2 bus master PCI bus interface

via the additional riser card

Multi-I/O Port

Chipset Intel 82801DB ICH4 (USB) and Winbond W83627HF-AW

LPC Super I/O controller

Serial Port One internal RS-232 serial port with 16C550 compatible

UART and 16 bytes FIFO

USB Port Four Hi-Speed USB 2.0 ports with 480 Mbps of data

transfer rate

Two external and two internal USB ports

Parallel Port One external bi-direction parallel port with SPP/ECP/EPP

mode

Floppy Port One FDD port supports up to two FDD

IrDA Port One IrDA compliant Infrared interface supports CIR/SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

LV-670 series User’s Manual

VGA Display Interface

Chipset Intel 845GV GMCH built-in Intel Extreme Graphics

With 266 MHz VGA core and 256-bit 3D engine

Memory Intel dynamic video memory up to 64 Mbytes shared with

system

Display Type CRT, LCD monitor and analog display

Up to 4 textures / pixel on a single pass and 2048x2048

texture size

Connector External DB15 female connector on rear I/O panel

Internal 40-pin LVDS connector (LV-670LVDS only)

TV-out Interface

Chipset Intel 845GV GMCH built-in Intel Extreme Graphics with

Chrontel CH7011(for LV-670)

& CH7017A-T(for LV-670LVDS) TV-out encoder

TV Mode Support both of NTSC and PAL mode

Connector External S-video and RCA Jack on rear I/O panel

Ethernet Interface

Chipset Intel PRO/100+ LAN interface with Intel ICH4 and 82562ET

Phy

Type 10Base-T / 100Base-TX, auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector External RJ45 connector with LED on rear I/O panel

Audio Interface

Chipset Intel ICH4 with Realtek ALC650 AC97 3D audio codec

Interface 5.1 channel 3D audio with front (R/L), rear (R/L), center and

bass

S/P DIF digital audio encoding signal input and output

Line-in, line-out, CD-in and MIC-in

Connector External three phone jack for 5.1 channel audio on rear

panel

External S/P DIF connector on rear panel

Internal 10-pin header for line-in/-out, MIC-out, 4-pin header

for CD-in

LV-670 series User’s Manual 7

IEEE1394 Interface

Chipset Agere FW323 PCI IEEE1394 controller

Interface IEEE1394 with 100/200/400 Mbps of data transfer

bandwidth

Connector External IEEE1394 connector on rear I/O panel

Power and Environment

Power

Requirement 20-pin ATX power connector

Additional +12V on 4-pin connector for Pentium 4 PSU

Dimension 170 (L) x 170 (H) mm, Mini-ITX form factor

Temperature Operating within 0 ~ 60oC (32 ~ 140oF)

Storage within -20 ~ 85oC (-4 ~ 185oF)

EMI CE/FCC class A certified

Ordering Code

LV-670 Mini-ITX Socket 478 Pentium 4 Motherboard

with Intel Extreme VGA, LAN, TV-out, 5.1-CH/SPDIF Audio,

Hi-Speed USB 2.0, IEEE1394 Interface

LV-670LVDS Same with LV-670 but support 24-bit dual channel LVDS

For further product information please visit the website at

http://www.commell.com.tw

LV-670 series User’s Manual

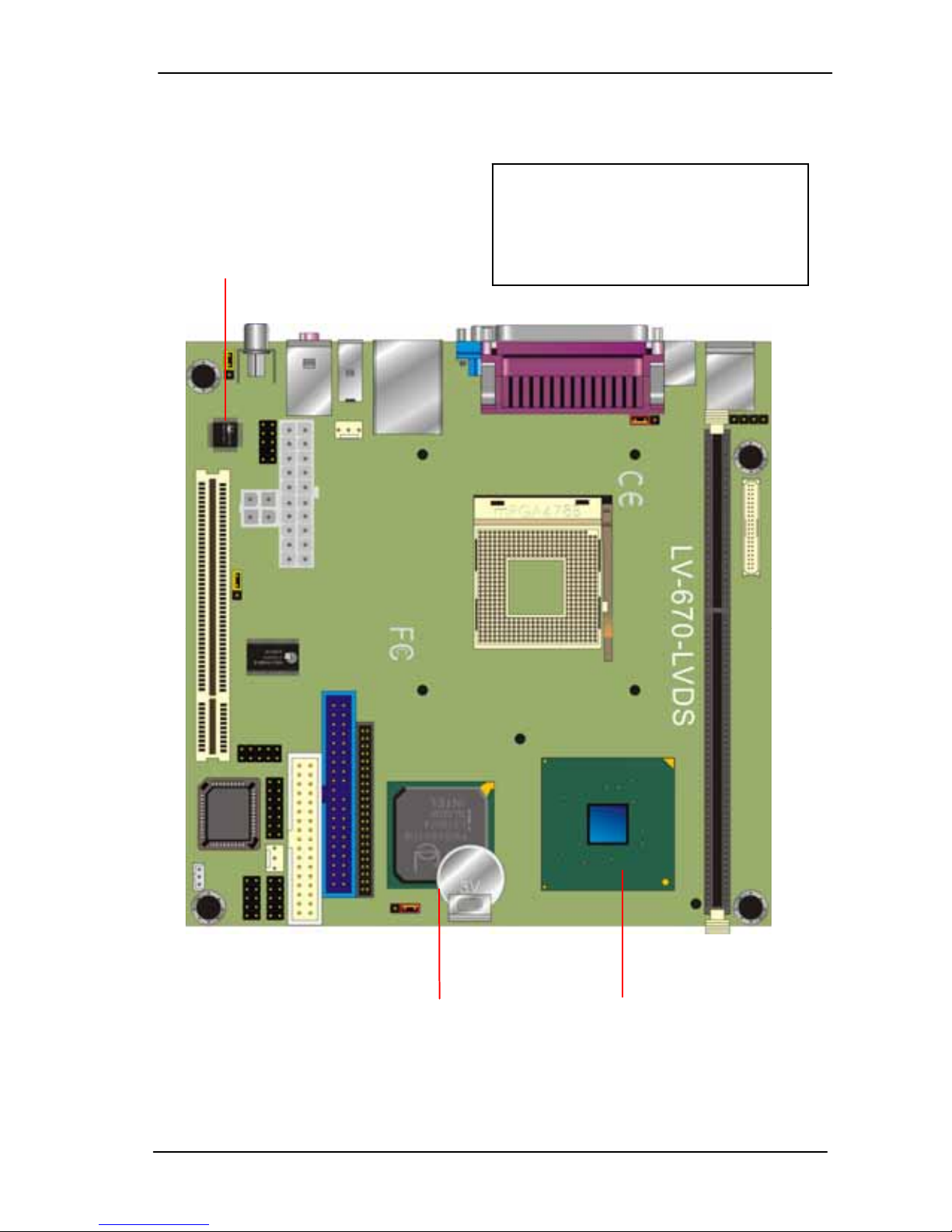

1.3 Component Placement

ALC650 AC97 Audio Codec

With 5.1 Channel Audio

S/P DIF, Line-in/out, Mic-in

and CD-in Interface

Chipset on Back Side

-Intel 82562ET LAN Phy

-Agere FW323 IEEE1394

Controller

Intel 845GV GMCH

With 533 / 400 MHz Host Bus

200 / 266 /333 MHz Memory

Bus

Intel 82801DB ICH4

With Hi-Speed USB 2.0

UltraATA100 IDE

Intel PRO/100+ LAN Mac

LV-670 series User’s Manual 9

1.4 Block Diagram

PCI Bus Interface PCI Slot

IEEE1394

Intel ICH4

Hi-Speed USB 2.0

480 Mbps

USB Devices

ATAPI Device UltraATA100 IDE

100 MBps

LPC

SIO

Parallel Device

Serial Device

FloppyPS/2 Mouse

PS/2 Keyboard

AT Keyboard

LAN1 PHY

Codec

Audio Devices

Intel 845G

GMCH

DDR266

DDR333

One 184-pin

DIMM Sockets

up to 1GBytes

DDR SDRAM

FSB 400 / 533 MHz

100 / 133 MHz x 4

Intel Socket 478 Pentium 4 / Celeron CPU

Intel 0.13-/0.18-micron Northwood / Willamette

Support Intel Hyper-Threading Technology

LCD LVDS

Encoder

LVDS

CRT

LV-670 series User’s Manual

Autres manuels pour LV670 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Commell Carte mère

Commell

Commell LV-67X Manuel utilisateur

Commell

Commell P3WMA Series Manuel utilisateur

Commell

Commell AS-C7A Manuel utilisateur

Commell

Commell LS-378 Manuel utilisateur

Commell

Commell LE-374 Manuel utilisateur

Commell

Commell LV-674 Manuel utilisateur

Commell

Commell P4ELA Manuel utilisateur

Commell

Commell LE-565 Manuel utilisateur

Commell

Commell LE-37M7 Manuel utilisateur

Commell

Commell FS-A70 Manuel utilisateur

Commell

Commell LV-67G Manuel utilisateur

Commell

Commell LP-172D Manuel utilisateur

Commell

Commell LV-679 Manuel utilisateur

Commell

Commell LV-67F Manuel utilisateur

Commell

Commell HS-873P Manuel utilisateur

Commell

Commell LS-576 Manuel utilisateur

Commell

Commell LV-67P Manuel utilisateur

Commell

Commell LE-362 Manuel utilisateur

Commell

Commell LV-681 Manuel utilisateur

Commell

Commell LV-67O Manuel utilisateur

Commell

Commell LV-67Z7 Manuel utilisateur

Commell

Commell P4BWA Manuel utilisateur

Commell

Commell FE-97G Manuel utilisateur

Commell

Commell LV-651 series Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
