Commell LV-67O Manuel utilisateur

LV-67O

Mini-ITX Motherboard

User’s Manual

Edition 1.0

2014/08/08

LV-67O User’s Manual

-2-

reserved. The information in this document is subject to change without prior notice to

make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular

purpose.

The company has the right to revise the manual or include changes in the

specifications of the product described within it at any time without notice and without

obligation to notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT

Packing List:

Please check the package content before you starting using the board.

Hardware:

LV-67O Mini-ITX Motherborad x 1

Cable Kit:

SATA Cable x 2

OALSATA3-L / (1040529)

VGA Cable x 1

OALVGAN-S / (1040568)

Dual COM PORT Cable x 1

OALES-BKU2 / (1040087) (Option)

USB2.0 Cable x 1

OALUSBA-1/ (1040172) (Option)

LV-67O User’s Manual

-3-

Printed Matters:

Driver CD (Including User’s Manual) x 1

Index

Chapter 1 <Introduction>..............................................................................5

1.1 <Product Overview>..................................................................................... 5

1.2 <Product Specification>................................................................................ 6

1.3 <Mechanical Drawing>.................................................................................7

1.4 <Block Diagram>..........................................................................................8

Chapter 2 <Hardware Setup>........................................................................8

2.1 <Connector Location>.................................................................................. 8

2.2 <Jumper Location & Reference>..................................................................9

2.3 <Connector Reference>............................................................................. 10

2.3.1 <Internal Connectors> ...................................................................10

2.4 < Memory and CFAST Setup> ................................................................... 11

2.4.1 <Memory Setup>........................................................................... 11

2.4.2 < CFAST Setup >........................................................................... 11

2.5 <CMOS & ATX Setup>...............................................................................12

2.6 <Ethernet Interface>................................................................................... 13

2.7 <Onboard Display Interface> .....................................................................13

2.7.1 <Display>....................................................................................... 14

2.7.2 <LVDS> ......................................................................................... 14

44-pin

DC Power Cable x 1

OALDC-A / (1040433)

I/O Shield x 1

OALATE-MCDLA / (1270055)

Power Cable x 1

OALATX-P3S2 / (1040058)

LV-67O User’s Manual

-4-

2.7.3 <VGA Interface> ............................................................................17

2.8 <IntegratedAudio Interface>......................................................................18

2.9 <USB Interface>.........................................................................................19

2.9.1 < USB 3.0 eXtensible Host Controller Driver install >.................... 19

2.10 <Serial Port> ............................................................................................ 23

2.11 <PCIE Mini Card and SIM Interface> .......................................................25

2.12 <GPIO and SMBUS Interface>.................................................................27

2.13 <Power Supply and Fan Interface >.........................................................29

2.13.1 <Power Input> .............................................................................29

2.13.2 <Power Output>...........................................................................30

2.13.3 <Fan connector>..........................................................................30

2.14 <Switch and Indicator>.............................................................................31

Chapter 3 <System Setup> .........................................................................32

3.1 <Audio Configuration>................................................................................ 32

3.2 <Display Properties Setting>......................................................................33

3.3 <SATA configuration>.................................................................................35

Chapter 4 <BIOS Setup> .............................................................................35

Appendix A <I/O Port Pin Assignment>.....................................................36

A.1 <Serial ATA Port>.......................................................................................36

A.2 <LAN Port>................................................................................................36

A.3 <LPC Port>................................................................................................36

Appendix B <Flash BIOS> ..........................................................................37

B.1 <Flash Tool> ..............................................................................................37

B.2 <Flash BIOS Procedure>...........................................................................37

Appendix C <Programming GPIO’s> .........................................................38

Appendix D <Programming Watchdog Timer >........................................39

Contact Information.....................................................................................41

LV-67O User’s Manual

-5-

Chapter 1 <Introduction>

1.1 <Product Overview>

LV-67O is the system-on-chip (SoC) designed for intelligent systems, delivering

outstanding compute, graphical, and media performance while operating in an extended

range of thermal conditions. These SoCs are based on the Silvermont microarchitecture,

utilizing Intel’s industry-leading 22nm process technology with 3-D Tri-Gate transistors,

which deliver significant improvements in computational performance and energy

efficiency.

New features for Intel® Celeron® and Atom Processor

The Intel® Celeron® Processor J1900 / N2930 and Intel® Atom E3845 Processor

supports, graphics, media performance, flexibility and more enhanced security that is

suitable for a variety of intelligent systems the ideal choice.

Outstanding integration of I/O interfaces

Supports display interfaces with graphics processing, camera interfaces with image

processing, audio with digital signal processing, multiple storage types, and legacy

embedded I/O. Provides interface expansion capabilities through industry-standard

high-bandwidth interfaces such as PCI Express* Gen 2.0, Hi-speed USB 2.0, and USB

3.0 connectivity.

All in One multimedia solution

Based on Intel® J1900 / N2920 /E3845 SoC, the board provides high performance

onboard graphics, CRT, 24-bit dual channel LVDS interface, Display Port, DVI and two

channels High Definition Audio, to meet the very requirement of the multimedia

application.

Flexible Extension Interface

The board provides one PCIe mini slot and one SIM slot.

LV-67O User’s Manual

-6-

1.2 <Product Specification>

General Specification

Form Factor

Mini-ITX motherboard

CPU

Intel® Processor J1900/N2930/E3845, package type FCBGA1170

Memory

2 x DDR3L (support 1.35V) 1066/1333 DIMM up to 8GB

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~255min/s

Power Management

Supports ACPI 5.0 compliant

Serial ATA Interface

2 x serial ATA interface with 300MB/s(3Gb/s) transfer rate

(1 x CFast and 1 x SATAII is for option)

VGA Interface

Intel® Clear Video integrated HD Graphics Technology

DVI Interface

Onboard DVI connector. (DVI and LVDS1 can’t be enabled simultaneously)

LVDS Interface

2 x Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V

supply

Display port Interface

Onboard Display port connector.

(Display port and LVDS2 can’t be enabled simultaneously)

Audio Interface

Realtek ALC262 High Definition Audio Codec

LAN Interface

2 x Intel® I210 Gigabit LAN

GPIO interface

Onboard programmable 8-bit Digital I/O interface

Extended Interface

One PCIE X16 slot(Only support 1 Lane), 1 x PCIE Mini card or mSATA, 1 x

SIM socket (CFast and mSATA can’t be enabled simultaneously)

Internal I/O Port

4 x RS232, 1 x GPIO, 1 x Audio connector, 1 x SMBUS connector, 1 x CRT, 2

x LVDS, 1 x LPC, 2 x USB 2.0(XHCI) and 2 x SATAII

External I/O Port

1 x PS/2 Keyboard/Mouse Port, 1 x RS232, 1 x RS232/422/485, 1 x DVI port,

1 x Display port, 2 x RJ45 LAN ports, 1 x USB 3.0(XHCI)/2.0(EHCI) port, 3 x

USB 2.0 ports(EHCI).

Power Requirement

Standard 24-pinATX power supply or 6~27V full range DC Input

Dimension

170mm x 170mm

Temperature

Operating within 0~60 ℃(for LV-67OJ and LV-67ON serial)

Operating within -40~75 ℃(for LV-67OE serial)

Ordering Code

LV-67OJIP

Intel Celeron Processor J1900 (2M Cache, 2.42GHz), DVI, Display Port, CRT,

Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card, PCIE

x16 (only support 1 Lane), SMBUS, GPIO, SIM, LPC, mSATA

LV-67OEIP

Intel Atom Processor E3845 (2M Cache, 1.91GHz), DVI, Display Port, CRT,

Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card, PCIE

x16 (only support 1 Lane), SMBUS, GPIO, SIM, LPC, mSATA

LV-67ONIP

Intel Celeron Processor N2930 (2M Cache, 2.16GHz), DVI, Display Port,

CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card,

PCIE x16 (only support 1 Lane), SMBUS, GPIO, SIM, LPC, mSATA

LV-67OJX2

Intel Celeron Processor J1900 (2M Cache, 2.42GHz), 2 x LVDS, CRT, Gigabit

LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card, PCIE x16

LV-67O User’s Manual

-7-

(only support 1 Lane), SMBUS, GPIO, SIM, LPC, mSATA

LV-67OEX2

Intel Atom Processor E3845 (2M Cache, 1.91GHz), 2 x LVDS, CRT, Gigabit

LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card, PCIE x16

(only support 1 Lane), SMBUS, GPIO, SIM, LPC, mSATA

LV-67ONX2

Intel Celeron Processor N2930 (2M Cache, 2.16GHz), 2 x LVDS, CRT,

Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, Audio, PCIE Mini card, PCIE

x16 (only support 1 Lane), SMBUS, GPIO, SIM, LPC, mSATA

The specifications may be different as the actual production.

For further product information please visit the website at TUhttp://www.commell.com.twUT

1.3 <Mechanical Drawing>

LV-67O User’s Manual

-8-

1.4 <Block Diagram>

Chapter 2 <Hardware Setup>

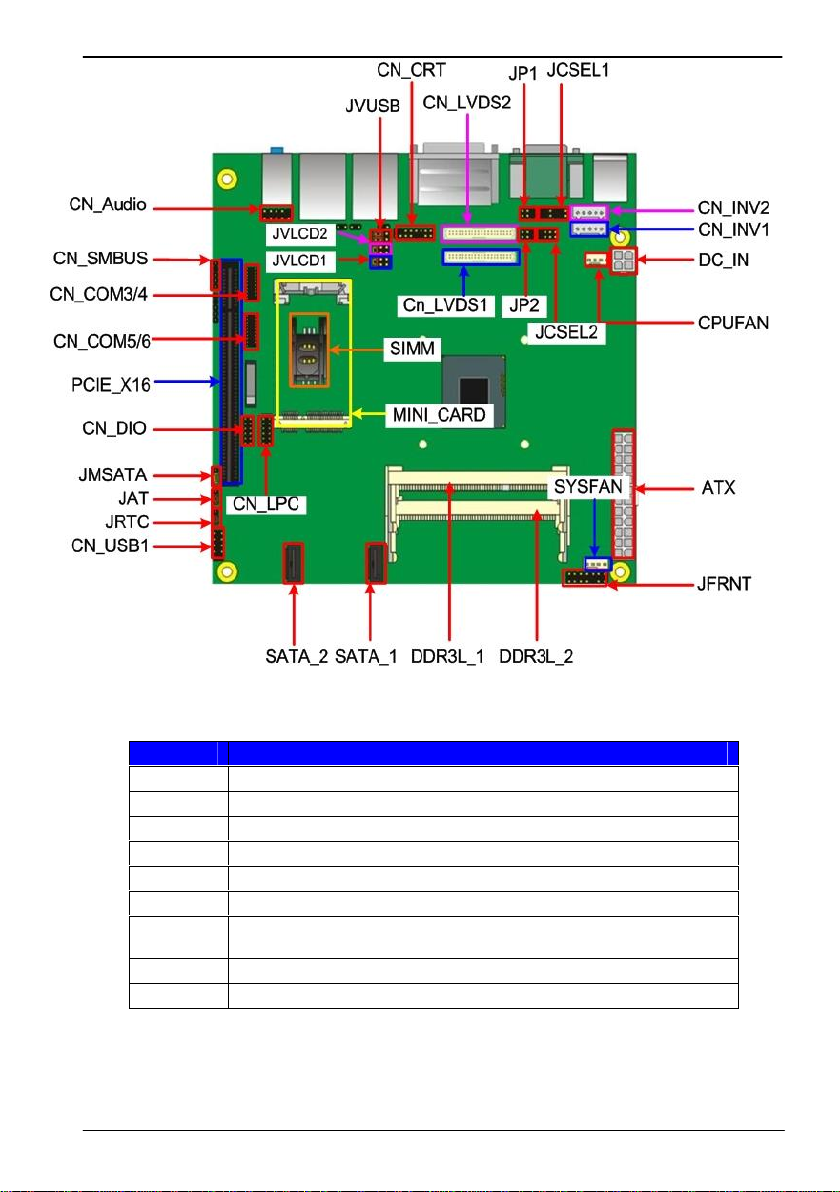

2.1 <Connector Location>

LV-67O User’s Manual

-9-

2.2 <Jumper Location & Reference>

Jumper

Function

JRTC

CMOS Operating/Clear Setting

JVLCD1

Panel1 Voltage Setting

JVLCD2

Panel2 Voltage Setting

JAT

Power mode select

JP1

Com1 Voltage Setting (For Pin 9)

JP2

Com2 Voltage Setting (For Pin 9)

JCSEL1

JCSEL2

COM2 RS-232 RS422 RS485 Setting

JVUSB

USB Voltage Setting

JMSATA

Mini Card mSATA Setting

LV-67O User’s Manual

-10-

2.3 <Connector Reference>

2.3.1 <Internal Connectors>

Connector

Function

Remark

CPU

FCBGA1170 CPU

SO-DIMM 1/2

204 -pin DDR3L SO-DIMM socket

SATAII 1/2

7-pin Serial ATAII connector

DC_IN

DC 6~27V input connector

ATX

24-pin power supply connector

CN_AUDIO

5 x 2-pin audio connector

CDIN

4-pin CD-ROM audio input connector

CN_DIO

6 x 2-pin digital I/O connector

CN_USB 1

10-pin USB connector

CPUFAN

4-pin CPU cooler fan connector

SYSFAN

4-pin system cooler fan connector

CN_CRT

16-pin VGA connector

CN_LVDS 1/2

20 x 2-pin LVDS connector

CN_INV 1/2

5-pin LCD inverter connector

CN_COM 3/4/5/6

9-pin RS232

CN_LPC

5 x 2-pin LPC connector

JFRNT

14-pin front panel switch/indicator connector

PCIE

164-pin x16 PCIE slot

Mini-PCIE

52-pin Mini-PCIE socket

SIMM

6-pin socket

JAT

Power mode select

Autres manuels pour LV-67O

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Commell Carte mère

Commell

Commell P4LA Manuel utilisateur

Commell

Commell LV670 Series Manuel utilisateur

Commell

Commell EE-260 Manuel utilisateur

Commell

Commell Pico-ITX LP-171 Manuel utilisateur

Commell

Commell LV-678 Manuel utilisateur

Commell

Commell LP-174 Manuel utilisateur

Commell

Commell P3WMA Series Manuel utilisateur

Commell

Commell LV-67I Manuel utilisateur

Commell

Commell FS-A72 Manuel utilisateur

Commell

Commell LV-672 Manuel utilisateur

Commell

Commell LE-37G Manuel utilisateur

Commell

Commell LV-66A Manuel utilisateur

Commell

Commell LV-677 Manuel utilisateur

Commell

Commell P2LXB Manuel utilisateur

Commell

Commell HS-873P Manuel utilisateur

Commell

Commell LV-67M Manuel utilisateur

Commell

Commell LE-380 Manuel utilisateur

Commell

Commell LV-667 Manuel utilisateur

Commell

Commell LP-172D Manuel utilisateur

Commell

Commell FS-977 Manuel utilisateur

Commell

Commell LV-67PNX Manuel utilisateur

Commell

Commell Mini-ITX Motherboard LV-671 Manuel utilisateur

Commell

Commell LV-6714 Manuel utilisateur

Commell

Commell LE-370 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
