Commell P4ELA Manuel utilisateur

P4ELA

Micro ATX motherboard

User’s Manual

Edition: 1.0

2009/07/28

P4ELAUser’sManual

reserved. The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TUhttp://www.commell.com.twUT.

P4ELAUser’sManual

Packing List

Please check package component before you use our products.

Hardware:

P4ELA Micro ATX motherboard x 1

Cable Kit:

Other Accessories:

Divers CD (including User’s Manual) x 1

RAID drivers Disc for Windows XP

SATA Cable x 2

I/O Shield x 1

Floppy flat cable x 1

DB25 & DB9 cable x 1

P4ELAUser’sManual

Index

Chapter1 <Introduction>............................................................7

1.1 <Product Overview> .............................................................................................7

1.2 <Product Specification>........................................................................................8

1.3 <Block Diagram> ................................................................................................10

1.4 <Mechanical Drawing > ......................................................................................11

Chapter 2 <Hardware Setup>.................................................12

2.1 <Connector Location>.........................................................................................12

2.2 <Component Placement> ...................................................................................13

2.3 <Jumper Reference>..........................................................................................14

2.4 <Connector Reference>......................................................................................15

2.4.1 <Internal Connectors> ..............................................................15

2.4.2 <External Connectors> .............................................................15

2.5 <CPU and Memory Setup>.................................................................................16

2.5.1 <CPU installation>...................................................................16

2.5.2 <Memory installation>..............................................................17

2.6 <CMOS Setup>...................................................................................................19

2.7 <Serial ATA installation>......................................................................................20

2.8 <Floppy Installation>...........................................................................................21

2.9 <LAN installation>...............................................................................................22

2.10 <Onboard Display Interface>............................................................................23

2.10.1 <Analog Display>..................................................................23

2.11 <Audio Installation>...........................................................................................24

2.12 <GPIO and SMBUS interface> .........................................................................26

2.13 <USB Installation> ............................................................................................27

2.14 <Power and Fan Installation> ...........................................................................29

2.15 <Serial Port>.....................................................................................................31

2.16 <Switch and Indicator> .....................................................................................34

P4ELAUser’sManual

Chapter 3 <System Configuration>.......................................36

3.1 <SATA configuration>..........................................................................................36

3.2 <SATA RAID Configuration>...............................................................................37

3.3 <Audio Configuration> ........................................................................................41

3.4 <Video Memory Setup> ......................................................................................42

3.5 <Display Properties Setting>...............................................................................44

Chapter 4 <BIOS Setup>.........................................................46

Appendix A <I/O Port Pin Assignment>................................48

A.1 <Serial ATA Port>................................................................................................48

A.2<Floppy Port>......................................................................................................48

A.3 <IrDA Port>.........................................................................................................49

A.5 <VGA Port> ........................................................................................................50

A.6 <LAN Port>.........................................................................................................50

Appedix B <System Resources>...........................................51

B.1 <I/O Port Address Map>.....................................................................................51

B.2 <Memory Address Map> ....................................................................................53

B.3 <System IRQ Resources>..................................................................................54

Appedix C <Flash BIOS>.........................................................55

C.1 <BIOS Auto Flash Tool>................................................................................55

C.2 <Flash Method>..............................................................................................55

Appendix D <Programming GPIO’s>....................................56

Appendix E <Watch Dog timer Setting >..............................57

Contact Information...................................................................58

P4ELAUser’sManual

(This Page is Left for Blank)

P4ELAUser’sManual

Chapter1 <Introduction>

1.1 <Product Overview>

P4ELA is the motherboard with last Intel desktop technology with Micro ATX form factor.

Based on Intel®Q45 and ICH10DO, the board integrates a new Core 2 Quad / Core 2 Duo

Celeron processor 775-pin socket, DDR3 memory socket, Intel®Graphic Media Accelerator

4500 technology, Serial ATAII with RAID function for a powerful desktop system.

Intel®LGA775 processor

The Intel® Core 2 Quad / Core 2 Duo / Celeron processor now comes with a new form

factor with 775-pin PLGA package, for 800/1066/1333MHz front-side-bus, 12MB L2 cache,

for 65nm and 45nm manufacturing technology, the PLGA processor without pin header on

solder side can make user installing the processor on the socket easier.

Intel®Q45 and ICH10DO chipset

The Intel Q45 integrates DDR3 800/1066MHz for memory, and Graphic Media Accelerator

(GMA) 4500 technology for new graphic engine. It can provide up to 1024MB of frame

buffer when you install over 1GB of system memory. The ICH10DO integrates with up to 12

USB2.0 interfaces, and serial ATA II interface with RAID function.

PCI-Express interface

P4ELA integrates one x16 and one x4 PCI-Express interface, it can provide up to 8GB/s of

bandwidth.

Flexible Extension Interface

The board provides Two PCI-slot for graphics card, it also can support PCI-slot for LAN card

or other devices. The board also provides mini-PCI socket and ISA slot.

P4ELAUser’sManual

1.2 <Product Specification>

General Specification

Form Factor Micro ATX motherboard

CPU Intel® Core 2 Quad / Core 2 Duo / Celeron processor

With LGA775 socket

Package type: LGA 775

Front side bus: 800/1066/1333MHZ (200/266/333MHz x 4)

Memory 2 x 240-pin DDR3 800/1066MHz SDRAM up to 4GB

Unbufferred, none-ECC memory supported only

Chipset Intel® Q45 (Northbridge) and ICH10DO (Southbridge)

BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min.

of timeout value

Real Time Clock Intel® ICH10DO built-in RTC with lithium battery

Serial ATAII Intel® ICH10DO integrates 6 Serial ATA II interface

RAID 0, 1,5,10 Intel Matrix Storage Technology supported

Multi-I/O Port

Chipset Intel® 82801JDO ( ICH10DO) with Winbond® W83627DHG

Controller

Serial Port Five RS-232 and one RS232/422/485 serial ports

USB Port Twelve Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

Floppy Port One Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

Interface

Smart Fan One CPU fan connectors for fan speed controllable

VGA Display Interface

Chipset Intel® Q45 GMA4500 (Graphic Memory Controller Hub)

Frame Buffer Up to 1024MB shared with system memory

Display Type CRT, LCD monitor with analog display

Connector External DB15 female connector on rear I/O panel

Ethernet Interface

Controller Two Intel 82574L Gigabit Ethernet controller

Type Triple speed 10/100/1000Base-T

Auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector Two External RJ45 connectors with LED on rear I/O panel

P4ELAUser’sManual

Audio Interface

Chipset Intel® ICH10DO with Realtek ALC888HD Audio

Intel High Definition Audio compliance

Interface 2 channels sound output

Connector External 3 phone jack for 2 channel audio on rear I/O panel

External SPDIF connector on rear I/O panel

Internal 10-pin header for line-out, MIC-in, 4-pin header for CD-IN

Expansive Interface

PCI-Express One 16x PCI-Express slot (compatible with x1 slot)

(16x PCI-Express slot no supply 1x PCI-Express RAID Card)

One 4x PCI-Express slot (compatible with x 1 slot)

Up to 8GB/s of transfer bandwidth

Power supply: +3.3V, +12V

PCI Two-PCI slot (32-bit, 33MHz)

Power supply: +3.3V, +5V, +12V, -12V

Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz)

Power supply: +3.3V, +5V

ISA One ISA slots (without DMA supported)

Power and Environment

Power

Requirement Standard ATX 24-pin (20-pin is compatible) power supply

Additional +12V 4-pin power connector

Dimension 244 (L) x 244 (H) mm

Temperature Operating within 0 ~ 60P

C (32 ~ 140P

Storage within –20 ~ 85P

C (-4 ~ 185P

Ordering Code

P4ELA Support Intel Core 2 Quad LGA775 with DDRIII, Onboard VGA,

Dual Intel Gigabit LAN, 12 x USB2.0, HD Audio, 6 x COM , GPIO,

SATA and ISA .

MP-6421 Mini PCI with one 44-pin Ultra DMA 33 IDE interface supports up to

2 ATAPI devices

1 x Compact Flash Type II and 2 x serial ATA interface

MP-323 Mini-PCI card support 3 x IEEE 1394 interface

MP-6100 Mini-PCI H.264 video capture card support 4-ch Video & Audio

inputs with SDK provide

PCIE-SDVOD PCI-Express module support 1 x DVI interface

PCIE-SDVOX PCI-Express module Support 18/24-bit , Dual channel LVDS

interface

P4ELAUser’sManual

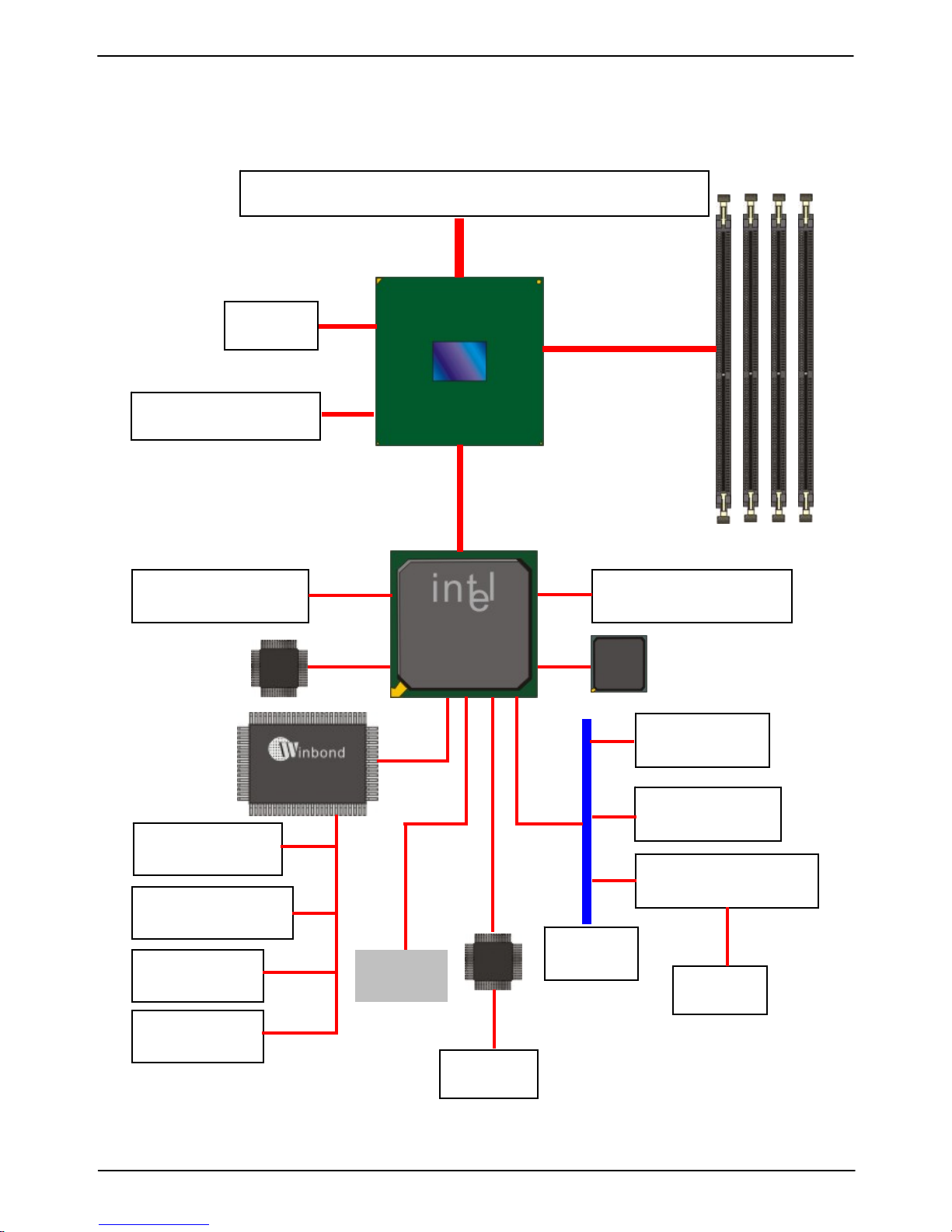

1.3 <Block Diagram>

Intel Core 2 Quad / Core Due with 775 Pin PLGA

Intel Q45 4 x 240-pin DDR3

800/1066MHz up

to 8GB

PCI bus

Mini-PCI slot

2 x Serial ports

1 x Floppy port

8-bit GPIO

12 x USB2.0 ports

2 x PCI Slot

HD Audio ICH10DO

6 x Serial ATAII ports

Intel 82574L

2 x GLAN

IrDA

PCIE 16x Slot

BIOS

SPI

COM3~6

VGA

W83628 + W83629

ISA Slot

Table des matières

Autres manuels Commell Carte mère

Commell

Commell LV-67F Manuel utilisateur

Commell

Commell LE-37N Manuel utilisateur

Commell

Commell HE-860 Manuel utilisateur

Commell

Commell HS-770 Manuel utilisateur

Commell

Commell LV-67U Manuel utilisateur

Commell

Commell LV-67K Manuel utilisateur

Commell

Commell LV-67I Manuel utilisateur

Commell

Commell LE-362 Manuel utilisateur

Commell

Commell AS-C74 Full size ATX motherboard Manuel utilisateur

Commell

Commell LP-172 Manuel utilisateur

Commell

Commell LV-670M Manuel utilisateur

Commell

Commell LE-37DJIP Manuel utilisateur

Commell

Commell HS-872P Manuel utilisateur

Commell

Commell LE-37M7 Manuel utilisateur

Commell

Commell LP-172 Manuel utilisateur

Commell

Commell P4BWA Manuel utilisateur

Commell

Commell LV-672 Manuel utilisateur

Commell

Commell LV670 Series Manuel utilisateur

Commell

Commell LV-67N Manuel utilisateur

Commell

Commell LV-6714 Manuel utilisateur

Commell

Commell LE-37G Manuel utilisateur

Commell

Commell LP-180 Manuel utilisateur

Commell

Commell LS-377 Manuel utilisateur

Commell

Commell LS-372 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
