Commell P3WMA Series Manuel utilisateur

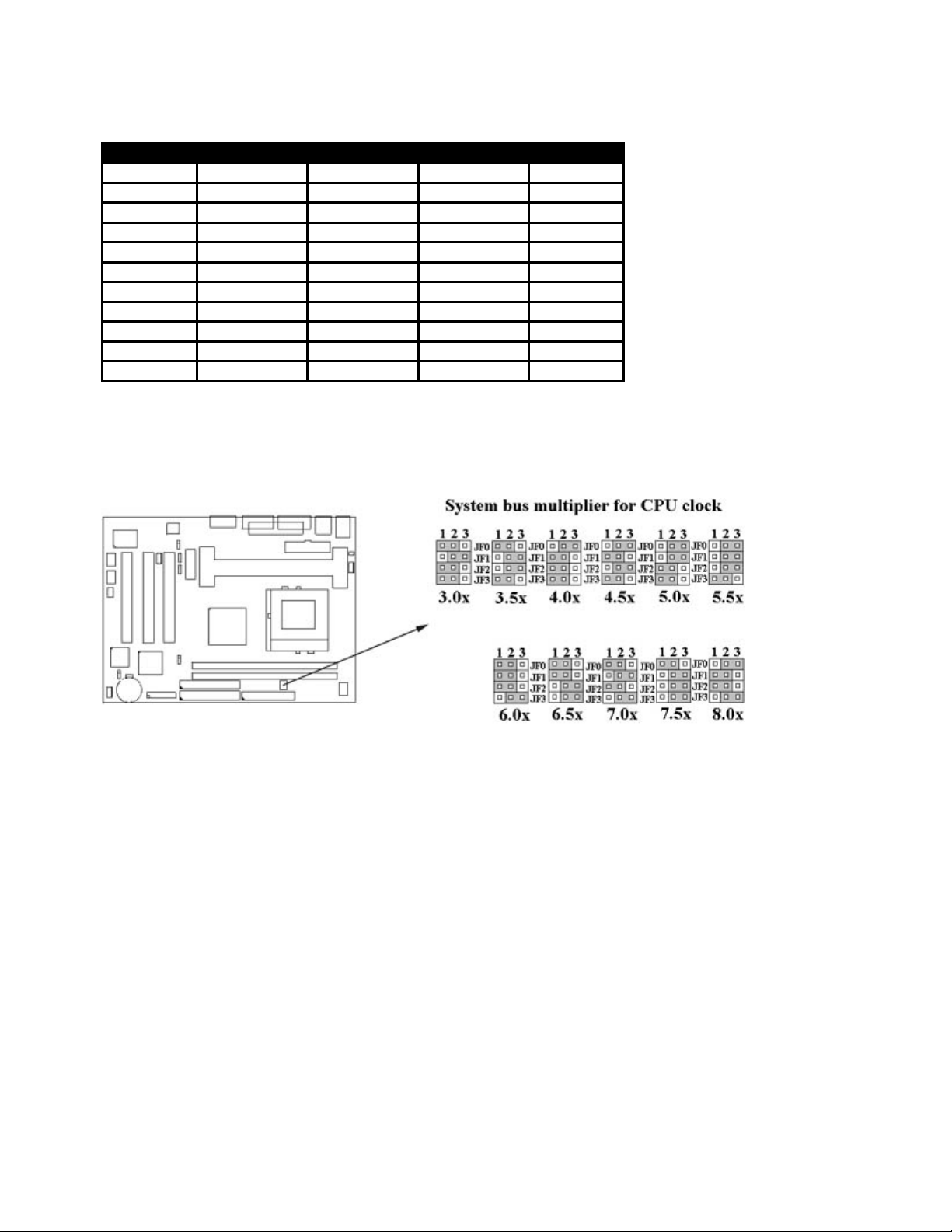

P3WMA or P3WMA-E series Quick Installation Chart
For your convenience, this chart lists all the CPUs supported by P3WMA or P3WMA-E series and their
corresponding jumper setting.
Ratio JF0 JF1 JF2 JF3
3.0x 1-2 2-3 1-2 1-2
3.5x 1-2 2-3 2-3 1-2
4.0x 2-3 1-2 1-2 1-2
4.5x 2-3 1-2 2-3 1-2
5.0x 2-3 2-3 1-2 1-2
5.5x 2-3 2-3 2-3 1-2
6.0x 1-2 1-2 1-2 2-3
6.5x 1-2 1-2 2-3 2-3
7.0x 1-2 2-3 1-2 2-3
7.5x 1-2 2-3 2-3 2-3
8.0x 2-3 1-2 1-2 2-3
*** The Ratio of some latest CPUs are fixed by Intel, such as Celeron/ Celeron II/ Pentium III 366, 400, 566…
etc. You can ignore the four jumpers if you have this CPU on board and it will be auto detected by motherboard.
Please check with the CPU manufacturer or vendor for the CPU Ratio information.
*** The CPU CLK over specification operation is optional. Please see session 3.9.3 for more information.
P3WMA
P3WMA-E
Motherboard User’s Manual
Product Name:P3WMA or P3WMA-E series
Manual Revision: English, 1.3
Trademarks
Intel, Socket 370, Celeron, Pentium II and Pentium III are trademarks of Intel Corporation
Award is a trademark of Award Software International Inc.
MS-DOS, Windows 95, Windows 98 and Windows NT are registered trademarks of Microsoft Corporation
Novell is a trademark of Novell Corporation
Sound Blaster SB16 is a trademark of Creative Technology
ADI is a trademarks of Analog Devices Inc.,
All other brand and product names are trademarks or registered trademarks of their respective companies.
Table of Contents
Chapter 1. Introduction
1.1 Product Overview
1.2 Features
1.3 Specifications
1.4 Content
1.5 System Board Layout
Chapter 2. Hardware Setup
2.1 Installation Procedure
2.1.1 Jumper Settings
2.1.2 Enable/Disable Audio Codec
2.1.3 Clearing the CMOS
2.1.4 Keyboard Voltage Setting
2.1.5 CPU FSB Frequency Setting
2.1.6 CPU Voltage Setting
2.1.7 CPU Frequency Setting
2.2 Installation of CPU
2.2.1 For Celeron, Pentium II & III CPU
2.2.2 For Socket 370 CPU
2.3 Installation of Memory
2.3.1 Installation of 168-pin DIMM
2.3.2 Removal of 168-pin DIMM
2.3.3 Memory Configuration
2.4 I/O Connections/Panel Connections

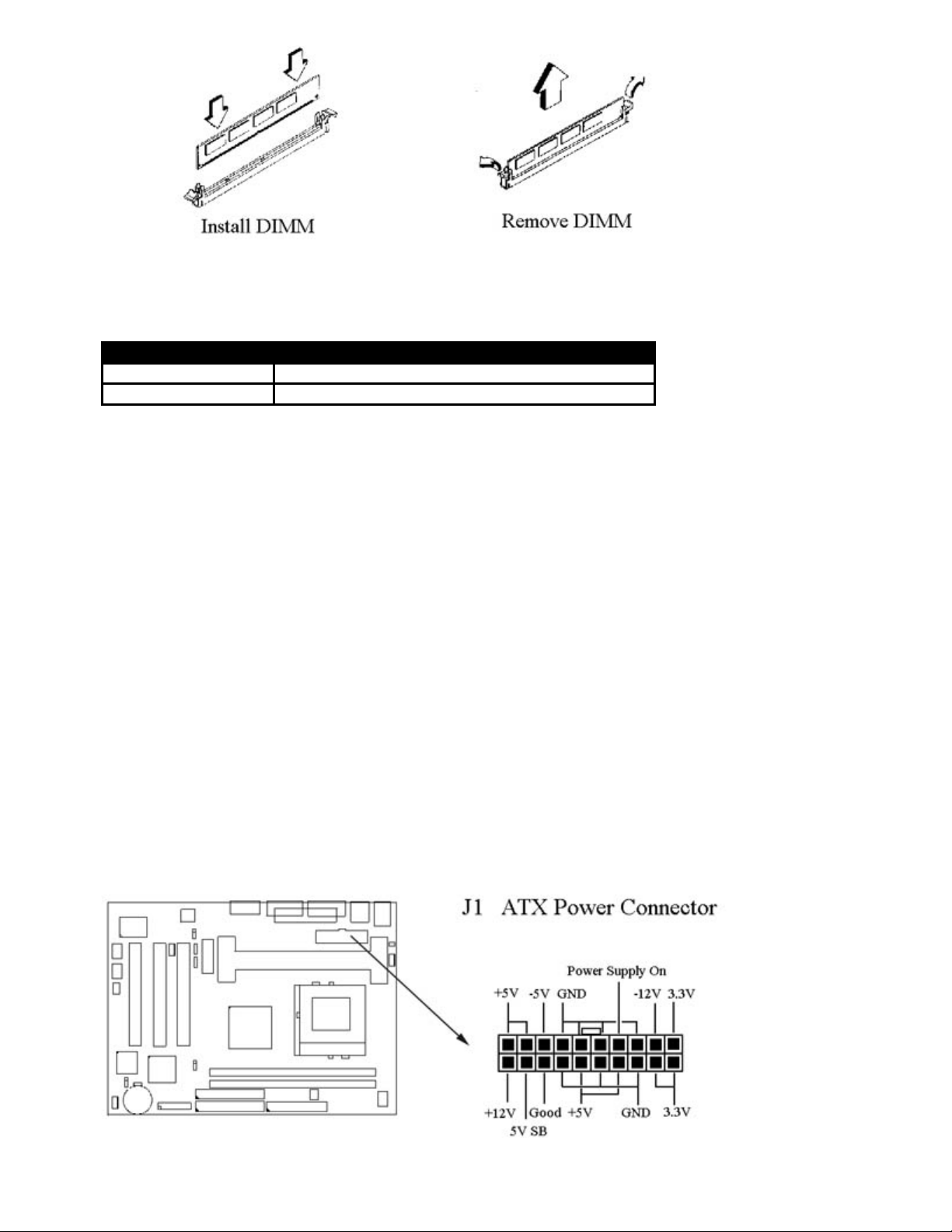

2.4.1 ATX Power Connector
2.4.2 CPU/Chassis Fan Connector
2.4.3 Wake-up on LAN Connector
2.4.4 Creative’s SB_LINK Sound Connector
2.4.5 Floppy Disk Drive Connector
2.4.6 Primary/Secondary IDE Connector
2.4.7 Infrared Connector
2.4.8 PS/2 Mouse Port
2.4.9 PS/2 Keyboard Connector
2.4.10 VGA Output Connector
2.4.11 Serial Port
2.4.12 Printer Port
2.4.13 USB Connectors
2.4.14 Line Out Connector
2.4.15 Line In Connector
2.4.16 Microphone In Connector
2.4.17 Game/MIDI Port
2.4.18 ATAPI IDE/SONY Audio
2.4.19 Mitsumi Audio
2.4.20 Panel Connection
Chapter 3. BIOS Setup
3.1 CMOS Setup Utility
3.2 Standard CMOS Features
3.3 Advanced BIOS Features Setup
3.4 Advanced Chipset Features Setup
3.5 Integrated Peripherals
3.6 Power Management Setup
3.7 PNP/PCI Configuration Setup
3.8 PC Health Status
3.9 Frequency Control
3.10 Load Fail-SafeDefaults
3.11 Load Optimized Defaults
3.12 Set Supervisor/User Password
3.13 Save & Exit Setup
3.14 Exit Without Saving
Chapter 4. Software Installation
4.1 INF Update for Windows 95/98/ME/2000
4.1.1 For Windows 95/98 Gold Edition
4.1.2 For Windows 98 SE
4.1.3 For Windows 2000/ME
4.2 Installing the Graphics Driver
4.2.1 For Windows 95/98/ME
4.2.2 For Windows 2000
4.2.3 For Windows NT 4.0
4.2.4 For Windows 3.11, NT 3.51 & OS/2
4.3 Installing the Sound Driver
4.4 Installing the Intel Security Driver
4.5 Installing Ultra ATA Storage Driver
4.6 Installing Hardware Doctor
Appendix A Using the Suspend to RAM Function
Chapter 1. Introduction
1.1 Product Overview
Thank you for purchasing the P3WMA series motherboard. This motherboard utilizes Intel's latest Accelerated
Hub Architecture technology. It uses 82810(DC100) or 82810E, 82801AA/AB & 82802AB controller Hub. We
have conducted a motherboard compatibility test with a variety of hardware and software, such as CPUs,
memory, display cards, CD ROMs, Novell, MS Office ....etc and has passed NSTL Year 2000 certification test
program.
We have set high standards on our quality control, with absolute confidence, we believe this product is the
wisest choice.
This manual is composed of four sections. The first section is the introduction of this motherboard, and the
second section explains the proper procedure to setup the motherboard, the third section provides information
on how to setup the CMOS. The last section states the device drivers & utilities installation .
1.2 Features
- Support Desktop Management Interface (DMI) through BIOS.
- Integrated Direct AGP Graphics/AC '97 controller.
- Support Ultra DMA 66.(for P3WMA, P3WMA-DC & P3WMA-E only)
- Support 133MHz FSB.(for P3WMA-E only)
- Modem Remote Ring On.
- Wake up on LAN.
- Wake on Keyboard.
- RTC Wake up Alarm: Program the date/time to wake up your system.
- Support NCR SCSI BIOS.
- Support Advanced Configuration Power Interface (ACPI).
- Low-power sleep modes, and 4Mbits “Plug & Play” Flash ROM.
- ADI AD1881 Audio CODEC on board .
- Support Hardware Monitor function.
- Allows CPU settings and easy overclocking of frequency and Vcore voltage.
- Support Suspend to RAM.
- Both the BIOS and hardware levels of the motherboard meet PC '99 compliant.
1.3 Specifications
CPU : - Supports Intel Socket 370, Celeron, Pentium II, Pentium III with 66/100
FSB Processors. P3WMA-E also supports 133MHz FSB processors.
Chipset : - Intel 82810DC100, 82801AA & 82802AB chipset for P3WMA-DC
Intel 82810, 82801AA & 82802AB chipset for P3WMA.
Intel 82810, 82801AB & 82802AB chipset for P3WMA-L.
Intel 82810E, 82801AA & 82802AB chipset for P3WMA-E.
VGA : - Integrated 4MB 32-bit 100MHz SDRAM display cache controller (for
P3WMA-DC & P3WMA-E only) and a 24-bit 230MHz RAMDAC graphics
controller.
- Integrated 2D & 3D Graphics Engines, Software DVD MPEG 2 playback
with H/W Motion Compensation Engine.
- Shared System Memory Area 1MB. 60MB Dynamic Video Memory
Allocation.
DIMM : - Supports PC100-compliant or faster SDRAM in 2 168-pin banks, each
bank consists of 1x168-pin 64-bit DIMM socket, which can support
memory sizes of 16/32/64/128/256 MB modules.
- Supports up to a maximum of 512 MB system memory
IDE : - Dual channel PIO and PCI Bus Master IDE ports support up to 4 EIDE
devices for HDD or CD-ROM
- Supports PIO Mode 4 with data transfer rate up to 14 MB/Sec
- Supports Ultra DMA 33/66 with data transfer rate up to 33/66 MB/Sec
(P3WMA-L supports UDMA 33 only)
BIOS : - 4Mbits Award BIOS v6.00PG with built-in Anti-Virus, DMI, ACPI support,
and green function (Plug-and-Play BIOS)
- Supports CD-ROM/HD/SCSI/Floppy/LS120/ZIP and LAN boot up
- Supports NCR SCSI BIOS.
I/O Devices : - One FDD control port supports two of the 5.25" or 3.5" floppy drives up to
2.88 MB.
- Two high-speed 16550 UART compatible serial ports
- One parallel ports with ECP/ EPP compatibility.
- One PS/2 mouse port
- One PS/2 Keyboard connector
IR Port : - One IrDA/ASKIR compatible Infrared interface port. (Cable optional)
USB Ports : - Two Universal Serial Bus (USB) ports support up to 127 peripheral
devices.
Sound : - ADI AD1881 Audio Codec
- AC '97 Rev 2.1 compliant
- 16-bit Stereo Full-Duplex Codex
- High quality Sample Rate Conversion (SRC) from 7kHz to 48kHz in 1Hz
increments
- Phat Stereo 3D Stereo Enhancement
- Audio Amp Power Down Signal
- Extended 6-bit Master Volume Control
- DSP 16-bit Serial Port Format, Slot 16 Mode
- Split Power Supplies ( 3.3V Digital / 5V Analog )
ATX Power : - Supports Modem remote Ring-On function
- Supports software power off function
- Supports RTC Wake-Up.
- Supports Wake up on LAN.
- Supports Keyboard Wake-Up.
Expansion Slots : - Three 32-bit PCI expansion slots
- One Audio Modem Riser (AMR ) slot
Others : - Supports Creative’s Sound Blaster 16 compatibility for real-mode DOS
games.
Operating System : - Supports Windows 3.x/95/98/2000, Windows NT, MS-DOS V6.22, OS/2,
Novell, Unix, SCO UNIX.....
Dimension : - 244 mm x 190 mm Micro ATX Form factor
1.4 Content
The motherboard box contains the following items:
One Motherboard
One IDE Ribbon Cable
One Floppy Ribbon Cable
One Serial Ribbon Cable

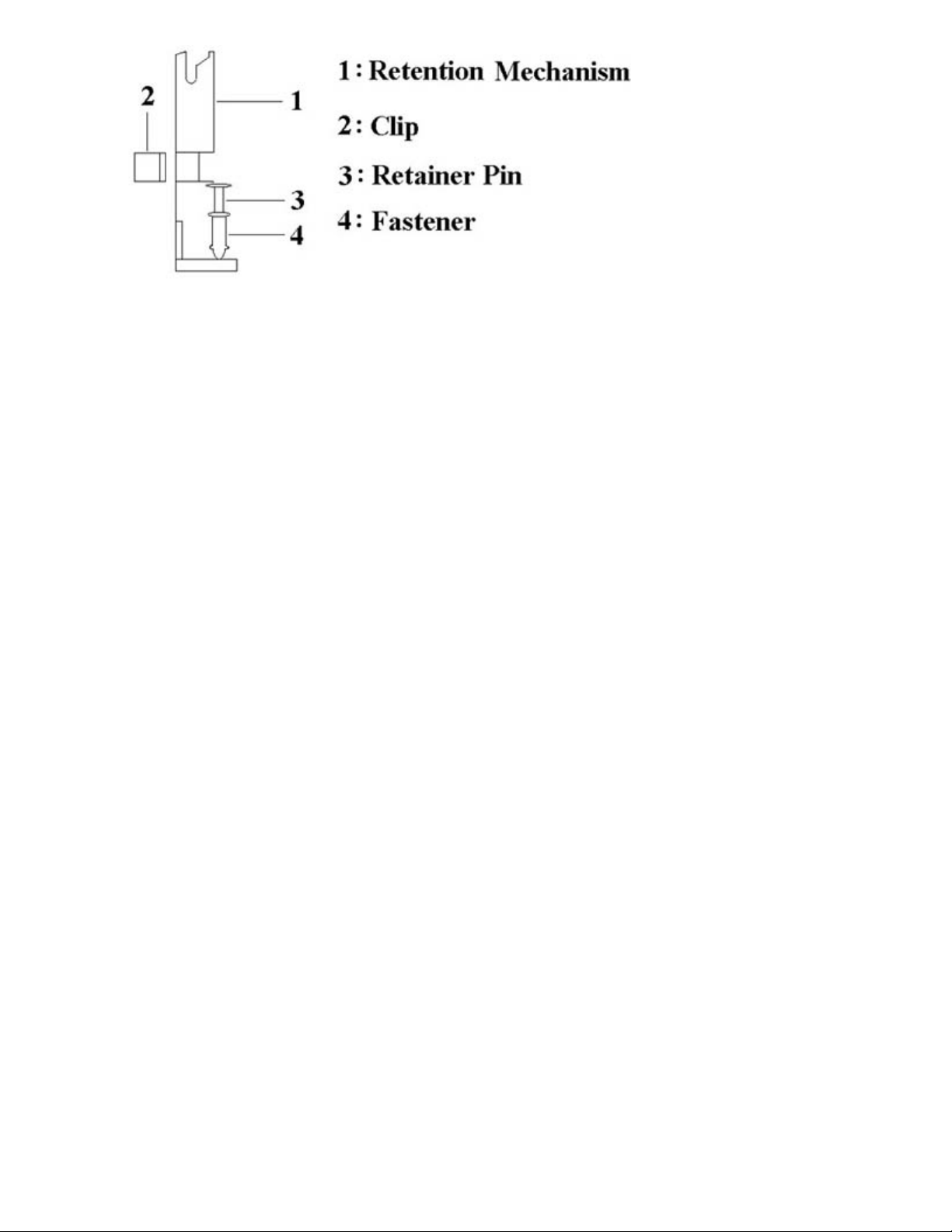

One Retention mechanism
One Driver CD
User's Manual & Quick Installation Chart

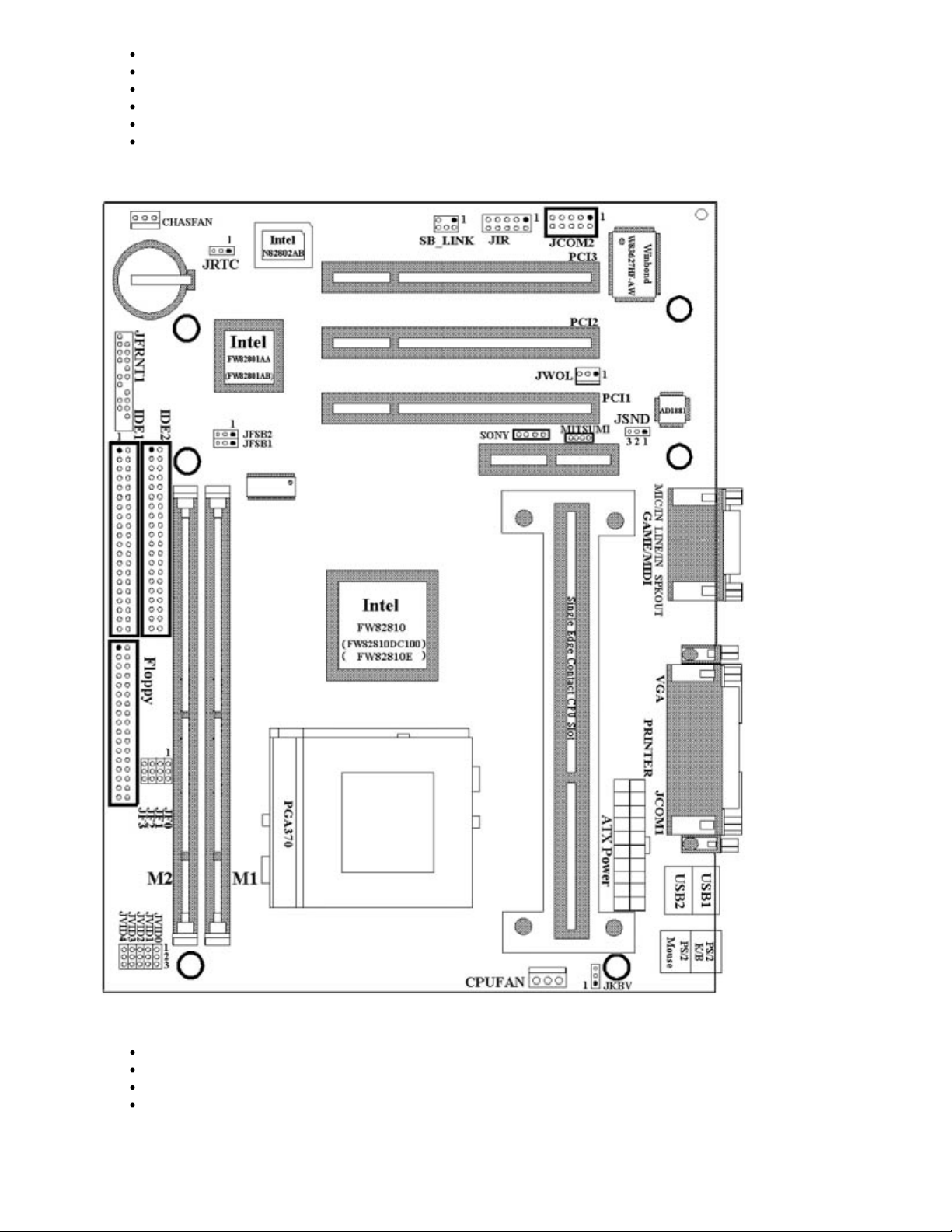

1.5 MotherBoard Layout
Notice:
P3WMA has 82810, 82801AA & 82802AB chipset.
P3WMA-L has 82810, 82801AB & 82802AB chipset.
P3WMA-DC has 82810DC100, 82801AA & 82802AB chipset.
P3WMA-E has 82810E, 82801AA & 82802AB chipset.
Chapter 2. Hardware Setup
2.1 Installation Procedure
1. Jumper settings
2. Installation of CPU
3. Installation of Memory
4. I/O Connections & Panel Connections
2.1.1 Jumper Settings
In this manual , (1-2) represents the first and second pins of the jumper. (2-3) represents the second and
third pins of the jumper. On the motherboard, you will see two sets of jumpers with different color jumper
caps:
Yellow Jumper Caps: Sets the Function of Flash CMOS
JRTC
Green Jumper Caps: Sets the type and speed of CPU
JF0, JF1, JF2, JF3
Red Jumper Caps: Sets the FSB frequency of CPU JFSB
Sets the Vcore Voltage of CPU JVID
Sets the Keyboard Voltage JKBV
Enable/Disable Audio Codec function JSND (optional)
WARNING: Electronic parts are Static sensitive. To prevent damage to the computer and its parts please take
the following measures.
Work on a surface such as concrete, linoleum or hard wood floor.
Ground your self with either a properly installed grounding strap or by touching a major electrical
appliance long enough to discharge the static.

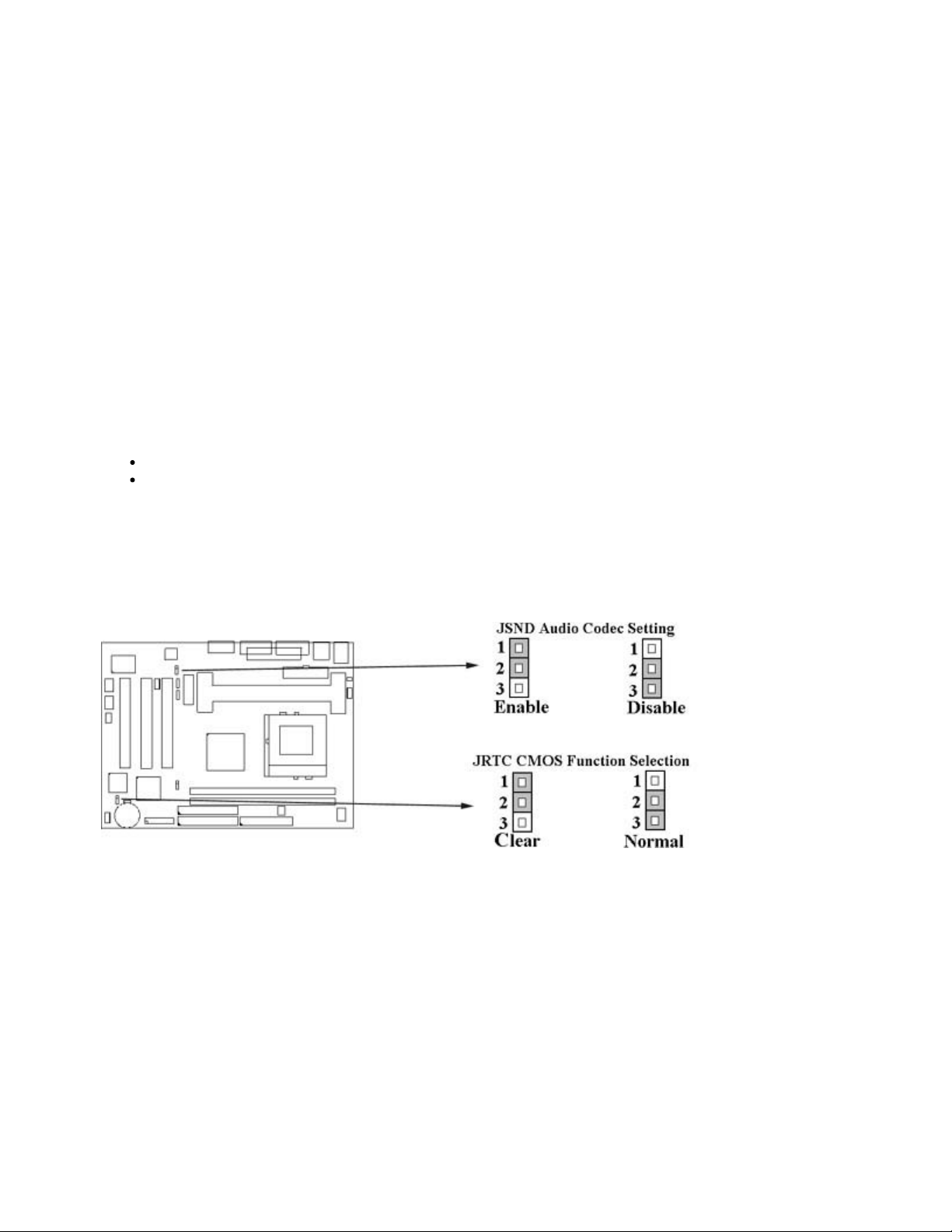

2.1.2 Enable/Disable Audio Codec (JSND : Red Jumper Cap) (The Audio Codec function and jumper are optional)
This jumper lets you to enable or disable the audio codec function.
1-2 : Enable Audio Coedc function (Default Setting)
2-3 : Disable Audio Coedc function
2.1.3 Clearing the CMOS (Yellow Jumper Cap)
JRTC: CMOS Function Selection
1-2:Clear data
2-3:Normal Operation (Default Setting)
How to Clear the CMOS Setting
1. Turn off the power.
2. Remove ATX power cable from connector J1.
3. Remove Yellow Jumper Cap from JRTC (2-3) and put on JRTC (1-2) to remove the CMOS setting.
4. Remove Yellow Jumper Cap from JRTC (1-2) and put on JRTC (2-3).
5. Connect ATX power cable back to connector J1.
6. Turn on the power.
7. While the system reboots, press <DEL> key to set the BIOS setup.
2.1.4 Keyboard Voltage Setting (Red Jumper Cap)
This motherboard supports wake on keyboard function. This feature requires that your system has an ATX
power supply with at least 300mA +5V standby power and set this jumper to 2 & 3 pin short. Refer to session
3.5.9 for more information.
1-2 : 5V (Default Setting)
2-3 : 5V Stand By

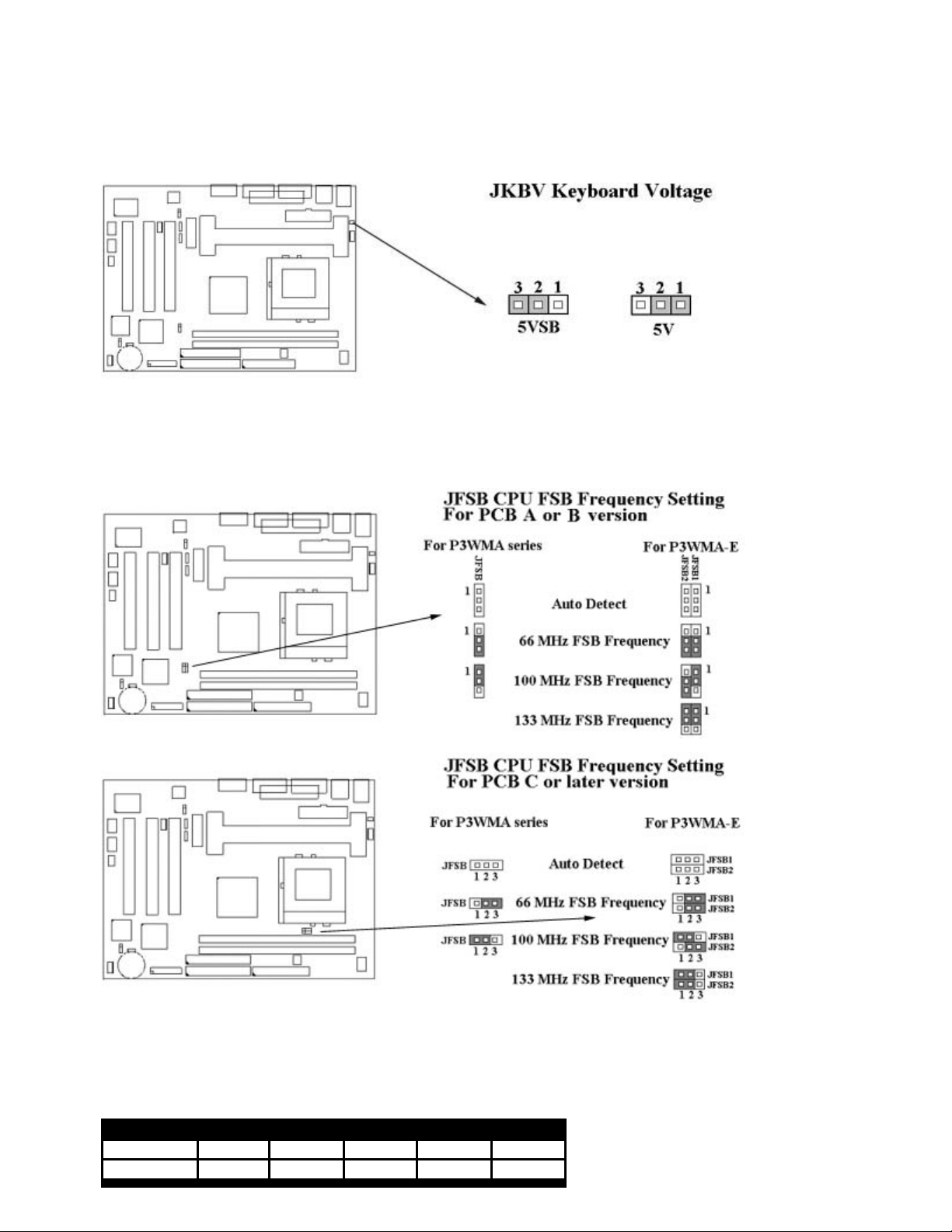

2.1.5 CPU FSB Frequency Setting (Red Jumper Caps)
The JFSB jumper provides some FSB frequency settings for the CPU. Auto Detect , 66MHz, 100MHz or
133MHz FSB frequency can be selected with this jumper. The over specification operation is not recommended.

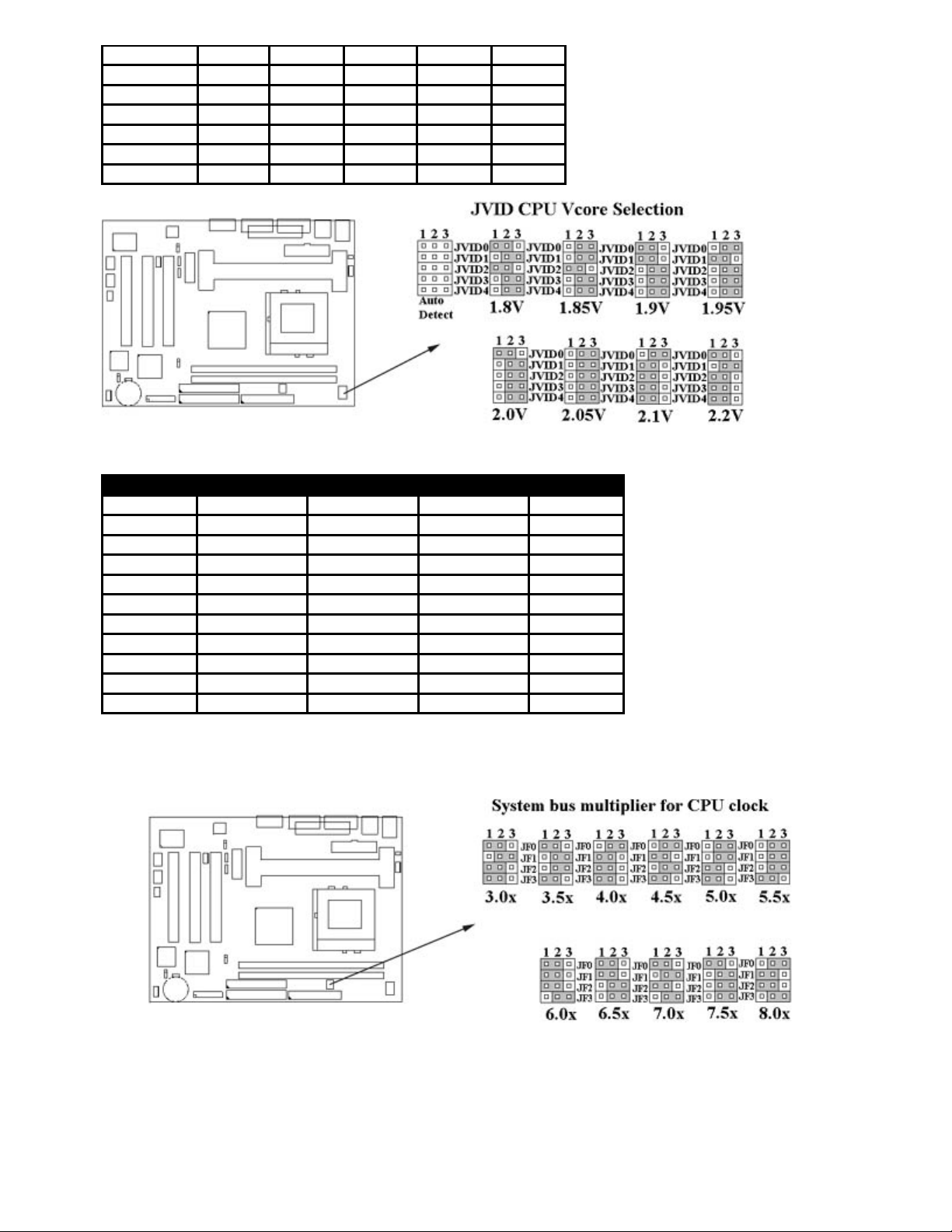

2.1.6 CPU Voltage Setting (Red Jumper Caps)
The motherboard supports CPU VID function. It supports auto detect mode and manual setting. When all of the
JVID jumpers has no connection (N.C.) , the CPU core voltage is automatically detected, the range is from 1.3V
to 3.5V for Pentium II & III CPU and. the range is from 1.3V to 2.0V for Socket 370 & Celeron CPU
Vcc2 JVID0 JVID1 JVID2 JVID3 JVID4
Auto Detect N.C. N.C. N.C. N.C. N.C.
1.8V 1-2 2-3 1-2 2-3 2-3
1.85V 2-3 2-3 1-2 2-3 2-3
1.9V 1-2 1-2 2-3 2-3 2-3
1.95V 2-3 1-2 2-3 2-3 2-3
2.0V 1-2 2-3 2-3 2-3 2-3
2.05V 2-3 2-3 2-3 2-3 2-3
2.1V 2-3 1-2 1-2 1-2 1-2
2.2V 1-2 2-3 1-2 1-2 1-2
2.1.7 CPU Frequency Selection (Green Jumper Caps)
Ratio JF0 JF1 JF2 JF3
3.0x 1-2 2-3 1-2 1-2
3.5x 1-2 2-3 2-3 1-2
4.0x 2-3 1-2 1-2 1-2
4.5x 2-3 1-2 2-3 1-2
5.0x 2-3 2-3 1-2 1-2
5.5x 2-3 2-3 2-3 1-2
6.0x 1-2 1-2 1-2 2-3
6.5x 1-2 1-2 2-3 2-3
7.0x 1-2 2-3 1-2 2-3
7.5x 1-2 2-3 2-3 2-3
8.0x 2-3 1-2 1-2 2-3
The Ratio of some latest CPUs are fixed by Intel, such as Celeron/ Celeron II/ Pentium III 366, 400, 566… etc.
You can ignore the four jumpers if you have this CPU on board and it will be auto detected by motherboard.
Please check with the CPU manufacturer or vendor for the CPU Ratio information.
2.2 Installation of CPU
2.2.1 For Celeron, Pentium II & III CPU
The motherboard provides a Single Edge Contact(SEC)slot for processor packaged in an SEC cartridge. Follow
these steps to install CPU:
Mount the Universal Retention Mechanism (URM) & Insert the CPU: ( The illustration is just for reference )
This URM was designed to accommodate 3 types of CPU Form Factor. ( SECC, SECCII & SEPP ). For
Example : Pentium II/ III & Celeron family.
Note : Please put a soft pad under M/B before the installation of URM.
Installation for SECC CPU :
1. Leave space below each mounting hole for the fastener to protrude through the hole.
2. Position URM on the M/B next to the slot1 connector.
3. Push down retainer pin into respective fastener to secure URM onto the M/B.
4. Push CPU into URM to contact with slot1.
5. Make sure latching portion of CPU engaged with windows ledge of URM.
Installation for SECC II or SEPP CPU :
1. Same as step (1) of SECC.
2. Same as step (2) of SECC.
3. Same as step (3) of SECC.
4. Same as step (4) of SECC.
5. Snap in 2 clips into side windows of URM to secure SEPP CPU.
If there is a fan on the CPU, Please plug in the fan cable to the three pin fan connector on the motherboard (
CPUFAN ).
2.2.2 For Socket 370 CPU
Before installing CPU, make sure the power is off. Locate the level bar on the PGA370 ZIF socket. Push level
bar away from the socket and pull upward 90 degrees. Insert the CPU into the socket. Make sure the notch of
the CPU corresponds with the white dot on the ZIF socket (the corner without pin socket). Do not push in the
CPU. Make sure all pins are aligned with the CPU socket. ON the level bar.
2.3 Installation of Memory
This motherboard has 2x168-pin 64-bit Dual Inline Memory Module (DIMM) sockets divided into 2 banks. You
can install 3.3V Unbuffered PC100-compliant Synchronous DRAM (SDRAM) memory.
Some DIMM memory has SPD ( Serial Presence Detect ) 8-pin IC on module. When 2 piece DIMM on
motherboard, it is not recommended the SPD ( Serial Presence Detect ) DIMM blends and non-SPD
DIMM.
2.3.1 Installation of 168-pin DIMM (Dual Inline Memory Module)
1. Before inserting the DIMM, make sure the pin1 of the DIMM matches with the pin1 on the DIMM socket.
2. Insert DIMM into the DIMM sockets at a 90-degree angle and press down.
2.3.2 Removal of 168pin DIMM
1. Press the holding clips on both sides of the socket outward to release the DIMM.
2. Gently pull the DIMM out of the socket.
3.
2.3.3 Memory Configuration
There is no jumper setting required for the memory size or type. It is automatically detected by the system
BIOS, and the total memory size is to add them together.
DIMM Socket DIMM Modules
DIMM1 PC100 or faster SDRAM 16, 32, 64, 128, 256MB
DIMM2 PC100 or faster SDRAM 16, 32, 64, 128, 256MB
2.4 I/O Connections/Panel Connections
I/O Connections
J1 ATX Power Connector
CPUFAN CPU fan connector
CHASFAN Chassis fan connector
JIR Infrared Connector ( Cable optional )
JWOL Wake up on LAN connector
SB_LINK for link with Creative's Sound Blaster 16
FLOPPY Floppy Disk Drive Connector
IDE1, 2 Primary/ Secondary IDE Connectors
MS PS/2 Mouse Port
KB PS/2 Keyboard Connector
VGA VGA output Connector
COM1, 2 Serial Ports 1 & 2
PRINTER Printer Port
USB USB Connector
GAME Game/MIDI Connectors
LINE_OUT Line out Connector
LINE_IN Line in Connector
MIC Microphone in Connector
MITSUMI The Connector for Mitsumi CD-ROM audio cable
SONY The Connector for IDE/Sony CD-ROM audio cable
2.4.1 ATX Power Connector (20-pin J1)
Make sure that the power supply is off before connecting or disconnecting the power cable.
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Commell Carte mère
Commell
Commell LE-370 Manuel utilisateur
Commell
Commell LP-174 Manuel utilisateur
Commell
Commell LV-67N-G Manuel utilisateur
Commell
Commell LV-67X Manuel utilisateur
Commell
Commell LE-370 Manuel utilisateur
Commell
Commell LV-669 Manuel utilisateur
Commell
Commell LS-377 Manuel utilisateur
Commell
Commell FS-97A Manuel utilisateur
Commell
Commell LV-67W Manuel utilisateur
Commell
Commell LV-676 Manuel utilisateur
Commell
Commell LV-67TK7 Manuel utilisateur
Commell
Commell LV-683 Manuel utilisateur
Commell
Commell LV-67I Manuel utilisateur
Commell
Commell LP-172 Manuel utilisateur
Commell
Commell HS-873P Manuel utilisateur
Commell
Commell P4LA Manuel utilisateur
Commell
Commell HE-B72 Manuel utilisateur
Commell
Commell LE-37A Manuel utilisateur
Commell
Commell LV-67A Manuel utilisateur
Commell
Commell LV-67P Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Gigabyte
Gigabyte GA-9IVDT Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
Biostar
Biostar M7VIT Bravo Instructions d'utilisation et d'installation
