Commell LV-6714 Manuel utilisateur

LV-6714

Mini-ITX Desktop Motherboard

User’s Manual

Edition 1.2

2022/11/22

LV-6714 User’s Manual

-1-

The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at TU http://www.commell.com.twUT

LV-6714 User’s Manual

-2-

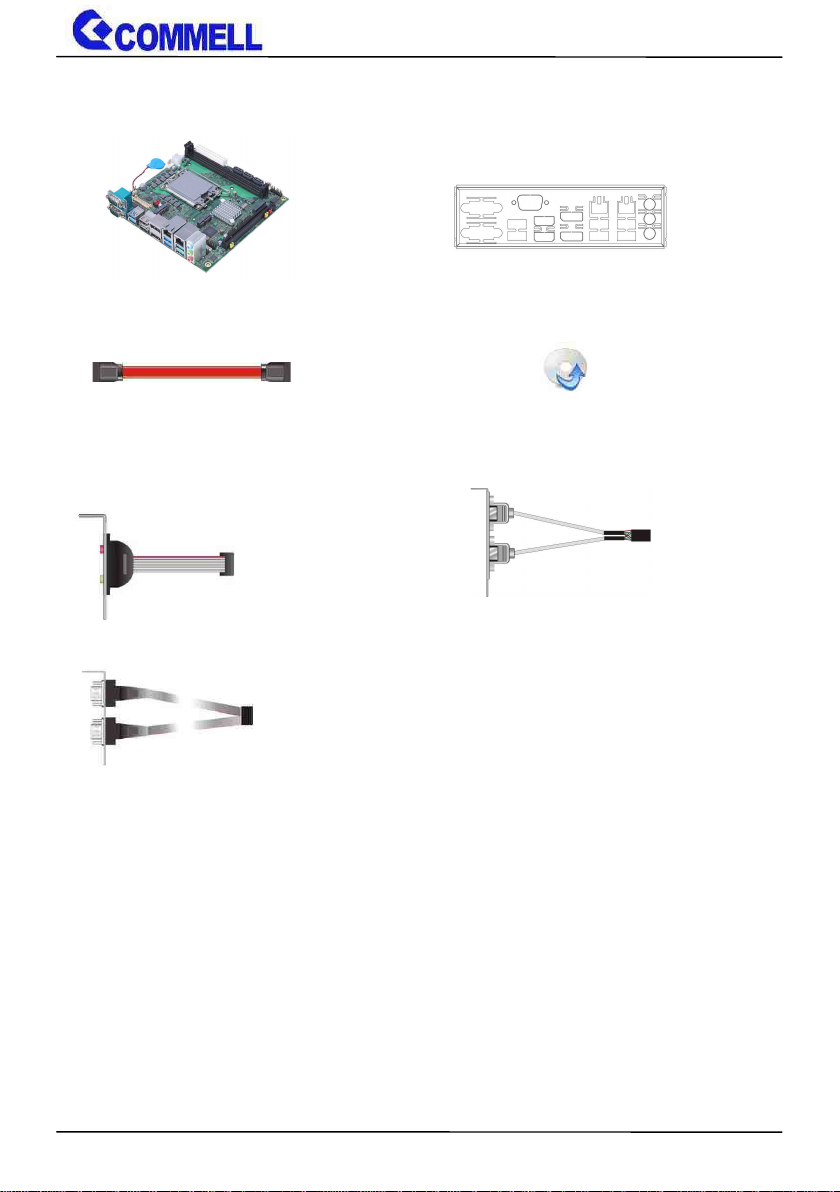

Packing List:

Please check the package content before you starting using the board.

1 x LV-6714 Mini-ITX Motherboard 1 x I/O Shield

(OPLATE-CUHDLAT) / (1270077)

1 x Audio cable 1 x USB2.0 Cable

(OALPJ-HD) / (1040120) (OALUSBA-1) / (1040172)

1 x Dual COM PORT Cable

(OALES-BKU2) / (1040087)

2 x SATA Cable 1 x Driver CD

(OALSATA3-L) / (1040529) (Including User’s Manual)

OPTIONAL:

LV-6714 User’s Manual
-3-
Index
Chapter 1 <Introduction>...............................................................4
1.1 <Product Overview>............................................................4
1.2 <Product Specification> ......................................................5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup>.........................................................7
2.1 <Connector Location and Reference> ................................7
2.1.1 <Internal connectors list>..........................................8
2.1.2 <External connectors list>.........................................8
2.2 <CPU and Memory Setup>.................................................9
2.2.1 <CPU installation> ....................................................9
2.2.2 <Memory Setup> ......................................................9
2.3 <Jumper Location and Reference>...................................10
2.3.1 <Jumper list> ..........................................................10
2.3.2 <Clear CMOS and Power on type selection>..........11
2.4 <I/O interface> ..................................................................11
2.4.1 <Serial ATAinterface>.............................................11
2.4.2 <Ethernet interface>................................................12
2.4.3 <Display interface> .................................................12
2.4.4 <Serial Port interface> ............................................15
2.4.5 <USB interface>......................................................17
2.4.6 <Audio interface>....................................................18
2.4.7 <Expansion slot>.....................................................19
2.4.8 <Front panel switch and indicator> .........................20
2.4.9 <GPIO and Other interface>...................................21
2.5 <Power supply> ................................................................23
2.5.1 <Power input>.........................................................23
Appendix A <Flash BIOS> ...........................................................25
Appendix B <LCD Panel Type select>........................................26
Appendix C <Programmable Watch Dog Timer>.......................27
Appendix D <Hardware Monitor>................................................29
Appendix E <Programmable GPIO> ...........................................30
Appendix F <RAID Setting>.........................................................31
Contact information........................................................................32

LV-6714 User’s Manual

-4-

Chapter 1 <Introduction>

1.1 <Product Overview>

LV-6714 is a Mini-ITX Motherboard which supports Alder Lake/12th Gen Desktop

Processors, integrated DDR5 memory, Realtek High DefinitionAudio, Intel Gigabit LAN,

USB3.2 Gen2, SATA3 with AHCI function for a system.

New feature for Alder Lake

Alder Lake/12th Gen Processors are based on the 7nm SuperFin process, and offer

long-life availability. i9-12900 with 8 P-cores and 8 E-cores. P-cores can help you handle

heavy tasks, and E-cores run background tasks efficiently to save power. Support DDR5

Memory up to 4800 and PCIe gen 5 x16 Slot.

All in One multimedia solution

The board provides one M.2 3042 slot (support SATA), one M.2 2230 slot, one M.2 2280

slot (PCIe Gen4), and one PCIe x16 slot (PCIe Gen5 X16).

Alder Lake support Windows10 version 21H2 64bit and Linux 5.18

Intel recommends using Windows 10 version 21H2 64bit. It may lose some drivers if you

use other Windows version.

LV-6714 User’s Manual

-5-

1.2 <Product Specification>

System

Processor

Support 12th Gen Intel®Alder Lake S Processor

FCLGA1700 package (Support up to 65W TDP CPU)

Chipset

Intel® Q670E

Memory

2 x DDR5 DIMM 4800 MHz up to 64GB,

Support Non-ECC, unbuffered memory only

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Expansion

1 x M.2 2230 Key E for Wi-Fi and Bluetooth

1 x M.2 2280 Key M support PCIe Gen4 or SATA

1 x M.2 3042 Key B for 4G / 5G module or SATAwith SIM slot

1 x PCIe X16 slot support PCIe Gen5

Graphics

Chipset

Intel® UHD Graphics 770 / 730 / 710

Display Interface

1 x LVDS (Note1), 2 x HDMI, 2 x DisplayPort(Note2)

LAN

Chip

1 x Intel® I219-LM Gigabit LAN PHY (Support iAMT16.0)

1 x Intel® I226-LM Gigabit LAN

I/O

Serial ATA

3 x SATA3

Audio

RealtekALC888S HDAudio

Internal I/O

3 x SATA3, 4 x RS232, 2 x USB2.0, 1 x LVDS, 1 x SIM slot

1 x LCD inverter connector , 1 x GPIO , 1 x Audio, 1 x SMBus

Rear I/O

2 x HDMI, 2 x DisplayPort, 1 xAudio, 2 x LAN, 6 x USB3.2 Gen2

2 x RS232/RS422/RS485

Mechanical & Environmental

Power Requirement

Standard 24-pinATX power supply and 4-pin 12V

Size & Thickness

170mm x 170mm (L x W)

Temperature

Operating within 0°C~60°C (32°F~140°F)

Storage within -20°C~80°C (-4°F~176°F)

Relative Humidity

10%~90%, non-condensing

Note1: Onboard 18/24-bit single/dual channel +3.3V/ +5V/ +12V LVDS

Note2: Add ADP-3355 supports VGA or Add ADP-3460 supports 2nd LVDS, please contact with our

sales for OEM version.

LV-6714 User’s Manual

-6-

1.3 <Block Diagram>

PTN3460

LVDS

HDMI

DDR5

PCIe Gen5

M2-M

MUX

I219

I226

3x SATA

2x USB2.0

6x USB3.2 Gen2

MUX

M2-B

M2-E

ALC888S

4 x RS232

2 x RS232/422/485

CPUFAN

SYSFAN

GPIO

DMI

ESPI

SATA

PCIe

USB

PCIe

SATA

ADL-S

CPU

Q670E

NCT6126D

LV-6714 User’s Manual

-7-

Chapter 2 <Hardware setup>

2.1 <Connector Location and Reference>

ATX

COM2

SATA3-3 SATA3-1

COM1 USB3 USB_RJ45_1

DHDMI

DDP

M2-B

MINI_

CAR

SATA3-2 SYSFAN

SIMX

MIN

I_C

ARD

M2-E

MINI_

CAR

M2-M

MINI_

CAR

CN_LVDS

USB_RJ45_2 AUDIO

DDR5A

DDR5B

JFRNT

PCI_E16X

CN_DIO

CN_COM5/6

CN_COM3/4

CN_USB

JLANLED

CN_AUDIO

DDR4_A

DDR4_B

ATX

CN_12V

CPUFAN

CN_SMBUS

CN_ BAT

CN_INV

LV-6714 User’s Manual

-8-

2.1.1 <Internal connectors list>

Connector

Function

DDR5_A/B

288-pin DDR5 DIMM slot

SATA3-1/2/3

7-pin SATA3 connector

CN_AUDIO

5 x 2-pin audio pin header

CN_LVDS

20 x 2-pin LVDS connector

CN_INV

5-pin LCD inverter connector

CN_SMBUS

5-pin SMBus connector

CN_COM 3/4/5/6

20-pin RS232 connector

CN_USB

5 x 2-pin USB2.0 pin header

CN_DIO

6 x 2-pin digital I/O connector

CPUFAN

4-pin CPU fan connector

SYSFAN

4-pin system fan connector

JFRNT

14-pin front panel switch/indicator connector

JLANLED

8-pin RJ45 LED Connector

PCI_E16X

164-pin x16 PCIE slot (Supoort PCIe Gen5)

M2_E

75-pin M.2 Key E slot

M2_M

75-pin M.2 Key M slot (Supoort PCIe Gen4 or SATA)

M2_B

75-pin M.2 Key B slot (Supoort 4G / 5G module or SATA)

ATX

24-pin power supply connector

CN_12V

4-pin power input Terminal Block

SIMM

6-pin socket

2.1.2 <External connectors list>

Connector

Function

DDP

Dual DisplayPort connector

DHDMI

Dual HDMI connector

USB3

Dual USB3.2 Gen2 connector

USB_RJ45_1/2

RJ45 and Dual USB3.2 Gen2 connector

AUDIO

Audio connector

COM1/2

DB9 Serial port connector

LV-6714 User’s Manual

-9-

2.2 <CPU and Memory Setup>

2.2.1 <CPU installation>

LV-6714 has a LGA1700 CPU socket onboard; please check following steps to install the

processor properly.

Attention If LV-6714 needs RMA please Keep CPU socket cover on the CPU Socket.

Warning If CPU Socket internal Pin damage We could not provide warranty.

LGA 1700 Install manual from Intel

LGA 1700 Install video from Intel

2.2.2 <Memory Setup>

LV-6714 has two 288-pin DDR5 DIMM support up to 64GB of memory capacity and 1.1

Voltage. The memory frequency supports 4800 MHz.

Please check the pin number to match the socket side well

before installing memory module.
