Commell FS-97A Manuel utilisateur

FS-97A

Full-size Single Board Computer

User’s manual

Edition 1.3

2009/9/15

FS-97A User’s Manual

are reserved. The information in this document is subject to change without prior notice

to make improvements to the products.

This document contains proprietary information and protected by copyright. No part of

this document may be reproduced, copied, or translated in any form or any means

without prior written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of

their respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting

from the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including

without limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications

of the product described within it at any time without notice and without obligation to

notify any person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at http://www.commell.com.tw.

FS-97A User’s Manual Packing List

Packing List:

Please check the package material before you install the system.

Hardware:

FS-97A Single Board Computer x 1

Cable Kit:

40-pin ATA100 IDE flat cable x 2 Floppy flat cable x 1

DB25 & DB9 cable with bracket x 1

(FS-97AVL only) Dual DB9 cable with bracket x 1

(FS-97AVL2 only)

DB25 cable with bracket x 1

(FS-97AVL2 only) Dual USB cable with bracket x 2

FS-97A User’s Manual

Audio cable with bracket x 1

4-pin to 3-pin ATX cable x 1 PS/2 Keyboard & Mouse Cable x 1

Other Accessories:

Divers CD (including User’s Manual)

CPU Cooler x 1

FS-97AUser’sManual Index

Index

Chapter 1 <Introductions>...................................................................................7

1.1 < Product Overview>................................................................................7

1.2 <Product Specifications>..........................................................................8

1.3 <Component Placement> ......................................................................10

1.4 <Block Diagram>.................................................................................... 11

Chapter 2 <Hardware Setup>.............................................................................13

2.1 <Connectors Location>..........................................................................13

2.2 <Jumper Reference> .............................................................................14

2.3 <Connectors Reference>.......................................................................15

2.3.1 <Internal Connectors>................................................................15

2.3.2 <External Connectors>...............................................................15

2.4 <System Setup>.....................................................................................16

2.4.1 <CPU Installation>......................................................................16

2.4.2 <Memory Module Installation> ...................................................17

2.4.3 <CPU Cooler Installation>..........................................................18

2.4.4 <Complete the system installation> ...........................................19

2.5 <CMOS Setup>......................................................................................20

2.6 <Watchdog Timer Setting>.....................................................................21

2.7 <Embedded Solid State Disk> ...............................................................22

2.8 <Power and Fan Setup>........................................................................23

2.9 <Display Interface> ................................................................................24

2.9.1 <Analog VGA interface>.............................................................24

2.9.2 <Digital VGA interface>..............................................................25

2.10 < Ethernet Network Interface>.............................................................29

2.11 <Audio Interface>.................................................................................30

2.12 <GPIO interface> .................................................................................31

2.13 <Switch and Indicator>.........................................................................32

FS-97AUser’sManual Index

Chapter 3 <Display Mode Setup>......................................................................33

Chapter 4 <BIOS Setup> ....................................................................................37

Appendix A <I/O ports pin assignment>...........................................................39

A.1 <IDE Port>.............................................................................................39

A.2 <Floppy Port> ........................................................................................40

A.3 < Parallel Port>......................................................................................41

A.4 <Serial Port>..........................................................................................42

A.4.1 <External DB9 COM> ................................................................42

A.4.2 <Internal COM2>........................................................................42

A.5 <USB Port>............................................................................................43

A.6 <IrDA Port>............................................................................................43

A.7 <VGA Port>............................................................................................44

A.8 <LAN Port>............................................................................................45

A.8.1 <Gigabit Ethernet Controller>....................................................45

A.8.2 <Ethernet Controller>.................................................................45

A.9 <AT Keyboard Port> ..............................................................................46

A.10 <PS/2 Keyboard & Mouse Port>..........................................................46

Appendix B <Flash BIOS>..................................................................................47

B.1 BIOS Auto Flash Tool......................................................................47

B.2 Flash Method...................................................................................47

Appendix C <Watchdog Timer Programming Guide>.....................................49

FS-97A User’s Manual Introduction

Product Overview 7

Chapter 1 <Introductions>

1.1 < Product Overview>

The FS-97A is an all-in-one single board computer with PICMG interface. Based on Intel

Mobile solutions with 855GME chipset, it supports Intel Pentium M processor with

socket479, DDR266/333 SDRAM up to 2GB of capacity, Intel Extreme Graphics 2

Technology of onboard VGA display interface, AC97 2 channel audio, USB2.0 interface

and one Gigabit Ethernet controller.

To be a powerful multimedia platform, FS-97A is also integrated with 24-bit dual channel

LVDS interface and one Compact Flash Type II socket. For these features FS-97A can be

easily used for industrial multimedia platform like POS or KIOSK system.

Powerful Embedded System

FS-97A also supports Intel Pentium M FC-BGA2 for embedded, you can choose it for lower

voltage and power consumption, further more, and it can be done for fan free system.

With one compact flash type II socket, you can port embedded operating system like

windows CE.net or Linux Embedded for it.

Hi-Speed USB 2.0 Interface

Intel ICH4 built-in Hi-Speed USB 2.0 controller let FS-97A offering up to 480Mbps of

Hi-Speed USB 2.0 interfaces.

FS-97A User’s Manual Introductions

Product Specifications

1.2 <Product Specifications>

General Specification

Form Factor Full-size PICMG CPU card

CPU Intel Pentium M Processor with FC-PGA478/FC-BGA479

FSB: 400MHz

L2 Cache: 512KB/1MB/2MB

Battery Mode is not supported

Intel Speed Step Technology function is not supported

( The Intel® Celeron® M Processor 4xx series have been

designed to work with the Mobile Intel® 945 Express Chipset

Family only .)

Memory 2GBytes DDR200/266/333 SDRAM on one 184-pin DIMM socket

ECC is supported

Chipset Intel 82855GME GMCH and 82801DB ICH4

BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock Intel ICH4 built-in RTC with lithium battery

Enhanced IDE PCI enhanced IDE interface supports dual channels and up to 4

ATAPI devices at UltraATA/100

Two 40-pin IDE ports

DiskOnModule (DOM) embedded flash disk up to 1GBytes

Multi-I/O Port

Chipset Intel 82801DB ICH4 and Winbond W83627HF-AW LPC Super I/O

controller

Serial Port Two internal RS-232 serial port with 16C550 compatible UART

and 16 bytes FIFO

USB Port Four Hi-Speed USB 2.0 ports with 480 Mbps of transfer rate

Parallel Port One internal bi-direction parallel port with SPP/ECP/EPP mode

Floppy Port One FDD port supports up to two FDD

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

One internal AT keyboard port

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

interface

VGA Display Interface

Chipset Intel 855GME GMCH built-in Intel Extreme Graphics 2

With 266 MHz VGA core and 256-bit 3D engine

Memory Intel dynamic video memory up to 64Mbytes shared with system

Display Type CRT, LCD monitor and analog display

FS-97A User’s Manual Introduction

Product Overview 9

Connector External DB15 female connector on rear I/O panel

Internal 40-pin LVDS connector

Ethernet Interface

Chipset Intel PRO/100+ LAN interface with Intel 82562ET

Optional secondary Gigabit LAN interface with Intel 82540EM

Type 10Base-T / 100Base-TX/1000Base-T for 82540EM

10Base-T / 100Base-TX for 82562ET

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector External RJ45 connector with LED on rear I/O panel

Audio Interface

Chipset Intel ICH4 with Realtek ALC201A AC97 3D audio codec

Interface 2 channel 3D audio with Line-in, Line-out and MIC-in

Connector Internal 10-pin header for line-in/-out, MIC-out, 4-pin header for

CD-in

Extended Interface

Type Onboard 144-pin Mini-AGP interface

Bus type 4x AGP bus

Solid State Disk Interface

Flash Type Compact Flash Type-I/II for CFC (Compact Flash Card) or IBM

MicroDrive

Capacity Up to 1GB flash memory

Power and Environment

Power

Requirement 4-pin onboard +5V/+12V power connector

ATX function Onboard 3-pin PS-ON & 5V standby connector

Dimension 338 (L) x 122 (H) mm

Temperature Operating within 0 ~ 60oC (32 ~ 140oF)

Storage within -20 ~ 85oC (-4 ~ 185oF)

Ordering Code

FS-97AVL Full-size PICMG single board computer with Intel Socket 479

Pentium-M processor Motherboard with Intel onboard VGA, LAN,

Audio, Hi-Speed USB 2.0, Compact Flash socket and LVDS

interface.

FS-97AVL2 Same as above and with secondary Gigabit LAN

For further product information please visit the website at http://www.commell.com.tw

FS-97A User’s Manual Introductions

Component Placement

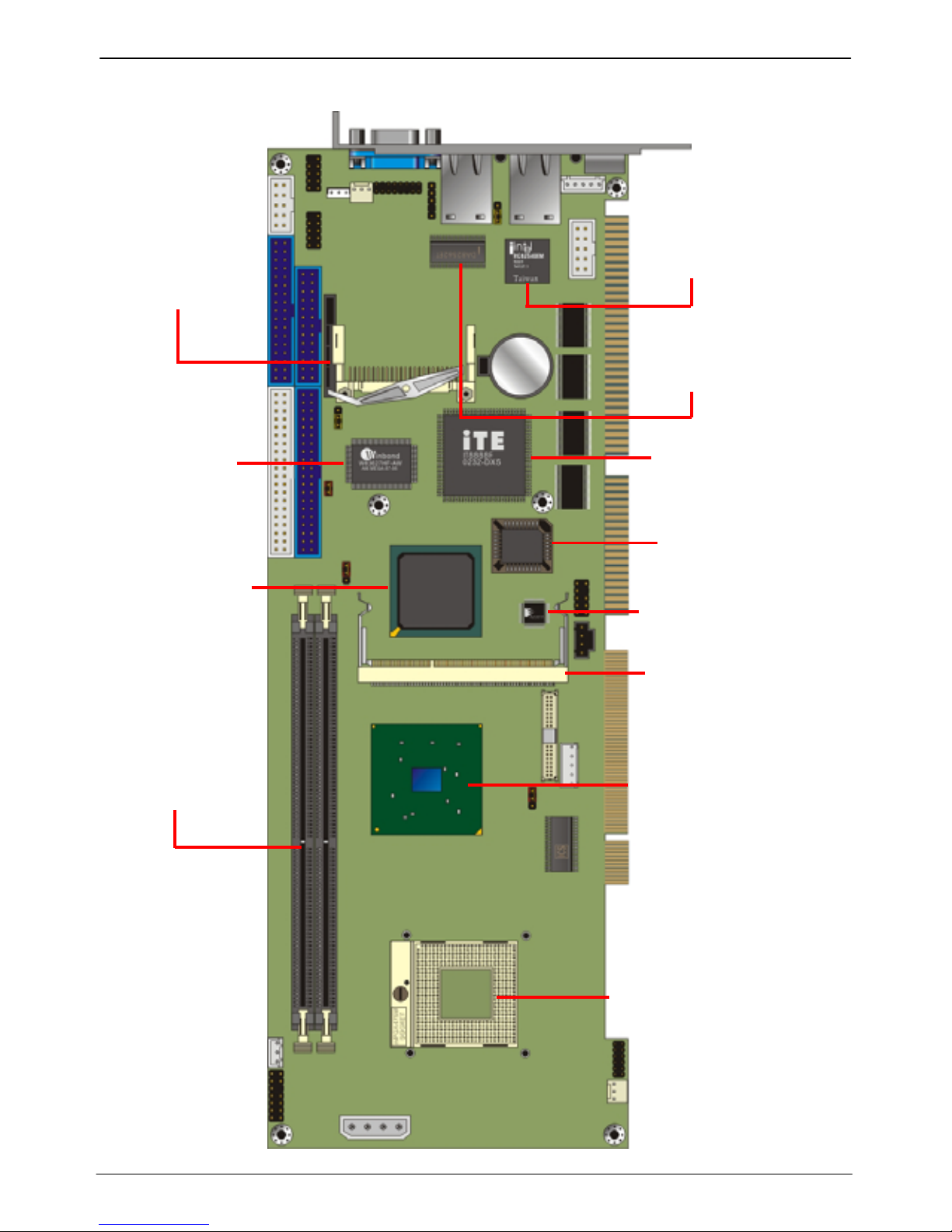

1.3 <Component Placement>

Intel Pentium M Processor

at 400MHz FSB

2 x DDR266/333 DIMM

to 2GB

ICH4

Intel 855GME

BIOS

Optional

Intel 82540EM

Gigabit LAN

Compact Flash Socket

Audio Codec

ISA Bridge

Mini-AGP

Intel 82562ET

LAN

Super I/O

Table des matières

Autres manuels Commell Carte mère

Commell

Commell LV-67U Manuel utilisateur

Commell

Commell LV-66A Manuel utilisateur

Commell

Commell LV-67I Manuel utilisateur

Commell

Commell LV670 Series Manuel utilisateur

Commell

Commell FS-A72 Manuel utilisateur

Commell

Commell HE-B72 Manuel utilisateur

Commell

Commell LV-67O Manuel utilisateur

Commell

Commell FE-97G Manuel utilisateur

Commell

Commell LS-37B Manuel utilisateur

Commell

Commell LE-578 Manuel utilisateur

Commell

Commell LV-67G Manuel utilisateur

Commell

Commell LV-67D Manuel utilisateur

Commell

Commell LS-37B Manuel utilisateur

Commell

Commell FS-977PRO Manuel utilisateur

Commell

Commell LP-172-G Manuel utilisateur

Commell

Commell LV-679 Manuel utilisateur

Commell

Commell LV-674E Manuel utilisateur

Commell

Commell LV-667 Manuel utilisateur

Commell

Commell HE-860 Manuel utilisateur

Commell

Commell LV670 Series Manuel utilisateur

Commell

Commell LP-174 Manuel utilisateur

Commell

Commell LV-666 Manuel utilisateur

Commell

Commell LS-576 Manuel utilisateur

Commell

Commell LV-67O Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
