CAS ER PLUS SERIES Manuel utilisateur
2
ER SERIES
Price Computing
Scale
3
CONTENTS
PRECAUTIONS................................................. .4
PREFACE............................................................ 6
OVERALL VIEW................................................. 6
DISPLAY & KEYBOARD ................................... 7
OPERATIONS...................................................10
I. Programming Mode .................................10
Chapter 1. Basic Operation......................... 11
Chapter 2. PLU Saving & Calling-up ...........14
Chapter 3. User’s Set-up Mode ...................17
Chapter 4. Formatting Printing Receipt ...... 21
II. Sales Mode...............................................26
Chapter 5. Sales Transaction ......................27
Chapter 6. Discount & Payment..................35
Chapter 7. Daily Total Sales Amount........... 37
Chapter 8. EURO Setting Method(Option) .. 39
ASCII CODE......................................................42
ERROR MESSAGES .......................................43
SPECIFICATION .............................................. 44
4

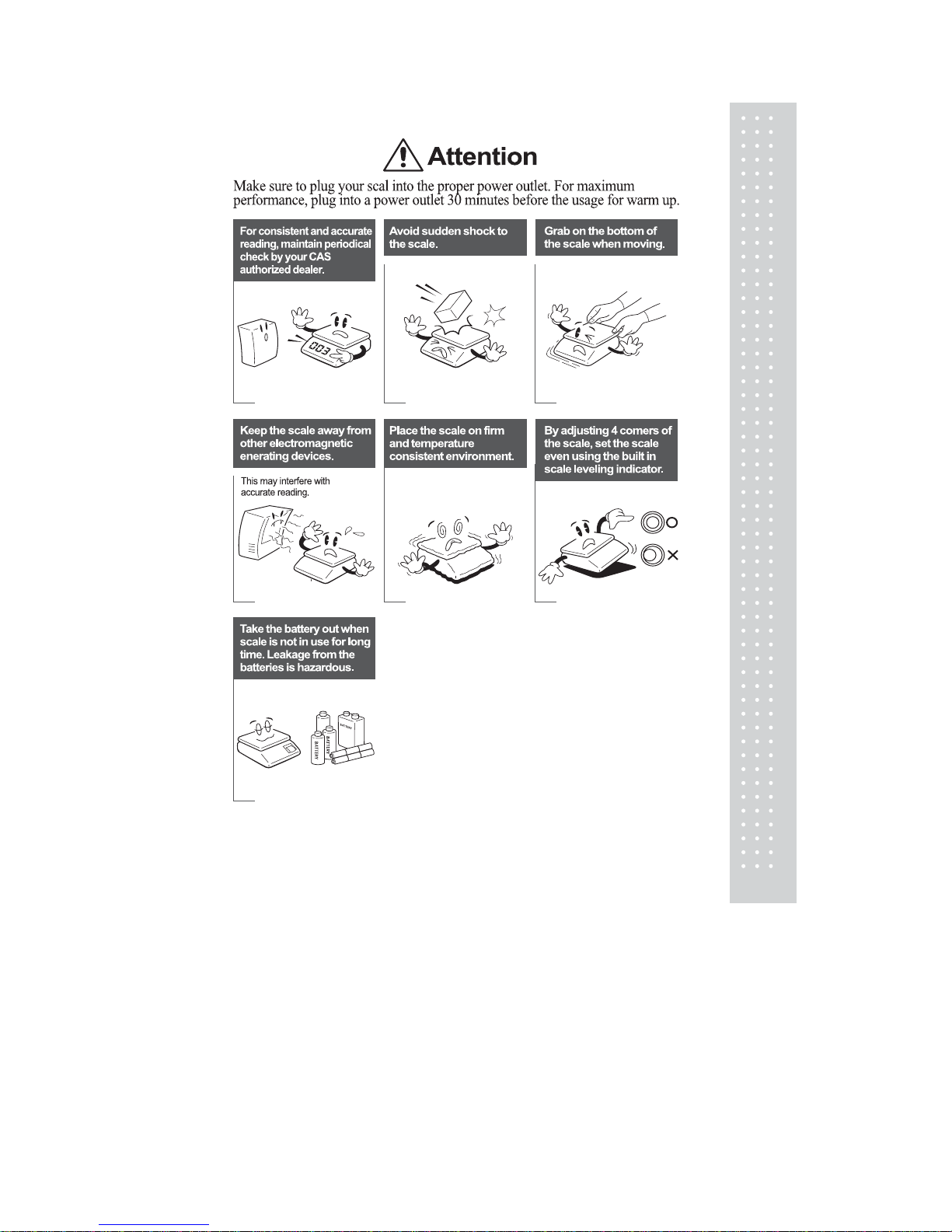

PRECAUTIONS
5
6
PREFACE
Thank you for the purchasing CAS ER PLUS.
This series have been designed with CAS reliability, under rigid quality control and
with outstanding performance. Your specialty departments can enjoy with CAS
product. We hope that CAS product meets your needs.
The user manual is designed to guide you to understand product operation and
proper care of product.
OVERALL VIEW
7
DISPLAY & KEYBOARD
■LCD TYPE : Front Display
■LCD TYPE : Rear Display
■VFD TYPE : Front Display
■VFD TYPE : Rear Display
Max 6/15 kg Min 40 g e=d=2/5gMax 6/15 kg Min 40 g e=d=2/5g
Max 6 /15 kg Min 40 g
e=d=2/5 g
Max 6 /15 kg Min 40 g
e=d=2/5 g
Max 6 /15 kg Min 40 g
e=d=2/5 g
Max 6 /15 kg Min 40 g
e=d=2/5 g
NET
0
/
Max 6/15 kg Min 40 g e=d=2/5gMax 6/15 kg Min 40 g e=d=2/5g
/
8
■LED TYPE : Front Display
■LED TYPE : Front Display
Table : Symbols on Display
SYMBOLS DESCRIPTION
To adjust zero
Tare on
Back light on
Low battery warning
Charge status
9
■KEYBOARD
Table: Key Functions
KEYS FUNCTIONS
To input all of numerical data
Direct PLU keys
To save PLU
To call up PLU
To clear data
To set zero
To set or clear tare value
To turn on & off the scale
To make several sales transaction by adding up
To make discount transaction
To multiply the same item when making sales transaction
To check total sales amount or finalize sales transaction
10
OPERATIONS
I. Programming Mode
Chapter 1. Basic Operation
a. Turning the scale on / off
b. Turning backlight on / off(Option in LCD version only)
c. Zero function
d. Tare function
– One Time tare
– Successive tare
– Preset tare
Chapter 2. PLU Saving & Calling-up
a. Saving unit price on PLU
b. Saving valid date set on PLU(Option)
c. Saving PLU name
d. Calling up PLU
- Indirect PLU
- Direct PLU
Chapter 3. User’s Set-up Mode
a. Auto power-off
b. LCD backlight ON/OFF function (Option in LCD version only)
c. Brightness control (Option in LCD version only)
d. Low battery backlight auto off function
e. Suspend Mode Function (Only LED version)
f. Selecting the printer
Chapter 4. Formatting Printing Receipt
a. Setting the Printer
b. Receipt header setting
c. Receipt currency (unit) setting
d. Receipt date setting
e. Receipt TIME setting
11
Chapter 1. Basic Operation
a. Turning the scale on / off
①Press ON/OFF key to turn on.
②Press ON/OFF key to turn off(LED, VFD
Version).
Press ON/OFF key for a few sconds to turn
OFF(LCD Version)
b. Turning backlight on/off(Option in LCD version only)
①Press ON/OFF key to turn on.
Press②ON/OFF key again under the backlight
on.
c. Zero function
①Press ZERO key to set zero point.
