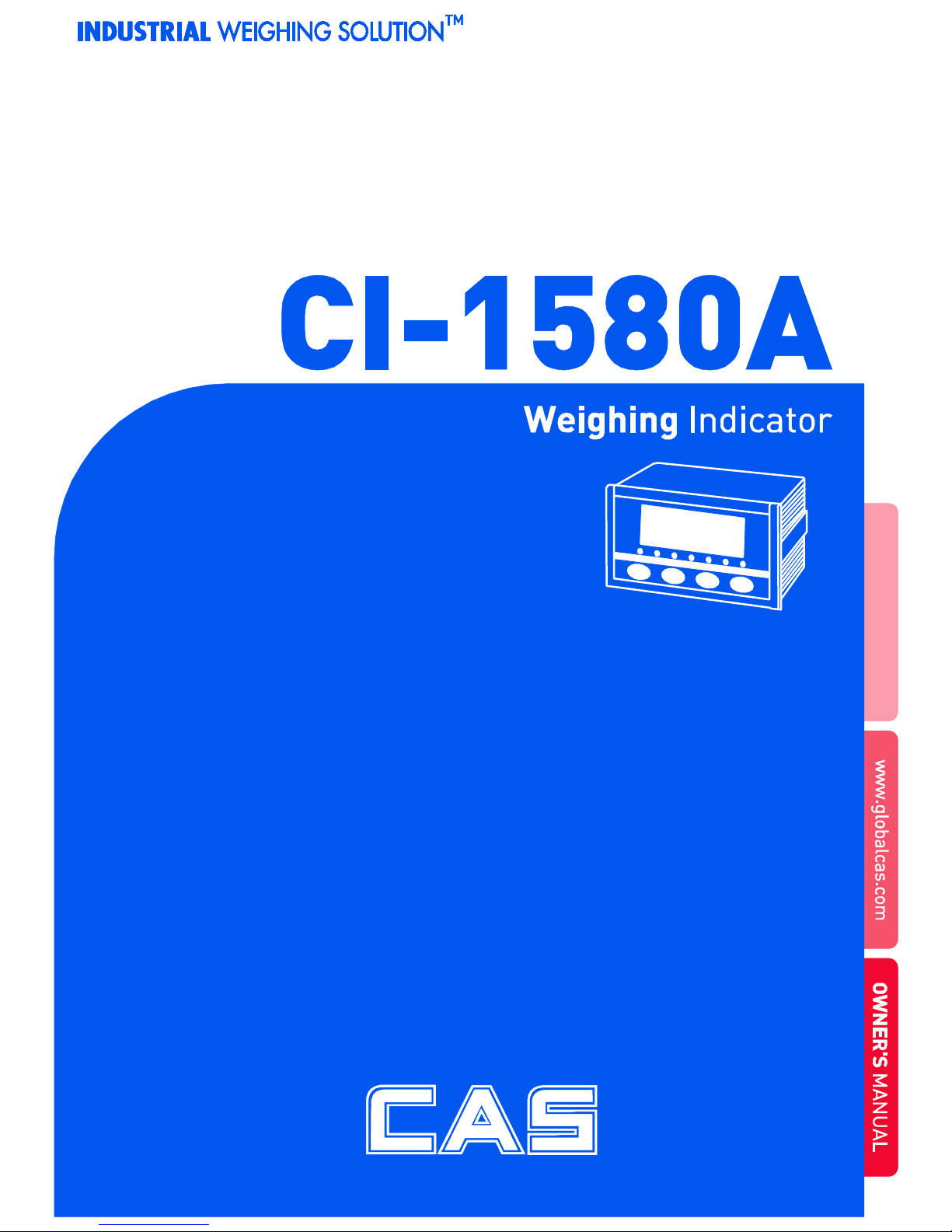

CAS CI-1580A Manuel utilisateur

Contents

1. Introduction........................................................

2. Specifications.....................................................

3. Front Panel Descriptions..................................

4. Rear Panel Descriptions................................ 10

5. Installation ........................................................

6. Calibration ....................................................... 12

7. Set-up............................................................... 19

8. Interface ........................................................... 36

1.Introduction

■Introduction

This product as an indicator for weighing instruction and control is designed for the most

suitable use of any meters (packer, weigh separator, platform scale, various tensile and

compression test equipment)that can be applied in the widest way throughout industries.

This product ensures communications with external devices such as computers as it basically

installs an RS-232C port.

In addition, this product can be conveniently used for the weighing control as it basically has

three relay outputs necessary for control (applicableonly if there is relay out).

Please utilize all the functions in this product sufficiently as you can use the device properly

with good knowledge of this manual before you use this product.

■Features

·Measurestoscreenoffexternalnoises

·Built-inself-diagnosisandself-recoveryfunctionsfromfailure

·Externalresolution:1/20,000

·Electrostaticdatamemory

·2built-inexternalrelayinputterminals(zero,tare/tareremoval)

·Datamemory

·24VofinputpowersupplycanbeusedwiththeuseofDCpowersupplyregardlessof

polarity(500mA<TransType>ormoreisrecommended)

·FAC(FullAutoCalibration)methodforcalibration

·EquivalentinputmethodforCalibration

·BasicinstallationofRS-232C

·Option:RS-422/485

·Option:I/V-OUT

■Cautions

·Donotdroporapplysevereshockstotheproduct.

·Do not install the product with high voltage or severe electric noises.

·Do not install the produce with direct sunlight or severe vibrations.

·Connect the product with external peripheral devices after turning off the power switch.

·Keep theproduct fromwateror rain.

■Accessories

·Productmanual

·Option(separateoptionforanyaddition):1EAofadaptor(DC24V/500mA)

2. Specifications

■Analog Part & A/D Conversion

Inputsensitivity

0.3㎶/D

Adjustmentrangeof Zero

-0.6mV∼+1.5mV

LoadCellExcitationVoltage

DC10V(±5V)

TemperatureCoefficient

Zero : ±10 PPM / ℃

SPAN:±10PPM/℃

Input Noise

±0.6㎶P.P

InputImpedance

Over10㏁

A/Dconversionmethod

∆∑

A/DInternalResolution

520,000Count(19bit)

A/DConversionRate

200times/Sec

Non-linearity

0.01%FS

■Digital Part

Display

7-Segment,5digitREDFND

Charactersize:12.7(H)×7.3(W)mm

Division

×1,×2,×5,×10,×20,×50

BelowZeroIndication

“-“ MinusSign

DecimalPoint

0,0.0,0.00,0.000

Status Lamp

Stable,Zero,High,Low,OK, Hold, Comm

FunctionKey

ZERO,TARE,SET,ENTER

■General Specification

Power

DC24V/About500mA(TransType)

OperatingTemperature

Range

-5℃~+40℃

OperatingHumidity

Range

Under85% Rh (Non-condensing)

ProductSize

(W)100 X(H)52X(D)125 (mm)

ProductWeight

About 450g

■Options

Option-1

RS-422/485

Option–2

I-OUT(4~20mA)

Option-3

V-OUT(0~10V)

3. Front Panel Descriptions

■DISPLAY (CI-1580A)

■Display

·Weight:Thecurrentweightattheindicatorisdisplayed.

- Wheneverthesetkeyispressed,thevalueforhighlimit,lowlimitordifferencesis

displayed.

■Display of Status

·STABLE:Itisdisplayedwhentheweightisstable.

·ZERO: It is displayed when the weight is “0”.

·LOW:Itisdisplayedwhentheweightisthelowlimitorless.

·HIGH:Itisdisplayedwhentheweightisthehighlimitormore.

·OK:Itisdisplayedwhentheweighingiscompleted.

·HOLD:Itisdisplayedwhiletheweightisbeingheld.

·COMM(RTxD):Itisdisplayedwhiletheproductiscommunicatingwithotherdevices.

■Key Operations

Key

Descriptions

It is used to set the weight display to „0‟ within a range of maximum weight

(CAPA)defined bytheuser.

(However, it is operated within the input range by the user to „Equipment Set‟ „08‟

(Set forZeroRange).

It is used to set the tare to „0‟ after a container is put on the weighing tray.

(However, it is operated within the input range by the user to „Equipment Set‟ „09‟

(Set forTareRange)

It is usedfor the input of lowlimit (SP1) and highlimit (SP2).

It isused toenterthesetvalue.

■Special Key Operations

Key

Descriptions

①It is used to increasethenumeric value.

②It isused tofinishthesettingundertheSET,CALstatus.

①It is usedtomove the positionof anumeric value.

②It is usedtomove to TEST MODE underthe SET, CAL status.

①It is used to increase the unique number (F XX) in „Equipment Set‟.

②When it is pressed under the „SET, CAL‟ status, it moves to „Equipment Set‟

(SETUP).

①It is used to enter (save) the set value by the user in the „Weight Calibration‟

function.

②When it is pressed under the „SET, CAL‟ status, it moves to „Weight Calibration‟

(Calibration).

4. Rear Panel Descriptions

①POWER

-DC IN:AsthisproductusesDCpowersupply,DC 24V

(500mATransType) canbe usedfor thisproduct.

②OPTION

-RS-232C(3PConnecterI/FCommunications)(BasicSpecifications)

-RS-422/485(4PConnecterI/FCommunications)(SeparateOption)

-4~20mA(0~10V)(2PConnecterI/F)(SeparateOption)

③EXTERNAL

INPUT

1+EXC - Loadcellconnectionterminal

2 -EXC - Loadcellconnectionterminal

3+SIG - Loadcellconnectionterminal

4 –SIG - Loadcellconnectionterminal

5SHIELD - Loadcellconnectionterminal

6F.G - Grounding

7PWR - DC IN 24V (input regardless of polarity)

8PWR -

9,10,11 ICOM,IN1~2(INPUT)–RefertoF11setforF-FunctionMode

12,13,14,15 0COM, OUT1~3(OUTPUT) –Refer to F21 set for F-Function

Mode

②

③

5. Installation

■External Dimension & Panel Cutting Size

(External Dimension Xmm)
