Caffitaly System S24 Manuel utilisateur

MODEL S24

INSTRUCTION MANUAL

Imported by Roasting Australia Holdings Pty Limited

11 Hoyle Avenue, Castle Hill, NSW 2154

Phone: AU 02 9846 0307

NZ 0800 450 894

Email: [email protected]

caffitalysystem.com.au

Your Taste...Your Choice

ONLY USE WITH

Caffitaly System

Capsules

INDEX

Introduction:

• Welcome 3

• Safety Warnings 4

• Symbols Guide 5

Instructions:

• Machine Components 6

• Correct Use Of The Buttons 6

• First Time Use 7

• Dispensing Beverages Using Factory Settings 8

• Dispensing Tea or Hot Water 9

• Turning On The Appliance - Daily Use 10

• Adjusting The Cup/Mug Height 11

• Programming The Quantity Of Beverage In A Cup 11

• General Operating Indications 12

Cleaning and Maintenance:

• Daily Maintenance 14

• Descaling 15

• Saving Energy 17

Miscellaneous:

• Restore Original Settings (RESET) 18

• Troubleshooting 19

• Technical Data 21

• Caffitaly System Care Contact 21

• Warranty Details 22

CONGRATULATIONS

on the purchase of your new Caffitaly System S24 Capsule Machine.

In no time at all you will be producing barista quality coffee, tea or hot chocolate

at any time, day or night, when teamed with one of the many Caffitaly System

capsules from your favourite brands.

Your Taste...Your Choice

Brought to you by Roasting Australia, proudly part of

JOIN the Caffitaly Club to recieve Member Only Specials such as Giveaways,

Competitions and opportunities to try new products before they are released.

Join now and recieve your FREE GIFT.

IMPORTANT NEWS - Register your Machine

When you sign up to join the Caffitaly Club, don’t forget to register your machine

for warranty purposes at: caffitalysystem.com.au

SAFETY WARNINGS

If you do not comply with the operating instructions and safety warnings in this Instruction

Manual, the machine may become dangerous to operate. Please ensure you keep this

Instruction Manual in a safe place. Carefully read the following instructions before use.

This way you will avoid the risk of personal injury and damage to the appliance.

4. Continued on next page... >>

• This appliance is intended to be used in domestic environments.

Not suitable for Professional use.

• ONLY use Caffitaly System compatible capsules.

Damage caused by using incorrect capsules will void the Warranty.

• Use the TEA button (Blue) for Tea and Hot Water ONLY!

Incorrect use of this button will cause damage to the machine and void the Warranty.

• Use of the appliance in any manner other than as directed within this manual could

cause harm to the operator and void the Warranty. The manufacturer will not be

responsible for injury or damage resulting from improper use of the appliance.

• After removing the packaging, check that the appliance is not damaged. If damage is

detected, or upon the first sign of a defect (unusual noise or odours), or if any other

problem is detected inside the appliance, do not use it and contact the Caffitaly System

Customer Service Line on AU 02 9846 0307 | NZ 0800 450 894.

• The packaging elements (plastic bags, etc.) must not be left within reach

of children as they are potential sources of danger.

• Only use the appliance if the power cord is intact. If the cord is damaged it must be

replaced by the manufacturer or importer due to potential electrical safety risks.

Contact the Caffitaly System Customer Service Line on AU 02 9846 0307

| NZ 0800 450 894.

• Use and store the appliance indoors. Make sure the electrical elements, plug and cord

are dry. Never submerge the appliance in water. Protect the appliance from sprays and

drips. Water and electricity together constitute a risk of electrocution.

• Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.

• Only connect the appliance to power outlets complying with the requirements of the law.

Make sure that the power supply voltage matches the rating shown on the data plate

on the bottom of the appliance. This appliance includes an earthed pin and must be

used with a power outlet with earthed connection.

• Do not pull on the power cord to disconnect it. Remove the plug carefully to avoid

damage to the outlet.

GUARANTEE

VOID

SAFETY WARNINGS - Continued

SYMBOLS GUIDE

CAUTION: This is the safety warning symbol. It is used to call your

attention to possible risks of personal injury. Abide by the safety

messages provided in order to avoid possible injury or death.

This is the symbol used to

highlight some actions that

will optimise the use of

this appliance.

Not

Dishwasher

Safe

Maintenance

Tips

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety. Children should be supervised to ensure that they do not

play with the appliance

• Never place your hands inside the capsule compartment. There is a risk of injury.

• Do not open the lever while the appliance is operating. If the lever is raised during the

delivery of a product, the machine can emit jets of hot water. Risk of Burns!

• Do not remove parts of the appliance, OR insert objects into the openings. This could

cause electric shocks! Any operation that is not described in this instruction manual

should only be performed by an Authorised Support Centre. Please contact the Caffitaly

System Customer Service Line on AU 02 9846 0307 | NZ 0800 450 894.

• Install the appliance on a solid, stable, heat resistant surface with an incline no greater

than 2 degrees.

• When the Indicator Light blinks ORANGE and the machine beeps, it is advisable to

perform the descaling cycle, as illustrated on Page 15. If you do not, the appliance may

be damaged.

• Clean the appliance carefully and regularly with a soft cloth and a mild detergent, do

not use alkaline cleaning agents. If it is not cleaned, the build-up that forms may be

hazardous to your health. Unplug the appliance and allow it to cool before cleaning.

• Unplug the machine if you do not expect to use the appliance for a long period of time

(leaving on vacation, etc.)

MACHINE COMPONENTS

Lever for

opening and

closing Capsule

Compartment

Beverage

Dispenser

Used Capsule

Drawer

Dispensing

buttons and

Indicator light

Water Tank Lid

Capsule

Compartment

Water Tank

Power On/Off

switch

Electricity Cord

Diagram 1:

Diagram 2:

Grid

Drip Tray

Single Espresso Button -

30ml (Lit in WHITE). Use

for dispensing a single

espresso shot. When in doubt follow the directions

on the capsule box regarding required

button use.

Double Espresso Button - 60ml (Lit in WHITE).

Use for dispensing a double espresso coffee

for a stronger beverage. Also suitable for Hot

Chocolate and similar beverages (NOT TEA).

Tea or Hot Water Button - 120mL

(Lit in BLUE) Only be used for tea capsules or to

add hot water.

Do not use the Tea Button for espresso

coffee or any other beverages except tea.

Capsules appropriate for the Tea Button will be

indicated on the packaging.

Inappropriate use of this button may damage

the machine and void your warranty.

CORRECT USE OF BUTTONS

Check there is no

capsule in the

Capsule

Compartment.

CLOSE the Lever.

FIRST TIME USE

Please ensure you only use Caffitaly

System Capsules which can be

identified by the Caffitaly logo.

ONLY USE WITH

Caffitaly System

Capsules

We recommend following these steps

after not having used the machine for a

long period of time.

Press the Tea

Button. Water will

cycle through the

system (approx. 30

sec.) When done,

the Red Indicator

Light will switch off.

Note: If the Red

Indicator Light

continues to blink

and no water has

been extracted,

repeat Step 6.

When all the button

lights remain steadily

lit, rinse by pressing

the Tea Button.

Press again to

repeat the the rinse

cycle.

After Step 6.

has successfully

completed, all the

button lights will

continue to blink

while your machine

warms up. (Approx.

1 min.)

Place a cup or

mug (at least

250ml) under the

Dispensing Spout.

Open the Water

Tank Cover & fill the

Water Tank with

fresh water to the

Max. Line indicated.

Plug your machine

in and switch it ON

using the

On/Off Switch.

Along with the

button lights, the

Indicator Light will

blink.

Once you have

completed the Rinse

Cycle. Remove the

Drip Tray and Used

Capsule Drawer,

empty any residual

water, rinse with

fresh water and

replace onto your

machine

Continued on next page... >>

WATER

DISPENSING BEVERAGES - Using Factory Settings

Close the

Lever fully.

Insert the capsule,

pressing it gently

into place.

Place a cup or

mug under the

Dispensing Spout.

Select the

Single or Double

Espresso button

depending on the

desired coffee.

The selected

button will blink

and the machine

will stop dispensing

on reaching the

programmed

amount.

Switch the machine

ON using the On/

Off Switch.

Wait for your

machine to warm

up.

Raise the Lever to

open the Capsule

Compartment.

FIRST TIME USE - Continued

10.

Open the Water

Tank Cover & fill

the Water Tank

with fresh water

to the Max. Line

indicated.

Your machine is

now ready to use.

WATER

Warning!

Do not use the

TEA BUTTON (lit in

blue) for dispensing

coffee.

Doing so will damage

the machine and

void your warranty.

Continued on next page... >>

Raise the Lever

to eject the used

capsule into the

Used Capsule

Drawer and then

lower the Lever.

DISPENSING BEVERAGES - Continued

TIP: To ensure

optimum product

delivery between

uses, eject the

used capsule from

your machine &

rinse by pressing

the Double

Espresson button.

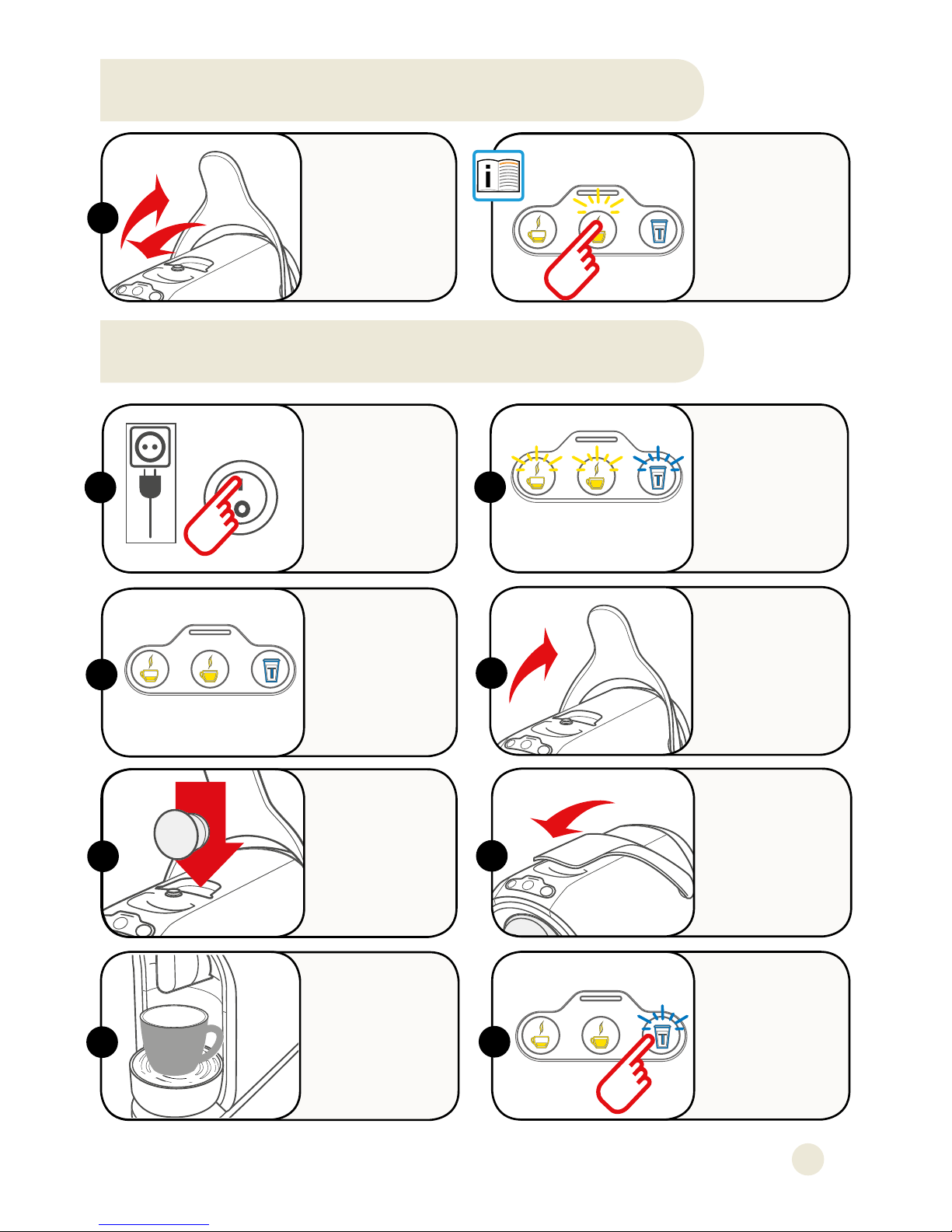

DISPENSING TEA OR HOT WATER

Switch the machine

ON using the On/

Off Switch.

Top up the Water

Tank if required.

Raise the Lever to

open the Capsule

Compartment.

1. 2.

All the button

lights will flash

simultaneously for

approx. 60 sec. until

your machine has

warmed up.

When all the

buttons are steadily

lit the machine is

ready for use.

NOTE: If you only

want to use Hot

Water, go directly

to Step 8.

Insert the capsule,

pressing it gently

into place.

Close the

Lever Fully.

Place a cup or

mug under the

Dispensing Spout.

Press and release

the Tea button.

The Tea button will

flash. Dispensing

stops when the

programmed

amount is reached

or press the button

to stop dispensing in

advance.

Continued on next page... >>

10.

DISPENSING TEA OR HOT WATER - Continued

Plug your machine

in and switch it

ON using the On/

Off button. All the

button lights will

flash simultaneously

for approx. 60 sec.

until your machine

has warmed up.

WARNING!

Only use the Tea

button (lit in blue)

for dispensing Tea

and Hot Water.

Dispensing coffee

using this button

will damage your

machine & void your

warranty.

Raise the Lever

to eject the used

capsule into the

Used Capsule

Drawer and close

the Lever.

TIP: To ensure

optimum product

delivery between

uses, eject the

used capsule from

your machine &

rinse by pressing

the Double

Espresson button.

NOTE: The quantity of beverage

dispensed can be programmed

according to personal taste and

the size of the cups or mugs used.

Please refer to ‘Programming the

Quantity of Beverage in a Cup’ on

Page 11.

When all the

button lights are

steadily lit, the

machine is ready

to use.

Open the Water

Tank Cover & fill the

Water Tank with

fresh water to the

Max. Line indicated.

TURNING ON THE APPLIANCE - Daily Use

WATER

Autres manuels pour S24

Table des matières

Autres manuels Caffitaly System Cafetière

Caffitaly System

Caffitaly System S33R.2 Manuel utilisateur

Caffitaly System

Caffitaly System S05 Manuel utilisateur

Caffitaly System

Caffitaly System S23 Manuel utilisateur

Caffitaly System

Caffitaly System S8003 Manuel utilisateur

Caffitaly System

Caffitaly System S16 Manuel utilisateur

Caffitaly System

Caffitaly System M2 Manuel utilisateur

Caffitaly System

Caffitaly System S01HS Manuel utilisateur

Caffitaly System

Caffitaly System Bella Manuel utilisateur

Caffitaly System

Caffitaly System S07 Manuel utilisateur

Caffitaly System

Caffitaly System S14 Manuel utilisateur

Caffitaly System

Caffitaly System F02MK Guide de l'administrateur

Caffitaly System

Caffitaly System Map Coffee Presto Manuel utilisateur

Caffitaly System

Caffitaly System S01HS Manuel utilisateur

Caffitaly System

Caffitaly System S24 Manuel utilisateur

Caffitaly System

Caffitaly System S 21 Manuel utilisateur

Caffitaly System

Caffitaly System S06HS Manuel utilisateur

Caffitaly System

Caffitaly System S22 Manuel utilisateur

Caffitaly System

Caffitaly System S36R Manuel utilisateur

Caffitaly System

Caffitaly System S03 Manuel utilisateur

Caffitaly System

Caffitaly System S04 Manuel utilisateur

Caffitaly System

Caffitaly System S05 Manuel utilisateur

Caffitaly System

Caffitaly System S04 Manuel utilisateur

Caffitaly System

Caffitaly System S27 Manuel utilisateur

Caffitaly System

Caffitaly System S22 Manuel utilisateur

Manuels Cafetière populaires d'autres marques

Taurus

Taurus Livorno 6 Manuel utilisateur

Delta-q

Delta-q QUICK Manuel utilisateur

Bunn

Bunn LCA-1 Guide de dépannage

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instructions d'installation

Saeco

Saeco Vienna Plus Sup 018M Manuel utilisateur

DeLonghi

DeLonghi DC300 Manuel utilisateur

INCAPTO

INCAPTO BXCO1470E Manuel utilisateur

Bosch

Bosch TASSIMO finesse TAS16B Series Manuel utilisateur

Exido

Exido 245-072 Manuel utilisateur

Animo

Animo OptiVend Choco Manuel utilisateur

Siemens

Siemens TQ505DF Series Manuel utilisateur

DeLonghi

DeLonghi ECI341 Manuel utilisateur

Krups

Krups KT406511 Manuel utilisateur

Cimbali

Cimbali M32 Classic Manuel utilisateur

Philips

Philips HL3844N Manuel utilisateur

Bosch

Bosch TES 515 SERIES Manuel utilisateur

Tekmatix

Tekmatix TMFM - 65 Manuel utilisateur

Scarlett

Scarlett SC-CM33005 Manuel utilisateur
