Caffitaly System S06HS Manuel utilisateur

INSTRUCTION MANUAL

Imported by Roasting Australia Holdings Pty Limited

11 Hoyle Avenue, Castle Hill, NSW 2154

Phone: 02 9846 0307

E-Mail: [email protected]

MODEL S06HS

ONLY USE WITH

Caffitaly System

Capsules

Safety

EMC

• Introduction 2

• Safety Warnings 3

• Symbols Guide 4

Instructions:

• Machine Components 5

• First Time Use 6

• Correct Use Of The Buttons 7

• Dispensing Beverages - Using Factory Settings 8

• Turning On The Appliance 9

• Dispensing Hot Water 9

• Frothing / Dispensing Steam 10

• Programming The Quantity Of Beverage In A Cup 11

• General Operating Indications 13

Cleaning and Maintenance:

• Daily Maintenance 14

• Descaling 15

• Changing the Gasket 18

• Saving Energy 18

Miscellaneous:

• Restore Original Settings (RESET) 19

• Troubleshooting 20

• Technical Data 22

• Instructions for Use and Disposal 22

• Caffitaly System Care Contact 22

INDEX

CONGRATULATIONS

on the purchase of your New Caffitaly System S06HS Machine.

You can now savour your favourite hot beverages at any time, day or

night with the Caffitaly System S06HS by choosing one of the many

compatible Caffitaly System capsules available.

With the added Steam Wand, you can enjoy a cappuccino with lightly

frothed milk, a cocoa-flavoured beverage made with steamed milk;

even a cup of tea at the press of a button! They are all easy to prepare,

mess free and ready in seconds.

SAFETY WARNINGS

If you do not comply with the operating instructions and safety warnings in this Instruction

Manual, the machine may become dangerous to operate. Please ensure you keep this

Instruction Manual in a safe place. Carefully read the following instructions before use.

This way you will avoid the risk of personal injury and damage to the appliance.

Continued on next page... >>

• This appliance is intended to be used in domestic environments.

Not suitable for Professional use.

• Use ONLY Caffitaly System compatible capsules. Damage caused by using incorrect

capsules will void the guarantee.

• Use the TEA button (Blue) for Tea ONLY!

Incorrect use of this button will cause damage to the machine and void the guarantee.

• Use of the appliance in any manner other than as directed herein could cause harm to

persons and void the guarantee. The manufacturer will not be responsible for injury or

damage resulting from improper use of the appliance.

• After removing the packaging, check that the appliance is not damaged. If damage is

detected, or upon the first sign of a defect (unusual noise or odours), or if any other

problem is detected inside the appliance, do not use it and contact the Roasting

Australia Customer Service Line on 02 9846 0307.

• The packaging elements (plastic bags, etc.) must not be left within reach of children as

they are potential sources of danger.

• Only use the appliance if the power cord is intact; if the cord is damaged it must be

replaced by the manufacturer or qualified person, due to potential electrical safety risks.

Contact the Roasting Australia Customer Service Line on 02 9846 0307.

• Use and store the appliance indoors. Make sure the electrical elements, plug and cord

are dry. Never submerge the appliance in water. Protect the appliance from sprays and

drips. Water and electricity together constitute a risk of electrocution.

• Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.

• Only connect the appliance to power outlets complying with the requirements of the law.

Make sure that the power supply voltage matches the rating shown on the data plate

on the bottom of the appliance.

• Do not pull on the power cord to disconnect it. Remove the plug carefully to avoid

damage to the outlet.

GUARANTEE

VOID

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety. Children should be supervised to ensure that they do not

play with the appliance.

• Never place your hands inside the capsule compartment. There is a risk of injury.

• Do not open the lever while the appliance is operating. If the lever is raised during the

delivery of a product, the machine can emit jets of hot water. Risk of Burns!

• Do not remove parts of the appliance, OR insert objects into the openings. This could

cause electric shocks! Any operation that is not described in this instruction manual

should only be performed by an Authorised Support Centre. Please contact the Roasting

Australia Customer Service Line on 02 9846 0307.

• Install the appliance on a solid, stable, heat resistant surface with an incline no greater

than 2 degrees.

• When the Indicator Light blinks ORANGE and the machine emits 3 beeps, please

perform the descaling cycle, as illustrated on Page 15. If you do not, the appliance may

be damaged.

• Clean the appliance carefully and regularly with a soft cloth and a mild detergent, do

not use alkaline cleaning agents. If it is not cleaned, the build-up that forms may be

hazardous to your health. Unplug the appliance and allow it to cool before cleaning.

• Unplug the machine if you do not expect to use the appliance for a long period of time

(leaving on vacation, etc.).

SAFETY WARNINGS - Continued

SYMBOLS GUIDE

CAUTION: This is the safety warning symbol. It

is used to call your attention to possible risks of

personal injury. Abide by the safety messages

provided in order to avoid possible injury or death.

This is the symbol

used to highlight some

actions that will optimise

the use of this appliance.

Not

Dishwasher

Safe

Maintenance

Tips

Barista

Tips

Double Espresso

Button

60ml (Lit White)

Single Espresso

Button

30ml (Lit White)

Hot Water/Steam

Control Lever

Indicator Light

Orange=Descale

Red=Check System

TEA Button -120ml

(Lit Blue)

Hot Water/

Steam Control

Lever

Lever for opening

and closing Capsule

Compartment

Dispensing Spout

(adjustable)

Steam Wand for

Frothing / Hot

Water

Special Rubber

Grip

Power Cord

Water Tank

Cover

Used Capsule

Drawer

Capsule

Compartment

Power

On/Off Switch

Drip Tray

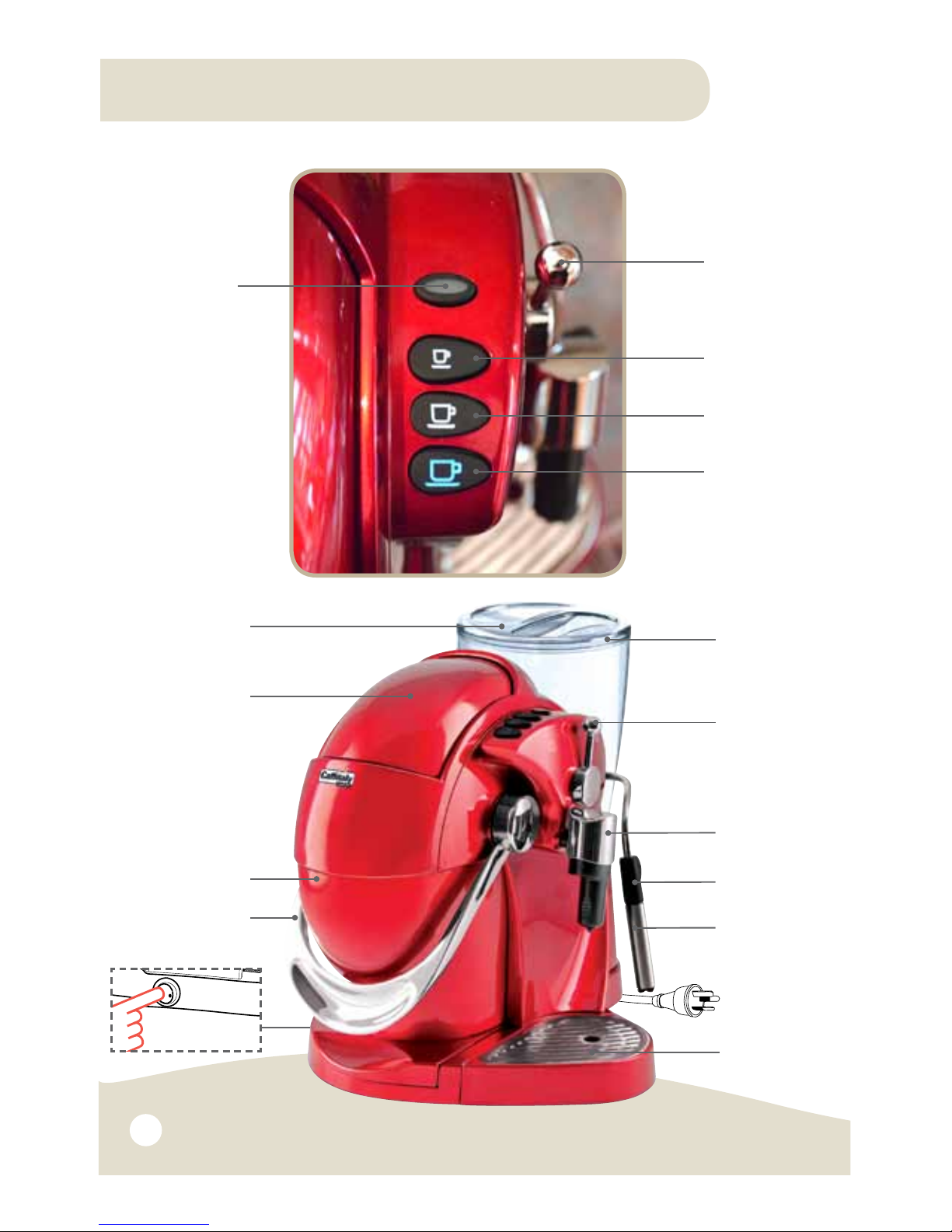

MACHINE COMPONENTS

Diagram 1:

Diagram 2:

FIRST TIME USE

Please ensure you only use Caffitaly

System Capsules which can be

identified by the Caffitaly logo.

We recommend following these steps

after not having used the machine for

a long period of time.

Continued on next page... >>

ONLY USE WITH

Caffitaly System

Capsules

Fill the tank with

fresh, still water

(either by filling

through the

water tank cover

or removing

the water tank).

Plug in

appliance.

Switch machine

on using the

On/Off Switch.

Place a large

empty container

(at least 250 ml)

under the coffee

dispensing spout.

Press the Double

Espresso button.

The machine will

draw water through

the system (Approx.

30 sec.). When

done, the indicator

light will switch off.

Once successfully

primed, all the

button lights will

continue to blink

while the machine

is warming up

(Approx. 1 min.).

NOTE: If the

buttons and the

indicator light

continue to blink

and no water has

been extracted,

repeat Step 6.

Along with the

button lights,

the indicator

light will also

blink RED.

Make sure the

lever is closed.

*Ensure there

is no capsule in

machine.

FIRST TIME USE - Continued

CORRECT USE OF BUTTONS

Single Espresso Button - 30ml

(Lit in WHITE). Used for dispensing a

single espresso shot.

When in doubt follow the

directions on the capsule box

regarding required button use.

Diagram 3:

Double Espresso Button - 60ml

(Lit in WHITE). Use for dispensing

a double espresso coffee for a

stronger beverage. Also suitable for

Hot Chocolate, Chai Latte and similar

beverages (NOT TEA).

WARNING:

During the priming

and rinsing stage,

HOT WATER will

be collected in

the used capsule

drawer. Danger of

scalding.

When all the

button lights

remain steadily lit,

rinse by pressing

the Double

Espresso button.

Press again to

repeat cycle.

10.

When all the

button lights are

lit steadily, the

machine is ready

to use. Refer

to “Dispensing

Beverages” on

Page 8.

At the end of this

operation, raise

the lever and

carefully remove

the used capsule

drawer. Empty

the water, rinse

and replace.

Tea Button - 120mL (Lit in BLUE)

should only be used for tea capsules.

Do not use the Tea Button for

espresso coffee or any other

beverages except tea! When operating

in this mode, the machine is set for low

pressure, this reduces the ‘crema’ and

diminishes the flavour of the coffee. May

also cause a break in the flow.

Capsules appropriate for the Tea button will be indicated

on the packaging. Inappropriate use of this button may

damage the machine and void your warranty.

DISPENSING BEVERAGES - Using Factory Settings

MAINTENANCE TIP: Traces of the product just dispensed may remain in the

circuit of the machine. Between uses, to ensure optimum product delivery, remove

used capsule from machine and rinse by pressing Double Espresso button.

NOTE: The quantity of beverage dispensed can be programmed according to

personal taste and the size of the cups or mugs used. Please refer to chapter

“Programming the quantity of beverage in a cup” on Page 11.

Plug in appliance.

Switch machine

on using the On/

Off Switch.

Raise the lever to

open the capsule

compartment.

Insert the

capsule, pressing

it gently into

place.

Close the lever

fully and place

a cup or mug

under the coffee

dispensing spout.

Press and release

the button

corresponding

to the type of

beverage you want

as per Diagram 3

on Page 7.

5. 6.

The selected

beverage button

will blink and

machine will stop

dispensing on

reaching the

programmed

quantity.

Gently raise the

lever to eject the

used capsule

into the drawer

and then close

the lever.

WARNING:

There may be

some residual HOT

WATER within

the capsule area.

Stand to the side of

the machine when

opening the lever.

TURNING ON THE APPLIANCE - DAILY USE

DISPENSING HOT WATER

To stop dispensing

the hot water,

return the control

lever to its central

position. Remove

the container of

hot water.

Place a metal

container or

cup under the

steam wand

dispensing pipe.

Remember to

clean the tube

with a damp

cloth after each

use. WARNING:

Steam wand

tube will be hot.

Fill the water tank

with fresh, still

water (either by

filling through the

water tank cover

or removing

the water tank).

Switch machine

on using the

On/Off Switch.

When all the

button lights are

lit steadily, your

machine is ready

to use.

When all the

button lights blink

continuously,

the machine is

warming up.

(This will take

about 1 min.)

WARNING! The Steam Wand tube for dispensing hot water and steam reaches

very high temperatures - Danger of scalding! The Tube must only be handled

using the *special rubber grip. After each use, clean the tube with a damp cloth.

*Special Rubber Grip

Turn the control

lever forward,

towards you.

This will start

dispensing

hot water.

Autres manuels pour S06HS

Table des matières

Autres manuels Caffitaly System Cafetière

Caffitaly System

Caffitaly System S04 Manuel utilisateur

Caffitaly System

Caffitaly System S27 Manuel utilisateur

Caffitaly System

Caffitaly System S22 Manuel utilisateur

Caffitaly System

Caffitaly System Roma Manuel utilisateur

Caffitaly System

Caffitaly System S05 Manuel utilisateur

Caffitaly System

Caffitaly System S33 Manuel utilisateur

Caffitaly System

Caffitaly System S04 Manuel utilisateur

Caffitaly System

Caffitaly System Bella Manuel utilisateur

Caffitaly System

Caffitaly System S01HS Manuel utilisateur

Caffitaly System

Caffitaly System Map Coffee Presto Manuel utilisateur

Caffitaly System

Caffitaly System S01HS Manuel utilisateur

Caffitaly System

Caffitaly System S03 Manuel utilisateur

Caffitaly System

Caffitaly System S22 Manuel utilisateur

Caffitaly System

Caffitaly System VENUS S08 Manuel utilisateur

Caffitaly System

Caffitaly System F02MK Guide de l'administrateur

Caffitaly System

Caffitaly System S24 Manuel utilisateur

Caffitaly System

Caffitaly System S05 Manuel utilisateur

Caffitaly System

Caffitaly System Volta S35R Manuel utilisateur

Caffitaly System

Caffitaly System S16 Manuel utilisateur

Caffitaly System

Caffitaly System S9001 Manuel utilisateur

Caffitaly System

Caffitaly System S06HS Manuel utilisateur

Caffitaly System

Caffitaly System S14 Manuel utilisateur

Caffitaly System

Caffitaly System S01HS Manuel utilisateur

Caffitaly System

Caffitaly System S23 Manuel utilisateur

Manuels Cafetière populaires d'autres marques

Taurus

Taurus Livorno 6 Manuel utilisateur

Delta-q

Delta-q QUICK Manuel utilisateur

Bunn

Bunn LCA-1 Guide de dépannage

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instructions d'installation

Saeco

Saeco Vienna Plus Sup 018M Manuel utilisateur

DeLonghi

DeLonghi DC300 Manuel utilisateur

INCAPTO

INCAPTO BXCO1470E Manuel utilisateur

Bosch

Bosch TASSIMO finesse TAS16B Series Manuel utilisateur

Exido

Exido 245-072 Manuel utilisateur

Animo

Animo OptiVend Choco Manuel utilisateur

Siemens

Siemens TQ505DF Series Manuel utilisateur

DeLonghi

DeLonghi ECI341 Manuel utilisateur

Krups

Krups KT406511 Manuel utilisateur

Cimbali

Cimbali M32 Classic Manuel utilisateur

Philips

Philips HL3844N Manuel utilisateur

Bosch

Bosch TES 515 SERIES Manuel utilisateur

Tekmatix

Tekmatix TMFM - 65 Manuel utilisateur

Scarlett

Scarlett SC-CM33005 Manuel utilisateur
