INSTRUCTION MANUAL
Roasting Australia Holdings Pty Limited
11 Hoyle Avenue, Castle Hill, NSW 2154
Phone: AU 02 9846 0307
NZ 0800 450 894
E-Mail: [email protected]
www.caffitalysystem.com.au
S21 Capsule Machine Instruction Manual 3/09/15
INDEX
1.1.
Introduction:
• Welcome 2
• Safety Warnings 3
• Symbols Guide 4
Instructions:
• Machine Components 5
• Correct Use Of The Buttons 6
• First Time Use 7
• Turning On The Appliance 9
• Adjusting The Cup/Mug Height 9
• Dispensing Beverages - Using Factory Settings 10
• Programming The Quantity Of Beverage In A Cup 11
• General Operating Indications 12
Cleaning and Maintenance:
• Daily Maintenance 13
• Descaling 14
• Saving Energy 17
Miscellaneous:
• Restore Original Settings (RESET) 17
• Troubleshooting 18
• Technical Data 20
• Instructions for Use and Disposal 20
• Caffitaly System Care Contact 20
• Notes 21
S21 Capsule Machine Instruction Manual 3/09/15
CONGRATULATIONS
on the purchase of your new Caffitaly System S21 Machine.
In no time at all you will be producing barista quality coffee, tea or hot chocolate
at any time, day or night, when teamed with one of the many Caffitaly System
compatible capsules.
If you enjoy your coffee with milk or love the froth of a Cappuccino, don’t forget to
purchase the Caffitaly System Milk Frother. The Milk Frother has been designed
as the perfect accompaniment to our Capsule Machine providing lightly frothed
milk and if you like a Flat White, the Caffitaly System Milk Frother will also heat
and texturise your milk so it is the perfect temperature for you to drink.
We hope you enjoy your Caffitaly System experience.
2.
S21 Capsule Machine Instruction Manual 3/09/15
SAFETY WARNINGS
If you do not comply with the operating instructions and safety warnings in this Instruction
Manual, the machine may become dangerous to operate. Please ensure you keep this
Instruction Manual in a safe place. Carefully read the following instructions before use.
This way you will avoid the risk of personal injury and damage to the appliance.
3.
Continued on next page... >>
• This appliance is intended to be used in domestic environments.
Not suitable for Professional use.
• ONLY use Caffitaly System compatible capsules. Damage caused by using incorrect
capsules will void the guarantee.
• Use the TEA button (Blue) for Tea and Hot Water ONLY!
Incorrect use of this button will cause damage to the machine and void the guarantee.
• Use of the appliance in any manner other than as directed within this manual could
cause harm to the operator and void the guarantee. The manufacturer will not be
responsible for injury or damage resulting from improper use of the appliance.
• After removing the packaging, check that the appliance is not damaged. If damage is
detected, or upon the first sign of a defect (unusual noise or odours), or if any other
problem is detected inside the appliance, do not use it and contact the Caffitaly System
Customer Service Line on AU 02 9846 0307 | NZ 0800 450 894.
• The packaging elements (plastic bags, etc.) must not be left within reach of children as
they are potential sources of danger.
• Only use the appliance if the power cord is intact. If the cord is damaged it must be
replaced by the manufacturer or importer due to potential electrical safety risks.
Contact the Caffitaly System Customer Service Line on AU 02 9846 0307
| NZ 0800 450 894.
• Use and store the appliance indoors. Make sure the electrical elements, plug and cord
are dry. Never submerge the appliance in water. Protect the appliance from sprays and
drips. Water and electricity together constitute a risk of electrocution.
• Do not leave the power cord near hot surfaces, sharp edges or other sharp objects.
• Only connect the appliance to power outlets complying with the requirements of the law.
Make sure that the power supply voltage matches the rating shown on the data plate
on the bottom of the appliance.
• Do not pull on the power cord to disconnect it. Remove the plug carefully to avoid
damage to the outlet.
GUARANTEE
VOID
X
X
S21 Capsule Machine Instruction Manual 3/09/15
SAFETY WARNINGS - Continued
SYMBOLS GUIDE
CAUTION: This is the safety warning symbol. It is used to call your
attention to possible risks of personal injury. Abide by the safety
messages provided in order to avoid possible injury or death.
This is the symbol used to
highlight some actions that
will optimise the use of
this appliance.
Not
Dishwasher
Safe
Maintenance
Tips
4.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not
play with the appliance
• Never place your hands inside the capsule compartment. There is a risk of injury.
• Do not open the lever while the appliance is operating. If the lever is raised during the
delivery of a product, the machine can emit jets of hot water. Risk of Burns!
• Do not remove parts of the appliance, OR insert objects into the openings. This could
cause electric shocks! Any operation that is not described in this instruction manual
should only be performed by an Authorised Support Centre. Please contact the Caffitaly
System Customer Service Line on AU 02 9846 0307 | NZ 0800 450 894.
• Install the appliance on a solid, stable, heat resistant surface with an incline no greater
than 2 degrees.
• When the Indicator Light blinks ORANGE and the machine beeps, it is advisable to
perform the descaling cycle, as illustrated on Page 14. If you do not, the appliance may
be damaged.
• Clean the appliance carefully and regularly with a soft cloth and a mild detergent, do
not use alkaline cleaning agents. If it is not cleaned, the build-up that forms may be
hazardous to your health. Unplug the appliance and allow it to cool before cleaning.
• Unplug the machine if you do not expect to use the appliance for a long period of time
(leaving on vacation, etc.)
S21 Capsule Machine Instruction Manual 3/09/15

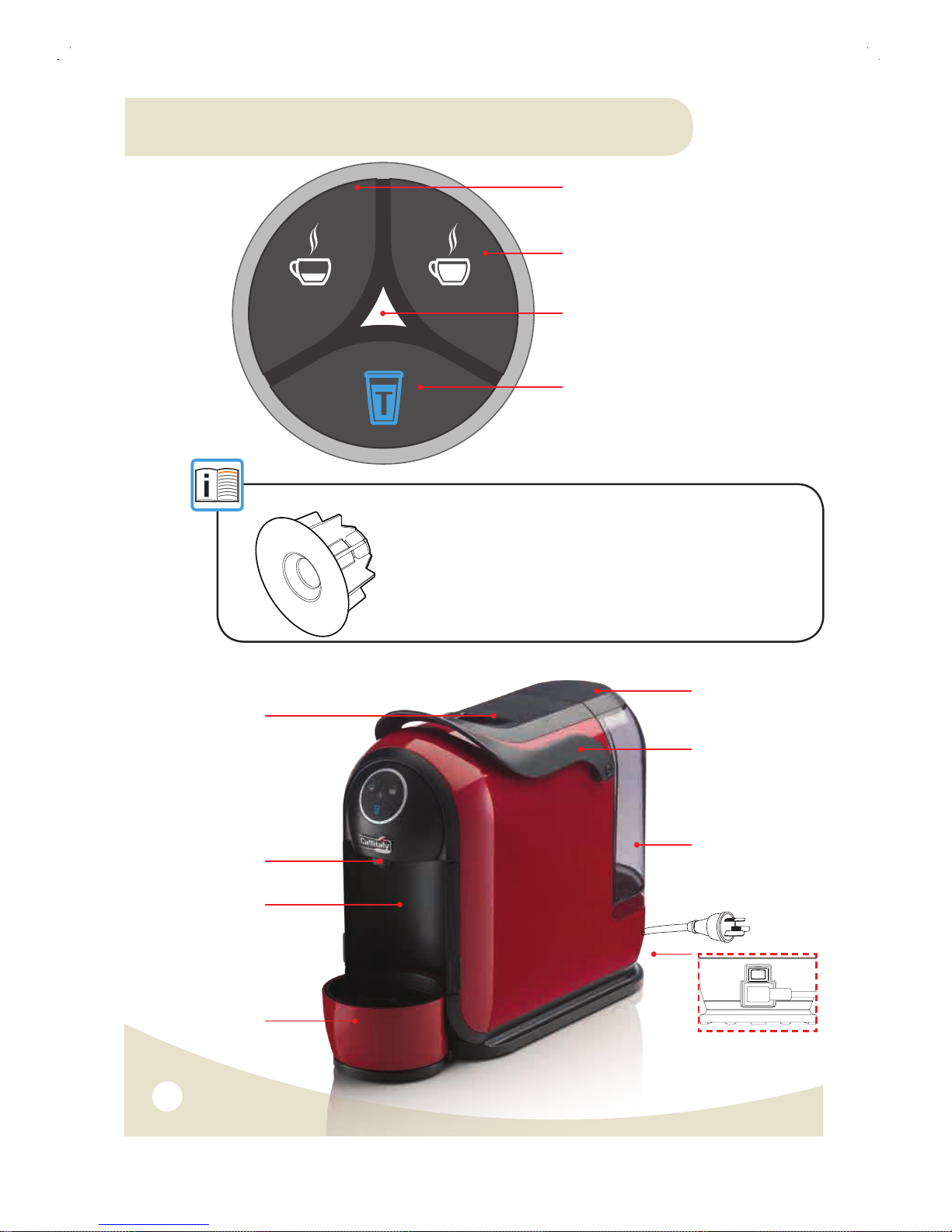

MACHINE COMPONENTS
5.
Double Espresso
Button
60ml (White)
Single Espresso
Button
30ml (White)
Indicator Light
Orange=Descale
Red=Check System
TEA Button-120ml
(Tea & Hot Water)
(Blue)
Lever for
opening and
closing Capsule
Compartment
Water Tank
Power Cord
Water Tank
Cover
Capsule
Compartment
Used Capsule
Drawer
Dispensing
Spout
Drip Tray
Diagram 1:
PLEASE NOTE: The Rinse Capsule is to be used when you:
• Dispense Hot Water Only
• Cycle/Rinse water through the machine
• Descaling
If the Rinse Capsule is not in place when performing any of the above
functions, water will pass into the Used Capsule Drawer. This could
cause the water to build up and overflow. Check the Used Capsule
Drawer regularly and ensure you use the Rinse Capsule when a coffee
capsule or other hot beverage capsule is not being used.
Rinse Capsule
Diagram 2:
Power On/Off
Switch at back
of machine.
S21 Capsule Machine Instruction Manual 3/09/15
z
6.
Single Espresso Button - 30ml
(Lit in WHITE). Use for dispensing a
single espresso shot.
When in doubt follow the
directions on the Caffitaly
branded capsule box regarding
required button use.
Double Espresso Button - 60ml
(Lit in WHITE). Use for dispensing
a double espresso coffee for a
stronger beverage. Also suitable
for Hot Chocolate, Chai Latte and
similar beverages (NOT TEA).
Tea or Hot Water Button - 120ml
(Lit in BLUE) should only be used for
tea capsules or to add hot water.
If you are adding hot water
only, ensure the Rinse Capsule
is inserted into the Capsule
Chamber before dispensing.
Do not use the Tea Button
to extract espresso coffee
or any other beverages except
tea. Capsules appropriate for the
Tea Button will be indicated on the
packaging.
Inappropriate use of this button
may damage the machine and void
your warranty.
NOTE: Traces of the previous product
dispensed may remain in the circuit of
the machine. To maintain the maximum
beverage flavour, please cycle/rinse
water through the machine using the
Double Espresso button after every use.
Ensure you insert the Rinse Capsule
into the Capsule Compartment before
commencing the rinse cycle. This will
assist in reducing the amount of water
entering into the Used Capsule Drawer.
Regularly check the Used Capsule
Drawer and empty any water that
may be collected in the drawer to stop
water overflowing.
CORRECT USE OF BUTTONS
Diagram 3:
S21 Capsule Machine Instruction Manual 3/09/15
7.
Please ensure you only use Caffitaly
System Capsules which can be
identified by the Caffitaly logo.
We recommend following these steps after not having used
the machine for a long period of time.
Continued on next page... >>
4.
3.
Plug in
appliance.
Switch the
machine ON
using the On/
Off Switch.
2.
Fill the Water
Tank with fresh,
still water (either
by filling through
the Water Tank
cover or removing
the Tank).
1.
6.
Insert the Rinse
Capsule into
the Capsule
Compartment.
Close the
Lever fully.
Raise the Lever
to open the
Capsule
Compartment.
ON
Along with the
button lights,
the Indicator
Light will also
alternately blink
RED.
FIRST TIME USE
ONLY USE WITH
Caffitaly System
Capsules
Rinse Capsule
5.
S21 Capsule Machine Instruction Manual 3/09/15
z
FIRST TIME USE - Continued
8.
9.
NOTE: If the Red
Indicator Light
continues to blink
and no water has
been extracted,
repeat Step 8.
After Step 8 has
successfully been
completed, all the
button lights will
continue to blink, the
machine is warming
up. (This will take
about 1 min.)
10.
12.
When all the
button lights
remain steadily lit,
rinse by pressing
the Tea button.
Press again to
repeat rinse cycle.
Raise the Lever
to open the
Capsule
Compartment
and eject the
Rinse Capsule.
Pull drawer forward
and empty any
water and the Rinse
Capsule from the
Used Capsule
Drawer. Retain the
Rinse Capsule for
future use.
The Rinse Capsule is
to be used when you:
• Dispense Hot Water Only
• Cycle/Rinse water
through the machine.
• Descaling (refer to
Page 14. 'Descaling').
11.
i.
i.
8.
7.
Place a large
empty container
(at least 250 ml)
under the Coffee
Dispensing Spout.
Press the Double
Espresso button.
Water will be cycled
through the system.
(This will take about
30 sec.) When done
the Red Indicator
Light will switch off.
S21 Capsule Machine Instruction Manual 3/09/15
TURNING ON THE APPLIANCE - DAILY USE

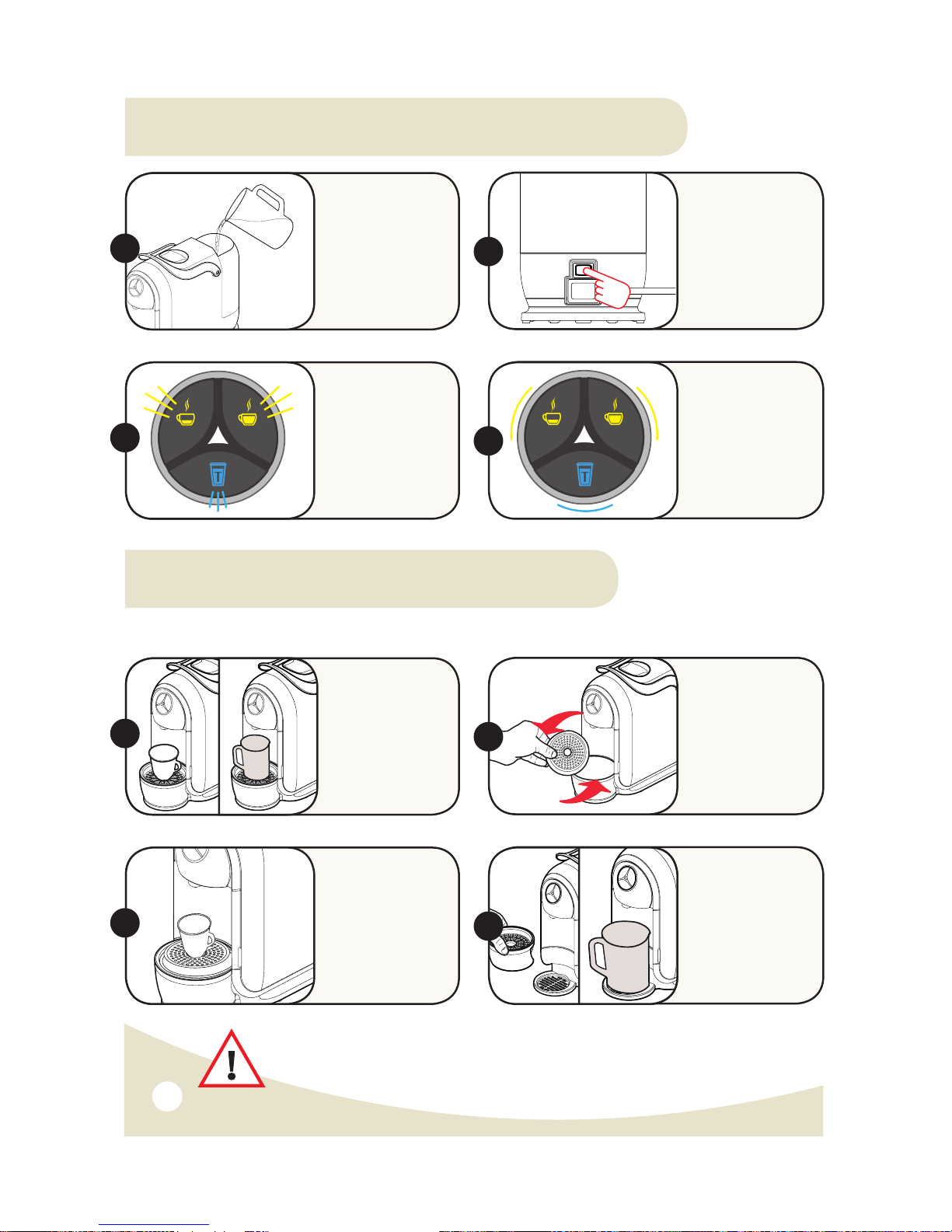

ADJUSTING THE CUP/MUG HEIGHT
Fill the Water
Tank with fresh,
still water.
The appliance
is initially set for
the use of large
cups or mugs.
The appliance can be adjusted for the use of mugs or espresso cups.
Caution: Mug must be held in place to avoid spillage as surface is
uneven once the Drip Tray has been removed. DO NOT leave
the appliance unattended during dispensing.
This raises the
height of the
cup towards
the Coffee
Dispensing
Spout.
1.
3.
3.
Switch the
machine
ON using the
On/Off Switch.
For best results
using espresso
cups, you can lift
and rotate the
grid placed over
the Drip Tray.
For tall mugs/
latté glasses the
drip tray can be
removed.
2.
4.
4.
When all the
button lights blink
continuously,
the machine is
warming up.
(This will take
about 1 min.)
When all the
button lights are
lit steadily, your
machine is ready
to use.
1. ON
2.
9.
S21 Capsule Machine Instruction Manual 3/09/15
Autres manuels pour S 21
2
Table des matières
Autres manuels Caffitaly System Cafetière
Caffitaly System
Caffitaly System S01HS Manuel utilisateur
Caffitaly System
Caffitaly System VENUS S08 Manuel utilisateur
Caffitaly System
Caffitaly System S36R Manuel utilisateur
Caffitaly System
Caffitaly System S8003 Manuel utilisateur
Caffitaly System
Caffitaly System S22 Manuel utilisateur
Caffitaly System
Caffitaly System S 21 Manuel utilisateur
Caffitaly System
Caffitaly System Volta S35R Manuel utilisateur
Caffitaly System
Caffitaly System F02MK Guide de l'administrateur
Caffitaly System
Caffitaly System S33 Manuel utilisateur
Caffitaly System
Caffitaly System S05 Manuel utilisateur
Caffitaly System
Caffitaly System S05 Manuel utilisateur
Caffitaly System
Caffitaly System VENUS S08 Manuel utilisateur
Caffitaly System
Caffitaly System S14 Manuel utilisateur
Caffitaly System
Caffitaly System S32R Manuel utilisateur
Caffitaly System
Caffitaly System S9001 Manuel utilisateur
Caffitaly System
Caffitaly System S24 Manuel utilisateur
Caffitaly System
Caffitaly System S04 Manuel utilisateur
Caffitaly System
Caffitaly System S06HS Manuel utilisateur
Caffitaly System
Caffitaly System Roma Manuel utilisateur
Caffitaly System
Caffitaly System S14 Manuel utilisateur
