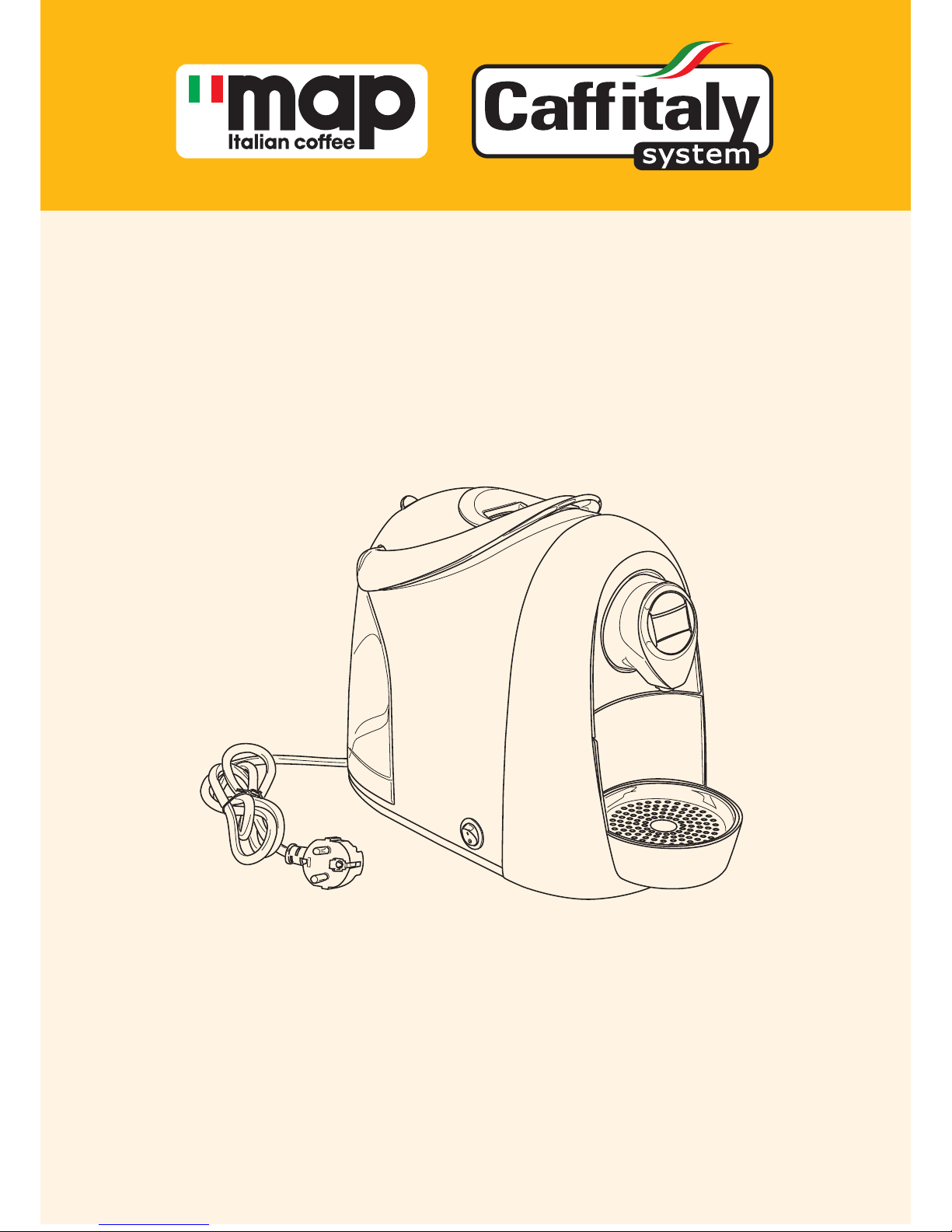

Caffitaly System Bella Manuel utilisateur

Instruction book

Bella

Model

4Adjusting the cup/mug height 13

5Brewing coee

6Preparing other beverages

7Programming the quantity of coee in a cup

9Daily maintenance

10 Descaling the machine

Table of Contents

Safety warnings _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _4

Instructions for use and disposal_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _6

Your Caffitaly System contact_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _6

Intended use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _7

Follow the instructions (Symbols) _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _7

Description _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _8

1 Priming your machine _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _9

2Turning on the appliance _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10

3General operating indications_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10

4Adjusting the cup/mug height _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13

5Brewing coee _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 14

6Preparing other beverages_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 15

7Programming the quantity of coee in a cup _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 16

8Saving energy_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 17

9Daily maintenance _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18

10 Descaling the machine _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 19

11 Draining the appliance _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 23

12 Troubleshooting _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 24

13 Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 25

Main topics

It is necessary to pay attention to these warnings in order to avoid the risk of personal injury and damage to the

appliance.

Do not use the appliance if it is damaged in any way. At the rst sign of defects or unusual noises or smells, turn o

the appliance and unplug it. In such cases contact an Authorized Service Center.

Only use the appliance if the power cord is intact. If the cord is damaged, it should be replaced: contact an

Authorized Service Center. Danger of electric shocks.

Do not leave the power cord near hot surfaces, sharp edges or other sharp objects. When disconnecting the

appliance, pull on the plug, not the cord; otherwise it may be damaged.

Only connect the appliance to power outlets complying with the requirements of law. Make sure that the power

supply voltage matches the rating shown on the data plate on the bottom of the appliance.

To avoid the risk of re, set the appliance on a at, heat-resistant surface. Only use and store the appliance indoors.

Do not let the power cord dangle! Position the cord so there is no risk of tripping.

Do not allow the appliance to be used by children or persons with impaired mental, physical or sensory faculties

or insucient experience and/or skills, unless they are under the careful supervision and guidance of a person

responsible for their safety. Children must be kept under supervision to prevent them from playing with the

appliance.

Always close the lever. Never open the lever while the appliance is operating. Always use the appliance with the

drip tray and grill in place.

The quantity of coee dispensed can be programmed up to a maximum of 250 ml.

Please keep these instructions safe.

Safety warnings

Never place your hands inside the capsule compartment. Danger of injury! Never remove parts of the appliance.

Do not insert objects into the openings.This could cause electric shocks! Any operation that is not described in this

instruction manual should only be performed by an Authorized Service Center!

Clean the appliance carefully and regularly. If it is not cleaned, the build-up that forms may be hazardous to your

health. Unplug the appliance and allow it to cool before cleaning.

Descale the appliance regularly, following the instructions provided. If you do not, the appliance may be damaged

and may become harmful to your health.

Make sure the electrical elements, plug and cord are dry.

Never submerge the appliance in water. Protect the appliance from sprays and drips.Water and electricity together

constitute a risk of electrocution.

If you do not expect to use the appliance for a long period of time (leaving on vacation, etc.), unplug it.

Safety warnings

Your Cataly System contact

Instructions for use and disposal

info@mapcoee.com.au

The appliance has been manufactured using high quality materials that can be reused or recycled. Dispose of the

appliance in a suitable waste collection center.

When you decide to dispose of the appliance, unplug it from the power outlet. Then cut o the power cord as close

to the body of the appliance as possible.

Directions for correct disposal of the product according to European Directive 2002/96/EC and Italian Legislative

Decree no. 151 of 25 July 2005. At the end of its useful life, the product should not be disposed of with unsorted

household waste. It should be taken to a suitable selective waste collection center set up by the local authorities

or returned to a retailer who provides this service. Separate collection of an electric household appliance avoids a

possible negative impact on the environment and health arising from improper disposal and enables the materials

it is made of to be recovered so as to achieve signicant savings of energy and resources.The crossed-out wheelie

bin symbol applied on the product highlights the need to dispose of electric appliances separately. Improper

disposal of the product by the user shall be subject to specic administrative sanctions as provided for under

current regulations. The packaging is made from recyclable materials. Contact the competent authorities for

information regarding local legislation.

Free call: 1800 239 438

Intended use

Follow the instructions (symbols)

The appliance is made to brew coee and dispense hot water. It is intended for domestic use and must be used in

accordance with these instructions. Use only Map Coee capsules. Any other use is to be considered improper.

Use of the appliance in any manner other than as directed herein could cause harm to persons and void the guarantee.

The manufacturer will not be responsible for injury or damage resulting from improper use of the appliance.

CAUTION

This is the safety warning symbol.

It is used to call your attention to possible risks of personal injury. Abide by the safety messages provided in order

to avoid possible injury or death.

NOTE

This is the symbol used to highlight some actions that will optimize use of the appliance.

Dishwasher safe.

Not dishwasher safe.

This symbol is used to highlight a WHITE light indication.

This symbol is used to highlight a RED light indication.

This symbol is used to highlight an ORANGE light indication.

Description

Dispensing spout

Alarm indicator light

Descaling indicator light

Electric cord

Water tank

Water tank door

Power on/o switch

Vasca raccogligocce

Capsule compartment

Used capsule drawer

Espresso button

Filter beverage button

(chocolate, tea flavoured beverages)

Coee button

Lever for opening capsule compartment

Priming your machine

Fill the water tank with fresh, still water.

The buttons and alarm indicator light will blink simultaneously.

Plug in the appliance and turn it on.

Place an ample container under the dispensing spout.

At the end of this operation, empty out the water from

the used capsule drawer.

Press one of the coee buttons.Wait for the machine to

complete the priming cycle and ll with water.

When the indicator lights blink alternately and the appliance emits

3 beeps, it is necessary to carry out a descaling cycle.

Turning on the appliance

Fill the water tank with fresh, still water.

Turn the appliance on.

The buttons will blink simultaneously to indicate that the machine

is warming up. When the buttons remain steadily lit, the appliance

is ready for operation.

General operating indications

1ST DESCALING SIGNAL 2ND DESCALING SIGNAL - DISABLING

When the indicator light blinks and the appliance emits 3 beeps, it

is advisable to carry out a descaling cycle.
