INSTRUCTION MANUAL

05-14

VIDEO

IMPORTANT NOTE

Congratulations on your purchase of one of the best trail cameras

on the market! Bushnell is very proud of this little unit and we

are sure you will be pleased with it as well. We appreciate your

business and want to earn your trust. Please refer to the notes

below and the instructions in this manual to ensure that you are

completely satisﬁed with this product.

If your Bushnell Trophy Cam HD does not seem to be

functioning properly or if you are having photo/video quality

issues, please check the Troubleshooting/FAQ section

on pages 31-35.

Problems are often due to something simple that was

overlooked, or require only changing one setting to solve.

If your problem continues after trying the solutions in

the Troubleshooting/FAQ section, please call Bushnell

Customer Service at (800) 423-3537. In Canada, call (800)

361-5702.

Bushnell recommends using a full set of Energizer®Lithium AA

batteries (8 or 12, depending on the model) in these Trophy Cam

HD models to obtain maximum battery life

Do not mix old and new batteries

Do not mix battery types-use ALL lithium or ALL alkaline

Bushnell recommends using SanDisk®SD and SDHC Cards

(up to 32GB capacity, Ultra®or Extreme®series for HD video)

in these Trophy Cam HD models

INTRODUCTION

About the Trophy Cam HD

The Bushnell Trophy Cam HD is a digital scouting camera. It can be

triggered by any movement of game in a location, detected by a highly

sensitive Passive Infra-Red (PIR) motion sensor, and then take high quality

pictures (up to 8MP still photos), or video clips.

The Trophy Cam HD consumes very little power (less than 0.25 mA) in

a stand-by (surveillance) state. This means it can deliver up to six months

stand-by operation time when the device is powered by the full capacity of

AA alkaline batteries, and up to twelve months utilizing lithium AA batteries.

Once motion in the monitored area is detected, the digital camera unit will be

triggered at once (typically within one second) and then automatically take

photos or videos according to previously programmed settings. The Trophy

Cam HD is equipped with built-in infrared LEDs that function as a ﬂash, so

that it delivers clear photos or videos (in black & white) even in the dark, and

it can take color photos or videos under sufﬁcient daylight. The Trophy Cam

HD HD is designed for outdoor use and is resistant against water and snow.

Your trail camera is one of the latest generation of Bushnell Trophy Cam HD

HDs, and includes many new or improved features, including:

• Auto PIR Sensitivity-the camera monitors ambient temperature

conditions and automatically adjusts the sensor/trigger signal to be

more sensitive to slight variations in temperature on hot days, less

sensitive on cold days.

• Hyper NightVision-The IR LED Flash array now has increased range,

brighter output and better coverage for improved nighttime images.

• Field Scan 2x with Live Trigger-This “time lapse” feature includes the

option for a second block of recording with its own start/stop times.

Trigger signals generated by nearby wildlife activity will still generate

additional photos/videos as they normally would, independently of the

Field Scan operation.

• GPS Geotag Capability-allows the user to input the longitude and

latitude of the camera’s position, which will be embedded in each

photo ﬁle. This enables Google Earth, Picassa and other geotag

enabled software to automatically show a map pinpointing each

camera’s location when a group of photos are reviewed on a computer.

Especially useful for those who setup multiple Trophy Cam HDs to

monitor large or widely separated areas.

• Multi Flash Mode (LED Control)- prevents overexposed ﬂash photos in

close range applications

• Hybrid Capture Mode-allows both still photos and videos to be

captured at each trigger, up to highest resolution settings for each.

• NV Shutter-user can select shutter speed for images captured at night

allowing control over brightness vs. ability to stop motion

• Camera Operating Mode can be limited to Day only, Night only, or 24

HRs

And many more features such as HD Video with Audio, widescreen or

fullscreen format still photos, imprintable camera name (user set) along with

current data including temperature, moon phase and barometric pressure*

(*imprinted barometer data only available on model 119678C).

Applications

The Trophy Cam HD can be used as a trail camera for hunting or scouting

game. It is also suitable for surveillance usage.

PARTS AND CONTROLS

The Trophy Cam HD provides the following connections for external

devices: USB port, SD card slot and external DC power in (pg 6, Fig. 1).

A 3-way power switch is used to select the main operating modes: OFF,

SETUP, and ON (pg 6, Fig. 2).

A control key interface with six keys is primarily used in SETUP mode to

select operational functions and parameters. As shown on the next page,

these keys are: UP, DOWN, LEFT, RIGHT, OK and MENU. Three of the keys

can also perform a second function (shortcut operations in SETUP mode) in

addition to their main function: The DOWN key can be used to set the camera

to Photo mode (still camera icon), and the UP key can set the camera to

Video mode (movie camera icon). The RIGHT key also serves as the manual

shutter (“SHOT”) button of the camera. These secondary functions are

indicated by icons or text above the key as shown below.

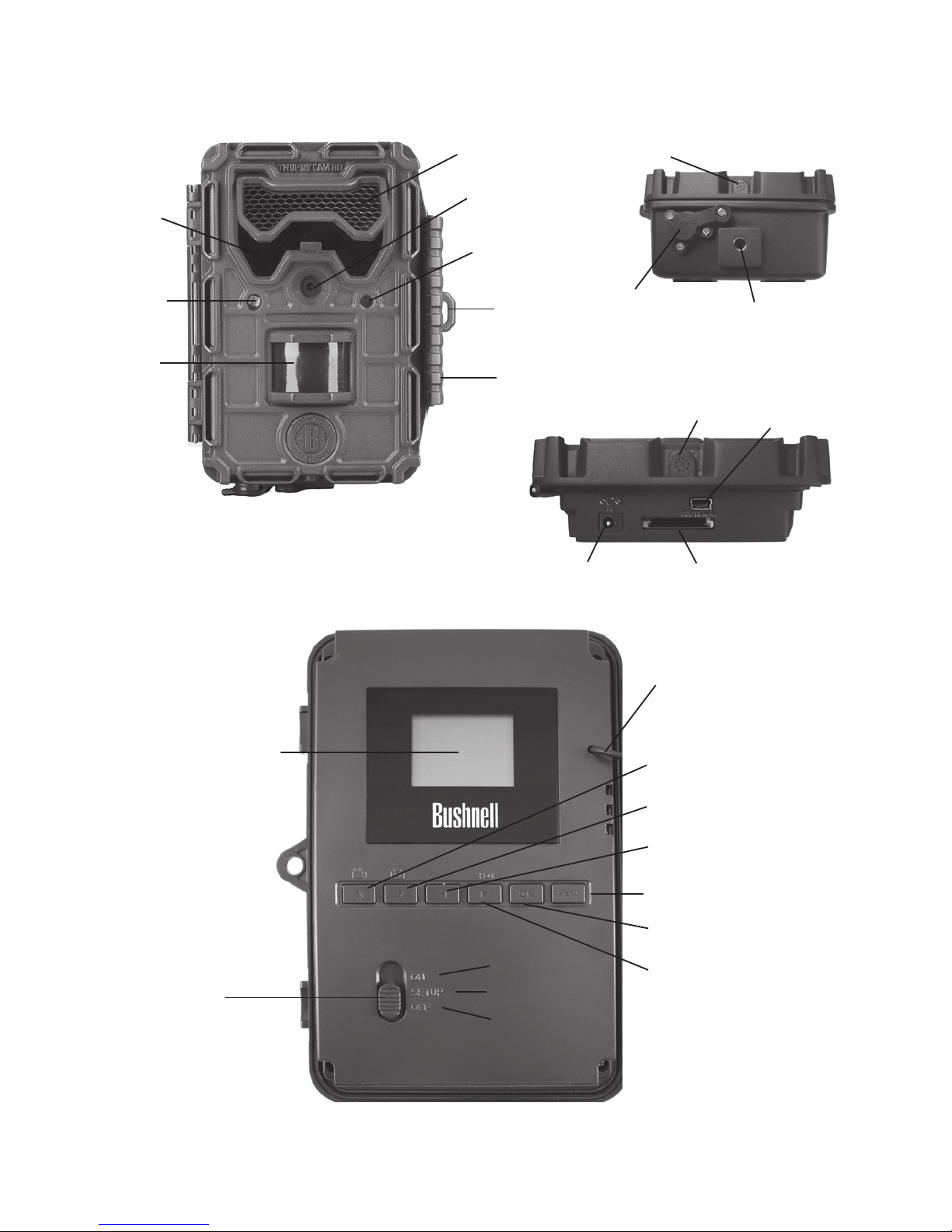

INSIDE VIEW

Tripod Socket

DC in

Cover Plug

Video Mic

Fig. 1: Connections

USB Port

SD Card Slot

DC In

Video Mic

LED IR

Flash Motion/ Low

Battery Indicator

Lens

Lock

Hole

PIR

Sensor

FRONT VIEW

Latch

Light

Sensor

ARD

Fig. 2: Button and

Switch Guide

SETUP

OFF

LCD Screen

Power/Mode

Switch

UP/Video

DOWN/Photo

LEFT

RIGHT/Shot

Cable to Battery

Compartment

INSTALLING THE BATTERIES AND SD CARD

Before you begin learning how to use your Trophy Cam HD, you will ﬁrst

need to install a set of batteries and insert an SD card. Although that may

only take you a minute, there are some important notes about both batteries

and SD cards you should be aware of, so please take the time to read the

following directions and cautions:

Loading Batteries

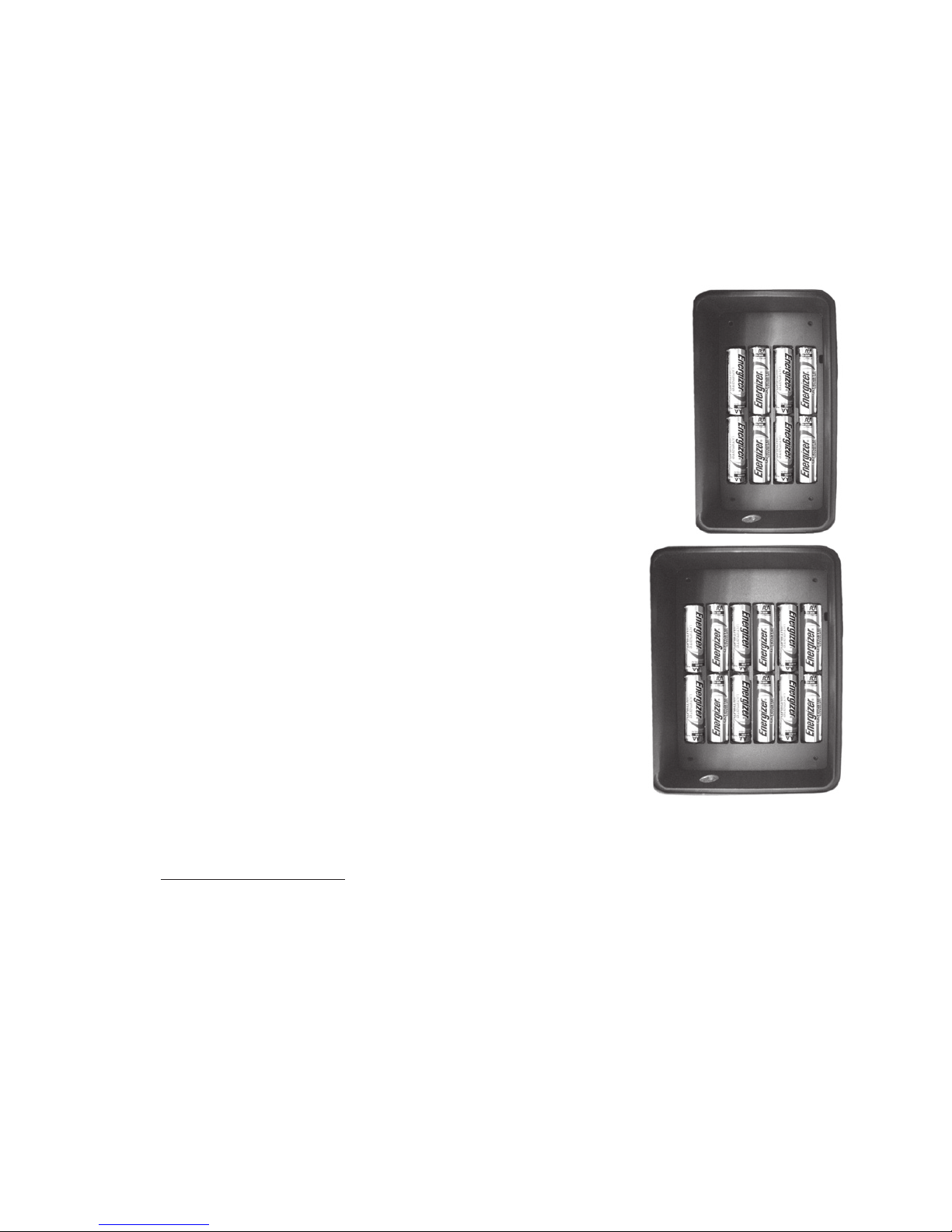

After opening the two latches on the right side of the

Trophy Cam HD, you will see that the Trophy Cam

HD has eight or twelve battery slots, depending on

your model. For maximum battery life, you should install

a full set of batteries. The Trophy Cam HD may also

be operated by just four batteries installed in the ﬁrst

slots only (starting on the top or left-see photos).

Battery life will be shorter with 4 batteries, but the

camera will operate normally. Whether you use 4 or

a full set, be sure to insert each battery with correct

polarity (negative or “ﬂat” end against the long spring

of each battery slot).

Bushnell recommends using a full set of new lithium

AA (Energizer®brand) or alkaline AA batteries. NiMh

Rechargeable batteries are not recommended, as the

lower voltage they produce can cause operational

issues.

Optionally, you can connect the #119656C Accessory Solar Panel (please

visit www.bushnell.com for more information) to the “DC In” jack at the

bottom of the Trophy Cam HD (other external power supplies should not

be used, as the camera and/or display may not function correctly). If the

solar panel is connected and AA batteries are installed, the Trophy Cam HD

will be powered by the solar panel's rechargeable lith-ion battery, as long as

it provides adequate voltage (if not, the camera will switch to battery power).

The solar panel's battery will power the camera at night.

When the batteries become weak (or a device with insufﬁcient power is

connected to DC In), the low-battery indicator LED will glow blue, indicating

the batteries should be changed (pg 6, Front View).

Inserting the SD Card

The Trophy Cam HD has 32MB of internal memory, which can hold only

about 20 photos (@ 5MP resolution). This is handy for testing and getting

familiar with the camera, but you will no doubt want to leave the camera

unattended for longer than a day, so using an SD card is recommended for

all models. Insert the SD card (with the camera’s power switch in the OFF

position) before beginning to operate the camera. Don’t insert or remove the

SD card when the power switch is in the ON position.

The Trophy Cam HD uses a standard SD (Secure Digital) memory card to

save photos (in .jpg format) and/or videos (in .avi format). SD and SDHC

(High Capacity) cards up to a maximum 32GB capacity are supported.

Using high speed SD cards (SanDisk®Ultra®or Extreme®series or similar)

is recommended if you will use the 1280x720 or 1920x1080 video settings.

Before inserting the SD card into the card slot after opening the camera’s

front cover, please make sure that the write-protect switch on the side of the

card is “off” (NOT in the “Lock” position). The following describes how to

insert and remove the SD card:

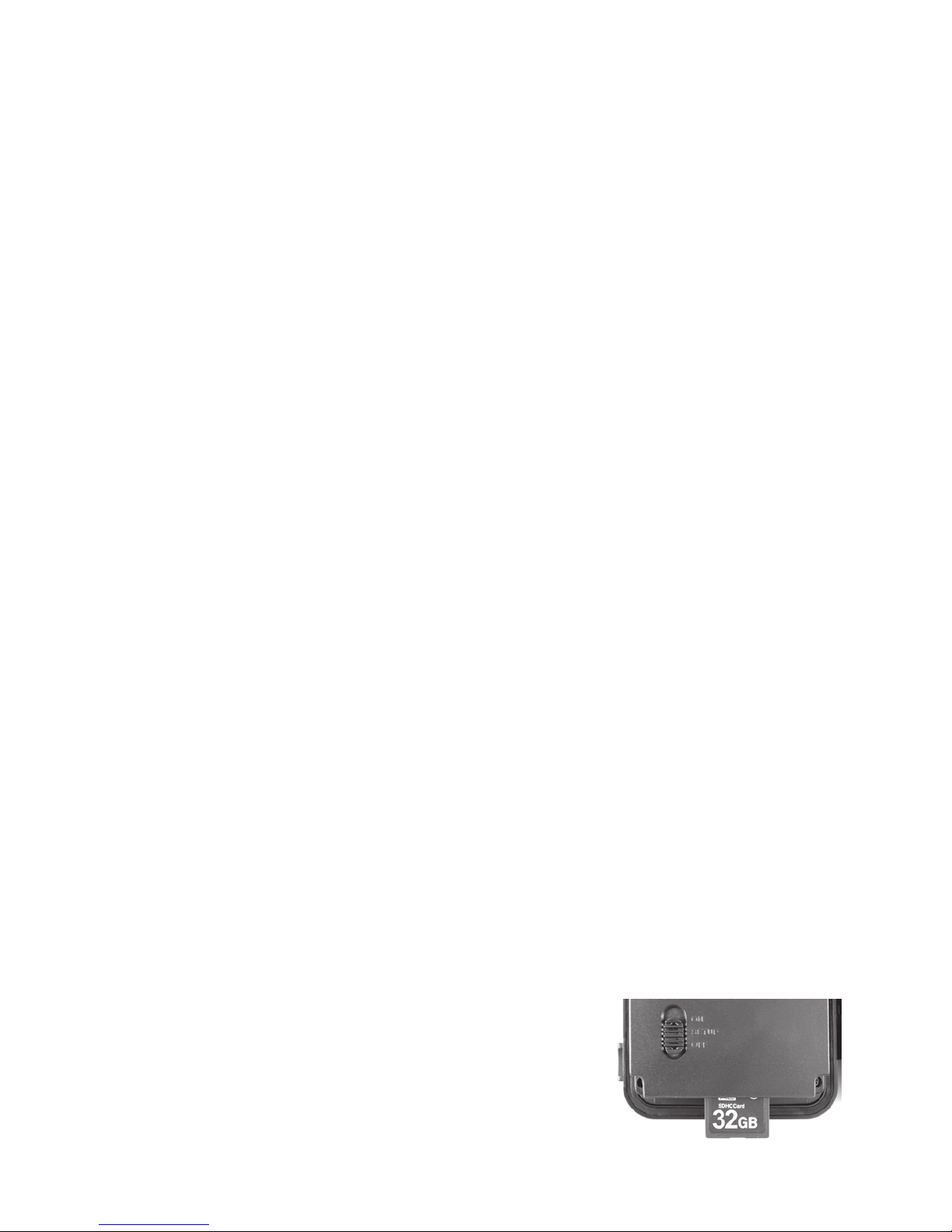

• Insert the SD card into the card slot with its label side upwards (see

below). A “click” sound indicates that the card is installed successfully.

If the wrong side of the card is facing up, you will not be able to insert

it without force-there is only one correct way to insert cards. If the SD

card is not installed correctly, the device will not display an SD card icon

on the LCD in SETUP mode (the SD card icon displayed after switching

to SETUP mode will have a “lock” symbol inside it in it if the card is locked).

Formatting the SD card by using the Trophy Cam HD’s “Format”

parameter before using it for the ﬁrst time is recommended, especially

when a card has been used in other devices (see pg. 22, “Format” for

details).

• To take out the SD card, just gently push in the card (do not try to pull it

out without pushing in ﬁrst). The card is released from the slot and ready

to be removed when you hear the click. WARNING: Be sure the camera’s power is switched

OFF before inserting or removing SD cards or batteries.

USING THE Trophy Cam HD

Once you’ve prepared your Trophy Cam HD by properly installing batteries

and an SD card, you could simply take it outside, strap it to a tree, switch it

on and leave-and you might get some great photos that are exactly what you

wanted. However, we highly recommend that you ﬁrst spend some additional

time indoors with this manual and your camera until you know a bit more

about what the 3-way switch and those control keys do. If nothing else, you’ll

probably want to at least set the date and time so the camera will imprint

them (or not-it’s your option) on your photos as they are taken, learn how to

set the camera to shoot video clips instead of still photos if you like, and read

some tips about mounting it on a tree.

THE OFF, ON, AND SETUP MODES

The Trophy Cam HD has three basic operational modes:

• OFF mode: Power switch in the OFF position.

• ON mode: Power switch in the ON position (LCD screen is off.)

• SETUP mode: Power switch at SETUP position (LCD screen is on).

OFF MODE

The OFF mode is the “safe” mode when any actions must be taken, e.g.,

replacing the SD card or batteries, or transporting the device. You will also

use OFF mode if you connect the camera to a computer’s USB port later

to download your photos/videos. And of course, when you are storing or

not using the camera, you will switch it to OFF. Please note that even in

the OFF mode the Trophy Cam HD still consumes power at a very low

level. Therefore, it’s a good idea to take the batteries out of the battery

compartment if the camera will not be used for a long time.

ON MODE

Anytime after the batteries and SD card have been inserted, you can switch

on the camera. When the power switch is moved to the top position, the

camera will enter into the ON (Live) mode. The motion indicator LED

(pg. 7, “Front View”) will blink red for about 10 seconds. This interval allows

time for you to close the Trophy Cam HD’s front cover, lock it, and leave

the monitored area. Once in the ON mode, no manual controls are needed

or possible (the control keys have no effect). The Trophy Cam HD will take

photos or videos automatically (according to its current parameter settings)

when it is triggered by the PIR sensor’s detection of activity in the area it

covers.

You can either move the power switch directly from OFF to ON mode, or

stop at the SETUP position ﬁrst to change one or more settings, then move

the switch to ON after you have ﬁnished doing so.

SETUP MODE

In the SETUP mode you can check and change the settings of the Trophy

Cam HD with the help of its built-in LCD. These settings, found in the SETUP

Menu, let you change the photo or video resolution, interval between photos,

switch the time imprint on, etc. Moving the power switch to the SETUP

position will turn on the LCD display, and you will see an information screen

that shows how many images have been taken, the battery level, camera or

video mode, etc (Fig. 3, next page).

NOTE: Always move the power switch from OFF to SETUP mode. It

is possible that the camera could lockup if it is switched from ON to

SETUP mode. If this occurs, simply move the switch to OFF and then

push it up to SETUP again.

SETUP Mode Shortcut Keys/Functions

As mentioned earlier in “Parts & Controls”, four of the keys below the LCD

have secondary, “shortcut” functions when the camera is switched to

SETUP mode (but the MENU key has not been pressed):

• Press the UP key to quickly set the camera to shoot video clips.

• Press the DOWN key to quickly set the camera to take still photos.

• Press the RIGHT key to manually trigger the shutter. This is useful

for testing the camera-make sure you are in SETUP mode, press the

RIGHT key, and a few seconds later a photo or video (depending on

how the camera was set) will be saved to the SD card (or internal

memory if no card is inserted). The “number of images taken” counter

on the bottom left of the LCD will increase by one. If the display

indicates “SD PROTECTED” when you press the SHOT key, switch

the camera OFF, remove the SD card and slide its protect switch off.

Table des matières

Autres manuels Bushnell Caméra de repérage

Bushnell

Bushnell Trophy Cam 98-1559 / 1-10 Manuel utilisateur

Bushnell

Bushnell TROPHY CAM HD AGRESSOR 119873C Manuel utilisateur

Bushnell

Bushnell TROPHY CAM HD VITAL 119726C Manuel utilisateur

Bushnell

Bushnell Trailscout 119700 Manuel utilisateur

Bushnell

Bushnell Trail Scout 11-9833 Manuel utilisateur

Bushnell

Bushnell Trail Sentry 119302 Manuel utilisateur

Bushnell

Bushnell 119437 Manuel utilisateur

Bushnell

Bushnell TRAIL SENTRY 11-9000 Manuel utilisateur

Bushnell

Bushnell Trophy Cam 119636C Manuel utilisateur

Bushnell

Bushnell 119734C Manuel utilisateur

Bushnell

Bushnell WIRELESS Trophy Cam HD Manuel utilisateur

Bushnell

Bushnell 119432CW Manuel utilisateur

Bushnell

Bushnell CORE DS-4K Manuel utilisateur

Bushnell

Bushnell TRAIL SENTRY 119320C Manuel utilisateur

Bushnell

Bushnell TROPHY CAM 119537 Manuel utilisateur

Bushnell

Bushnell CELLUCORE 20 Manuel utilisateur

Bushnell

Bushnell 119904D Manuel utilisateur

Bushnell

Bushnell 119908D Manuel utilisateur

Bushnell

Bushnell 119636C Manuel utilisateur

Bushnell

Bushnell TRAIL SENTRY 119320C Manuel utilisateur

Bushnell

Bushnell Core Manuel utilisateur

Bushnell

Bushnell TROPHY CAM Manuel utilisateur

Bushnell

Bushnell CELLUCORE 20 SOLAR Manuel utilisateur

Bushnell

Bushnell Trophy Cam HD Aggressor 119875 Manuel utilisateur

Manuels Caméra de repérage populaires d'autres marques

Nestbox

Nestbox C13 Manuel utilisateur

Wildview

Wildview STC-TGL1 Manuel utilisateur

Stealth Cam

Stealth Cam CORE STC-Z3IRTL Manuel utilisateur

Suntek

Suntek HC-800M Manuel utilisateur

Spypoint

Spypoint G4 Manuel utilisateur

Duramaxx

Duramaxx 10029765 Manuel utilisateur

Brecom

Brecom C2400 Manuel utilisateur

BlazeVideo

BlazeVideo A280W Manuel utilisateur

Bestok

Bestok 5210GM Manuel utilisateur

GardePro

GardePro X60P Manuel utilisateur

Delta-Opti

Delta-Opti HC-SG880MK-18MHD Manuel utilisateur

PNI

PNI HUNTING 280C Manuel utilisateur

Muddy

Muddy Pro-Cam 14 Manuel utilisateur

Bresser

Bresser 3310006 Manuel utilisateur

Recon Outdoors

Recon Outdoors HS410 Manuel utilisateur

Braun

Braun 57660 Manuel utilisateur

Wildgame

Wildgame Shadow Manuel utilisateur

Spypoint

Spypoint FLEX Manuel utilisateur
