INSTRUCTION MANUAL
CELLUCORE LIVE DUAL SIM TRAIL CAMERA
CELLUCORE LIVE DUAL SIM MODEL # 119908D
WELCOME
Welcome to your Bushnell Trail Camera! This manual has all
the instructions you need to set up your camera and your
account, plus quick answers to your questions.
If your camera does not seem to be functioning properly
or if you are having image quality issues, please check the
Troubleshooting Tips section.
If your problem continues after trying the solutions in
Troubleshooting Tips, please call Bushnell Customer Service
at (800) 423-3537. In Canada, call (800) 361-5702.
Note: This Bushnell trail camera model is not designed
or intended for operation or sale outside of the United
States.
TABLE OF CONTENTS
Camera Overview 4
Camera Status Indicator Guide 6
Quick Start Guide 6
Settings Menu 10
Live Streaming 12
Mounting & Positioning 13
Frequently Asked Questions 15
Technical Specifications 17
Two-Year Limited Warranty 18
4
CAMERA OVERVIEW
Lens
Control Panel
Cover
DC In
Temperature
Sensor
Motion
Indicator
Antenna
LED IR Flash
Latch
Lock Hole
PIR Sensor
5
Motion
Indicator
Battery Tray
SD Card Slot
Camera Status
Indicator Lights
Power On/Off
Camera Status
Indicator Guide
Battery
Panel Door
Wake Up
Battery Life
6
CAMERA STATUS INDICATOR GUIDE
1. Download the free Bushnell Trail
Camera app on your smartphone from
the App Store (iPhone®) or Google
Play® (Android®).
2. Open the app, then sign in or create
a new account.
QUICK START GUIDE
Look here to identify what a green, yellow,
or red light means for your camera status
and battery life.
Cellular Signal Indicator Lights
Camera Status Indicator Light
Battery Life
7
3. Log in and click the Camera icon
at the bottom of the screen, then
click “+” to add a new camera. Scan
the QR code on the label inside your
camera again or manually enter its
serial # to associate this camera
with your account.
4. Install 12 AA batteries (Energizer®
lithium batteries are recommended.
Alkaline batteries may be used
but battery life will be shorter.
Rechargeable batteries are not
recommended). Be sure to position
the batteries for correct polarity
(+/-) when installing.
5. Install a new SD card, up to
256GB. High speed cards (class 10
or higher) are recommended if you
plan to record video clips.
6. Your CelluCORE LIVE Dual Sim is
equipped with a dual SIM modem.
The camera will automatically
connect to the carrier with the
strongest service (ATT or Verizon)
each time the camera is powered
on. If you want to ensure you have
the strongest signal in a given
area, simply power the camera
off and power it back on. This will
ensure you have maximum signal
x12
8
strength. (We recommend using
your camera in a location that gives
you minimally two bars of signal
strength. Lower signal strength can
cause interruptions in service and
shorten battery life.)

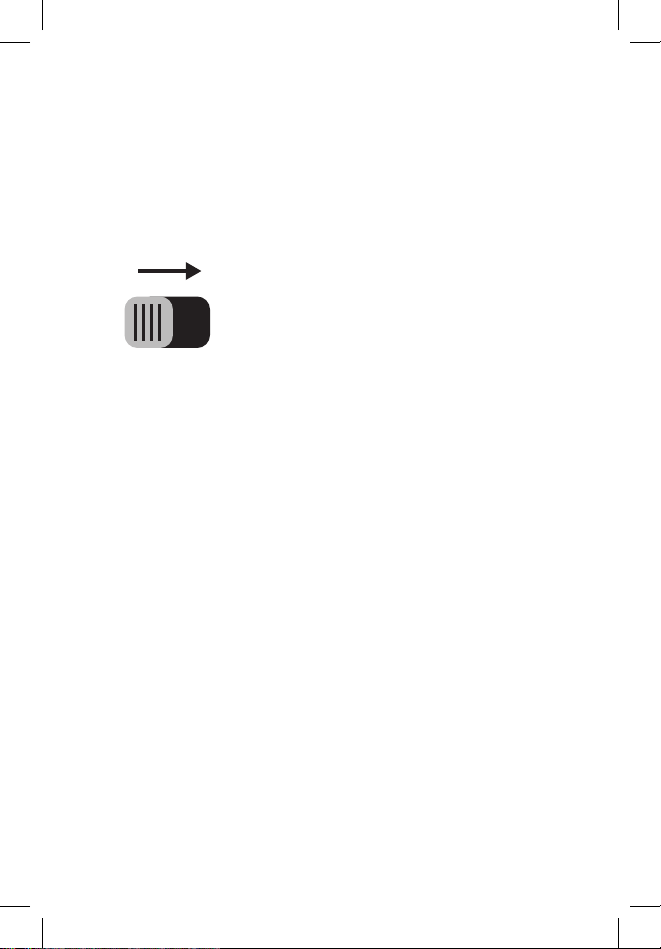

7. At the location where you will
place the camera, move the power
switch to the On position. The
camera’s default settings were
chosen for typical usage as a
scouting camera for hunters: photo
mode at 4MP resolution, with a 10
second interval between photos,
and “Medium” LED flash power
output. These settings may be easily
changed to suit your individual
preferences or application (for
example, if you would rather capture
videos, or photos at a different
resolution, spaced further apart),
using the app on your smartphone
or home computer.
8. Prior to closing the camera,
ensure the camera has acquired
cellular signal and is operating
properly by checking the camera
status indicator lights and guide.
Lower signal strength can cause
interruptions in service and shorten
battery life.
Mount the camera to a tree or post
using the provided tree strap or 1/4”-
20 mounting socket.
OFF ON
9
Your wireless camera is now ready to use. You can now utilize
the mobile application or management website to review
images, change camera settings, monitor battery life and
manage your account.
Android® and Google Play® are registered trademarks of Google Inc. iPhone® is a
registered trademark of Apple, Inc.
(see pg. 6 for camera status indicator guide)
Camera
Status
Battery
Life
Cellular Signal
10
(Check your app for these settings)
SETTINGS MENU
CAMERA MODE - Selects type of image files that are stored/
transmitted (note: see “Hybrid” under Video submenu).
IMAGE - Still images will be captured by the camera at
settings made in the PHOTO menu.
MOVIE - Video clips will be captured at settings made in the
VIDEO menu. NOTE: your full HD video files will be stored on
the SD card, but they cannot be transmitted wirelessly due to
the file size/cell carrier bandwidth.
HYBRID- Captures a single image followed by a video clip.
IMAGE RESOLUTION - Selects resolution (in megapixels)
for still photos. Higher resolution provides more pixels for
increased detail, but creates larger files that take up more
of the SD card capacity (fills up faster). Available settings
are: Low, medium and high. Low is the default setting, which
will deliver excellent detail while still keeping the file size per
image reasonable for most users.
CAPTURES PER TRIGGER- Selects the number of photos
captured per trigger event, with settings from 1 to 5 (default
is 1 photo per trigger).
VIDEO RESOLUTION - Selects resolution for video clips.
Choice of 1920x1080 (1080P) or 1280x720 (720P) or
640x360 (360P).
VIDEO LENGTH - Selects duration of each video clip captured
per trigger. The default setting is 5S (five seconds per video).
From the 10 SEC setting up, length settings are in 5 second
increments. Maximum video length is 20 Seconds.
