Bushnell TROPHY 119598 Manuel utilisateur

Model#: 119598

INSTRUCTION MANUAL

01-15

VIDEO

2G WIRELESS

FrançaisEspañolDeutschItaliano

Rejoignez la communauté Trophy Cam HD sur www.trophycam.fr pour :

• Trouver des informations sur l’utilisation et les capacités de votreTrophy Cam HD

• Partager vos expériences, vos conseils et astuces avec les autres utilisateurs de la

communauté mondialeTrophy Cam HD

• Découvrir des animaux du monde entier

• Accéder à un service internet gratuit pour gérer et publier les photos et vidéos prises avec

votreTrophy Cam HD (vidéos hébergées surYouTube)

Visita la web-site de la comunidad Trophy Cam HD donde quieras y cuando quieras:

• Más información sobre las capacidades y aplicaciones de lasTrophy Cam HD

• Comenta tus experiencias Trophy Cam HD con otros usuarios, forma parte de esta nueva

comunidad

• Descubre animales de todos los rincones del mundo

• Accede a un servicio gratuito para gestionar tus fotos y videos on-line y sube tus fotos (los

videos se suben a través deYouTube)

Visita oggi la Trophy Cam HD Community del tuo paese, e se possibile:

• Cerca ulteriori informazioni sulle funzionalità e sulle applicazioni delle Bushnell Trophy Cam

• Discuti le tue esperienze con leTrophy Cam HD con altri utenti, condividi suggerimenti, entra

in questa nuova comunità mondiale

• Scopri gli animali di tutto il mondo

• Accedi al un servizio gratuito per gestire online le foto/ video ottenute con leTrophy Cam HD

e carica le vostre foto (i video sono caricati su YouTube)

www.trophycam.fr

www.trophycam.es

www.trophycam.de

www.trophycam.it

Besuchen Sie noch heute die deutsche Trophy Cam HD Community Internetseite, dort:

• Finden Sie weitere Informationen zu den Funktionen und Anwendungen der Bushnell Trophy

Cam HDs

• Können Sie mit anderen Nutzern der TrophyCam Ihre Erfahrungen austauschen und Tipps

von Anwendern aus der ganzen Welt erhalten

• Entdecken Sie Tiere aus der ganzen Welt

• Haben Sie Zugri auf einen freien Service, um Ihre Trophy Cam HD Bilder/Videos online zu

verwalten und Ihre Bilder zu speichern (Videos werden bei YouTube gespeichert)

TABLE OF CONTENTS PAGE

ENGLISH

FRANÇAIS

ESPAÑOL

DEUTSCH

ITALIANO

4-45

46-94

95-145

146-195

196-245

Visit the Trophy Cam HD community website for your country today, where you can:

• See more information about the capabilities and applications of the Bushnell Trophy Cam

HDs

• Discuss your Trophy Cam HD experiences with other users, share tips, belong to this new

worldwide community

• Discover animals from all over the world

• Access a free service to manage your Trophy Cam HD photos/videos online and host your

photos (videos are hosted onYouTube)

www.trophycam.eu

www.trophycam.co.uk

IMPORTANT NOTE

Congratulations on your purchase of your Bushnell WIRELESS

Trophy Cam HD ! Bushnell is very proud of this camera and we

are sure you will be pleased with it as well. We appreciate your

business and want to earn your trust. Please refer to the notes

below and the instructions in this manual to ensure that you are

completely satisﬁed with this product.

If your Bushnell WIRELESS Trophy Cam HD does not seem

to be functioning properly or if you are having photo/video

quality issues, please check the Troubleshooting/FAQ

section on pages 38-42.

Problems are often due to something simple that was

overlooked, or require only changing one setting to solve.

If your problem continues after trying the solutions in

the Troubleshooting/FAQ section, please call Bushnell

Customer Service at (800) 423-3537. In Canada, call (800)

361-5702.

Bushnell recommends using a full set of Energizer®Lithium AA

batteries (12) in this WIRELESS Trophy Cam HD model to obtain

maximum battery life

Do not mix old and new batteries

Do not mix battery types-use ALL lithium or ALL alkaline

Bushnell recommends using SanDisk®SD and SDHC Cards

(up to 32GB capacity, class 6 or higher speed rating for HD video)

in this WIRELESS Trophy Cam HD model

Step 1: Purchase and activate a SIM card from your mobile phone service

provider. An SMS/MMS (voice+text) enabled SIM card is recommended if

you have unlimited text messaging, as it will minimize costs. Both MMS and

SMTP allow control of the camera remotely via text messages. Select a SIM

card that also supports data (SMTP or SSMTP) if you also want the option to

receive images from the camera via email through your data plan.

Step 2: Insert the SIM card into the Wireless Trophy Cam HD (slot on top left

edge). Install batteries (12x AA lithium or alkaline) and an SD or SDHC card

(up to 32GB). Attach the antenna by screwing it onto the socket at the top of

the camera. Please refer to the full instruction manual for complete, detailed

directions.

Step 3: Set the Power/Mode Switch to “SETUP”. You should see an icon

conrming the SIM card is installed, followed by wireless signal strength

indicator bars once a connection has been established (allow time for this).

Step 4A (MMS Setup): Press the MENU key, then press the LEFT arrow key

3 times to go to “Wireless Setting”. Press the OK key, then select “MMS

Setting”(if you are using an SMS/MMS capable SIM card) and press OK again.

Highlight “Auto Setting” and press the OK key*. Select your country (where

your mobile phone service is based) using the UP/DOWN arrow keys and

press OK. Select your mobile service provider and press OK. Proceed to Step

Step 4B (SMTP Setup): If you are using an SMTP enabled SIM card, and wish

to get images via data rather than text, select “SMTP Setting” instead, then

press OK. Limited auto setup is available (for SMTP carrier info). You will

still need to add your personal email, address and password as sender in

the "Manual Setup" screen. Next, select the sender's "SMTP Type" (with or

without SSL), and input the receiver's email address ("Email Address" screen).

Proceed to Step 7.

* If “Auto Setting” does not work (which may be due to recent changes made by your service

provider) or if your mobile service provider is not on the list for your country, please use the

“Manual Setting” option instead. Your service provider can help you with the correct settings to

enter.

QUICK START GUIDE: BASIC SETUP STEPS

Step 5: Press the MENU key until you are back at the “MMS Setting” screen.

Press the DOWN key to select “Phone NO.” and press OK. Enter the phone

number you want the camera to send images to (as a text message). Make

sure you enter only numbers- do not include any spaces or dashes. Press

the MENU key to save the phone number. You may enter additional phone

numbers if you wish. Press MENU to return to the MMS screen. Note: only the

rst phone # can control the camera.

Step 6: From the “MMS Setting” or “SMTP” Setting” screen, you can also set

up an email address to receive data from the camera (this is the only option

when using SMTP, as receiving images via text is not possible. For SMS/MMS

operation, email is optional in addition to phone (text) receipt of images).

Select “Email Address” then press OK. Press OK again to begin entering your

email address. When nished, press the MENU key to save it.

Step 7: Test the camera to ensure that you will receive images. With the

camera switched to “SETUP”, and a wireless signal conrmed by green bars

at the right of the antenna icon, press the LEFT arrow key. You will see a

“Step” display while the camera snaps and transmits a photo, followed by

“Wireless test over!”and a “Send Success!” or “Communication Err” message.

If success is indicated, check your text messages and/or email for the test

image. If the camera displayed an error message, try the test again, after

double checking the steps and settings listed above. You may also ask your

wireless provider to make verify all wireless related data/numbers as shown

in the menus are correct and current.

Step 8: (Optional) From the “Wireless Setting” menu screen, select

“Transmission Setting” and press OK. Select your preferred Image Size

(smaller image les are lower quality but can be transmitted faster/

cheaper), set the “Send Interval” based on your preference for how often

the camera sends you new images after they are captured, and set a “Daily

Send Number” to limit the total quantity of images you receive within a 24

hour period.

INTRODUCTION

About the WIRELESS Trophy Cam HD

The Bushnell WIRELESS Trophy Cam HD is a digital scouting camera. It

can be triggered by any movement of game in a location, detected by a highly

sensitive Passive Infra-Red (PIR) motion sensor, and then take high quality

pictures (up to 8MP still photos), or video clips.

The WIRELESS Trophy Cam HD consumes very little power (less than

0.25 mA) in a stand-by (surveillance) state (ECO Mode only). This means

it can deliver up to six months stand-by operation time when the device

is powered by the full capacity of AA alkaline batteries, and up to twelve

months utilizing lithium AA batteries. Once motion in the monitored area is

detected, the digital camera unit will be triggered at once (typically within one

second) and then automatically take photos or videos according to previously

programmed settings. The WIRELESS Trophy Cam HD is equipped with

built-in infrared LEDs that function as a ﬂash, so that it delivers clear photos

or videos (in black & white) even in the dark, and it can take color photos

or videos under sufﬁcient daylight. The WIRELESS Trophy Cam HD is

designed for outdoor use and is resistant against water and snow.

Your trail camera is one of the latest generation of Bushnell WIRELESS

Trophy Cam HDs, and includes many new or improved features, including:

• Auto PIR Sensitivity-the camera monitors ambient temperature

conditions and automatically adjusts the sensor/trigger signal to be

more sensitive to slight variations in temperature on hot days, less

sensitive on cold days.

• Hyper NightVision-The IR LED Flash array now has increased range,

brighter output and better coverage for improved nighttime images.

• Field Scan 2x with Live Trigger-This “time lapse” feature includes the

option for a second block of recording with its own start/stop times.

Trigger signals generated by nearby wildlife activity will still generate

additional photos/videos as they normally would, independently of the

Field Scan operation.

• GPS Geotag Capability-allows the user to input the longitude and

latitude of the camera’s position, which will be embedded in each

photo ﬁle. This enables Google Earth, Picassa and other geotag

enabled software to automatically show a map pinpointing each

camera’s location when a group of photos are reviewed on a computer.

Especially useful for those who setup multiple WIRELESS Trophy

Cam HDs to monitor large or widely separated areas.

• Multi Flash Mode (LED Control)- prevents overexposed ﬂash photos in

close range applications

• NV Shutter-user can select shutter speed for images captured at night

allowing control over brightness vs. ability to stop motion

• Camera Operating Mode can be limited to Day only, Night only, or 24

HRs

And many more features such as 1080p HD Video with Audio, widescreen

or fullscreen format still photos, imprintable camera name (user set) along

with current data including temperature and moon phase.

Applications

The WIRELESS Trophy Cam HD can be used as a trail camera for hunting

or scouting game. It is also suitable for surveillance usage.

PARTS AND CONTROLS

The WIRELESS Trophy Cam HD provides the following connections for

external devices: USB port, SD card slot and external DC power in (pg 9,

Fig. 1).

A 3-way power switch is used to select the main operating modes: OFF,

SETUP, and ON (pg 9, Fig. 2).

A control key interface with six keys is primarily used in SETUP mode to

select operational functions and parameters. As shown on the next page,

these keys are: UP, DOWN, LEFT, RIGHT, OK and MENU. Three of the keys

can also perform a second function (shortcut operations in SETUP mode) in

addition to their main function: The DOWN key can be used to set the camera

to Photo mode (still camera icon), and the UP key can set the camera to

Video mode (movie camera icon). The RIGHT key also serves as the manual

shutter (“SHOT”) button of the camera. These secondary functions are

indicated by icons or text above the key as shown below.

Fig. 2: Button and

Switch Guide

SETUP

OFF

INSIDE VIEW

LCD Screen

Power/Mode

Switch

UP/Video

DOWN/Photo

LEFT

RIGHT/Shot

Cable to Battery

Compartment

Tripod Socket

DC in

Cover Plug

Video Mic

Fig. 1: Connections

USB Port

SD Card Slot

DC In

Video Mic

LED IR

Flash Motion/ Low

Battery Indicator

Lens

Lock

Hole

PIR

Sensor

FRONT VIEW

Latch

Light

Sensor

ARD

Antenna

INSTALLING THE BATTERIES AND SD CARD

Before you begin learning how to use your WIRELESS Trophy Cam HD,

you will ﬁrst need to install a set of batteries and insert an SD card. Although

that may only take you a minute, there are some important notes about both

batteries and SD cards you should be aware of, so please take the time to

read the following directions and cautions:

Loading Batteries

After opening the two latches on the right side of the

WIRELESS Trophy Cam HD, you will see that the

WIRELESS Trophy Cam HD has twelve battery

slots. For maximum battery life, you should install a full

set of batteries. The WIRELESS Trophy Cam HD

may also be operated by just four batteries installed

in the ﬁrst slots only (starting on the left-see photo).

Battery life will be shorter with 4 batteries, but the

camera will operate normally. Whether you use 4 or

a full set, be sure to insert each battery with correct

polarity (negative or “ﬂat” end against the long spring

of each battery slot).

Bushnell recommends using a full set of new lithium

AA (Energizer®brand) or alkaline AA batteries. NiMh

Rechargeable batteries are not recommended, as the

lower voltage they produce can cause operational

issues.

When the camera's internal (AA) batteries become weak, the low-battery

indicator LED will glow blue, indicating the camera's batteries should be

changed (pg 9, Front View).

Optionally, you can connect the #119656C Accessory Solar Panel

(please visit www.bushnell.com for more information) to the “DC In” jack

at the bottom of the WIRELESS Trophy Cam HD (other external power

supplies should not be used, as the camera and/or display may not function

correctly). If the solar panel is connected and AA batteries are installed,

the WIRELESS Trophy Cam HD will be powered by the solar panel's

rechargeable lith-ion battery, as long as it provides adequate voltage (if not,

Table des matières

Langues :

Autres manuels Bushnell Caméra de repérage

Bushnell

Bushnell TrailScout 119835 Manuel utilisateur

Bushnell

Bushnell 119437 Manuel utilisateur

Bushnell

Bushnell 119636 Manuel utilisateur

Bushnell

Bushnell CELLUCORE 24 Manuel utilisateur

Bushnell

Bushnell TROPHY CAM Manuel utilisateur

Bushnell

Bushnell TROPHY CAM HD ESSENTIAL 119736C Manuel utilisateur

Bushnell

Bushnell 119439 Manuel utilisateur

Bushnell

Bushnell TRAIL SENTRY 11-9200 Manuel utilisateur

Bushnell

Bushnell TROPHY CAM HD AGRESSOR 119873C Manuel utilisateur

Bushnell

Bushnell Trophy Cam HD 119678C Manuel utilisateur

Bushnell

Bushnell TROPHY CAM 119537 Manuel utilisateur

Bushnell

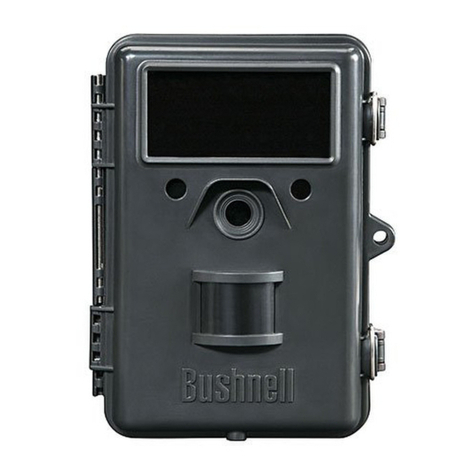

Bushnell 119466 Manuel utilisateur

Bushnell

Bushnell TRAIL SENTRY 119320C Manuel utilisateur

Bushnell

Bushnell CELLUCORE 20 SOLAR Manuel utilisateur

Bushnell

Bushnell TRAIL SENTRY 11-9000 Manuel utilisateur

Bushnell

Bushnell Trophy Cam HD Aggressor 119875 Manuel utilisateur

Bushnell

Bushnell 119438 Manuel utilisateur

Bushnell

Bushnell PRIME L20 Manuel utilisateur

Bushnell

Bushnell Trail Scout 11-9833 Manuel utilisateur

Bushnell

Bushnell TROPHY CAM HD VITAL 119726C Manuel utilisateur

Bushnell

Bushnell TRAIL SENTRY 119320C Manuel utilisateur

Bushnell

Bushnell Trophy Cam Agressor 11977 Manuel utilisateur

Bushnell

Bushnell Trail Sentry 119302 Manuel utilisateur

Bushnell

Bushnell 119599C2 Manuel utilisateur

Manuels Caméra de repérage populaires d'autres marques

Nestbox

Nestbox C13 Manuel utilisateur

Wildview

Wildview STC-TGL1 Manuel utilisateur

Stealth Cam

Stealth Cam CORE STC-Z3IRTL Manuel utilisateur

Suntek

Suntek HC-800M Manuel utilisateur

Spypoint

Spypoint G4 Manuel utilisateur

Duramaxx

Duramaxx 10029765 Manuel utilisateur

Brecom

Brecom C2400 Manuel utilisateur

BlazeVideo

BlazeVideo A280W Manuel utilisateur

Bestok

Bestok 5210GM Manuel utilisateur

GardePro

GardePro X60P Manuel utilisateur

Delta-Opti

Delta-Opti HC-SG880MK-18MHD Manuel utilisateur

PNI

PNI HUNTING 280C Manuel utilisateur

Muddy

Muddy Pro-Cam 14 Manuel utilisateur

Bresser

Bresser 3310006 Manuel utilisateur

Recon Outdoors

Recon Outdoors HS410 Manuel utilisateur

Braun

Braun 57660 Manuel utilisateur

Wildgame

Wildgame Shadow Manuel utilisateur

Spypoint

Spypoint FLEX Manuel utilisateur
