Bushnell CELLUCORE 20 Manuel utilisateur
CELLUCORE 20 MODEL # 119904A (AT&T) / 119904V (VERIZON)
INSTRUCTION MANUAL
CELLUCORE 20 TRAIL CAMERA
WELCOME
Welcome to your Bushnell Trail Camera! This manual has all
the instructions you need to set up your camera and your
account, plus quick answers to your questions.
If your camera does not seem to be functioning properly
or if you are having image quality issues, please check the
Troubleshooting Tips section.
If your problem continues after trying the solutions in
Troubleshooting Tips, please call Bushnell Customer Service
at (800) 423-3537. In Canada, call (800) 361-5702.
Note: This Bushnell trail camera model is not designed
or intended for operation or sale outside of the United
States.
TABLE OF CONTENTS
Camera Overview 4
Camera Status Indicator Guide 6
Quick Start Guide 6
Settings Menu 9
Mounting & Positioning 11
Using An External Power Source 14
Frequently Asked Questions 14
Technical Specifications 16
Two-Year Limited Warranty 17
4
Lens
Control Panel
Cover
DC In
(For optional solar panel accessory)
Temperature
Sensor
Motion
Indicator
Antenna
LED IR Flash
Latch
Lock Hole
CAMERA OVERVIEW
PIR Sensor
5
Camera Status
Indicator Lights
Camera Status
Indicator Guide
Power On/Off
Wake Up
Battery Tray
SD Card Slot
Battery
Panel Door
6
CAMERA STATUS INDICATOR GUIDE

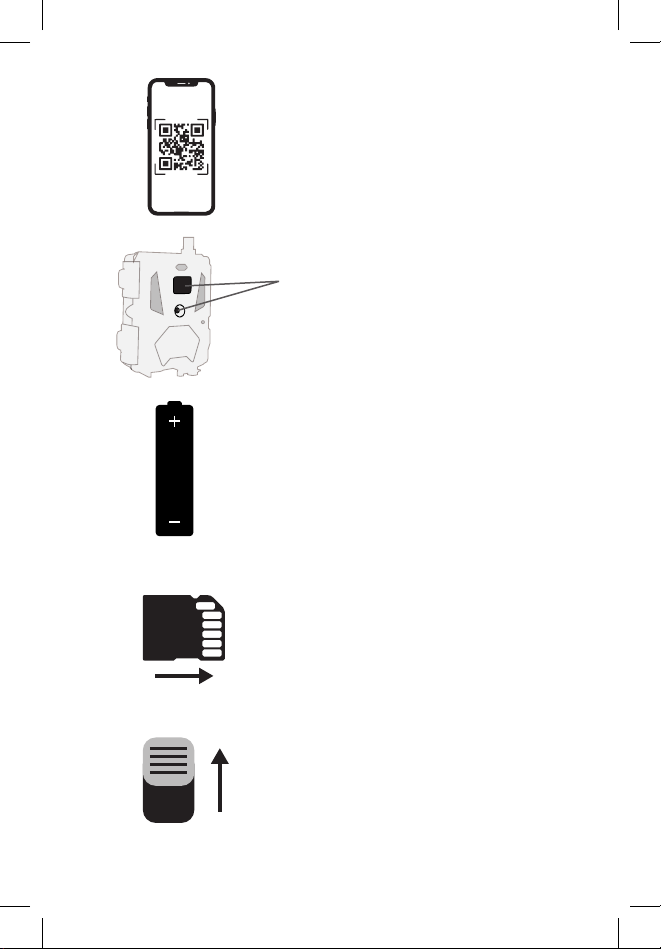

1. Download the free Bushnell Trail
Camera app on your smartphone from
the App Store (iPhone®) or Google
Play® (Android®).
2. Open the app, then sign in or create
a new account.
QUICK START GUIDE
Camera Status Indicator Lights
Look here to
identify what a
green, yellow, or
red light means
for your camera
status, battery
life, and cellular
signal.
7
3. Log in and click the Camera icon
at the bottom of the screen, then
click “+” to add a new camera. Scan
the QR code on the label inside your
camera again or manually enter its
serial # to associate this camera
with your account.
4. Remove the protective plastic
covers from the camera lens, and
PIR sensor.
5. Install 12 AA batteries (Energizer®
lithium batteries are recommended.
Alkaline batteries may be used
but battery life will be shorter.
Rechargeable batteries are not
recommended). Be sure to position
the batteries for correct polarity
(+/-) when installing.
6. Install a new SD card, up to 32GB.
High speed cards (class 6 or higher)
are recommended if you plan to
record video clips.
7. At the location where you
will place the camera, move the
power switch to the On position.
The camera’s default settings
were chosen for typical usage as
x12
on
off
8
Your wireless camera is now ready to use. You can now utilize
the mobile application or management website to review
images, change camera settings, monitor battery life and
other functions of the camera.
Android® and Google Play® are registered trademarks of Google Inc. iPhone® is a
registered trademark of Apple, Inc.
(see pg. 6 for camera status
indicator guide)
a scouting camera for hunters:
photo mode at 2MP resolution,
with a 10 second interval between
photos, and “Medium” LED flash
power output. These settings may
be easily changed to suit your
individual preferences or application
(for example, if you would rather
capture videos, or photos at a
different resolution, spaced further
apart), using the app on your
smartphone or home computer.
8. Prior to closing the camera,
ensure the camera has acquired
cellular signal by checking the
camera status indicator lights and
guide. Lower signal strength can
cause interruptions in service and
shorten battery life. Mount the
camera using the provided tree
strap or 1/4”-20 mounting socket. A
leveling arm to adjust the camera’s
angle is provided near the lower rear
of the camera.
Camera
Status
9
(Check your app for these settings)
SETTINGS MENU
IMG. TYPE - Selects type of image files that are stored/
transmitted (note: see “Hybrid” under Video submenu).
PHOTO - Still images will be captured by the camera at
settings made in the PHOTO menu.
VIDEO - Video clips will be captured at settings made in the
VIDEO menu. NOTE: your full HD video files will be stored on
the SD card, but they cannot be transmitted wirelessly due to
the file size/cell carrier bandwidth.
HYBRID- Captures a single image followed by a video clip.
IMAGE SIZE - Selects resolution (in megapixels) for still
photos. Higher resolution provides more pixels for increased
detail, but creates larger files that take up more of the SD
card capacity (fills up faster). Available settings are: 2, 8 and
20 (megapixels). 2 is the default setting, which will deliver
excellent detail while still keeping the file size per image
reasonable for most users.
CAPTURE NUMBER - Selects the number of photos captured
per trigger event, with settings from 1 to 5 (default is 1 photo
per trigger).
VIDEO SIZE - Selects resolution for video clips. Choice of
1280x720 (720p), or 960x544 (544p).
VIDEO LENGTH - Selects duration of each video clip captured
per trigger. The default setting is 5S (five seconds per video).
From the 10 SEC setting up, length settings are in 5 second
increments. Maximum video length is 20 Seconds.
CAMERA NAME - Allows you to enter up to 12 characters
10
of your choice to identify this camera. Especially useful for
multi-camera setups. This will be imprinted on each photo.
Default name is “CORE CAM”.
PIR DELAY - Selects the length of time that the camera will
ignore additional triggers from the PIR after an animal is
first detected and remains within the sensor’s range. During
this user set interval, the camera will not capture photos
or videos. For example, if a second trigger event occurs
7 seconds after the first, but the delay time is set to 10
seconds, the second trigger will be ignored and a new image
will not be captured until the 10 seconds has elapsed. Only
the next trigger that occurs after 10 seconds will take a new
photo/video, and so on. This prevents the card from filling up
with too many redundant images. The default setting is 10
SEC (a ten second delay). From the 10 SEC setting up, delay
settings are in 5 second increments. After scrolling past “59
SEC”, settings go from “1 MIN” to “10 MIN” and then progress
to 60 MIN at five-minute increments (15 MIN, 20MIN, etc.).
WORK MODE - Determines when the PIR (passive infrared)
sensor will activate the camera and capture images.
DAY - 6:00 A.M. - 6:00 P.M.
NIGHT - 6:00 P.M. - 6:00 A.M.
24HRS – PIR Sensor triggers 24 hours a day.
Flash Mode:
SHORT RANGE – This is Medium LED output and fast shutter
speed that is designed to capture good images of animals up
close. This setting will provide the longest battery life but the
shortest flash range.
