IMPORTANT NOTE

Congratulations on your purchase of one of the best trail cameras

on the market! Bushnell is very proud of this little unit and we

are sure you will be pleased with it as well. We appreciate your

business and want to earn your trust. Please refer to the notes

below and the instructions in this manual to ensure that you are

completely satisﬁed with this product.

If your Bushnell NatureView HD Essential does not seem

to be functioning properly or if you are having photo/video

quality issues, please check the Troubleshooting/FAQ

section on pages 29-33.

Problems are often due to something simple that was

overlooked, or require only changing one setting to solve.

If your problem continues after trying the solutions in

the Troubleshooting/FAQ section, please call Bushnell

Customer Service at (800) 423-3537. In Canada, call (800)

361-5702.

Bushnell recommends using 8 Energizer®Lithium AA batteries in

this NatureView HD Essential model to obtain maximum battery

life

Do not mix old and new batteries

Do not mix battery types-use ALL lithium or ALL alkaline

Rechargeable batteries are NOT recommended

Bushnell recommends using SanDisk®SD and SDHC Cards

(up to 32GB capacity) in all NatureView HD Cameras

INTRODUCTION

About the NatureView HD Essential

The Bushnell NatureView HD Essential is a digital scouting camera. It

can be triggered by any movement of game in a location, detected by a highly

sensitive Passive Infra-Red (PIR) motion sensor, and then take high quality

pictures (up to 12MP still photos), or video clips.

The NatureView HD Essential consumes very little power (less than

300mA) in a stand-by (surveillance) state. This means it can deliver up to

six months stand-by operation time when the device is powered by eight

AA alkaline batteries, and up to twelve months utilizing lithium AA batteries.

Once motion in the monitored area is detected, the digital camera unit will

be triggered at once (typically less than 0.5 second) and then automatically

take photos or videos according to previously programmed settings. The

NatureView HD Essential is equipped with built-in infrared LEDs that

function as a ﬂash, so that it delivers clear photos or videos (in black & white)

even in the dark, and it can take color photos or videos under sufﬁcient

daylight. The NatureView HD Essential is designed for outdoor use and

is resistant against water and snow. Your trail camera is one of the latest

generation of Bushnell NatureView HD Essentials, and includes many

new or improved features, such as:

• Auto PIR Sensitivity-the camera monitors ambient temperature

conditions and automatically adjusts the sensor/trigger signal to be

more sensitive to slight variations in temperature on hot days, less

sensitive on cold days.

• Field Scan 2x with Live Trigger-The “time lapse” feature added in last

year’s models has been enhanced with the addition of the option for

a second block of recording with its own start/stop times. Trigger

signals generated by nearby wildlife activity will still generate additional

photos/videos as they normally would, independently of the Field Scan

operation.

• Audio Recording capability in Video Mode. 720p HD Video.

Applications

The NatureView HD Essential can be used as a trail camera for hunting or

scouting game. It is also suitable for surveillance usage.

ENGLISH

PARTS AND CONTROLS

The NatureView HD Essential provides the following connections for

external devices: USB port, SD card slot, TV Out, and external DC power

in (Fig. 1).

A 3-way power switch is used to select the main operating modes: OFF,

SETUP, and ON (Fig. 2).

A control key interface with six keys is primarily used in SETUP mode to

select operational functions and parameters. As shown in Fig. 2, these keys

are: UP, DOWN, LEFT, RIGHT, OK and MENU. Four of the keys can also

perform a second function (shortcut operations in SETUP mode) in addition

to their main function: The DOWN key can be used to set the camera to

Photo mode (still camera icon), and the UP key can set the camera to Video

mode (movie camera icon). The RIGHT key also serves as the manual shutter

(“SHOT”) button of the camera and the OK key switches the camera to

the Playback (“REPLAY”) mode. These secondary functions are indicated by

icons or text above the key as shown in Fig. 2.

Fig. 2: Button and

Switch Guide

SETUP

OFF

BACK VIEW

LCD Screen

Power/Mode

Switch

UP/Video

DOWN/Photo

LEFT

OK/Replay

RIGHT/Shot

Cable to Battery

Compartment

Tripod Socket

DC in

Cover Plug

Video Mic

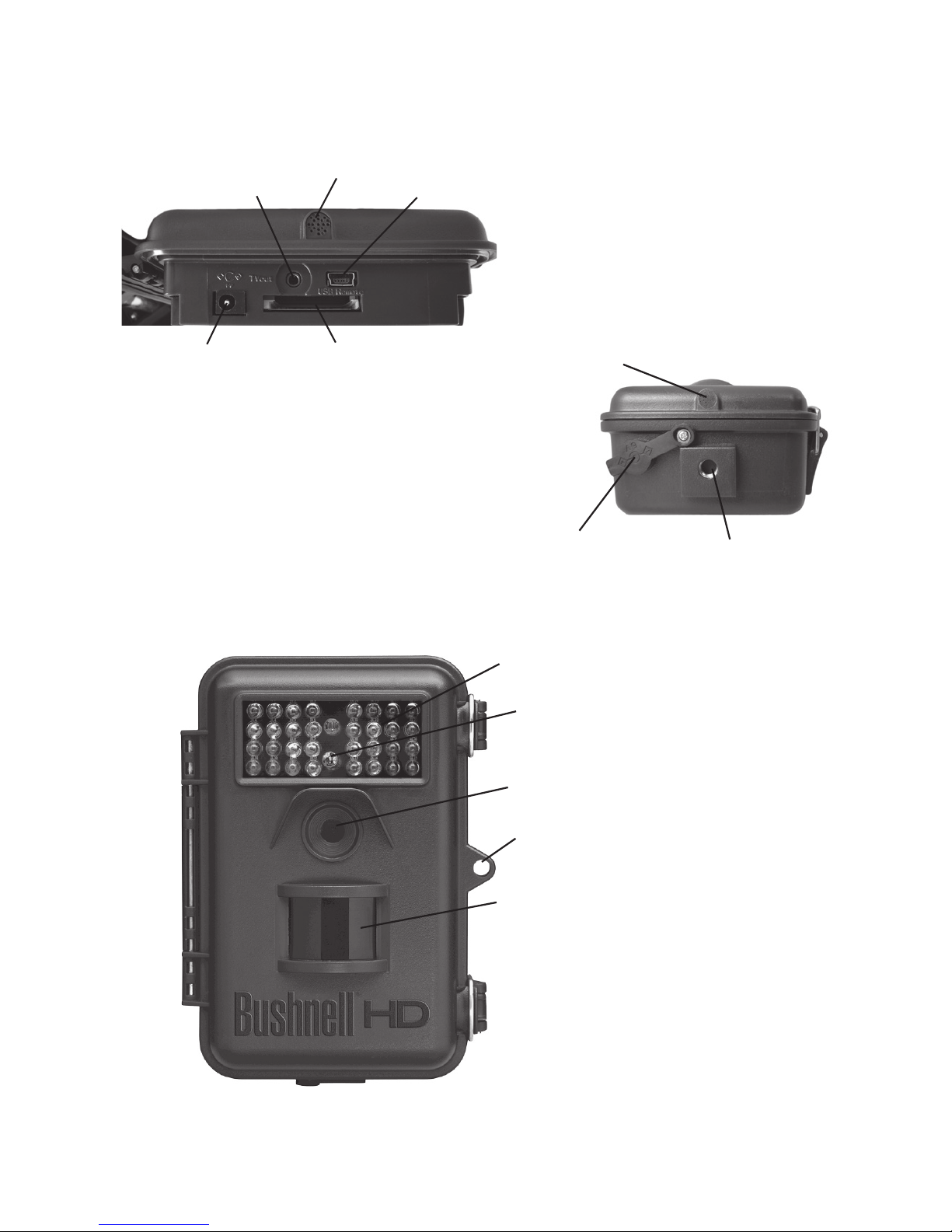

Fig. 1: Connections

USB Port

SD Card Slot

DC In

TV Out Video Mic

PARTS AND CONTROLS

FRONT VIEW

LED IR Flash

Motion/ Low

Battery Indicator

Lens

Lock Hole

PIR Sensor

INSTALLING THE BATTERIES AND SD CARD

Before you begin learning how to use your NatureView HD Essential, you

will ﬁrst need to install a set of batteries and insert an SD card. Although

that may only take you a minute, there are some important notes about both

batteries and SD cards you should be aware of, so please take the time to

read the following directions and cautions:

Loading Batteries

After opening the two latches on the right side

of the NatureView HD Essential, you will see

that the NatureView HD Essential has eight

battery slots. Starting at the top of the battery

compartment, slots 1, 2, 3 and 4 form one group,

while slots 5, 6, 7 and 8 form the other group,

each providing 6 volts in parallel. For maximum

battery life, you should install a full set of eight

batteries. The NatureView HD Essential may

also be operated by just four batteries installed

in the top group only (see right), starting at slot

1. Battery life will be shorter with 4 batteries, but

the camera will operate normally. Whether you

use 4 or 8, be sure to insert each battery with correct polarity (negative or

“ﬂat” end against the long spring of each battery slot).

Bushnell recommends using eight new lithium AA (Energizer®brand) or

alkaline AA batteries. NiMh Rechargeable batteries can also be used, but

they might have a shorter life span due to their reduced efﬁciency over time

and at low temperature. It is also possible to use a lead-acid external battery cell

with 6V output or suitable AC adapter-see below for more details.

Using an External Power Source (optional, user provided)

Optionally, you can connect an external 6V DC power source to the “DC In”

jack at the bottom of the NatureView HD Essential. It is recommended to

use a power source with a current output greater than 1000mA. However,

during bright daytime operation when no ﬂash is required, the NatureView

HD Essential can function with much less current (>400mA). Please use

a compatible power source cable (not provided) to connect the external DC

power source with the power input jack of the NatureView HD Essential,

making sure that the polarity is correct. Note: The power connector is a

4.0x1.7mm coaxial DC power plug with positive “tip” (inside pin) polarity

(Radio Shack P/N 274-1532 or equivalent).

If both an external power source is connected and batteries are installed, the

NatureView HD Essential will be powered by the external power source.

When the batteries become weak, the low-battery indicator LED will glow

blue, indicating the batteries should be changed (pg 7, “Front View”).

Inserting the SD Card

The NatureView HD Essentials have 32MB internal memory, which can

hold only about 10 photos (@ 5MP resolution). This is handy for testing and

getting familiar with the camera, but you will no doubt want to leave the camera

unattended for longer than a day, so using an SD card is recommended. Insert

the SD card (with the camera’s power switch in the OFF position) before

beginning to operate the camera. Don’t insert or remove the SD card when

the power switch is in the ON position.

The NatureView HD Essential uses a standard SD (Secure Digital) memory

card to save photos (in .jpg format) and/or videos (in .avi format). SD and

SDHC (High Capacity) cards up to a maximum 32GB capacity are supported.

Before inserting the SD card into the card slot after opening the camera’s

front cover, please make sure that the write-protect switch on the side of the

card is “off” (NOT in the “Lock” position). The following describes how to

insert and remove the SD card:

• Insert the SD card into the card slot with its label side upwards (see

above). A “click” sound indicates that the card is installed successfully.

If the wrong side of the card is facing up, you will not be able to insert

it without force-there is only one correct way to insert cards. If the SD

card is not installed correctly, the device will not display an SD card icon

on the LCD in SETUP mode (the SD card icon displayed after switching

to SETUP mode will have a “lock” symbol inside it in it if the card is locked).

Formatting the SD card by using the NatureView HD Essential’s

“Format” parameter before using it for the ﬁrst time is recommended,

especially when a card has been used

in other devices (see “Changing Menu

Parameter Settings” for details).

• To take out the SD card, just gently push

in the card (do not try to pull it out without

pushing in ﬁrst). The card is released from

the slot and ready to be removed when you hear the click. Be sure the

camera’s power is switched OFF before inserting or removing SD

cards or batteries.

USING THE NatureView HD Essential

Once you’ve prepared your NatureView HD Essential by properly installing

batteries and an SD card, you could simply take it outside, strap it to a tree,

switch it on and leave-and you might get some great photos that are exactly

what you wanted. However, we highly recommend that you ﬁrst spend some

additional time indoors with this manual and your camera until you know a

bit more about what the 3-way switch and those control keys do. If nothing

else, you’ll probably want to at least set the date and time so the camera will

imprint them (or not-it’s your option) on your photos as they are taken, learn

how to set the camera to shoot video clips instead of still photos if you like,

and read some tips about mounting it on a tree.

THE OFF, ON, AND SETUP MODES

The NatureView HD Essential has three basic operational modes:

• OFF mode: Power switch in the OFF position.

• ON mode: Power switch in the ON position (LCD screen is off.)

• SETUP mode: Power switch at SETUP position (LCD screen is on).

OFF MODE

The OFF mode is the “safe” mode when any actions must be taken, e.g.,

replacing the SD card or batteries, or transporting the device. You will also

use OFF mode if you connect the camera to a computer’s USB port later

to download your photos/videos. And of course, when you are storing or

not using the camera, you will switch it to OFF. Please note that even in the

OFF mode the NatureView HD Essential still consumes power at a very

low level. Therefore, it’s a good idea to take the batteries out of the battery

compartment if the camera will not be used for a long time.

ON MODE

Anytime after the batteries and SD card have been inserted, you can switch

on the camera. When the power switch is moved to the top position, the

camera will enter into the ON (Live) mode. The motion indicator LED (pg. 7,

“Front View”) will blink red for about 10 seconds. This interval allows time for

Table des matières

Langues :

Autres manuels Bushnell Caméra de repérage

Bushnell

Bushnell CELLUCORE 20 SOLAR Manuel utilisateur

Bushnell

Bushnell 119437 Manuel utilisateur

Bushnell

Bushnell 119600 Guide d'installation

Bushnell

Bushnell 119599C2 Manuel utilisateur

Bushnell

Bushnell Trophy Cam Agressor 11977 Manuel utilisateur

Bushnell

Bushnell TrailScout 119835 Manuel utilisateur

Bushnell

Bushnell 119908D Manuel utilisateur

Bushnell

Bushnell TRAIL SENTRY 11-9000 Manuel utilisateur

Bushnell

Bushnell X-8 TRAIL CAM 119327 Manuel utilisateur

Bushnell

Bushnell CELLUCORE 30 Manuel utilisateur

Bushnell

Bushnell 119734C Manuel utilisateur

Bushnell

Bushnell Trophy Cam 98-1559 / 1-10 Manuel utilisateur

Bushnell

Bushnell WIRELESS Trophy Cam HD Manuel utilisateur

Bushnell

Bushnell TROPHY CAM 119437C Manuel utilisateur

Bushnell

Bushnell TRAIL SENTRY 119320C Manuel utilisateur

Bushnell

Bushnell 119904D Manuel utilisateur

Bushnell

Bushnell PRIME L20 Manuel utilisateur

Bushnell

Bushnell Core Manuel utilisateur

Bushnell

Bushnell CORE DS-4K Manuel utilisateur

Bushnell

Bushnell Trophy Cam 119676C Manuel utilisateur

Bushnell

Bushnell Trailscout 119700 Manuel utilisateur

Bushnell

Bushnell Trail Sentry 119302 Manuel utilisateur

Bushnell

Bushnell Trail Scout 11-9600 Manuel utilisateur

Bushnell

Bushnell CELLUCORE 20 Manuel utilisateur

Manuels Caméra de repérage populaires d'autres marques

Nestbox

Nestbox C13 Manuel utilisateur

Wildview

Wildview STC-TGL1 Manuel utilisateur

Stealth Cam

Stealth Cam CORE STC-Z3IRTL Manuel utilisateur

Suntek

Suntek HC-800M Manuel utilisateur

Spypoint

Spypoint G4 Manuel utilisateur

Duramaxx

Duramaxx 10029765 Manuel utilisateur

Brecom

Brecom C2400 Manuel utilisateur

BlazeVideo

BlazeVideo A280W Manuel utilisateur

Bestok

Bestok 5210GM Manuel utilisateur

GardePro

GardePro X60P Manuel utilisateur

Delta-Opti

Delta-Opti HC-SG880MK-18MHD Manuel utilisateur

PNI

PNI HUNTING 280C Manuel utilisateur

Muddy

Muddy Pro-Cam 14 Manuel utilisateur

Bresser

Bresser 3310006 Manuel utilisateur

Recon Outdoors

Recon Outdoors HS410 Manuel utilisateur

Braun

Braun 57660 Manuel utilisateur

Wildgame

Wildgame Shadow Manuel utilisateur

Spypoint

Spypoint FLEX Manuel utilisateur
