Brickcom FB-100A Series Manuel utilisateur

Megapixel Day & Night

Fixed Box Network Camera

FB-100A/FB-130A/FB-131A/FB-300A

Series

Quick Installation Guide

Quality Service Group

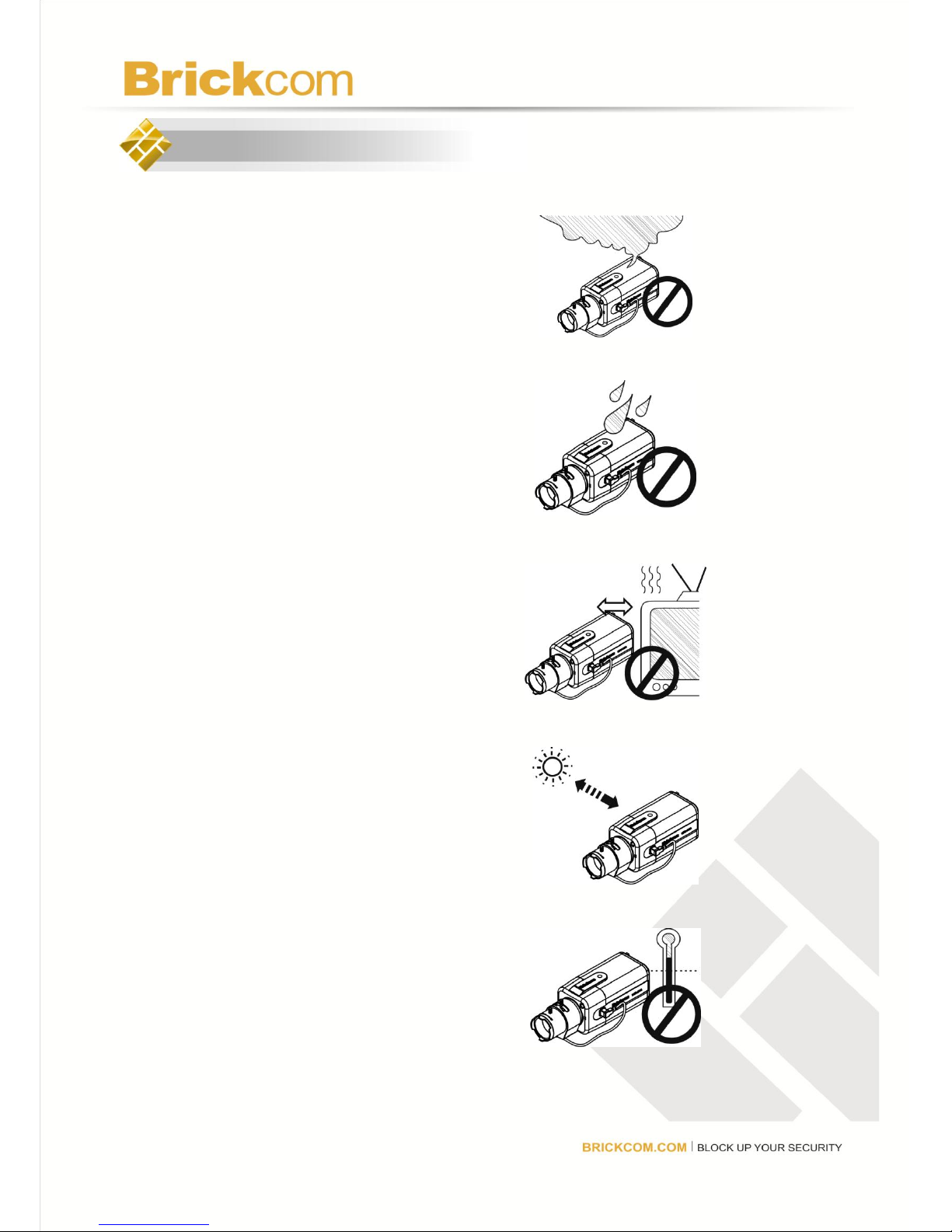

Read Before You Use

1. Power off the camera device

immediately if it starts smoking or

smells unusual.

2. Power off the camera device

immediately if the camera is

exposed to rain or liquid.

3. Do not set the camera device near

any heat sources. (Ex: television and

oven)

4. Keep the camera device away from

direct sunlight.

5. Do not set the camera device over

the specific operating temperature.

6. Do not set the camera device in any

wet and humid environments.

7. Do not set the camera device on

unsteady surfaces.

8. Do not attempt to dismantle the

camera device.

9. Do not drop or hit the camera device.

10. Do not use the camera device when

there is lightning.

1. Check Package Contents

a. Network Camera

(FB-100A/FB-130A/FB-131A/FB-300A)

b. CS mount Lens (Optional)

c. Product CD

d. Camera Stand

e. Warranty Card

f. Easy Installation Guide

g. Detachable Antenna (Optional)

h. Power Adapter (Optional)

i. BNC Adapter (FB-130A only)

j. Allen Key

2. Device Description

Light Sensor

WPS LED (*)

Status LED

Built-in

Microphone

WPS Button (*)

Ethernet RJ45 10/100 Socket

(Link/Power LED embedded)

Power Connector (AC24V in) (*)

Power Connector

(DC12V in)

SD/SDHC

Card Slot (*)

Reset Button

Microphone/Line

Audio Out

Detachable Antenna (*)

Auto Iris Connector (*)

Extension I/O

Terminal Block

< Side View >

(*) These are optional features. Please refer to the Product List for the full list

of optional features that are available for this product.

Monitor Output

Connector

(FB-130A only)

3. Optional for CS Mount Lens

<Vari-focal Lens with Manual Iris> --- CS Mount

<Vari-focal Lens with Auto Iris (DC Drive)> --- CS Mount

Zoom Controller (*)

Focus Controller

Zoom Controller

Focus Controller

Iris Controller (*)

4. Connecting the CS-Mount Lens to the Camera

<Vari-focal Lens with Manual Iris> --- Optional Lens

1. Connect the CS-mount lens to the camera by turning it clockwise onto the

camera mount until it stops.

2. If necessary, adjust the iris controller, focus controller, and zoom controller to

get the best resolution.

To adjust the lens:

1. Adjust the iris ring controller to control the amount of light coming through

the lens. The more the iris is opened, the brighter the scene will be.

2. The zoom controller can be manually adjusted to control the zoom factor

on the camera. Users can create a tighter or wider view of the site being

recorded.

3. Adjust the focus controller to control the focus range of the lens.

<Vari-focal Lens with Auto Iris> --- Optional Lens

1. Connect the CS-mount lens to the camera by turning it clockwise onto the

camera mount until it stops.

2. If necessary, adjust the iris controller, focus controller, and zoom controller

to get the best resolution.

3. Connect the lens cable plug (DC Iris control cable) to the camera side

connector.

To adjust the lens:

1. The zoom controller can be manually adjusted to control the zoom factor

on the camera. Users can create a tighter or wider view of the site being

recorded.

2. Adjust the focus controller to control the focus range of the lens.

To adjust the CS-ring:

If the fixed box is still not focusing correctly on the target, use an Allen Key

to adjust the location of the CS-ring, then try focusing again.

NOTE - For further information of vari-focal lens with auto iris,

please refer to the supplied lens’instruction manual.
