Analog detectors and bases | 3

Bosch Security Systems, Inc. Installation Guide 2018.08 | 6.0 | F.01U.123.589

en english Table of contents 4

es español Contenido 13

pt português Sumário 23

th  สารบัญ 32

4en | Table of contents Analog detectors and bases

2018.08 | 6.0 | F.01U.123.589 Installation Guide Bosch Security Systems, Inc.

Table of contents

1Notes 5

2Product Types 5

3Mounting 6

3.1 Mounting the Detector 6

3.2 Locking and Releasing the Detector 7

4Wiring and Addressing Information 8

4.1 Wiring Information 8

4.2 Addressing Information 9

5Testing the Installation 10

5.1 Magnet Switch Test 10

5.2 Functional Testing 10

6Specifications 11

Analog detectors and bases Notes | en 5

Bosch Security Systems, Inc. Installation Guide 2018.08 | 6.0 | F.01U.123.589

1 Notes

This document covers mounting and wiring for the FAP-440 Series bases and detector heads.

For proper installation, read and understand NFPA-72, The National Fire Alarm Code before

installation.

Notice!

Install the device according to this Installation Guide, NFPA 72, Local Codes and the Authority

Having Jurisdiction (AHJ). Failure to follow these procedures may cause the device to not

function properly. Bosch Security Systems is not responsible for any devices that are

improperly installed.

Caution!

Do not paint the detectors. Paint or other foreign matter can prohibit detection.

Caution!

Do not remove the dust cap until all onsite construction work has been completed and the

fire panel network has been commissioned.

2 Product Types

Product Type Description

FAP-440 Analog Photoelectric Detector

FAP-440-D Analog Dual-Photoelectric Detector

FAP-440-T Analog Multisensor Detector Photo/Heat

FAP-440-DT Analog Multisensor Detector Dual-Photo/Heat

FAP-440-TC Analog Multicriteria Detector Photo/Heat/CO

FAP-440-DTC Analog Multicriteria Detector Dual-Photo/Heat/CO

FAH-440 Analog Heat Detector, configurable fixed temperature/rate-of-rise

FAA-440-B4 Analog Standard Base 4 inches

FAA-440-B6 Analog Standard Base 6 inches

FAA-440-B4-ISO Analog Isolator Base 4 inches

FAA-440-B6-ISO Analog Isolator Base 6 inches

Table2.1: List of Products

Notice!

The CO sensor detects carbon monoxide as a by-product of combustion. It has not been

evaluated for its ability to detect hazardous CO gas. Do not use the FAP-440-TC and

FAP‑440‑DTC as stand-alone CO detector.

Warning!

The FAH-440 heat detectors are not life safety devices.

6en | Mounting Analog detectors and bases

2018.08 | 6.0 | F.01U.123.589 Installation Guide Bosch Security Systems, Inc.

3 Mounting

Notice!

Smoke detectors are not to be used with detector guards unless the combination has been

evaluated and found suitable for that purpose.

– Follow NFPA-72 guidelines for mounting locations. For commercial and industrial

installations, 30ft. (9 m) spacing between smoke detectors is recommended.

– The electrical boxes must be large enough to accommodate the number and size of

conductors as specified by the National Electrical Code or the local Authorities Having

Jurisdiction (AHJ).

3.1 Mounting the Detector

Figure3.1: 6-inch and 4-inch Mounting Bases

Position Description

1 Mounting holes

2 Base skirt

3 Release tabs

4 Semicircle notch

1. Mount the base using the two oblong mounting holes (see Position 1).

If you mount the detector with a 6-inch base, first remove the base skirt (2) from the

mounting base using a screwdriver to release the 4 tabs (3).

Analog detectors and bases Mounting | en 7

Bosch Security Systems, Inc. Installation Guide 2018.08 | 6.0 | F.01U.123.589

2. Tighten the base to the mounting surface. Do not over tighten. If you use a 6-inch base, fit

the base skirt onto the mounting base.

3. Turn clockwise until the detector head locks into place and aligns with the semi-circle

notch (4).

3.2 Locking and Releasing the Detector

The detector bases are supplied with a snap-off locking bar (X) as part of the base moulding

to prevent malicious removal of the detector. The locking mechanism is selectable and is

activated by shifting the U-shaped locking bar (X) into the position as shown.

1. Remove the U-shaped locking bar by breaking it from its holder.

2. Tuck it into the opening next to it by pushing hard.

3. Insert the detector head into the base.

Figure3.2: Activating the Locking Mechanism

4. Release the locked detector head by pushing hard through the dimple (O) on the

detector’s outer rim with a screwdriver and at the same time, turning the detector head

to the left.

Figure3.3: Releasing the Detector

8en | Wiring and Addressing Information Analog detectors and bases

2018.08 | 6.0 | F.01U.123.589 Installation Guide Bosch Security Systems, Inc.

4 Wiring and Addressing Information

4.1 Wiring Information

Warning!

Do not twist or loop the wires around the terminals. In and out wires for terminal connection

must be cut, stripped, and inserted as individual ends.

The following wire gauges and maximum line lengths are tested and approved.

– 18 AWG (0.8 mm2) -> 4000 ft. (1200m)

– 16 AWG (1.3 mm2) -> 6225 ft. (1900m)

– 14 AWG (2.1 mm2) -> 7200 ft. (2200m)

– 12 AWG (3.3 mm2) -> 9850 ft. (3000m)

Standard non-twisted, non-shielded wiring (plain old wire) for the SLCs is recommended.

Notice!

Voltage drop calculations along with anticipated wire distance should be considered to

ensure a voltage supply of at least 24 V at every detector.

Terminal Lettering Terminal Function

SC SLC bus - IN/OUT

S SLC bus + IN/OUT

Sin SLC bus + IN

Sout SLC bus + OUT

C Remote output

SC SC

Figure4.1: FAA-440-B6/-B4 Standard Base Class B Wiring (Class A Wiring Indicated by Dashed Wire)

Analog detectors and bases Wiring and Addressing Information | en 9

Bosch Security Systems, Inc. Installation Guide 2018.08 | 6.0 | F.01U.123.589

+ +

Sin

Sout

Sin

Sout

SC SC

Sin

Sout -> Sin

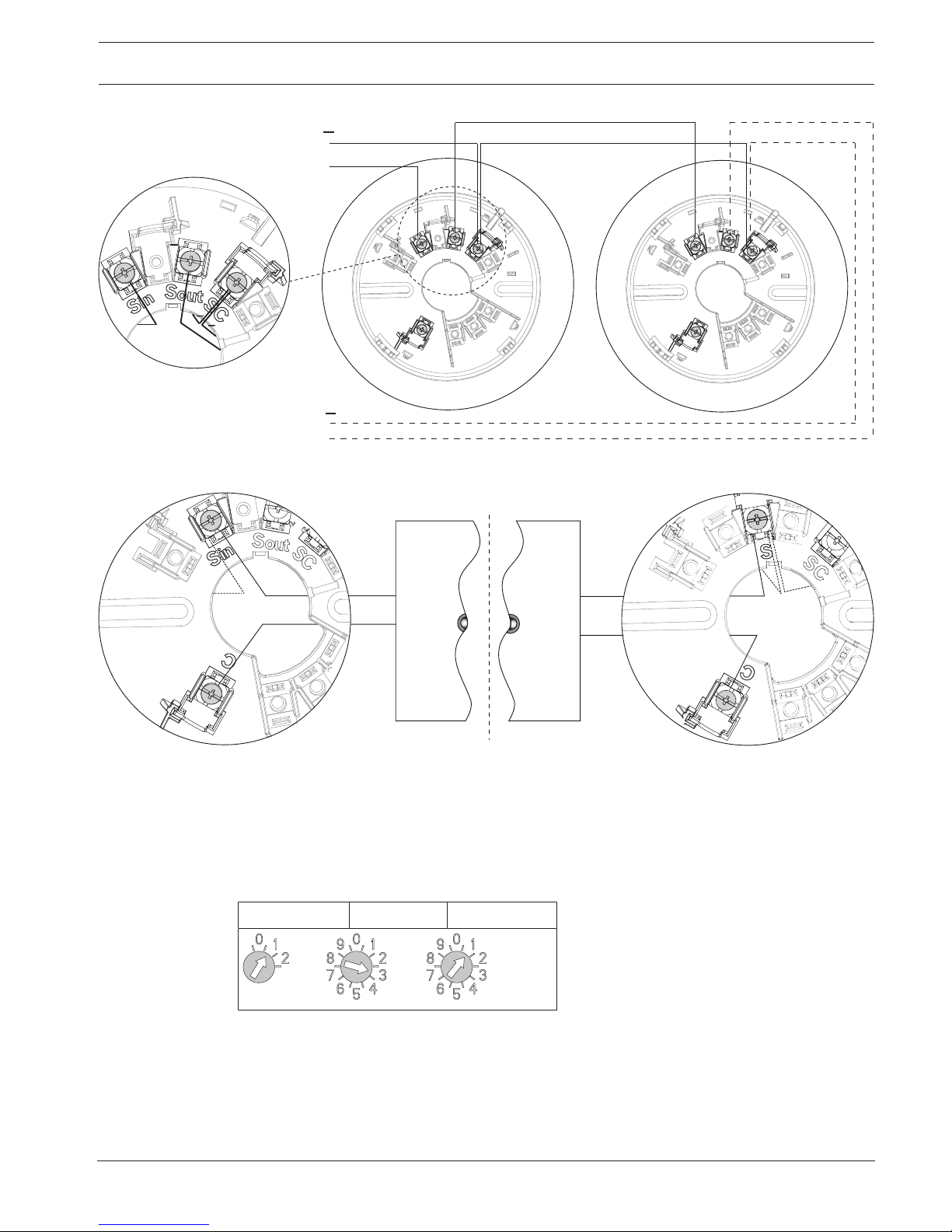

Figure4.2: FAA-440-B6-ISO/-B4-ISO Isolator Base Class B Wiring (Class A Wiring Indicated by Dashed Wire)

DRA-5

DRA-12/24

Sin

Figure4.3: Optional Remote Annunciator Wiring, Isolator Base (Left) and Standard Base (Right); SinandS=redwire, C = white

wire

4.2 Addressing Information

The detector’s address is set by positioning three rotary switches located on the back of the

device. Use a flat-bladed screwdriver to position each switch. The switches will click when

turned. The valid address range is 1 to 254.

Hundreds Tens Ones

Tab.4.2: Rotary Switches (e.g. address is 131)

10 en | Testing the Installation Analog detectors and bases

2018.08 | 6.0 | F.01U.123.589 Installation Guide Bosch Security Systems, Inc.

Notice!

Detectors that have no valid address will not be found during the auto-learn. After the

auto‑learn, perform a functional testing for each detector to ensure that all detectors operate

properly.

If the rotary switch address does not match the internal address, please see the panels IOG

for the matching procedure.

5 Testing the Installation

Notice!

Notify all concerned parties before any maintenance or testing of the fire alarm system, and

after completion of these activities.

1. Check the wiring from the control panel to each detector for proper polarity and

continuity.

2. Apply power to the system. Check for alarms and troubles.

3. When the system is alarm free, check each detector to ensure that the LED indicator

flashes green. This verifies the detector is receiving power and operating properly.

Depending on the number of detectors connected, the time between two flashes may be

up to 8 seconds.

5.1 Magnet Switch Test

Holding a magnet at the test point centered over the semicircle notch on the head (see

Figure3.1: 6‑inch and 4‑inch Mounting Bases, Position 4) will cause the LED to flash red. If the

magnet is held at the indicated location for more than 6 seconds, the unit will send an alarm

signal to the panel and the LED will change to steady red until the unit is reset by the panel. If

the magnet is removed before the period of 6 seconds is over, the unit will return to the state

it was in and no alarm signals will be sent. Otherwise, you have to reset the unit.

5.2 Functional Testing

1. Set detectors in walk test mode at the fire panel before testing.

2. Test each detector to ensure it causes a control panel test alarm. After each test, the

alarm is cleared automatically by the control panel within a few seconds, and you can

proceed to the next detector.

Notice!

As soon as the walk test mode is started, a detector test must occur within 25 minutes of the

last test. Otherwise the control panel resets to normal operation.

In walk test mode, the alarm is triggered quicker than during normal operation, allowing for a

faster and more efficient testing.

There are the following options of functional testing:

– either alarm the detector by holding the magnet continuously at the indicated location for

three red flashes (see Magnet Switch Test, page 10), or

– carry out the test procedure(s) depending on the detector type:

Test procedure (Dual-)Photo Heat (Dual-)Photo/Heat (Dual-)Photo/Heat/CO

Aerosol test X X X

Heat source test X X X
