Bosch FCA-350-B4 Manuel utilisateur

INSTALLATION AND MAINTENANCE INSTRUCTIONS

Bosch Security Systems, B.V.

Torenallee 49

5617 BA Eindhoven,

Netherlands

DWG # HA-06-446, Rev 05/22

PAGE 1 of 2

PART # 1700-12680

Conventional Detectors and Bases

BASE SPECIFICATIONS

MODEL

Base

Compatible

Detector ID

Alarm Current

Mounting Box

FCA-350-B4

HB-55

HD-3 or HD-5

150mAlimit externally @12.0 - 33.0V max

3” Octagonal

FCA-350-B6

HB-55

HD-3 or HD-5

150mAlimit externally @12.0 - 33.0V max

4” Octagonal / 4” Square

FCA-350-B6R24 4 Wire 24V Base

N/A

HD-3 or HD-5

43mA (58mA @ 30.0V max)

4” Octagonal / 4” Square

FCA-350-B6R12 4 Wire 12V Base

N/A

HD-3 or HD-5

47mA (75mA @ 18.0V max)

4” Octagonal / 4” Square

NOTES:

Alarm current for 2-wire operation applies to the FACP Initiating Device Circuit and detector.

Alarm current for 4-wire operation applies to the Auxilliary Power Supply and detector.

FCA-350-B4 and FCA-350-B6 must be current limited by the FACP

Refer to the Technical Bulletin for the following UL listed compatible detectors. Connect these detectors only to a listed-

compatible control panel. Refer to the control panel installation manual for additional instructions. Smoke detectors are

not to be used with detector guards unless the combination has been evaluated and found suitable for that purpose:

FCP-350-P Multi-criteria Smoke Detector (Compatibility ID HD-3)

FCP-350-PTH Multi-criteria Smoke and Heat Detector (Compatibility ID HD-3)

FCH-350-135/FCH-350-190 Fixed Temperature and Rate of Rise Detector (Compatibility ID HD-3)

Detectors must be installed and maintained in accordance with applicable NFPA standards, local codes and any authority

having jurisdiction. Refer to NFPA 72 "National Fire Alarm and Signaling Code" for installation guidelines and testing

procedures. Smoke detectors should be tested in accordance with NFPA 72, section on "Inspection, Testing and

Maintenance".

Seal conduit openings in the electrical box with 3M Weatherban #606 nonflammable sealing compound (or equivalent)

to reduce the stack effect. Attach the detector to the base by turning the detector clockwise until it stops.

INSTALLATION AND MAINTENANCE INSTRUCTIONS

Bosch Security Systems, B.V.

Torenallee 49

5617 BA Eindhoven,

Netherlands

DWG # HA-06-446, Rev 05/22

PAGE 2 of 2

PART # 1700-12680

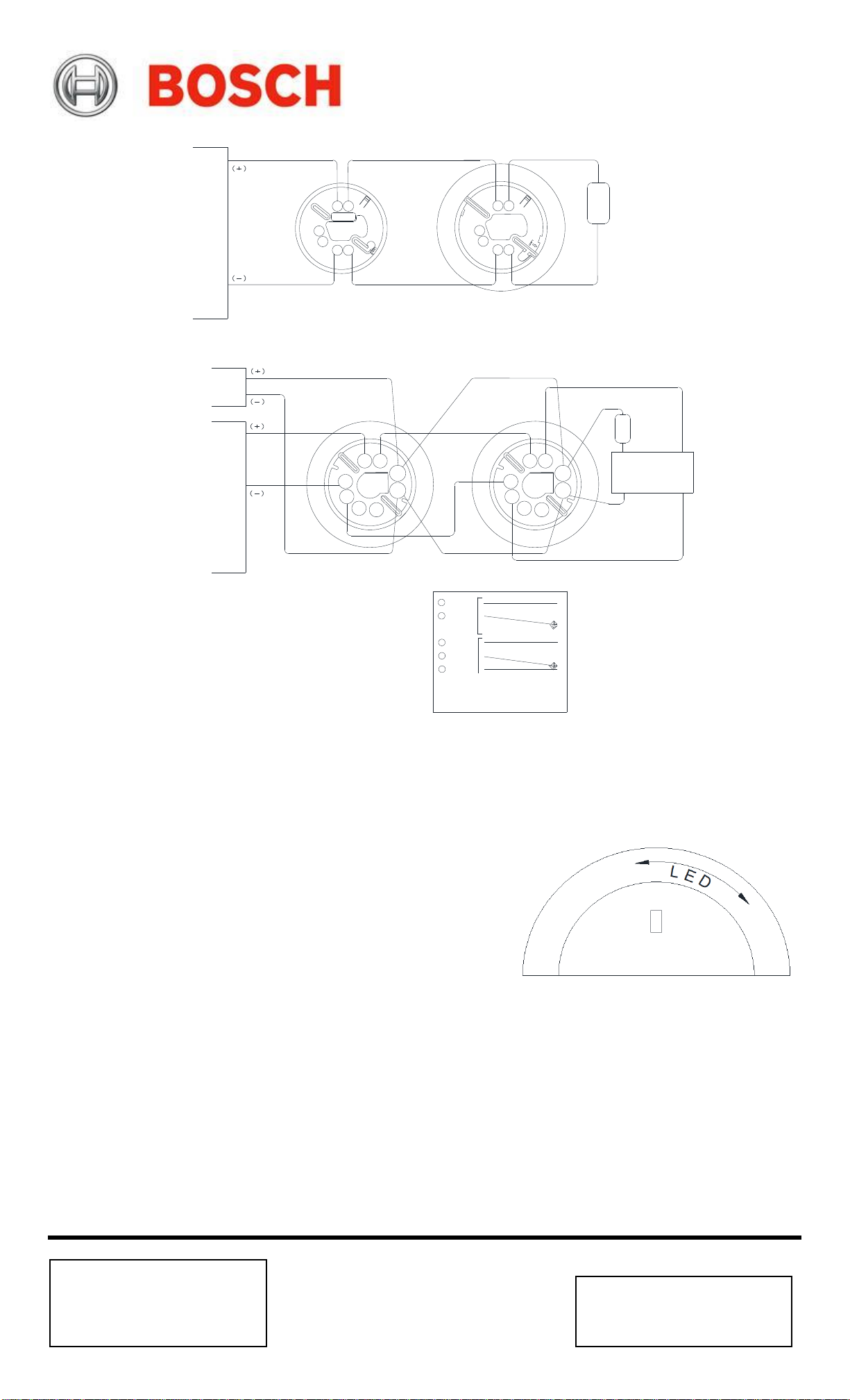

FCA-350-B6

DEVICE

END OF LINE

LISTED

FCA-350-B4

UL LISTED

CONTROL

PANEL

2-WIRE OPERATION

ORN

YEL

LISTED

RELAY

END OF LINE

PAM-4

PUR

INITIATING

CIRCUIT

FCA-350-BR612/FCA-350-BR624

4-WIRE OPERATION

LISTED

POWER

SUPPLY

12VDC

use

FCA-350-B6R12

24VDC

use

FCA-350-B6R24

L3 L4

(+)

(-)

(C)

(NC)

FCA-350-BR612/-BR624

CONTACTS, SHOWN

WITH POWER OFF,

NORMAL OPERATION.

2A, 30VDC

1A, 120VAC

LISTED END

OF LINE

DEVICE

Go/No-Go testing can be used to confirm a detector is within its sensitivity limits and operating normally

GO/NO-GO TESTING FCP-350-P/FCP-350-PTH

1. Place the Test Magnet to align the LED marking as shown.

2. For go: The detector will blink red every second. Holding the

magnet in position for at least 13 seconds will cause the

detector to alarm with the red LED latched on.

For no-go: After at least 13 seconds, the detector will continue

to blink red every 3 seconds and never alarm or latch red.

3. Upon reset, the smoke detector LED should blink Green every

3 seconds. If the detector blinks red, it should be replaced.

FCP-350-P/FCP-350-PTH
