Bosch Conettix B444-A Manuel utilisateur

Conettix Cellular Communicators

B442/B443/B444/B444‑A/B444‑V

en Installation Manual

Conettix Cellular Communicators Table of contents | en 3

Bosch Security Systems B.V. Installation Manual 2020.02 | 04 | F.01U.345.070

Table of contents

1Cellular module introduction 4

1.1 About documentation 4

1.2 Bosch Security Systems, Inc. product manufacturing dates 4

2Component overview 5

3Installation 8

3.1 Insert the SIM card 8

3.2 Install the antenna 8

3.3 Install the communicator 10

3.4 Remove the communicator 12

4Diagnostic LED descriptions 13

5Configuration 14

5.1 Activating the B444-A/B444-V 14

6Specifications 15

4en | Cellular module introduction Conettix Cellular Communicators

2020.02 | 04 | F.01U.345.070 Installation Manual Bosch Security Systems B.V.

1 Cellular module introduction

This document contains supplemental information needed to install the Conettix Plug-in

Cellular communication modules.

This reference guide contains:

– Component location overview.

– Installation workflows.

– Diagnostic LED descriptions.

– Configuration.

– Specifications.

1.1 About documentation

This document is the intellectual property of Bosch Security Systems, Inc. and is protected by

Trademarks

All hardware and software product names used in this document are likely to be registered

trademarks and must be treated accordingly.

1.2 Bosch Security Systems, Inc. product manufacturing dates

Use the serial number located on the product label and refer to the Bosch Security Systems,

Inc. website at http://www.boschsecurity.com/datecodes/.

Conettix Cellular Communicators Component overview | en 5

Bosch Security Systems B.V. Installation Manual 2020.02 | 04 | F.01U.345.070

2 Component overview

Cellular plug-in communicators provide IP communications over supported cellular networks

by directly connecting the communicator into a control panel or into an additional module

such as the Conettix Plug-in Communicator Interface or the Conettix Universal Dual Path

Communicator modules. All communicators come with a SIM card holder.

Communicators with SIM cards

Callout - Description

1 - Module handle and support leg

2 - SIM card holder

3 - LEDs

4 - Threaded female SMA antenna connector

5 - Plug-in module retention clip opening

6 - PCM metal contacts

6en | Component overview Conettix Cellular Communicators

2020.02 | 04 | F.01U.345.070 Installation Manual Bosch Security Systems B.V.

Communicators with SIM cards and dual antennas

Figure2.1: B444-A/B444-V

Callout - Description

1 - Module handle and support leg

2 - SIM card holder

3 - LEDs

4 - Threaded female SMA antenna connector (secondary)

5 - Threaded female SMA antenna connector (primary)

6 - Plug-in module retention clip opening

7 - PCM metal contacts

Notice!

Connections to both antenna connectors (secondary and primary) must be installed using the

supplied antennas or an extended antenna (sold separately). Failure to do so might cause

poor signal strength.

When using an external antenna such as the Bosch Multiband Antenna (B40-P, B40-MB25 or

B40-MB50) connect the cable to the primary connector of the B444-A/V cellular module. You

must also connect the supplied antenna to the secondary antenna connection. Failure to do so

may result in poor service and dropped signals or connection.

Conettix Cellular Communicators Component overview | en 7

Bosch Security Systems B.V. Installation Manual 2020.02 | 04 | F.01U.345.070

1 B444-V/B444-A cellular module

2 Primary antenna connection port

3 B40-P/MB25/MB50 external antenna

1. Connect antenna wire to the B40-P/MB25/MB50 antenna port (callout #3).

2. Connect other end of B40-P/MB25/MB50 antenna wire to primary antenna port on B444-

V/B444-A cellular module (callout #2).

8en | Installation Conettix Cellular Communicators

2020.02 | 04 | F.01U.345.070 Installation Manual Bosch Security Systems B.V.

3 Installation

When installing the communicator into a supporting module or control panel, refer to the

compatible documentation for more information.

Caution!

Remove all power (AC and battery) before making any connections. Failure to do so might

result in personal injury and/or equipment damage.

3.1 Insert the SIM card

Follow these instructions for SIM card installation on B442 and B443.

1. Break away the SIM card from the die-cut.

2. Insert the SIM card into the SIM card holder by sliding it into the card holder.

3. Make sure the gold contact side of the SIM card is against the module.

Figure3.1: Inserting the SIM card

3.2 Install the antenna

Notice!

EN certification

On the B442 and B443, the length of the antenna cable may not exceed 30 m (98 ft) in order

to comply with EN certification.

1. Put the magnetic antenna on top of the enclosure, or vertically on another metal surface.

2. Put the antenna cable through a knockout.

3. Connect the antenna cable to the module.

4. Make sure the antenna cable is inside the enclosure.

Notice!

Refer to the B444-A/B444-V Quick Installation Guide for detailed installation instructions.

Conettix Cellular Communicators Installation | en 9

Bosch Security Systems B.V. Installation Manual 2020.02 | 04 | F.01U.345.070

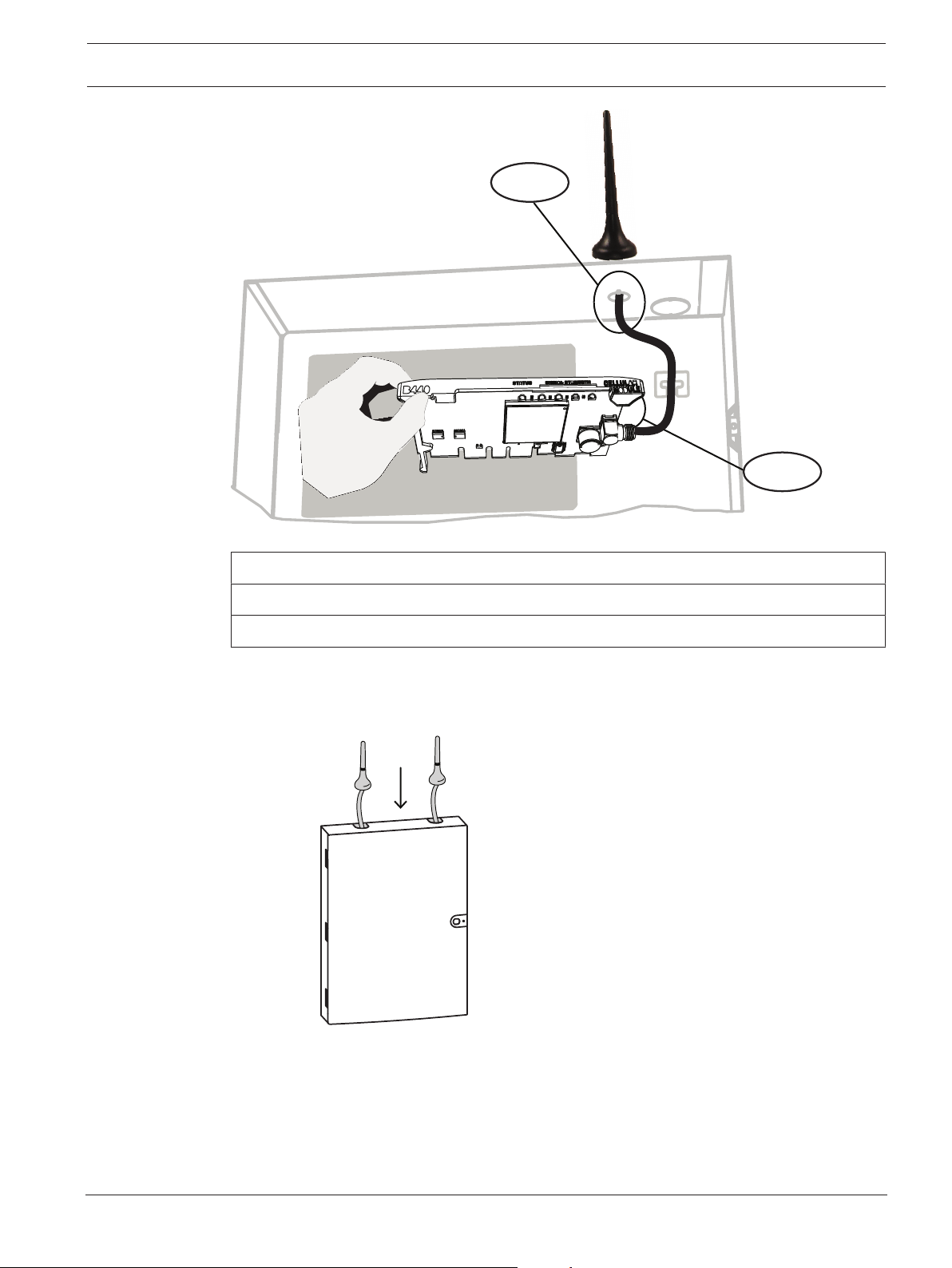

Figure3.2: Installing the antenna

Callout - Description

1 - Antenna routed through any knockout

2 - Antenna cable connected to the module

Figure3.3: B444-A/B444-V antenna installation

10 en | Installation Conettix Cellular Communicators

2020.02 | 04 | F.01U.345.070 Installation Manual Bosch Security Systems B.V.

Notice!

For proper spacing, the antennas should be placed at either corner of the enclosure.

Figure3.4: B444-A/B444-V cable connection

3.3 Install the communicator

Control panel/universal dual path communicator installation

1. Put the support leg into the support hole labeled X. Refer to Figure 3.3.

2. Align the PCB metal contacts with the on-board connector.

3. Push the module into place. The retention clip snaps closed and secures the module in

place.
