Billion MyGuard 7202 Manuel utilisateur

myGuard 7202 / 7202G

(802.11g) Security ADSL2+ Router

Quick Start Guide

myGuard 7202(G) ADSL2+ Modem/ Router

Package Contents

myGuard 7202(G) ADSL2+ Modem/Router

CD-ROM containing the on-line manual

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

AC-DC power adapter (12VDC, 1A)

This Quick Start Guide

 Do not use the myGuard 7202(G) in high humidity or high

temperatures.

 Do not use the same power source for the myGuard 7202(G) as

other equipment.

 Do not open or repair the case yourself. If the myGuard

7202(G) is too hot, turn off the power immediately and have it

repaired at a qualified service center.

 Avoid using this product and all accessories outdoors.

Warning

 Place the myGuard 7202(G) on a stable surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

ttention

For more detailed instructions on configuring and using

the (802.11g) ADSL Router, please refer to the on-line

manual.

Quick Start Guide

The Front LEDs

myGuard 7202

myGuard 7202G

LED Meaning

1 PPP : Lit steady when there is a PPPoA / PPPoE connection.

2 ADSL: Lit when successfully connected to an ADSL DSLAM (“linesync”).

3 LAN Port:

Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps.

Blinking when data is Transmitted / Received.

WLAN :

(7202G

only)

Lit green when the wireless connection is established.

Flashes when sending/receiving data.

5 SYS : Lit when the system is ready.

6 PWR : Lit when power is ON.

myGuard 7202(G) ADSL2+ Modem/ Router

The Rear Ports

myGuard 7202

myGuard 7202G

Port Meaning

1 Power Switch Power ON/OFF switch

2 PWR Connect the supplied power adapter to this jack.

RESET

(Emergency/Fail

ure Recovery)

1. After the device is powered on, press it to perform Failure

recover for a dead routers:

Simply hold the Emergency/Failure Recovery Button” when power

on the routers and download the Application if necessary.

2. perform the Emergency Recover for the missing Password

case:(Using LEDs indications)

Simply hold the Emergency/Failure Recovery Button, when router

can be accessed from GUI, until the LEDs all turn Off, turn On and

then Turn Off. Then, router will perform configuration factory

reset and router reboot

LAN

(RJ-45

connector)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four

LAN ports when connecting to a PC or an office/home network of

10Mbps or 100Mbps.

5 LINE Connect the supplied RJ-11 (“telephone”) cable to this port when

connecting to the ADSL/telephone network.

2 5

Quick Start Guide

Connecting myGuard 7202

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.

myGuard 7202(G) ADSL2+ Modem/ Router

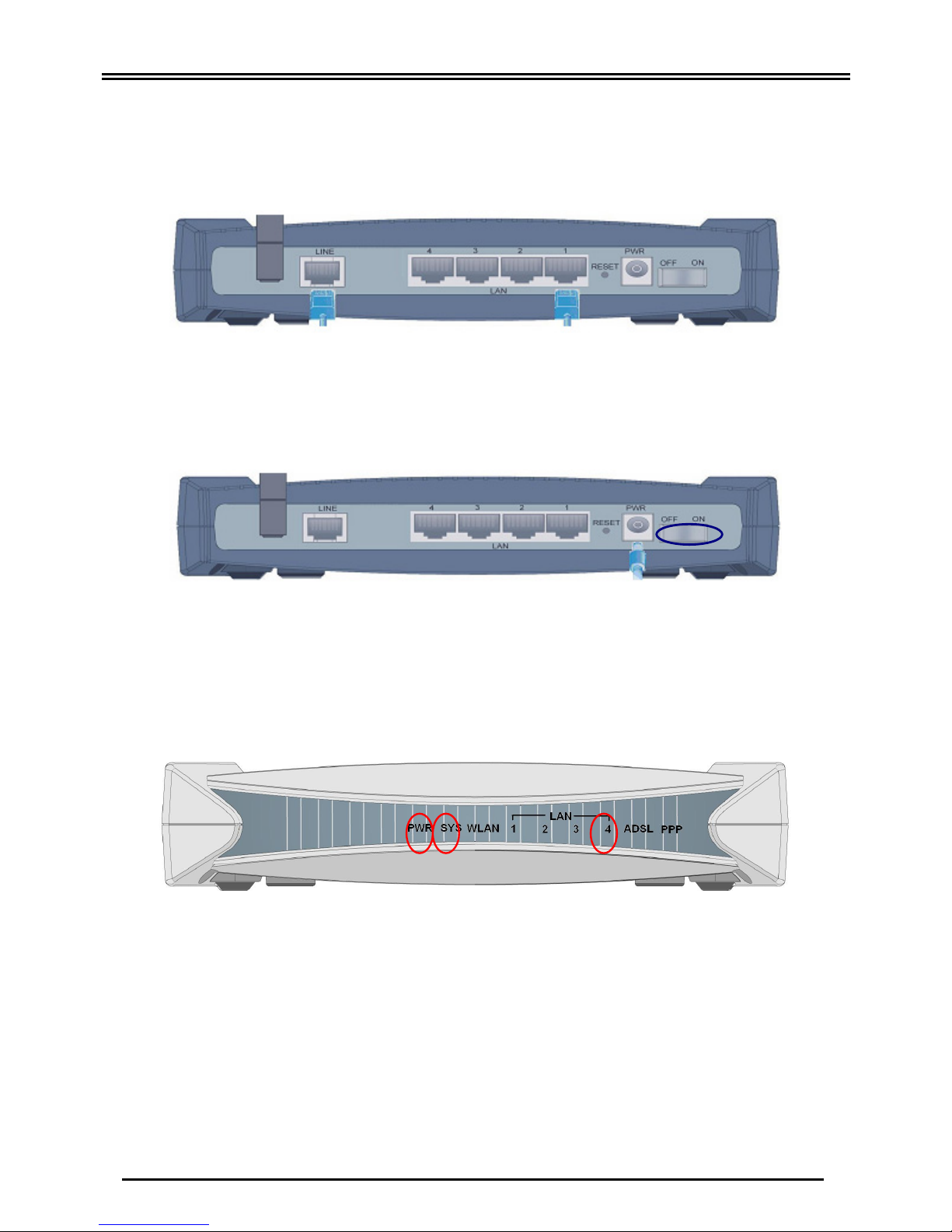

Connecting myGuard 7202G

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR, SYS, and WLAN LEDs are lit steadily and that the relevant LAN LED is

lit.

Quick Start Guide

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

myGuard 7202(G) ADSL2+ Modem/ Router

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the Control

Panel, double-click on Network and Dial-up

Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and

click OK to finish the configuration.
