Billion BiPAC 5200S Series Manuel utilisateur

BiPAC 5200 Series

(802.11g) ADSL2+ Firewall Router

Quick Start Guide

Billion BiPAC 5200 Series ADSL2+ Firewall Router

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER’S MANUAL ON

THE CD-ROM.

Package Contents

BiPAC 5200 Series ADSL2+ Router

CD containing the on-line manual

RJ-11 ADSL/telephone cable

Ethernet (CAT-5 LAN) cable

AC-DC power adapter (12VDC, 1A): for 5200 / 5200R3 / 5200G

AC-AC power adapter (12V AC, 1A): for 5200S / 5200SR2 / 5200SR3 / 5200GR2 /

5200GR3 / 5200GR4 / 5200GR5

This Quick Start Guide

Splitter/ Micro-filter (Option)

 Do not use the router in high humidity or high temperatures.

 Do not use the same power source for the router as other

equipment.

 Do not open or repair the case yourself. If the router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.

 Avoid usin

this

roduct and all accessories outdoors.

Warning

 Place the router on a stable surface.

 Only use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

ttention

Quick Start Guide

Hardware Overview

BiPAC 5200G/ 5200GR2/ 5200GR3/ 5200GR4/ 5200GR5

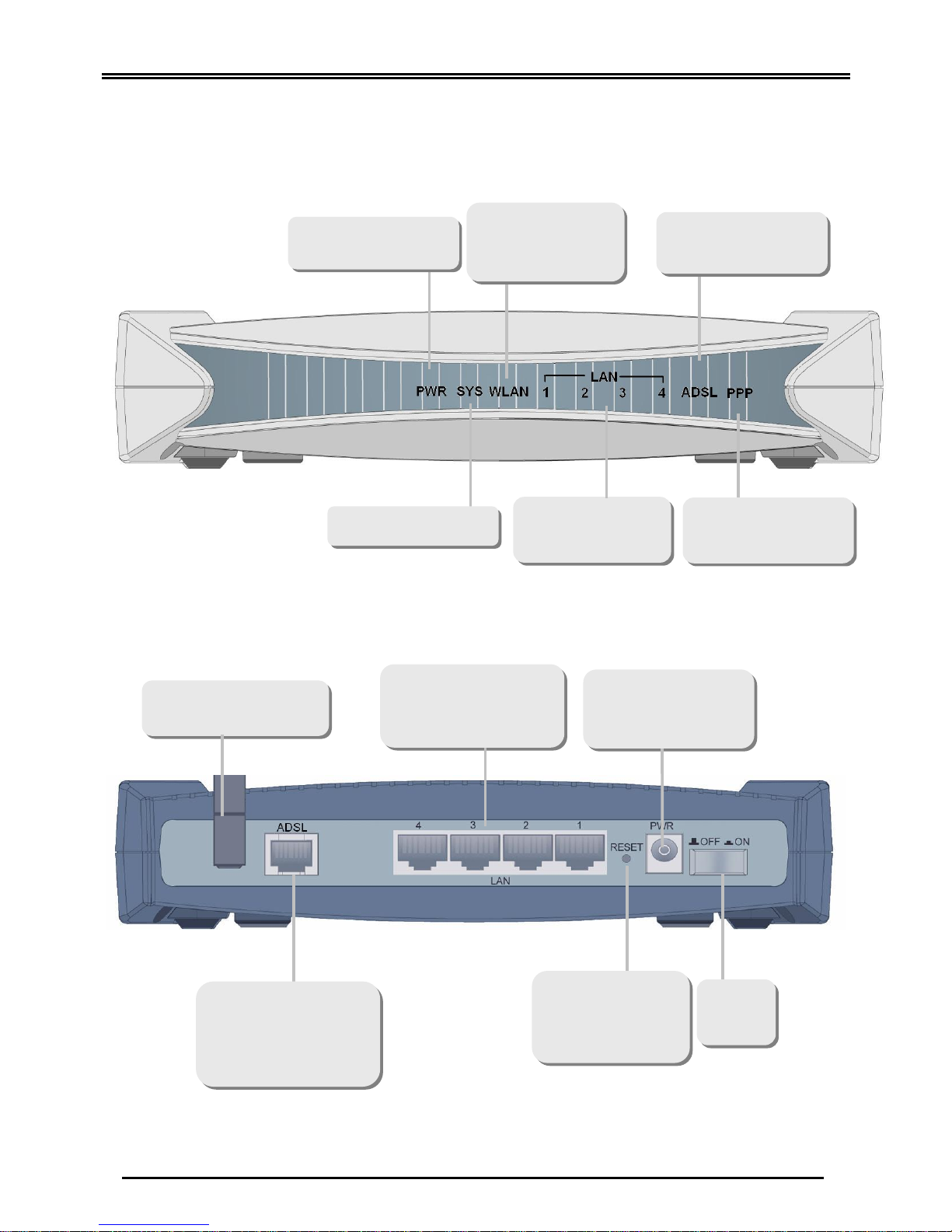

The Front LEDs

Lit when power is ON

Lit when connected to

n E

dev

Lit when successfully

connected to an ADSL

DSLAM connection.

Lit steady when there

is a PPPoA / PPPoE

connection

Lit green when the

wireless connection

is established

Lit when the

system is ready

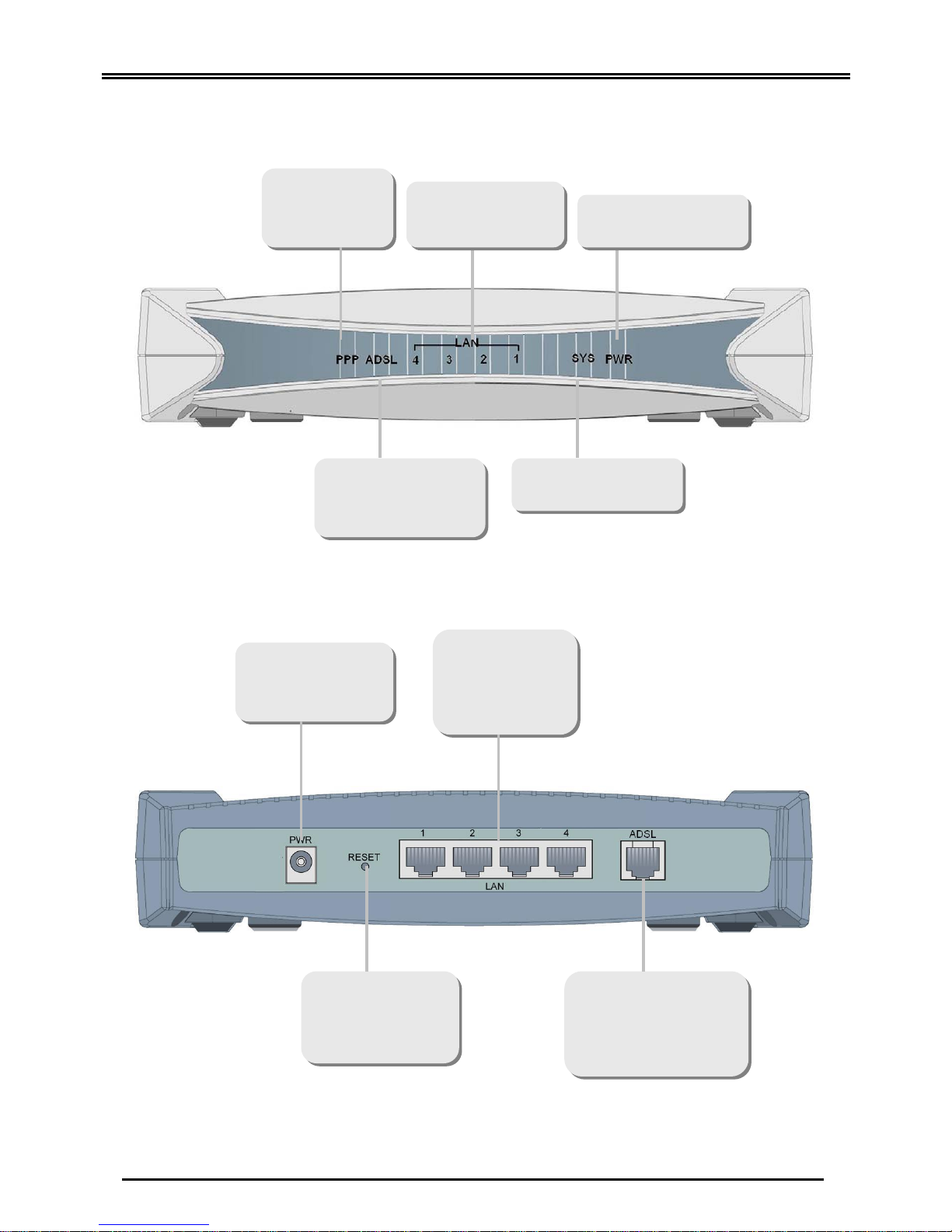

The Rear Ports

Connect the

detachable antenna

Connect the supplied

RJ-11 cable to this

port when connecting

to the ADSL/telephone

network

Connect your

computer to a LAN

port, using the

included Ethernet

Connect the supplied

power adapter to this

ack

Press it to reset

the device or

restore to factory

default settings

Power

ON/OFF

switch

Billion BiPAC 5200 Series ADSL2+ Firewall Router

BiPAC 5200/ 5200R3

The Front LEDs

Lit when the

system is ready

Lit when power is ON

Lit when connected

to an Ethernet

device

Lit when successfully

connected to an ADSL

DSLAM connection.

Lit steady when

there is a PPPo

/ PPPoE

The Rear Ports

Connect the

supplied power

adapter to this

jack

Connect your

computer to a LAN

port, using the

included Ethernet

cable

Connect the supplied

RJ-11 cable to this

port when connecting

to the

DSL/telephone

network

Press it to reset

the device or

restore to factory

default settings

Quick Start Guide

BiPAC 5200S/ 5200SR2/ 5200SR3

The Front LEDs

Lit when

power is ON

Lit when

connected to an

Ethernet device Lit steady when

there is a PPPo

/ PPPoE

Lit when the

system is ready Lit when successfully

connected to an ADSL

DSLAM connection.

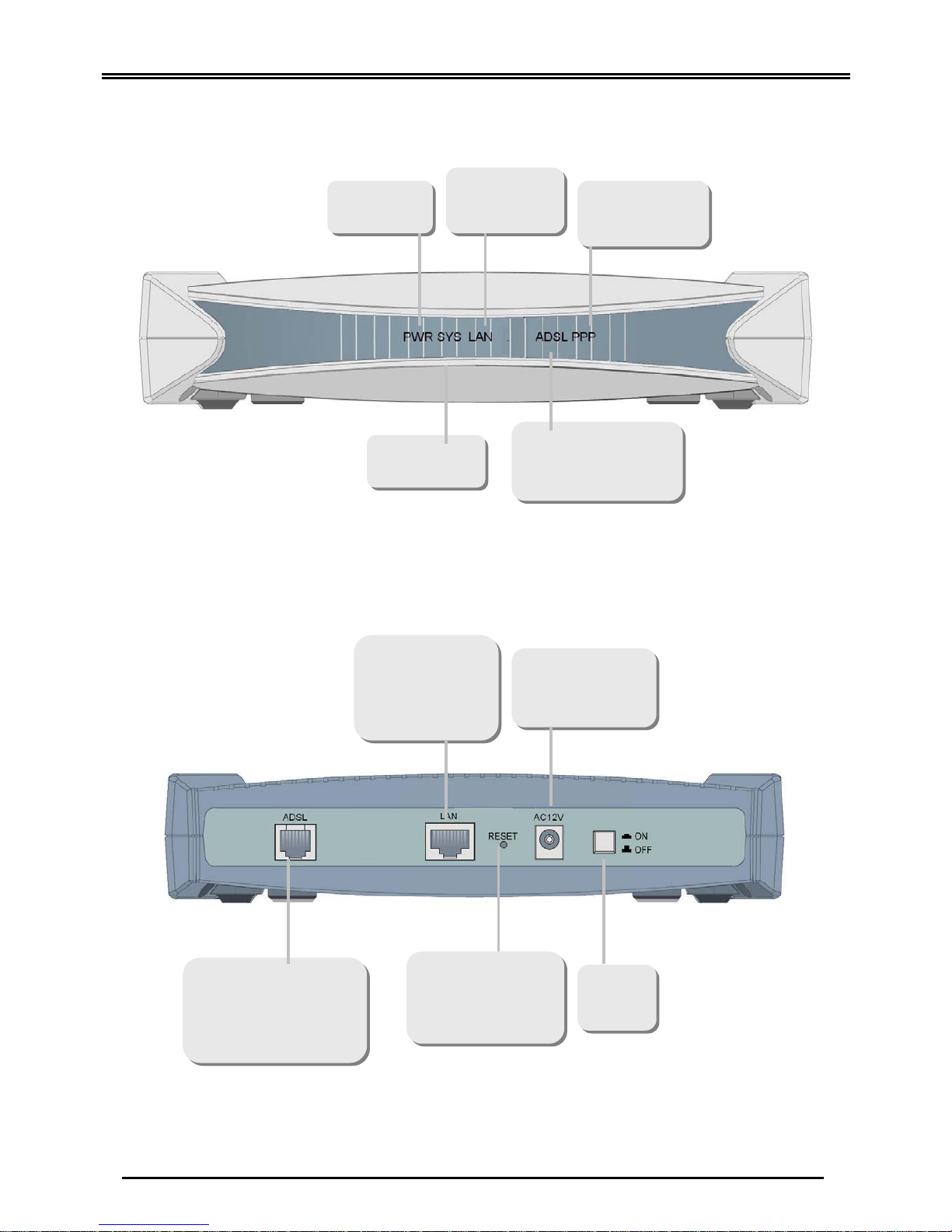

The Rear Ports

Attention: BiPAC 5200S has not supported the ON/OFF switch

Connect the supplied

RJ-11 cable to this

port when connecting

to the ADSL/telephone

network

Connect your

computer to a LAN

port, using the

included Ethernet

cable

Press it to reset

the device or

restore to factory

default settings

Power

ON/OFF

switch

Connect the

supplied power

adapter to this

jack

Billion BiPAC 5200 Series ADSL2+ Firewall Router

Hardware Connection

BiPAC 5200G/ 5200GR2/ 5200GR3/ 5200GR4/ 5200GR5

BiPAC 5200/ 5200R3

BiPAC 5200S/ 5200SR2/ 5200SR3

Quick Start Guide

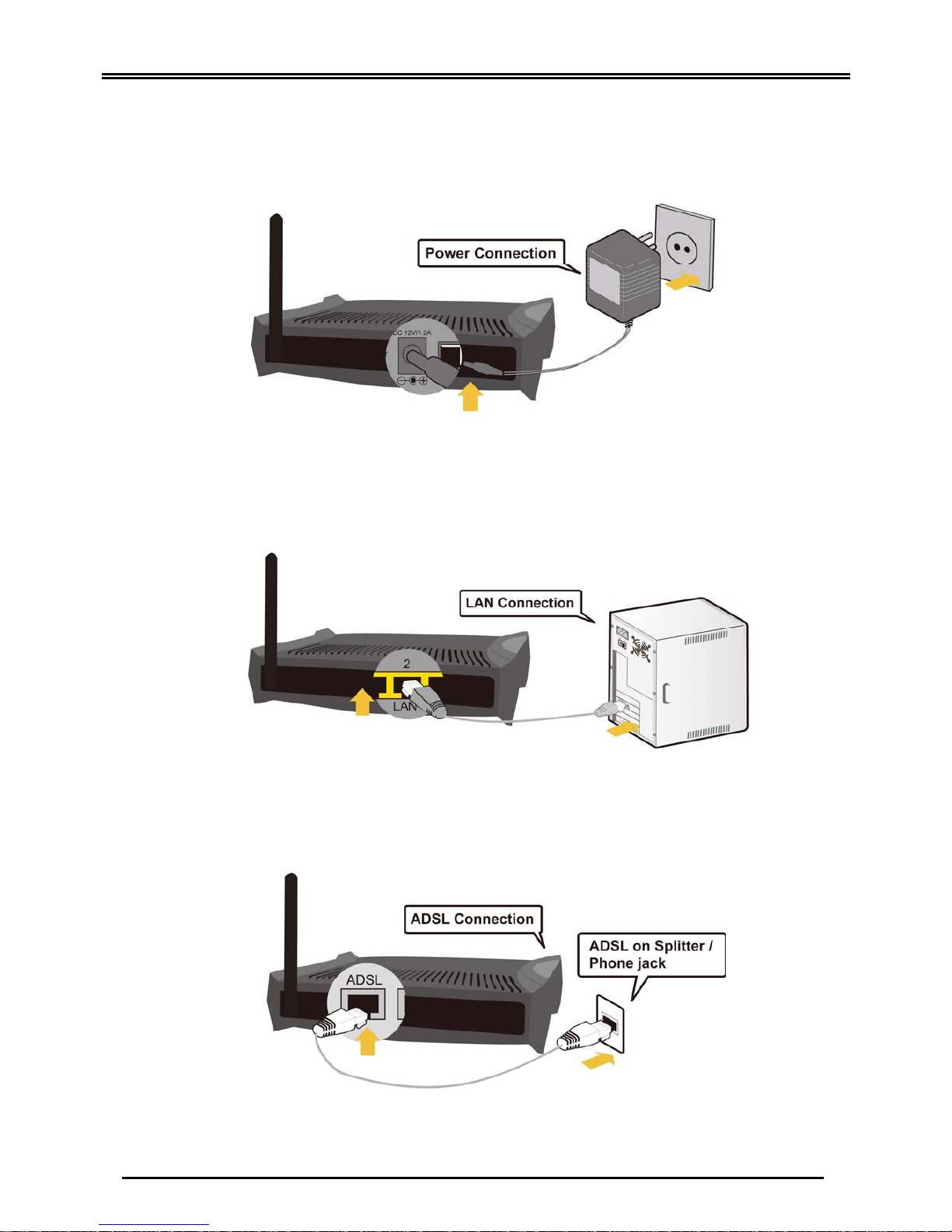

Hardware Installation

1. Power Connection

Plug the supplied power adapter to the wall jack and the other side to the router.

Please note that the plug type may differ according to different countries.

2. LAN Connection

Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the

other side to the PC’s Ethernet interface.

3. ADSL Connection

Connect the supplied RJ-11 phone cable to the router’s ADSL port, and the other

side to the phone jack on the wall.

Billion BiPAC 5200 Series ADSL2+ Firewall Router

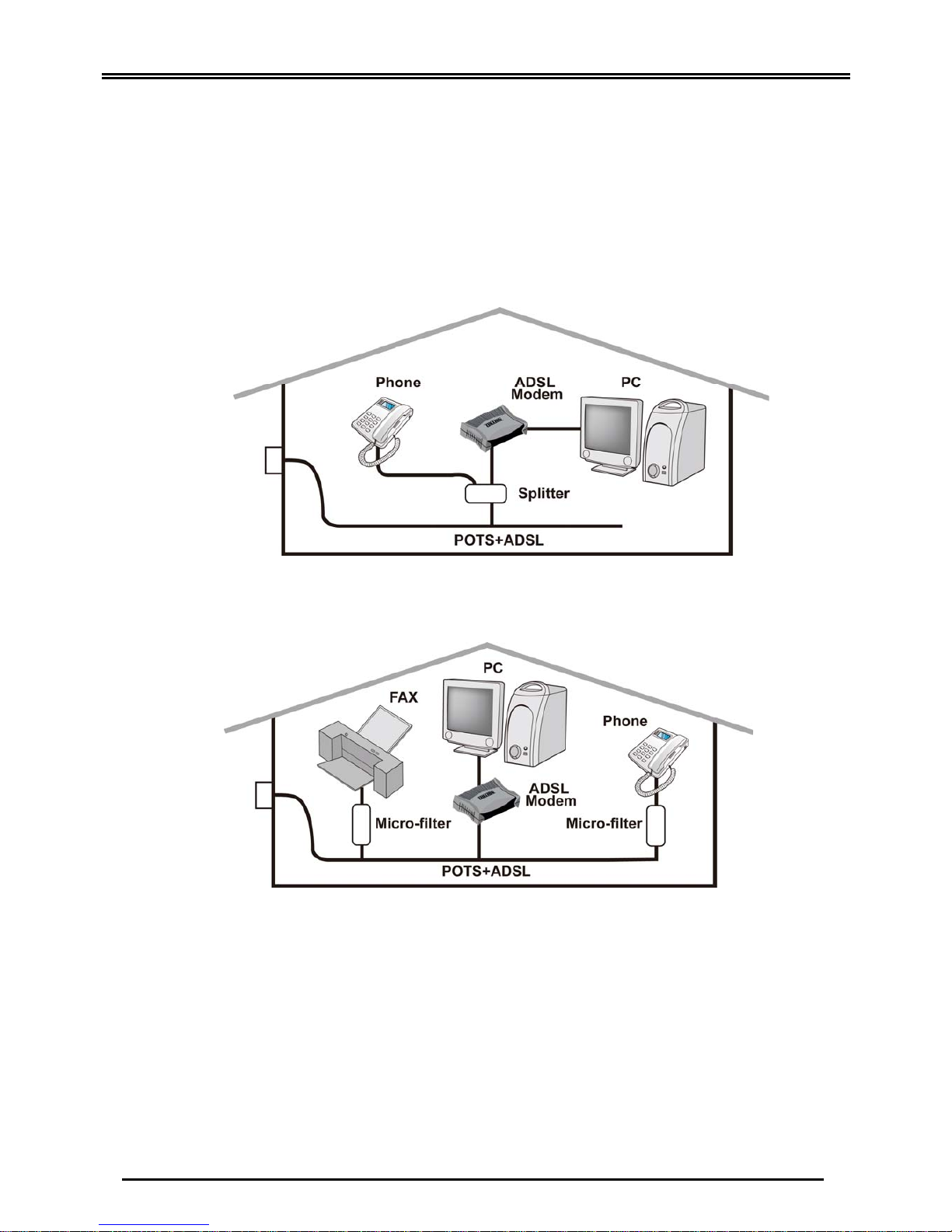

4. Splitter/ Micro-filter Connection

Splitter / Micro-filter are important for ADSL installation. High-frequency signals are

directed to the ADSL modem, and low-frequency signals are directed to the

telephone or other analog voice-channel device to prevent inter-modulation

distortion and also to get good speed and stable ADSL sync rate.

a) Splitter connection

If the installation has only a single telephone and a single ADSL modem, then a

splitter can be employed.

b) Micro-filter connection

If the installation has several telephones or other analog devices, then an internal

micro-filter can be employed at each analog device.

Setup Utility

After you complete the hardware installation, insert the CD-ROM to the CD-ROM drive to

perform the Setup Utility for network configuration. The Setup Utility will auto-run. Follow the

step-by-step configuration wizard, the utility will guide you to complete the basic network

configuration.

Quick Start Guide

Troubleshooting

1. None of the LEDs are on when you turn on the router.

Check the connection between the adapter and the router. If the error persists, you may have

a hardware problem. In this case you should contact technical support.

2. You have forgotten your router login and/or password.

Try the default login and password, please refer to Chapter 3. If this fails, you can restore

your router to its factory settings by holding the Reset button on the back of your router for 6

seconds or more.

3. Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should be on for a port that has a PC

connected. If it is off, check the cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting. Verify that the IP address and the subnet

mask are consistent between the router and the workstations.

4. Frequent loss of ADSL linesync (disconnections).

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected between them and

the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified

and licensed electrician), and ensure that all line filters are correctly installed and the right

way around. Missing line filters or line filters installed the wrong way around can cause

problems with your ADSL connection, including causing frequent disconnections. If you have

a back-to-base alarm system you should contact your security provider for a technician to

make any necessary changes.

Product Support and Contact Information

Most problems can be solved by referring to the Troubleshooting section in the User’s Manual.

If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

Contact Billion

WORLDWIDE: http://www.billion.com
