Billion BIPAC 7402W Manuel utilisateur

BIPAC-7402 / 7402W

(Wireless) ADSL VPN Firewall Router

with 3DES Accelerator

Quick Start Guide

Billion BIPAC-7402 / 7402W (Wireless) ADSL VPN Firewall Router with 3DES Accelerator

Package Contents

BIPAC-7402 / 7402W ADSL Router

CD-ROM containing the online manual

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

Console (PS2-RS232) Cable

AC-DC power adapter (12VDC, 1A)

This Quick Start Guide

 Do not use the BIPAC-7402 / 7402W in high humidity or high

temperatures.

 Do not use the same power source for the BIPAC-7402 / 7402W

as other equipment.

 Do not open or repair the case yourself. If the BIPAC-7402 /

7402W is too hot, turn off the power immediately and have it

repaired at a qualified service center.

Warning

 Place the BIPAC-7402 / 7402W on a stable surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

Attention

For more detailed instructions on configuring and using

the (Wireless) ADSL Firewall Router, please refer to the

on-line manual.

Quick Start Guide

The Front LEDs

LED Meaning

1 PPP / MAIL

Lit steady when there is a PPPoA / PPPoE connection.

Lit and flashed periodically when there is email in the Inbox.

2 ADSL Lit when successfully connected to an ADSL DSLAM (“linesync”).

3 LAN Port

1X — 4X

(RJ-45 connector)

Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps.

Blinking when data is Transmitted / Received.

4 WLAN

(7402W only) Lit green when the wireless connection is established.

Flashes when sending/receiving data.

5 SYS Lit when the system is ready.

6 PWR Lit when power is ON.

Billion BIPAC-7402 / 7402W (Wireless) ADSL VPN Firewall Router with 3DES Accelerator

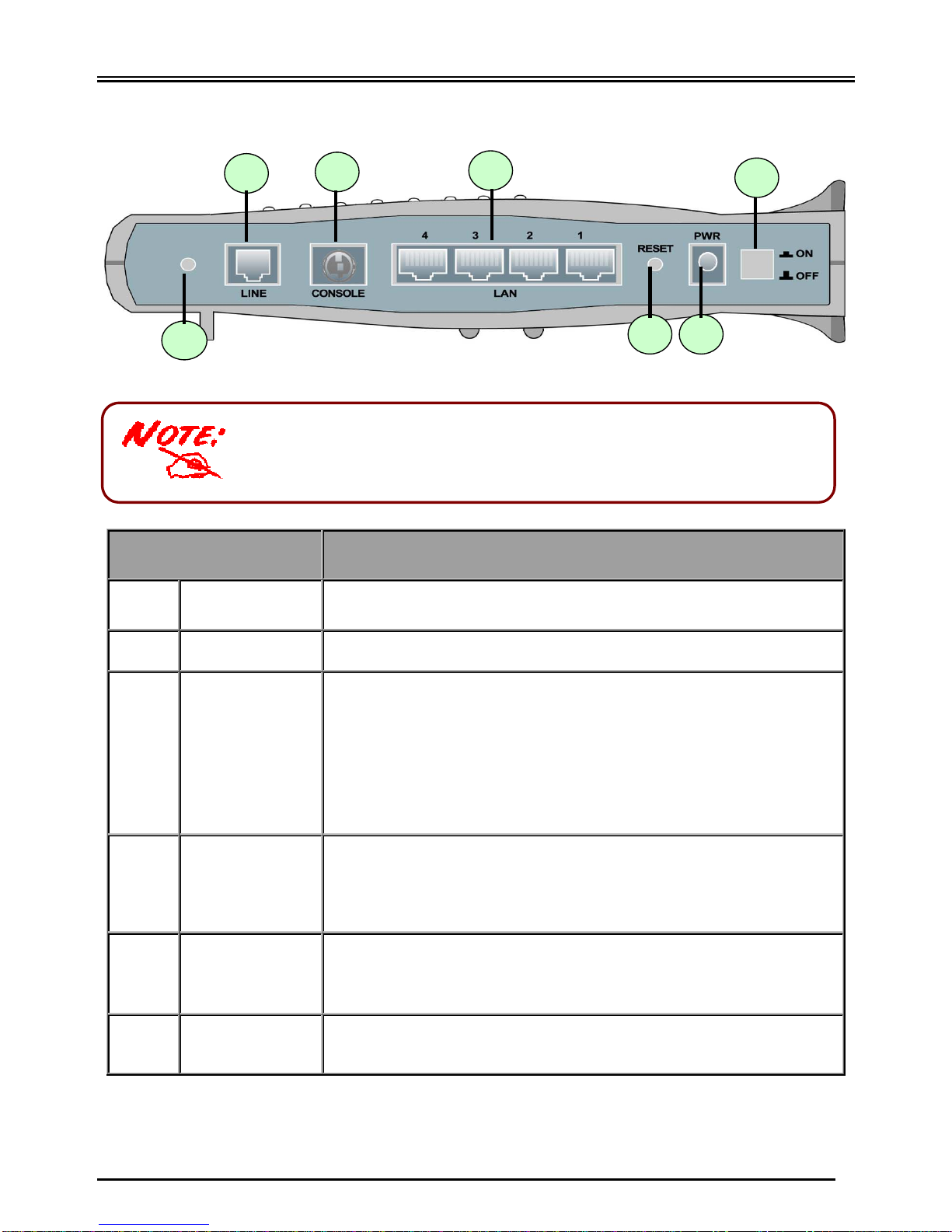

The Rear Ports

Port Meaning

1 Power Switch Power ON/OFF switch

2 PWR Connect the supplied power adapter to this jack.

3 RESET

After the device is powered on, press it to reset the device or

restore to factory default settings.

0-3 seconds: reset the device

6 seconds above: restore to factory default settings (this is used

when you can not login to the router, e.g. forgot the password)

4 LAN

1X — 4X

(RJ-45 connector)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the

four LAN ports when connecting to a PC or an office/home

network of 10Mbps or 100Mbps.

5 CONSOLE Connect a PS2/RS-232 cable to this port when connecting to a

PC’s RS-232 port (9-pin serial port).

6 LINE Connect the supplied RJ-11 (“telephone”) cable to this port when

connecting to the ADSL/telephone network.

＊

＊Only the BIPAC-7402W has a wireless interface and antenna. BIPAC-7402

router does NOT have an antenna or wireless interface.

Quick Start Guide

Connecting Your ADSL Router

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.

(For 7402W only: the WLAN LED will be lit steadily).

Billion BIPAC-7402 / 7402W (Wireless) ADSL VPN Firewall Router with 3DES Accelerator

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status window

click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Billion BIPAC-7402 / 7402W – (Wireless) ADSL VPN Firewall Router with 3DES Accelerator

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and click

OK to finish the configuration.

Quick Start Guide

Configuring PC in Windows NT4.0

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

choose the Protocols tab.

2. Select TCP/IP Protocol and click Properties.

3. Select the Obtain an IP address from a

DHCP server radio button and click OK.
