2-in-1 Hub
F5U706ea
2-in-1 Hub
User Manual
2-in-1 Hub
1 Introduction ............................................................................................... 1
Features ................................................................................................... 2
Package Contents ................................................................................ 2
Technical Specifications .................................................................... 3
2 Installation ................................................................................................ 4
3 Information ................................................................................................ 6
Table of Contents

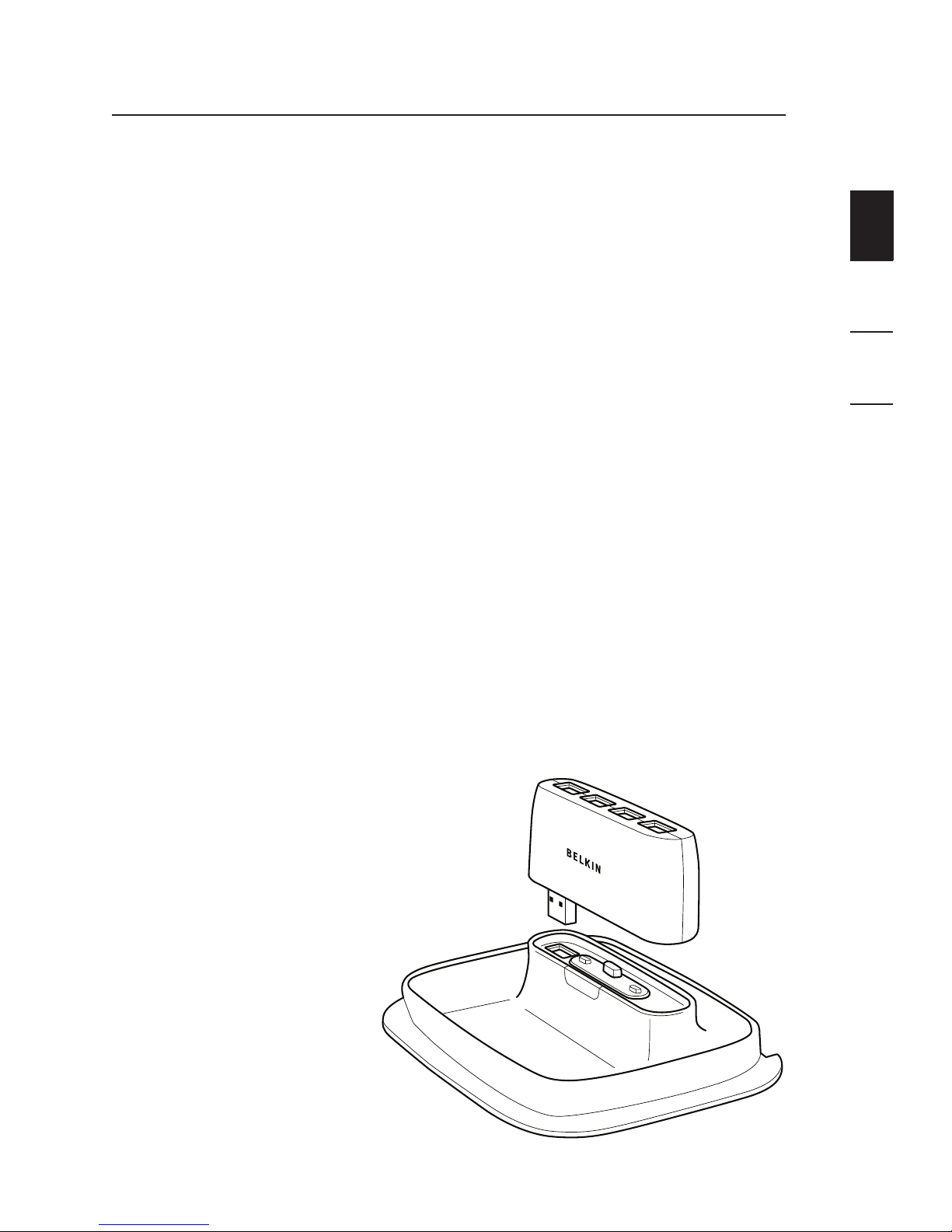

Congratulations
Congratulations and thank you for purchasing the Belkin 2-
in-1 Hub (the Hub). This new design gives you two ultrafast
USB hubs in one: a stable base and a travel hub. The 3-port
base can connect your larger, more stationary equipment,
such as printers and hard drives. The detachable, 4-port
travel hub offers a great connection point for your mouse,
MP3 player, camera, and flash drives. It’s easy to take on
the road, and simply plugs into a USB port on your laptop
when you need it. A rotating connector keeps adjacent ports
free.
The Hub provides seven downstream USB ports that offer
backward-compatible, Plug-and-Play connectivity with all
USB devices, including USB 1.1 (or low- and full-speed)
devices, as well as with USB 2.0 (or high-speed) devices.
The Hub is self-powered, which allows you to cascade
devices with additional hubs, so that up to 127 USB devices
may be connected to a single port. With the 2-in-1 Hub, free
your desktop and laptop from port limitations.
1
Introduction
Features
• Compliant with Universal Serial Bus specification 2.0 (data rate
1.5/12/480Mbps)
• Backward-compatible with Universal Serial Bus specification 1.1
(data rate 1.5/12Mbps)
• Compatible with Windows® 98 SE, Me, 2000, XP, and VistaTM
• Approved by USB Implementers Forum (USB-IF)
• Support for Plug-and-Play specifications
• Support for “hot swapping” of USB devices
• Seven 480Mbps downstream ports
• Detachable 4-port hub
• Stationary 3-port hub with tray
• Rotating connector on detachable hub
Package Contents
• 2-in-1 Hub
• AC Power Adapter
• User Manual
• USB Device Cable
2
Introduction
1
2
3
Technical Specifications
Upstream Ports: 1
Downstream Ports: 7
Per-Port Voltage: DC +5V
Per-Port Current: 500mA (max)
Power Mode: Self-powered
Operating Temperature: 5° C ~ 40° C
Storage Temperature: -20° C ~ 60° C
Enclosure: ABS
Power Supply:
Output: DC 5.0V, 3.8A
Plug Size: 3.5 x 1.3 x 9.5mm
Plug Polarity: Center-pin positive
Main-Power-LED Color
Definitions
Off: Not operational
Green: Operational
3
Introduction
Important Note: Please do not connect any USB devices to
the Hub until instructed to do so in step 4 of this installation
procedure.
1. Plug the AC adapter into a wall outlet or surge protector.
Plug the DC connector into the DC power jack found on
the rear of the Hub.
2. Plug the flat end of the provided USB device cable into
the downstream port of your computer, or downstream
port of another hub, and then plug the mini-USB
connector of the device cable into the upstream port on
the rear of the Hub.
Important Note: The Hub must be connected to a USB
2.0-compliant host in order to function in high-speed
mode (480Mbps data rate). If the Hub is connected to a
USB 1.1-compliant host, it will operate only in low-speed
or full-speed mode (1.5Mbps/12Mbps).
4
Installation
1
2
3
3. With your computer on, your system will now detect your
Hub and install the required driver support.
Important Note: High-speed hub drivers are included with
most USB 2.0 PCI upgrade cards, and are preinstalled along
with the PCI card drivers. If you purchased an upgrade
card prior to the release of high-speed hub support, please
check with your PCI card vendor for an updated USB 2.0
driver. The Belkin USB 2.0 driver supports all competitive
cards based on the NEC host controller with the exception
of Adaptec.
4. Plug the USB A connector of the USB device, or an
additional hub, into any of the downstream ports of the Hub.
Important Note: When moving a device from one port on
the Hub to another, it may be necessary to reinstall the USB
drivers for that device.
5
Installation
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin International, Inc., of 501 West Walnut Street, Compton, CA
90220, declare under our sole responsibility that the product:
F5U706
to which this declaration relates:
Complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation. This equipment may only
be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301
and could subject the operator to serious legal penalties.
CE Declaration of Conformity
We, Belkin International, Inc., declare under our sole responsibility that the
F5U706, to which this declaration relates, is in conformity with Generic Emissions
Standard EN55022:1998 Class B, EN50081-1, and with Generic Immunity Standard
EN50082-1:1992.
6
Information
1
