SettinguptheWemo®WiFiSmart

LightSwitch,F7C030

SettinguptheWemo®WiFiSmartLightSwitch,F7C030requirestwoprocedures:

i.InstallationoftheWemoLightSwitchtotheelectricalline

ii.WemoAppandWemoLightSwitchSetup

InstallationoftheWemoLightSwitchtotheelectricalline

Ifyou’refamiliarandcomfortablewithbasicelectricalwork,itonlytakesafewminutesto

setupyourWemoLightSwitch.Otherwise,donottryanddoityourself,pleasecalla

professionalelectrician.

ElectricalInstallationRequirements

ANeutralwire(requiresallthreeACelectricalconnectionsatthewallswitch)

Asinglepolelightswitch(notcompatiblewithlightscontrolledbymorethanone

switch)

6/16/2017 Knowledge Article

http://belkin.force.com/Articles/articles/en_US/Troubleshooting_and_Tutorials/9342/p?pubstatus=o#Electrical 2/14

Thelightswitchboxmustbe2inchesdeep

IMPORTANT:TheWemoLightSwitchisnotdesignedtoworkwithmetalfaceplates

becausetheyinterferewiththeWiFisignal.Itisrecommendedtousethelight

switchforresidentialanddryindoorlocationsonly.

Oncetheseelectricalrequirementsarecomplete,proceedwiththeelectricalinstallation

instructionsbelow.



Step1:ShutOFFthepoweratthecircuitbreakerfortheswitchyouare

replacing.YoumayneedtoshutOFFmorethanonecircuit

breaker/switchtomakesuretheswitchyou'reworkingonispoweredOFF.

IMPORTANT:USEANONCONTACTVOLTAGEDETECTORORFLIP

YOURLIGHTSWITCHAFEWTIMESTOMAKESURETHATTHE

POWERISOFF.

Step2:Unscrewanddisconnectthewiresfromtheoldswitchusinga

screwdriver.



Step3:IdentifythewiresonyourWemoLightSwitch.



Switch(Live/Load)wiresOnthislightswitch,theSwitchwires

arethetwoblackwires.Everylightswitchwillhavebothofthese

wires.Buttheycouldbeeitherredorblackincolor.



NeutralwireTheWemoLightSwitchrequiresthiswire,butisn't

alwayspresentinyourelectricalwiringathome.Ifpresent,the

neutralwireisnormallyfoundwithinthewallboxwithawirenuton

topofit.

6/16/2017 Knowledge Article

http://belkin.force.com/Articles/articles/en_US/Troubleshooting_and_Tutorials/9342/p?pubstatus=o#Electrical 3/14



GroundwireIfpresent,itshouldbepluggedintothetopofthe

lightswitchhere.It'snormallygreenorcopperincolor.Don't

worryifyoucan'tfindthegroundwire,WemoLightSwitchdoesn't

requireone.



WARNING!THEFOLLOWINGWIRINGSCENARIOSMAYBE

DANGEROUSORILLEGAL.



NOTE:Formoredetails,seeWiringyourWemo®WiFiSmartLight

Switch,F7C030



Step4:InstalltheWemoLightSwitch.Connecteachofthetwoblack

wiresfromtheWemoLightSwitchtotheavailableSwitch(Live/Load)

wires.Incaseyoufoundmorethanonewire,justplacethemintothewire

nut.

NOTE:Thewirenutisthecaplikeobjectconnectingthewires.



6/16/2017 Knowledge Article

http://belkin.force.com/Articles/articles/en_US/Troubleshooting_and_Tutorials/9342/p?pubstatus=o#Electrical 4/14



Step5:IfyouhaveaGroundwire(optional),disconnectitfromtheold

switchandconnectittothegreenwireontheWemoLightSwitch.



Step6:UnscrewthewirenutthatisholdingtogethertheexistingNeutral

wires.ConnectthewhitewirefromtheWemoLightSwitchtotheoutlet's

exposedNeutralwires.Securelyscrewthemtogetherinsidethewirenut.

IMPORTANT:Wrapelectricaltapearoundthewirenutstomakesurethe

copperconductorisfullyconcealed.



Step7:ScrewintheWemoLightSwitchandattachthefaceplate.Push

allthewiresbackintothewallboxandtrytoallowasmuchspaceforthe

switchaspossible.AlignthetwoscrewterminalsandscrewintheWemo

LightSwitch.Attachthefaceplate.

NOTE:Belkindiscouragesusingmetalfaceplatesastheymayinterfere

withyourWiFisignal.



6/16/2017 Knowledge Article

http://belkin.force.com/Articles/articles/en_US/Troubleshooting_and_Tutorials/9342/p?pubstatus=o#Electrical 5/14



Step8:TurnthepowerbackONatyourcircuitbreaker.



QUICKTIP:ToverifythattheWemoLightSwitchhasbeensuccessfully

installedtoyourelectricalline,manuallyswitchitON.

YouhavenowinstalledtheWemoLightSwitchtoyourelectricalline.



WemoAppandWemoLightSwitchSetup

BeforesettinguptheWemoLightSwitchwiththeWemoApp,makesureyouhavethe

following:



AWemoLightSwitchthatisalreadyinstalledtoyourelectricallineandis

functioning.

ActiveWiFiandinternetconnection.

TheWiFiname(SSID)andpasswordofyourrouter.Toknowhowtogetthem,

clickhere.

AniOs9.0deviceorhigher;oranAndroid™4.4deviceorhigher.

Oncetheserequirementsarecomplete,proceedwiththeinstructionsbelow.



Step1:DownloadandinstalltheWemoApponyourmobiledevicefrom

theAppStore®ifyouareusinganiOSdeviceorfromtheGooglePlay™

StoreifyouareusinganAndroid™device.

Step2:EnabletheWiFifeatureofyourmobiledeviceandmakesureit

isconnectedtoyourWiFi.Thisisrequiredtoensurenoerroris

encountereduponinstallation.

NOTE:Ifyouhaveadualbandrouter,Wemocanonlyconnecttoyour

2.4GHzband.



6/16/2017 Knowledge Article

http://belkin.force.com/Articles/articles/en_US/Troubleshooting_and_Tutorials/9342/p?pubstatus=o#Electrical 6/14



Step3:OnceconnectedtoWiFi,lookfortheWiFiNameoftheWemo

LightSwitchwhichwillbeWeMo.Light.xxxandtapittoconnectyour

device.

NOTE:IfyouhavemultipleWemodevices,connecttotheonewiththe

sameWemoIDatthebackofthedevice.TheWemoIDistheword

WeMo,followedbyWemomodel,andthenthreealphanumeric

characters.

6/16/2017 Knowledge Article

http://belkin.force.com/Articles/articles/en_US/Troubleshooting_and_Tutorials/9342/p?pubstatus=o#Electrical 7/14

QUICKTIP:IftheWemoLightSwitchdoesnotshowupintheWiFi

search,youcantrysettingupwithyourmobiledeviceneartheWemo

LightSwitch.Alternatively,youcanpresstheResetbuttononthe

faceplateofthelightswitch.Forstepbystepresetinstructions,clickhere.

Step4:OnceconnectedtotheWemoLightSwitch,launchtheWemo

App.Then,ontheLet'sgetstarted!screen,tapNext.

6/16/2017 Knowledge Article

http://belkin.force.com/Articles/articles/en_US/Troubleshooting_and_Tutorials/9342/p?pubstatus=o#Electrical 8/14



Step5:EnteryouremailaddressthentapNext.



6/16/2017 Knowledge Article

http://belkin.force.com/Articles/articles/en_US/Troubleshooting_and_Tutorials/9342/p?pubstatus=o#Electrical 9/14



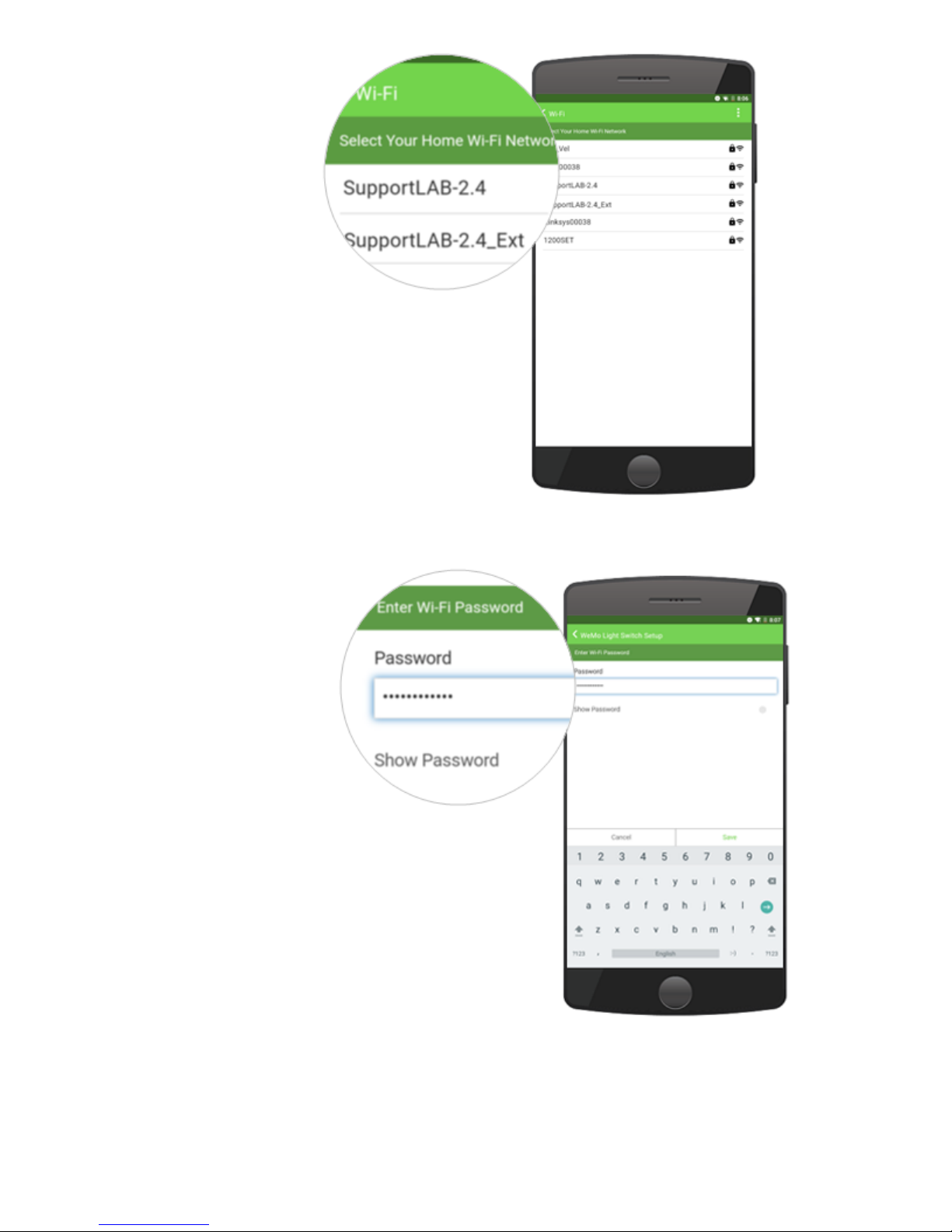

Step6:SelectyourWiFiandenteryourpassword.



6/16/2017 Knowledge Article

http://belkin.force.com/Articles/articles/en_US/Troubleshooting_and_Tutorials/9342/p?pubstatus=o#Electrical 10/14



WaitwhiletheWemoAppconnectstoyourWiFi.
