Introduction

Introduction | 01

Congratulations and thank you for purchasing the Belkin USB Plus Hub. The Hub

provides seven downstream USB ports that offer backward-compatible, Plug-and-Play

connectivity with all USB devices, including USB 1.1 (or low- and full-speed) devices, as

well as with USB 2.0 (or high-speed) devices. This includes such peripherals as scanners,

printers, mass-storage devices, and high-resolution cameras. The Hub is self-powered,

which allows you to cascade devices with additional hubs, so that up to 127 USB devices

may be connected to a single port.

The Hub lets you connect your peripherals through the back or top ports. Reserve the

top ports for flash drives and MP3 players while using the back ports for stationary

devices. The cable-management feature lets you easily remember which cables

correspond to each device. The Hub also provides a status LED for each individual port

and a master power LED.

Features

• Compliant with Universal Serial Bus specification 2.0 (data rate 1.5/12/480Mbps)

• Backward-compatible with Universal Serial Bus specification 1.1 (data rate

1.5/12Mbps)

• Compatible with Windows® 98 SE, Me, 2000, XP, and Vista™

• Approved by USB Implementers Forum (USB-IF)

• Support for Plug-and-Play specifications

• Support for “hot swapping” of USB devices

• Individual port-status-indicator LEDs

• Four 480Mbps downstream ports

• Fully compatible with USB 1.1 and USB 2.0 devices

• Cord-management feature keeps cables organized in one location

Package Contents

• USB Plus Hub

• AC Power Adapter

• User Manual

• USB Device Cable

Technical Specifications

Upstream Ports: 1

Downstream Ports: 7

Per-Port Voltage: DC +5V

Per-Port Current: 500mA (max)

Power Mode: Self-powered

Operating Temperature: 5° C ~ 40° C

Storage Temperature: -20° C ~ 60° C

Enclosure: ABS

Power Supply:

Output: DC 5V, 3.8A

Plug Size: 3.5 x 1.3 x 9.5mm

Plug Polarity: Center-pin positive

Main-Power-LED Color Definitions

Off: Not operational

Red: Operational

Port-Status-LED Color Definitions

Off: No device detected

Green: Device detected

Introduction | 02

Introduction

Installation | 03

Important Note: Please do not connect any USB devices to the Hub until instructed to

do so in step 4 of this installation procedure.

1. Plug the AC adapter into a wall outlet or surge protector. Plug the DC connector into

the DC power jack found on the rear of the Hub.

2. Plug the flat end of the provided USB device cable into the downstream port of your

computer, or downstream port of another hub, then plug the mini-USB connector on

the device cable into the upstream port on the rear of the Hub.

Installation

| 04

Important Note: The Hub must be connected to a USB 2.0-compliant host in order

to function in high-speed mode (480Mbps data rate). If the Hub is connected to

a USB 1.1-compliant host, it will operate only in low-speed or full-speed mode

(1.5Mbps/12Mbps).

3. Windows will now detect your Hub and install the required driver support. (The

Windows “Install New Hardware Wizard” may prompt you to provide your Windows

Installation CD to complete the driver installation process.)

Important Note: High-speed hub drivers are included with most USB 2.0 PCI

upgrade cards, and are preinstalled along with the PCI card drivers. If you purchased

an upgrade card prior to the release of high-speed hub support, please check

with your PCI card vendor for an updated USB 2.0 driver. The Belkin USB 2.0 driver

supports all competitive cards based on the NEC host controller with the exception

of Adaptec.

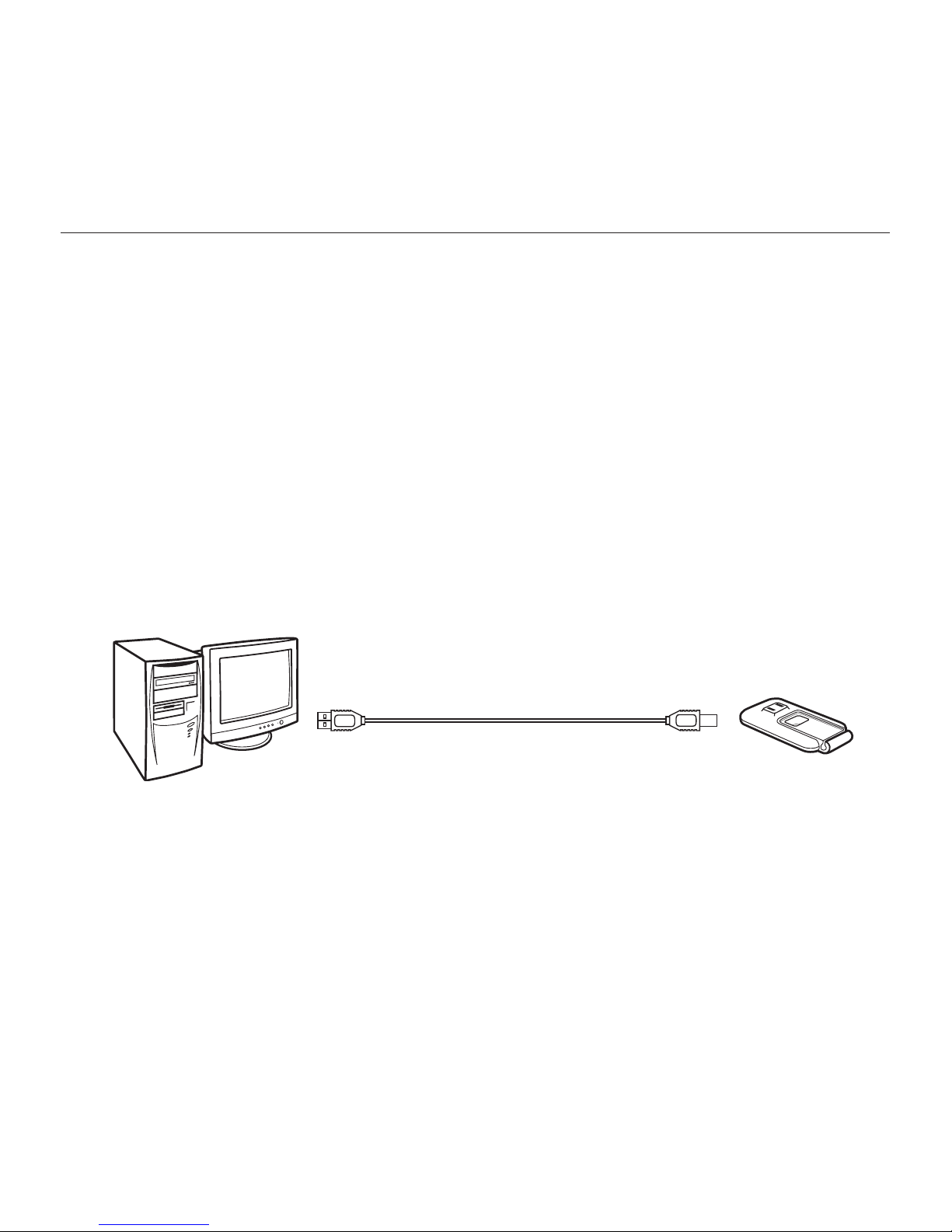

4. Plug the USB A connector of the USB device, or an additional hub, into any of the

downstream ports of the Hub.

Important Note: When moving a device from one port on the Hub to another, it may

be necessary to reinstall the USB drivers for that device.

Information | 05

Information

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR

ELECTROMAGNETIC COMPATIBILITY

We, Belkin International, Inc., of 501 West Walnut Street, Compton, CA 90220, declare

under our sole responsibility that the product:

F5U307

to which this declaration relates:

Complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation. This equipment may only be operated indoors. Operation outdoors is in

violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties.

CE Declaration of Conformity

We, Belkin International, Inc., declare under our sole responsibility that the F5U307,

to which this declaration relates, is in conformity with Generic Emissions Standard

EN55022:1998 Class B, EN50081-1, and with Generic Immunity Standard EN50082-1:1992.

Belkin International, Inc., Limited Lifetime Product Warranty

What this warranty covers.

Belkin International, Inc., warrants to the original purchaser of this Belkin product that

the product shall be free of defects in design, assembly, material, or workmanship.

What the period of coverage is.

Belkin International, Inc., warrants the Belkin product for the lifetime of the product.

Information

| 06

What will we do to correct problems?

Product Warranty.

Belkin will repair or replace, at its option, any defective product free of charge (except

for shipping charges for the product).

What is not covered by this warranty?

All above warranties are null and void if the Belkin product is not provided to Belkin

International, Inc., for inspection upon Belkin’s request at the sole expense of the

purchaser, or if Belkin International, Inc., determines that the Belkin product has been

improperly installed, altered in any way, or tampered with. The Belkin Product Warranty

does not protect against acts of God (other than lightning) such as flood, earthquake,

war, vandalism, theft, normal-use wear and tear, erosion, depletion, obsolescence,

abuse, damage due to low voltage disturbances (i.e. brownouts or sags), non-authorized

program, or system equipment modification or alteration.

How to get service.

To get service for your Belkin product you must take the following steps:

1. Contact Belkin International, Inc., at 501 W. Walnut St., Compton CA 90220, Attn:

Customer Service, or call (800)-223-5546, within 15 days of the Occurrence. Be

prepared to provide the following information:

a. The part number of the Belkin product.

b. Where you purchased the product.

c. When you purchased the product.

d. Copy of original receipt.

2. Your Belkin Customer Service Representative will then instruct you on how to

forward your receipt and Belkin product and how to proceed with your claim.

Information | 07

Information

Belkin International, Inc., reserves the right to review the damaged Belkin product. All

costs of shipping the Belkin product to Belkin International, Inc., for inspection shall

be borne solely by the purchaser. If Belkin determines, in its sole discretion, that it is

impractical to ship the damaged equipment to Belkin International, Inc., Belkin may

designate, in its sole discretion, an equipment repair facility to inspect and estimate the

cost to repair such equipment. The cost, if any, of shipping the equipment to and from

such repair facility and of such estimate shall be borne solely by the purchaser. Damaged

equipment must remain available for inspection until the claim is finalized. Whenever

claims are settled, Belkin International, Inc., reserves the right to be subrogated under

any existing insurance policies the purchaser may have.

How state law relates to the warranty.

THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN INTERNATIONAL,

INC., THERE ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED BY

LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION OF QUALITY,

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED

WARRANTIES, IF ANY, ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the

above limitations may not apply to you.

IN NO EVENT SHALL BELKIN INTERNATIONAL, INC., BE LIABLE FOR INCIDENTAL, SPECIAL,

DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED

TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE SALE OR USE OF ANY BELKIN

PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

This warranty gives you specific legal rights, and you may also have other rights, which may

vary from state to state. Some states do not allow the exclusion or limitation of incidental,

consequential, or other damages, so the above limitations may not apply to you.
