SPIDER II

Release

09/09 Technical Support

HAC-Support@hirschmann.de

User Manual

Installation

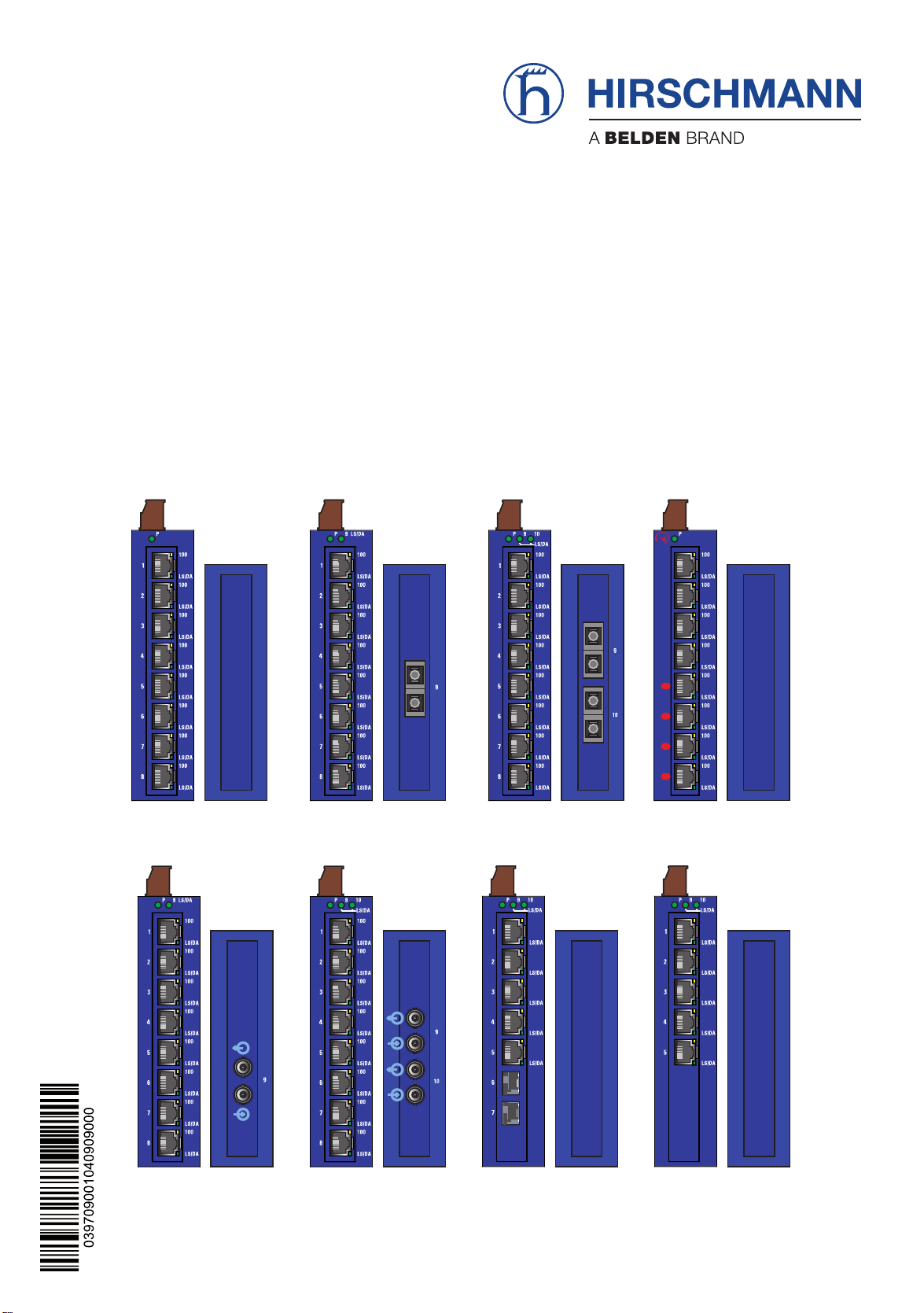

Industrial ETHERNET Rail Switch

SPIDER II, SPIDER II Giga, SPIDER II PoE

SPIDER II 8TX

SPIDER II 8TX EEC

SPIDER II 8TX/1FX EEC

SPIDER II 8TX/1FX-SM EEC

SPIDER II 8TX/1FX-ST EEC

SPIDER II 8TX/2FX EEC

SPIDER II 8TX/2FX-SM EEC

SPIDER II 8TX/2FX-ST EEC SPIDER II Giga 5T/2S EEC SPIDER II Giga 5T EEC

SPIDER II 8TX PoE

The naming ofcopyrighted trademarks inthis manual,even when not specially indicated, should

not be taken to mean that these names may be considered as free in the sense of the trademark

and tradename protection law and hence that they may be freely used by anyone.

Manualsandsoftwareareprotectedby copyright.Allrightsreserved.Thecopying,reproduction,

translation, conversion into any electronic medium or machine scannable form is not permitted,

either in whole or in part. An exception is the preparation of a backup copy of the software for

your own use. For devices with embedded software, the end-user license agreement on the en-

closed CD applies.

The performance features described here are binding only if they have been expressly agreed

when the contract was made. This document was produced by Hirschmann Automation and

ControlGmbHaccordingto thebestofthecompany'sknowledge.Hirschmannreservestheright

to change the contents of this document without prior notice. Hirschmann can give no guarantee

in respect of the correctness or accuracy of the information in this document.

Hirschmann can accept no responsibility for damages, resulting from the use of the network

components or the associated operating software. In addition, we refer to the conditions of use

specified in the license contract.

You can get the latest version of this manual on the Internet at the Hirschmann product site

(www.hirschmann-ac.de).

Printed in Germany

Hirschmann Automation and Control GmbH

Stuttgarter Str. 45-51

72654 Neckartenzlingen

Germany

Tel.: +49 1805 141538

039 709-001-04-0909 17.9.09

SPIDER II

Release

09/09 3

Content

Safety instructions 4

Legend 8

1 Device description 9

1.1 Description of the device variants 10

2 Assembly and start-up 14

2.1 Installing the device 14

2.1.1 Unpacking and checking 14

2.1.2 Installing the SFP modules (if present) 15

2.1.3 Connecting the terminal block for the supply voltage

and the grounding 15

2.1.4 Mounting the device on the DIN rail 16

2.1.5 Dimensions 17

2.1.6 Installing the terminal block, start-up procedure 17

2.1.7 Connecting the data lines 17

2.2 Display elements 20

2.2.1 Device state 20

2.2.2 Port state 20

2.3 Disassembly 21

2.3.1 Removing the device from the DIN rail 21

2.3.2 Disassembling the SFP modules 22

3 Technical data 23

Further support 28

4SPIDER II

Release

09/09

Safety instructions

Notes on safety

This manual contains instructions to be observed for ensuring your per-

sonal safety and for preventing damage. The warnings appear next to a

warning triangle with a different heading depending on the degree of dan-

ger posed:

Danger!

Means that death, serious physical injury or significant damage

to property will occur if the corresponding safety measures are

not carried out.

Warning!

Means that death, serious physical injury or significant damage

to property could occur if the corresponding safety measures

are not carried out.

Caution!

Means that minor physical injury or damage to property can oc-

cur if the required safety measures are not carried out.

Note: Contains important information on the product, on how to manage

the product, or on the respective section of the documentation to which

your special attention is being drawn.

Certified usage

Please observe the following: The device may only be employed for the

purposes described in the catalog and technical description, and only in

conjunction with external devices and components recommended or

approved by the manufacturer. The product can only be operated cor-

rectly and safely if it is transported, stored, installed and assembled pro-

perly and correctly. Furthermore, it must be operated and serviced

carefully.

Supply voltage

The devices are designed for operation with a safety extra-low voltage.

Accordingly, only SELV circuits with voltage restrictions in line with IEC/

EN 60950-1 may be connected to the supply voltage connections.

Warning!

Only connect asupply voltagethat corresponds tothe type plate

of your device.

Use only undamaged parts.

SPIDER II

Release

09/09 5

If you are operating the module with an external voltage, only supply

the system with a safety extra-low voltage in compliance with IEC/EN

60950-1.

Connect the ground connector before you set up the other connec-

tions. When removing the connections, you remove the ground con-

nector last.

Relevant for North America: To be used in class 2 circuits.

The device may only be connected to a supply voltage of class 2 that

fulfills the requirements of the National Electrical Code, Table 11(b).

Relevant for North America: For use in Class 2 circuits.

Only use copper wire/conductors of class 1, 60/75°C or 90 °C.

Relevant for North America

for devices certified for hazardous locations:

Power, input and output (I/O) wiring must be in accordance with

Class I, Division 2 wiring methods [Article 501-4(b) of the National

ElectricalCode,NFPA 70]andin accordance withtheauthorityhaving

jurisdiction.

Only switch on the device when the housing is closed.

Shielding ground

Bewareofpossible shortcircuitswhen connecting a cablesectionwith

conductive shielding braiding.

Housing

Only technicians authorized by Hirschmann are permitted to open the

housing.

Note: The device is grounded by means of a 3-pin terminal block.

Make sure that the electrical installation meets local or nationally ap-

plicable safety regulations.

The ventilation slits must not be covered so as to ensure free air circu-

lation.

The clearance to the ventilation slits of the housing must be at least

10 cm (3.94 in).

The device must be installed in the vertical position.

If installed in aliving areaor officeenvironment, the devicemust beop-

eratedexclusivelyinswitchcabinetswithfireprotectioncharacteristics

in accordance with EN 60950-1.

6SPIDER II

Release

09/09

Warning!

Never insert sharp objects (small screwdrivers, wires, etc.) into

the inside of the product. There is the risk of an electric shock.

Environment

The device may only be operated at the specified maximum ambient tem-

perature (temperature of the ambient air at a distance of up to 5 cm (1.97

in) from the device) and relative air humidity.

Install the device in a location where the climatic threshold values

specified in the technical data are adhered to.

Only to be used in an environment with the contamination level speci-

fied in the technical data.

Qualification requirements for personnel

Qualified personnel as understood in this manual and the warning signs,

are persons who are familiar with the setup, assembly, startup, and oper-

ation of this product and are appropriately qualified for their job. This in-

cludes, for example, those persons who have been:

Xtrained or directed or authorized to switch on and off, to ground and to

labelpowercircuitsanddevicesorsystems in accordance withcurrent

safety engineering standards;

Xtrainedordirectedinthe careand useof appropriatesafetyequipment

in accordance with the current standards of safety engineering;

Xtrained in providing first aid.

General safety instructions

Electricity is used to operate this equipment. Comply in every detail with

the safety requirements specified in the operating instructions regarding

the voltages to apply (refer to page 4).

Non-observance of thesesafetyinstructionscanthereforecausematerial

damage and/or serious injuries.

Only appropriately qualified personnel should work on this device or in

its vicinity. These personnel must be thoroughly familiar with all the

warnings and maintenance procedures in accordance with this oper-

ating manual.

The proper and safe operation of this device depends on proper han-

dling during transport, proper storage and assembly, and conscien-

tious operation and maintenance procedures.

Never start operation with damaged components.

Only use the devices in accordance with this manual. In particular, ob-

serve all warnings and safety-related information.

Any work that may be required on the electrical installation may only

be carried out by personnel trained for this purpose.

SPIDER II

Release

09/09 7

Relevant for SPIDER II 8 TX/...FX... EEC and SPIDER II Giga 5T/2S

EEC:

Note:

LED or LASER components in compliance with IEC 60825-1 (2001):

CLASS 1 LASER PRODUCT

CLASS 1 LED PRODUCT

National and international safety regulations

Make sure that the electrical installation meets local or nationally

applicable safety regulations.

Note on the CE marking

The devices comply with the regulations contained in the following Euro-

pean directive(s):

2006/95/EG, 2004/108/EG

Directive of the European Parliament and the council for standardizing

the regulations of member states with regard to electromagnetic

compatibility.

72/245/EWG, 2006/28/EG

Guideline for standardizing the regulations of member states relating to

radio interference from motor vehicles. Certified devices are marked with

an e1 type approval indicator.

In accordance with the above-named EU directive(s), the EU conformity

declaration will be at the disposal of the relevant authorities at the follow-

ing address:

Hirschmann Automation and Control GmbH

Stuttgarter Str. 45-51

72654 Neckartenzlingen

Tel.: +49 1805 141538

The product can be used in living areas (living area, place of business,

small business) and in industrial areas.

XInterference immunity: EN 61000-6-2:2005

XEmitted interference: EN 55022:2006 Class A

8SPIDER II

Release

09/09

Warning

This is a class A device. This device can cause interference in

living areas, and in this case the operator may be required to

take appropriate measures.

The assembly guidelines provided in these instructions must be strictly

adhered to in order to observe the EMC threshold values.

FCC note:

Appropriate testing has established that this device fulfills the require-

ments of a class A digital device in line with part 15 of the FCC regula-

tions.

These requirements are designed to provide sufficient protection against

interference when the device is being used in a business environment.

The device creates and uses highfrequencies and can radiate same, and

if it is not installed and used in accordance with this operating manual, it

can cause radio transmission interference. The use of this device in a liv-

ing area can also cause interference, and in this case the user is obliged

to cover the costs of removing the interference.

Recycling note

Afterusage,thisproductmustbedisposedofproperlyas electronicwaste

in accordance with the current disposal regulations of your county / state

/ country.

Legend

The commendations used in this manual have the following meanings:

XListing

Work step

Subheading

SPIDER II

Release

09/09 9

1 Device description

The SPIDER II devices are designed for the special requirements of industri-

al automation. They meet the relevant industry standards, provide very high

operational reliability, even under extreme conditions, and also long-term re-

liability and flexibility.

The devices allow you to set up switched industrial ETHERNET networks

that conform to the IEEE 802.3 and 802.3u standards using copper wires or

optical fibers in a line structure.

The SPIDER II 8TX... devices have, depending on the variant, eight TP ports

(10/100 Mbit/s, RJ45 socket) and up to two 100 Mbit/s F/O ports (100BASE-

FX, DSC or ST connection). The SPIDER II Giga... devices have, depending

on the variant, five TP ports (10/100/1000 Mbit/s, RJ45 socket) and up to two

1000 Mbit/s F/O ports (1000BASE-SX/LX, SFP slot).

The SPIDER II 8TX PoE devices support Power over ETHERNET (PoE) ac-

cording to IEEE 802.3af.

They allow the connection and remote supply of, for example, IP telephones

(Voice over IP), webcams, sensors, printer servers and WLAN access points

via 10BASE-T/100BASE-TX. With PoE, these terminal devices are powered

by the twisted-pair cable.

Mount the devices by

Xsimply snapping them onto a DIN rail

Depending on the device variant, you can choose various media to connect

terminal devices and other infrastructure components:

Xtwisted pair cable

Xmultimode F/O

Xsinglemode F/O

The twisted pair ports support:

XAutocrossing

XAutonegotiation

XAutopolarity

The F/O ports support:

XFull duplex mode

The Hirschmann network components help you to establish continuous com-

munication across all levels of the company. Connect your devices to:

Xdevices of the MICE family

Xbackbone devices of the MICE family

Xthe BAT wireless transmission system

Xthe EAGLE security system

Xproducts for the LION control room / MACH 100 family

10 SPIDER II

Release

09/09

1.1 Description of the device variants

The devices differ with regard to the number of interfaces and the media type

for connecting segments.

The table below shows the number and type of the ports for each product

variant. The abbreviations F/O (optical fiber) and TP (twisted pair) indicate

the media type. The abbreviations DSC, ST, SFP and RJ45 indicate the

socket type. The abbreviations MM (Multimode) and SM (Singlemode) indi-

cate the optical fiber type.

Variant

10/100 Mbit/s,

TP, RJ45

PoE ports included

100 Mbit/s,

F/O, MM, DSC

100 Mbit/s,

F/O, SM, DSC

100 Mbit/s,

F/O, MM, ST

10/100/

1000 Mbit/s,

TP, RJ45

1000 Mbit/s,

F/O, SFP

SPIDER II 8TX 8

SPIDER II 8TX EEC 8

SPIDER II 8TX/1FX EEC 8 1

SPIDER II 8TX/1FX-SM EEC 8 1

SPIDER II 8TX/2FX EEC 8 2

SPIDER II 8TX/2FX-SM EEC 8 2

SPIDER II 8TX/1FX-ST EEC 8 1

SPIDER II 8TX/2FX-ST EEC 8 2

SPIDER II Giga 5T EEC 5

SPIDER II Giga 5T/2S EEC 5 2

SPIDER II 8TX PoE 4

Table 1: Number and type of ports

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Belden Changer

Belden

Belden HIRSCHMANN BRS20 Manuel utilisateur

Belden

Belden Hirschmann RS20 U Series Manuel utilisateur

Belden

Belden HIRSCHMANN OCTOPUS OS20 Series Manuel utilisateur

Belden

Belden grass valley SIRIUS 800 Series Guide de l'utilisateur

Belden

Belden Hirschmann RS20 Series Manuel utilisateur

Belden

Belden HIRSCHMANN OCTOPUS OS3 Manuel utilisateur

Belden

Belden Hirschmann MACH104-PoEP Series Manuel utilisateur

Belden

Belden HIRSCHMANN IT MAMMUTHUS MTS2948X-6Q-A Manuel utilisateur

Belden

Belden grass valley MASTERPIECE 12G-SDI Manuel utilisateur

Belden

Belden HIRSCHMANN GRS105 Manuel utilisateur

Belden

Belden Hirschmann Rail Switch Power Lite Manuel utilisateur

Belden

Belden Hirschmann RS20 Series Manuel utilisateur

Belden

Belden Hirschmann MICE MS20 Manuel utilisateur

Belden

Belden Telecast Fiber Systems THOR-SLG Manuel utilisateur

Belden

Belden MAMMUTHUS MTM2800-PSU120 Manuel utilisateur

Belden

Belden HIRSCHMANN IT MAMMUTHUS MTM8000 Series Manuel utilisateur

Belden

Belden Hirschmann SPIDER 8TX EEC Manuel utilisateur

Belden

Belden HIRSCHMANN SPIDER II 16TX EEC Manuel utilisateur

Belden

Belden HIRSCHMANN MACH4002-48+4G Manuel utilisateur

Belden

Belden Hirschmann MICE MS20 Manuel utilisateur

Belden

Belden Grass Valley K-Frame Comment utiliser

Belden

Belden Hirschmann SPIDER Standard Line Series Manuel utilisateur

Belden

Belden Hirschmann RS20 Series Manuel utilisateur

Belden

Belden HIRSCHMANN EESX Series Guide de configuration rapide

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
