Baumatic BWC885BGL Manuel utilisateur

BWC885BGL

Built-in wine cabinet

USER MANUAL FOR YOUR BAUMATIC

BWC885BGL

1 Bottle built-in dual

temperature electronic wine

cabinet

NOTE

This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance

GS 04/05/12

Contents

Environmental note 4

Important safety information 5 – 7

Specifications of your wine cabinet 7 –10

Dimensions 7

Product specifications 7 - 8

Description of the appliance 8

ontrol panel 9

Description of the product features 9 -10

Using your Baumatic wine cabinet 10-15

Before switching on 10

During first use 11

Turning the appliance on and off 11

Unlocking the control panel 11

The interior light 12

Setting the temperature 12

hanging between Fahrenheit and elsius 12

Loading the wine cabinet 13

Storing your wines 13-14

Wine storage problems 15

Cleaning and maintenance 16-17

Defrosting 16-17

Moving your wine cabinet 17

Power failure 17

Vacation time 17

Installation 18-24

Electrical connection 18-19

Positioning 19

Built-in installation 20-21

Installing the handle 21

Reversing the door of your wine cabinet 22-24

Troubleshooting 24-26

Baumatic consumables 27

Technical data 28

Contact details 29

Environmental note

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person

Use of the appliance

oYour appliance is only designed to be used in the

home. This appliance is intended to be used

exclusively for the storage of wine. If it is used for

any other purpose or it is not used correctly, then

Baumatic Ltd. will accept no liability for any

damage that is caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain F s that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipework

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oThis appliance is intended for use by persons

with sufficient experience and knowledge of

electrical appliances. Any other persons

(including children) should be supervised or given instruction

concerning use of the appliance by a person responsible for their

safety.

ohildren should be supervised to ensure that they do not play

with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing

maintenance work, ensure that the appliance has been

disconnected from your mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated,

so that there is proper air flow between the

bottom of the unit and the plinth/kick plate

which it is sitting on.

oDo not place electrical devices inside of the appliance, such as

mixers or ice cream makers.

Service

You should not attempt to repair the appliance

yourself, as this could cause injury or a more serious

malfunction. If you require a service call then please

contact the ustomer are Department.

Specifications of your wine cabinet

Dimensions of appliance

Height: 885 mm

Width: 592 mm

Depth: 555 mm

Dimensions of aperture*

Height: 886 mm MIN

Width: 565 - 575 mm

Depth: 560 mm MIN

oGross capacity: 130 litres

oNet capacity: 127 litres

oBottle capacity: 41 x 0.75 litre Bordeaux style wine bottles

oEnergy efficiency class: E

oNoise level: 39 dB

oFan assisted operation

oLED display

oelsius and Fahrenheit option

o6 wooden shelves

oAdjustable temperature

oInternal light

oTempered door glass

oWater drainage

oTwo individual temperature zones

oUpper zone compartment: 5° - 12°

oLower zone compartment: 12° - 22°

oReversible door

oSmoked door glass

oBlack and glass door frame

oBlack interior and exterior

* Please refer to the installation instructions for more specific

information on the size of aperture that you will require.

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the front left edge

of the appliance. The rating plate will indicate the ambient temperature

range that your appliance will function correctly within. It is also

advisable to make a note of the model number and the serial number

of the appliance before installing it.

Model number ………………………………………………

Serial number ………………………………………………

Date of purchase ……………………………………………..

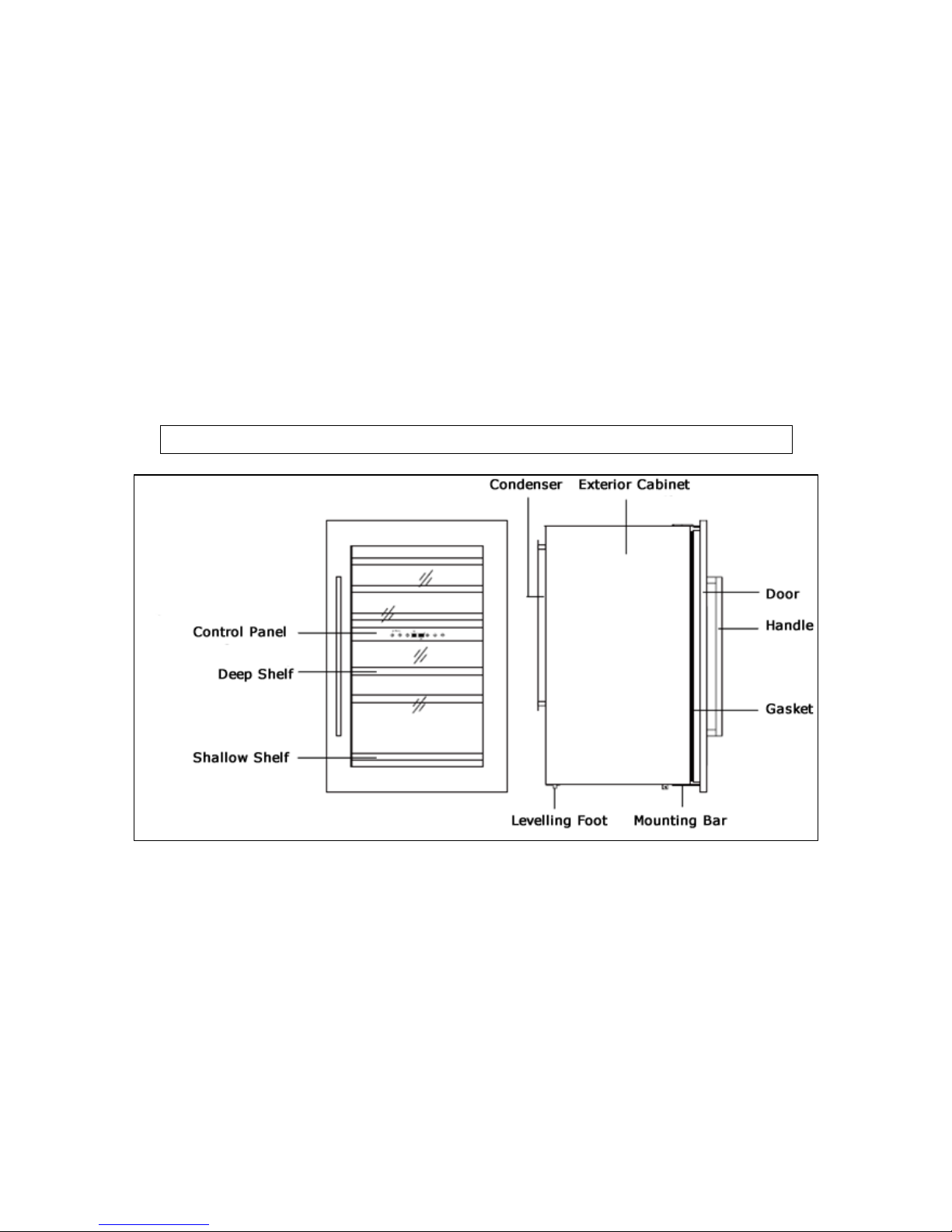

Description of the appliance

Control panel

The control panel is located in the middle of the appliance.

Description of the product features

Control panel

oThe control panel is located in the middle of the appliance,

behind the glass door. This means it is easy to set the

temperature of the appliance and see what temperature the

appliance is set to.

Two cooling zones

oThere are two cooling zones inside of your wine cabinet.

oEach cooling zone has a separate temperature control and

temperature display.

Interior light

oThe cooling zone has an interior light. The light can be switched

on and off by using the light button.

The wine cabinet shelves

oTo prevent damaging the door gasket, make sure the door is

fully open when pulling shelves out of the rail compartment.

oFor easy access to the bottles stored, pull the shelves out

approximately 1/3 of the way. The shallow shelves do not have

telescopic rails but have a plastic stopper on each side of the

interior cabinet to prevent the shelf from falling out.

oThe deep shelves have telescopic rails which have stoppers of

their own.

Using your Baumatic wine cabinet

Before switching on

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oAfter delivery, wait for eight hours before connecting the

appliance to your mains supply. This will allow any refrigerant

gasses that may have been disturbed during the transportation

process to settle.

oThe outside of the appliance and the removable accessories

contained within it, should be cleaned with a solution of liquid

detergent and water.

oThe interior of the appliance should be cleaned

with a solution of sodium bicarbonate dissolved in

lukewarm water. The interior and accessories

should be thoroughly dried, after the cleaning

process has been completed.

oThere can be an odour when you first switch on the appliance. It

will lessen as the appliance starts to cool.
