USER MANUAL FOR YOUR BAUMATIC

BWC614SS 140

Bottle dual

temperature wine

cooler

User manual for your Baumatic

BWC614SS

140 cm 92 Bottle dual

temperature wine cooler

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance.

GS 05/11/10

Contents

Environmentalnote 4

Important safety information 5–6

Specifications of your wine cooler 7-10

Dimensions 7

Descriptionoftheappliance 8

Controlpanel 9

Description of the product features 9-10

Using your Baumatic wine cooler 10-16

Beforeswitchingon 10

Duringfirstuse 11

Switching on the appliance and setting the temperature 11-12

Changing between Fahrenheit and Celsius 12

Thehumiditycontrolbox 12

Loading the wine cooler 13

Storingyourwines 14-15

Wine storage problems 15-16

Cleaning and maintenance 16-18

Defrosting 17

Removing the shelves for cleaning 17

Moving your wine cooler 18

Powerfailure 18

Vacationtime 18

Installation 19-24

Electrical connection 19-20

Positioning 20

Built-in installation 21

Installing the handle 21-22

Reversing the door of your wine cooler 22-24

Troubleshooting 25-26

Contactdetails 27

Environmental note

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of the information contained in

this booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing and chilling wine.

NO food stuffs must be stored in the appliance. If it

is used for any other purpose or it is not used

correctly, then Baumatic Ltd. will accept no liability

for any damage that is caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipework

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing

maintenance work, ensure that the appliance has been

disconnected from your mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

oIt is vital to keep your appliance well ventilated,

so that there is proper air flow between the

bottom of the unit and the plinth/kick plate

which it is sitting on.

oDo not place electrical devices inside of the appliance, such as

mixers or ice cream makers.

Service

You should not attempt to repair the appliance

yourself, as this could cause injury or a more serious

malfunction. If you require a service call then please

contact the Customer Care Department.

Specifications of your wine cooler

oGross capacity: 275 litres

oNet capacity: 265 litres

oBottle capacity: 92 x 0.75 litre Bordeaux style wine bottles

oElectronic push button control operation

oLED display

oCelsius and Fahrenheit switch

o12 Adjustable wooden shelves with telescopic runners

oAdjustable temperature

oDigital thermometer

oHumidity control box

oInternal light

oBlack exterior

oStainless steel door frame and handle

oReversible door

oAdjustable feet

oTempered door glass

oDesigned to store wine at its optimum temperature between +

5°C - 22°C

Dimensions of appliance**

Height: 1445 mm

Width: 595 mm

Depth: 570 mm

** Please refer to the installation instructions for more specific

information on the size of aperture that you will require.

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the front left edge

of the appliance. The rating plate will indicate the ambient temperature

range that your appliance will function correctly within.

Model number ………………………………………………

Serial number ………………………………………………

Date of purchase ……………………………………………..

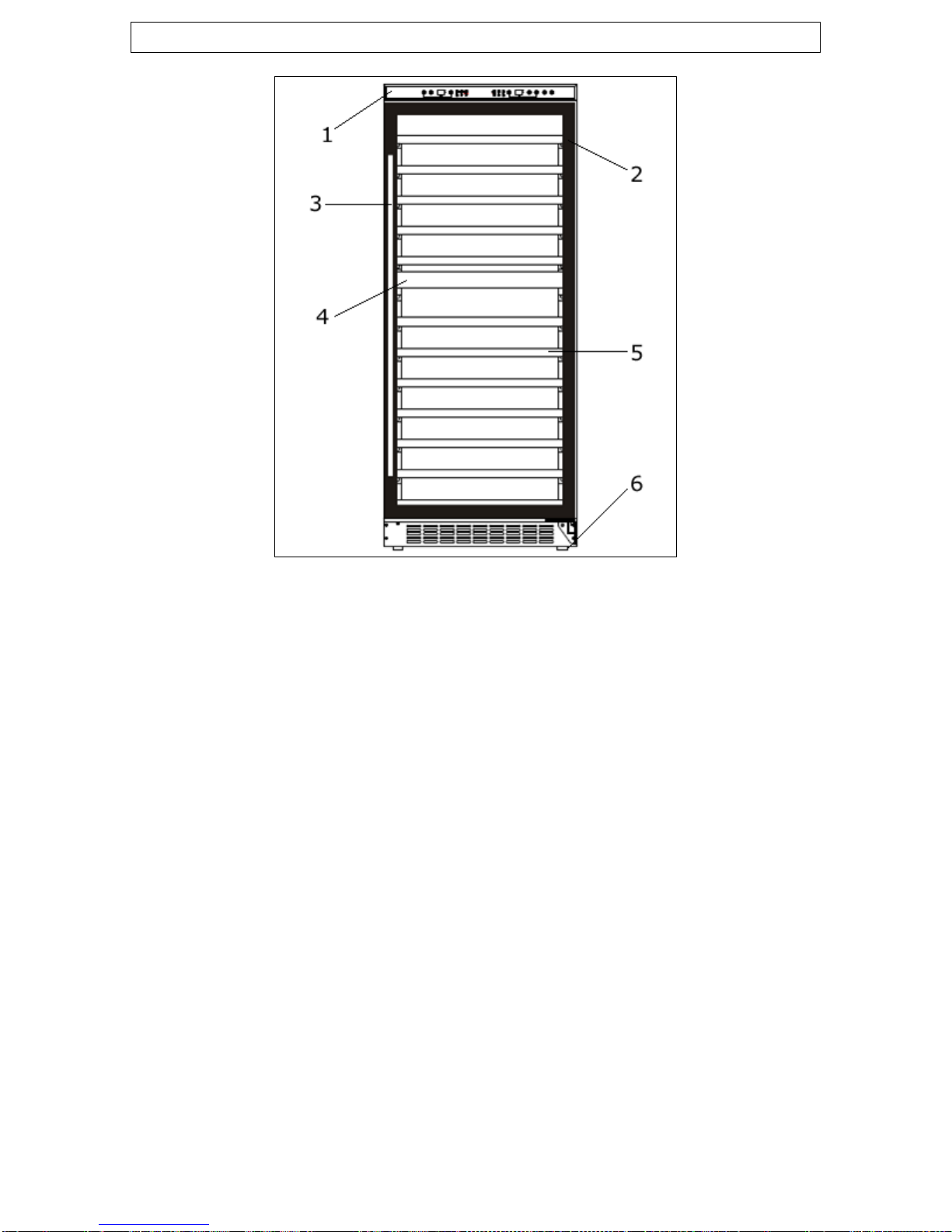

Description of the appliance

1) Digital control panel

2) Stainless steel door frame

3) Stainless steel handle

4) Middle zone divider

5) Adjustable wooden shelves

6) Adjustable feet

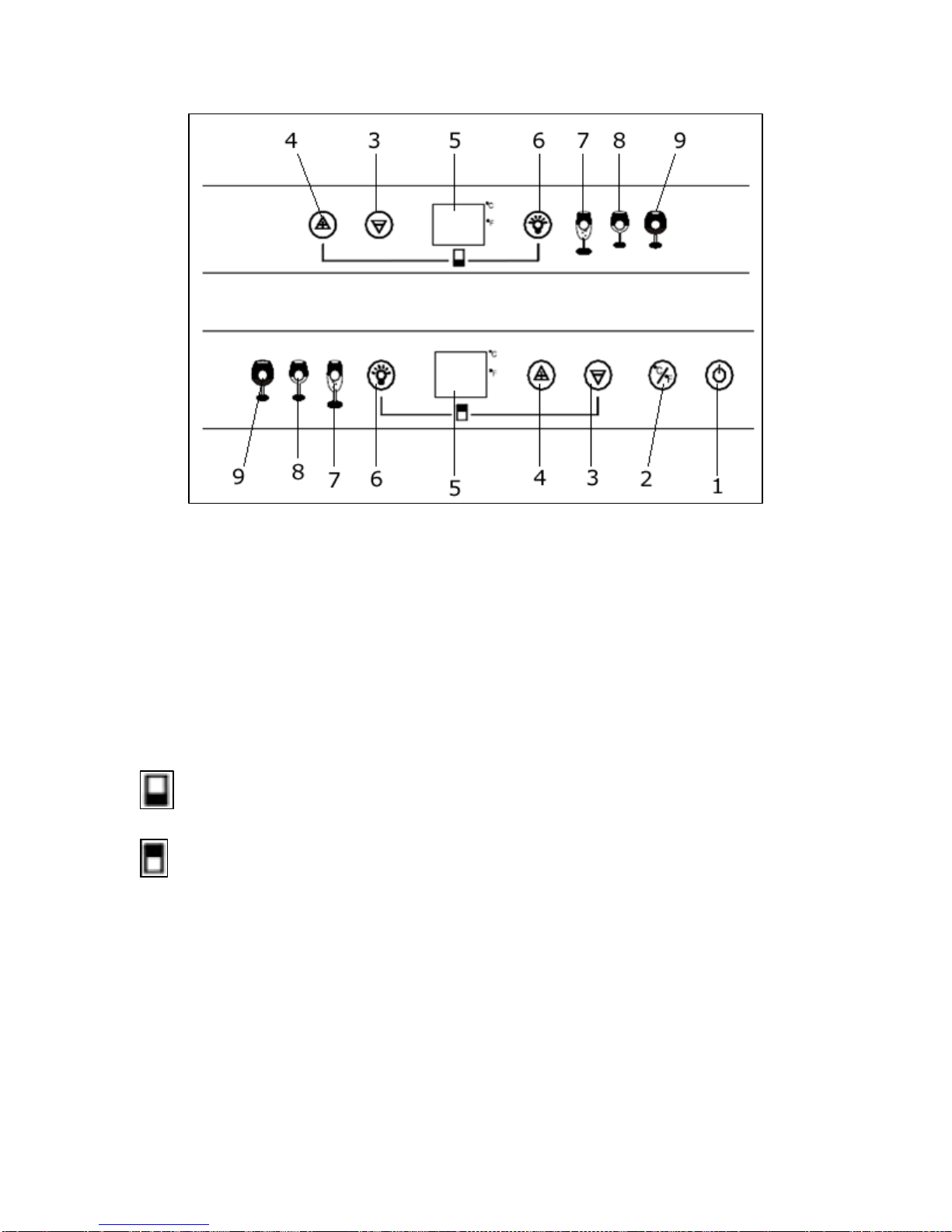

Control panel

The control panel is located at the top of the appliance.

1) Power button

2) Celsius / Fahrenheit selector button

3) Temperature minus button

4) Temperature plus button

5) LED display

6) Light control button

7) Amber LED indicator for sparkling wine

8) Green LED indicator for white wine

9) Red LED indicator for red wine

This icon indicates that the control panel is for the upper cooling

zone.

This icon indicates that the control panel is for the lower cooling

zone.

Description of the product features

1) Control panel

oThe control panel is located at the top of the appliance, behind

the glass door. This means it is easy to set the temperature of

the appliance and see what temperature the appliance is set to.

2) Two cooling zones

oThere are two cooling zones inside of your wine cooler; they are

separated by a middle partition.

oEach cooling zone has an independent temperature control and

temperature display.

3) Interior light

oThe wine cooler has an interior light. The light can be switched

on and off by using the light control button (6).

4) The wine cooler shelves

oThe wooden shelves are fully adjustable to suit various wine

bottle shapes and sizes.

oTo prevent damaging the door gasket, make sure the door is

fully open when pulling shelves out of the rail compartment.

oFor easy access to the bottles stored, pull the shelves out

approximately 1/3. The shelves are designed with an emergency

stop to prevent them being removed too far when loaded.

Using your Baumatic wine cooler

Before switching on

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oAfter delivery, wait for eight hours before connecting the

appliance to your mains supply. This will allow any refrigerant

gasses that may have been disturbed during the transportation

process to settle.

oThe outside of the appliance and the removable accessories

contained within it, should be cleaned with a solution of liquid

detergent and water.

oThe interior of the appliance should be cleaned

with a solution of sodium bicarbonate dissolved in

lukewarm water. The interior and accessories

should be thoroughly dried, after the cleaning

process has been completed.
