Baumatic BWCDZ150SS1 Manuel utilisateur
User manual for your Baumatic

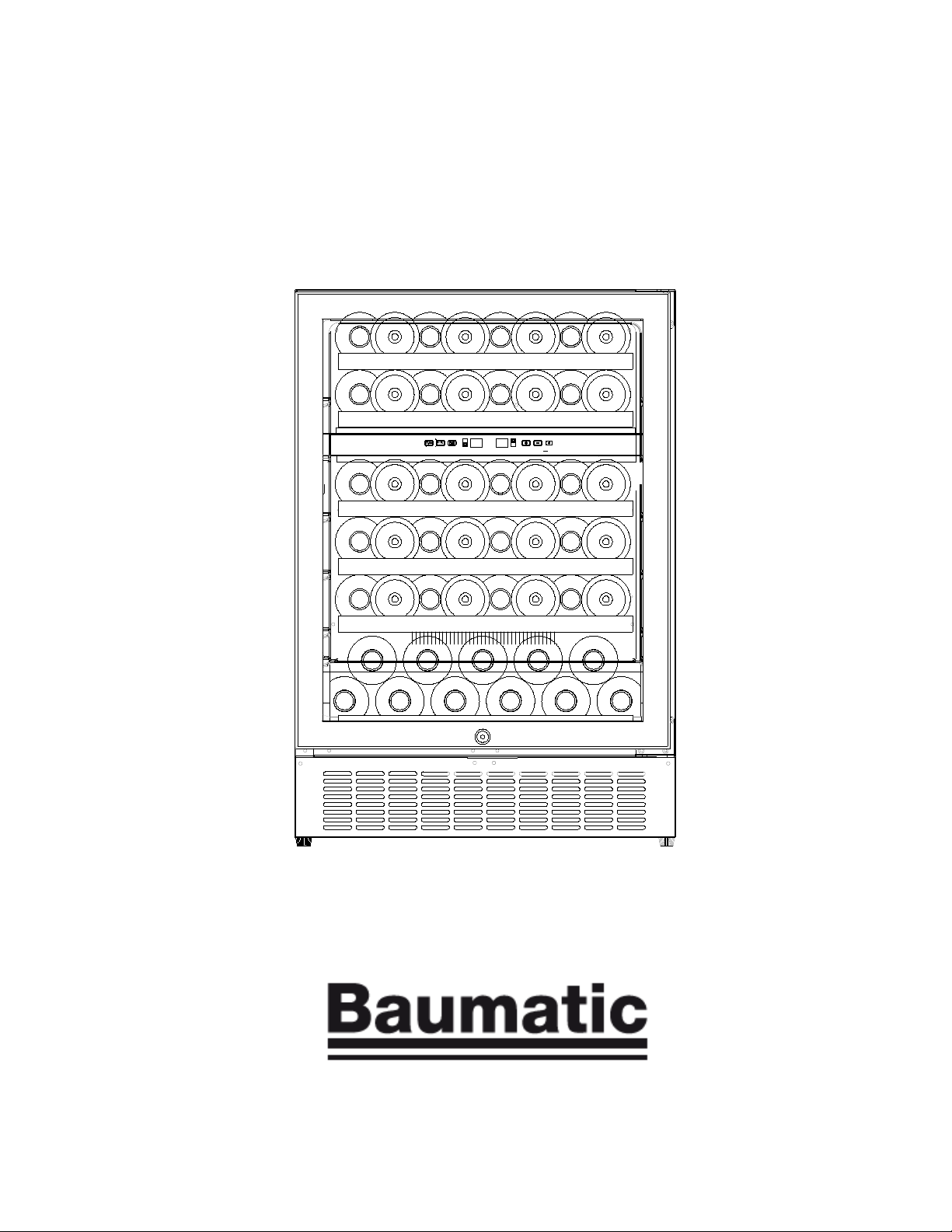

51 Bottle Temperature Controlled Wine Cabinet
BWCDZ150SS1/BWCDZ150GL1
DUAL ZONE WINE CABINET
NOTE: This user manual contains important information including safety & installation
points which will enable you to get the most out of your Baumatic appliance. Please keep it in
a safe place so that it is readily available for future reference.
°F
°
C
2
Thank you for purchasing a Baumatic built in wine cabinet.
Your appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the
factory, the appliance was thoroughly checked with regard to safety and functionality.
Before using the appliance, please carefully read these Operating Instructions.
Environmental note
Important safety information
Structure drawing
Installation
Accessory installation before operating
Using your Baumatic wine cabinet
Care and maintenance
Troubleshooting
Warranty Registration Card
3
4 - 5
6
7 – 9
10
11 - 15
16- 17
18- 19
20
NOTE: The appliance is intended for household use only.
The manufacturer reserves the right to introduce changes which do
not affect the operation of the appliance.
Contents
3
Environmental note
o
The packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
o
Please discard all packaging material with due regard for the
environment.
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by acompetent person. Disable
the door lock to make sure that children cannot get stuck inside the
appliance.
4
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact Baumatic Service Care.
IMPORTANT: Any installation work must be carried
out by a qualified electrician or competent person.
Use of the appliance
o
Your appliance is only designed to be used in the
home. It is suitable for storing and chilling wine.
NO food stuffs must be stored in the appliance. If it
is used for any other purpose or it is not used
correctly, then Baumatic will accept no liability
for any damage that is caused.
o
Altering the specification of the appliance must not be attempted
for reasons of safety.
Before using your appliance
o
Check the appliance for any signs of transport damage. If you
notice any damage, then you should not connect your appliance
to your mains supply and should contact your retailer.
Refrigerant
o
Your appliance contains R600a refrigerant, which is a natural gas
that does not contain CFCs that can damage the environment.
However it is a flammable substance, therefore care should be
taken:
During the transportation and installation of the
appliance, make sure that the refrigeration pipework
does not get damaged.
If it does become damaged then sources of ignition
and open flames should be avoided. Also the room
that the appliance is situated in should be thoroughly
ventilated.
o
Do not place any objects on top of the appliance,
as this may damage the table top.
5
Child safety
o
Packaging material should be kept away from
children.
o
Children should not be allowed to touch the
controls or play with the appliance.
General safety
o
Do not pull on the power supply cable to remove the plug from
your mains supply socket.
o
Do not pull out or insert the plug with wet hands.
o
Do not attempt to use your appliance outdoors or
any place where it is likely to come into contact
with the elements.
o
Before cleaning the appliance or performing maintenance work,
ensure that the appliance has been disconnected from your
mains supply.
o
Never allow the back coils of the appliance to come into contact
with the wall surface.
o
Always ensure that the location where you are installing your
appliance is free of stored items such as papers and other
flammable materials.
o
Never block the ventilation openings of the appliance, either on
the inside or its exterior.
o
It is vital to keep your appliance well ventilated, so
that there is proper air flow between the bottom of
the unit and the plinth/kick plate which it is sitting
on.
o
Do not place electrical devices inside of the appliance, such as
mixers or ice cream makers.
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If you require a service call then please
contact Baumatic Service Care.
6

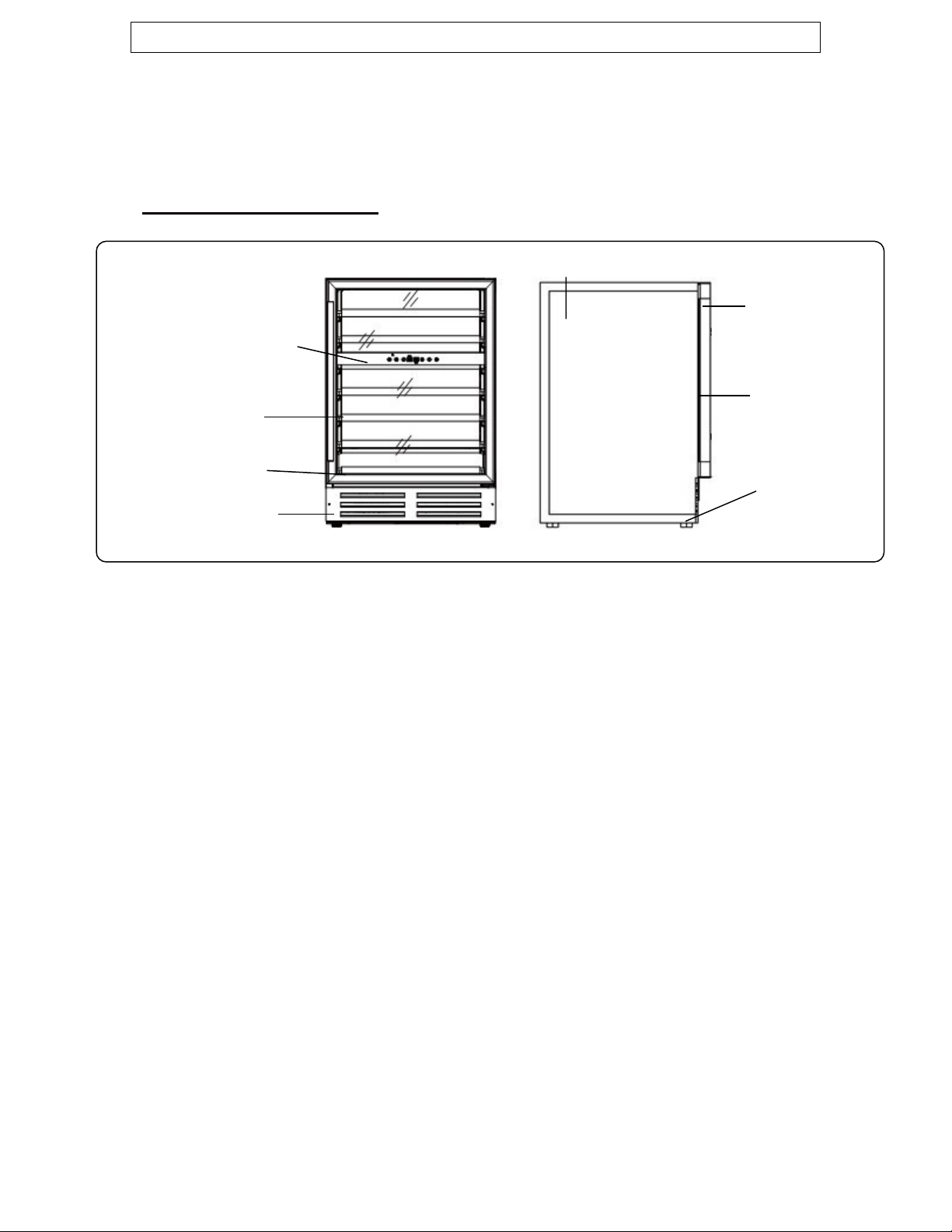

Structure drawing
The following pictures only show the structure of the appliance as well
as the installation drawing. The dimension and shelf quantity may differ
among the models of the same series.
BUILT-UNDER SERIES (Built under a kitchen table top)
Outside Cabinet
Dual Zones Structure
Door
T ouch-key Control Panel
& Digital Display
Deep Shelf
Gasket
Shallow Shelf
Front Louver
Leveling Foot
7
7
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found on the front left edge of the
inside of the wine cabinet.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection
YOUR WINE CABINET IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
"We recommend that the appliance is connected by a
qualified electrician, who is registered on the E.W.R.B. web site
and who will comply with the AS/NZS 3000 Wiring
Regulations and local regulations.
Your wine cabinet comes supplied with a 10 amp moulded lead with
an AS/NZS 3112 approved plug.
The wiring in the mains lead is coloured as follows:
o
Brown Live
o
Blue Neutral
o
Green and yellow Earth
As the colours of the wires in the appliance's mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
o
The brown wire must be connected to the terminal marked
"L" (live), or coloured red.
o
The blue wire must be connected to the terminal marked
"N" (neutral), or coloured black.
o
The green and yellow wire must be connected to the terminal
marked "E" (earth), or by the earth symbol, or coloured green and
yellow.
When the connection is completed, no stray strands or cut wire should
be present. The cord clamp must be secured over the outer sheath."
8
Positioning
o
It is advisable that your appliance is only installed in a location
where the ambient temperature of the room, corresponds with
the climate classification that is stated on the rating plate of your
appliance. Your appliance may not function correctly if the
ambient temperature falls outside of the following ranges.
Climate classification Appropriate ambient temperature
SN +10 to +32 degrees centigrade
N
+16 to +32 degrees centigrade
ST +18 to +38 degrees centigrade
T
+18 to +43 degrees centigrade
o
Positioning the appliance requires two people in order to avoid
injuries or damage to the appliance.
o
Your appliance should not be located in direct sunlight or
exposed to continuous heat or extremes of temperature (e.g.
next to a radiator or boiler). If this is not feasible, then you
should install an insulation plate between the appliance and the
adjacent heat source.
o
You should check whether there is an electrical socket available,
which will be accessible after your appliance is installed.
o
Place the appliance flatly and firmly on a solid base. The
appliance is fitted with adjustable feet on the front side, which
should be used to level the appliance.
o
Be sure to leave enough space for the opening of the door, to
avoid damage to the appliance or personal injury.
o
IMPORTANT: The vent at the base of the appliance is for
ventilation. Nothing should be placed in front of this vent;
otherwise your wine cabinet may not operate properly.
9
595mm Width Installation Drawing (mm)
o
Your wine cabinet can be used as a built in unit. The clearances
shown in the above drawing should be followed for both types of
installation.
o
In particular the depth dimension must be observed.
10
Accessory installation before operating
UNPACKING AND CLEANING THE WINE COOLER
•Make sure that it has been installed by a suitably qualified person, as
per the information contained in Baumatic’s installation instructions.
•Let the appliance stand upright for approximately 2 hours before
connecting it to the mains supply. This will allow any refrigerant
gasses that may have been disturbed during the transportation
process to settle.
•The outside of the appliance and the removable accessories contained
within it, should be cleaned with a solution of liquid detergent and
water.
•The interior of the appliance should be cleaned with a solution of
sodium bicarbonate dissolved in lukewarm water. The interior and
accessories should be thoroughly dried, after the cleaning process has
been completed.
•There can be an odour when you first switch on the appliance. It will
lessen as the appliance starts to cool.
LOCK & UNLOCK THE DOOR (OPTION)
●
Your Wine Cabinet has a lock for the door and a key should be
attached inside the packing of this User Manual.
●
Insert the key into the lock and turn it counter-clockwise to unlock
the door. To lock it, please follow the reversed operation. Please save
the key well.
