BasIP AU-04LA Manuel utilisateur

AU-04LA

IP INDOOR VIDEO ENTRY PHONE

quickstart guide

Full User Manual

wiki.bas-ip.com

privacy in their conversations.

of interior.

Control of the intercom is possible with the help of mechanical keys and

a touch screen. Classic black and white body color suitable for any style

One of the interesting features of the AU-04LA is the ability to connect

an additional SP-AU handset. This solution is ideal for those who want

1Microphone

24.3” Display

Monitoring

Open

Call

Photo frame mode

Concierge

Loudspeaker

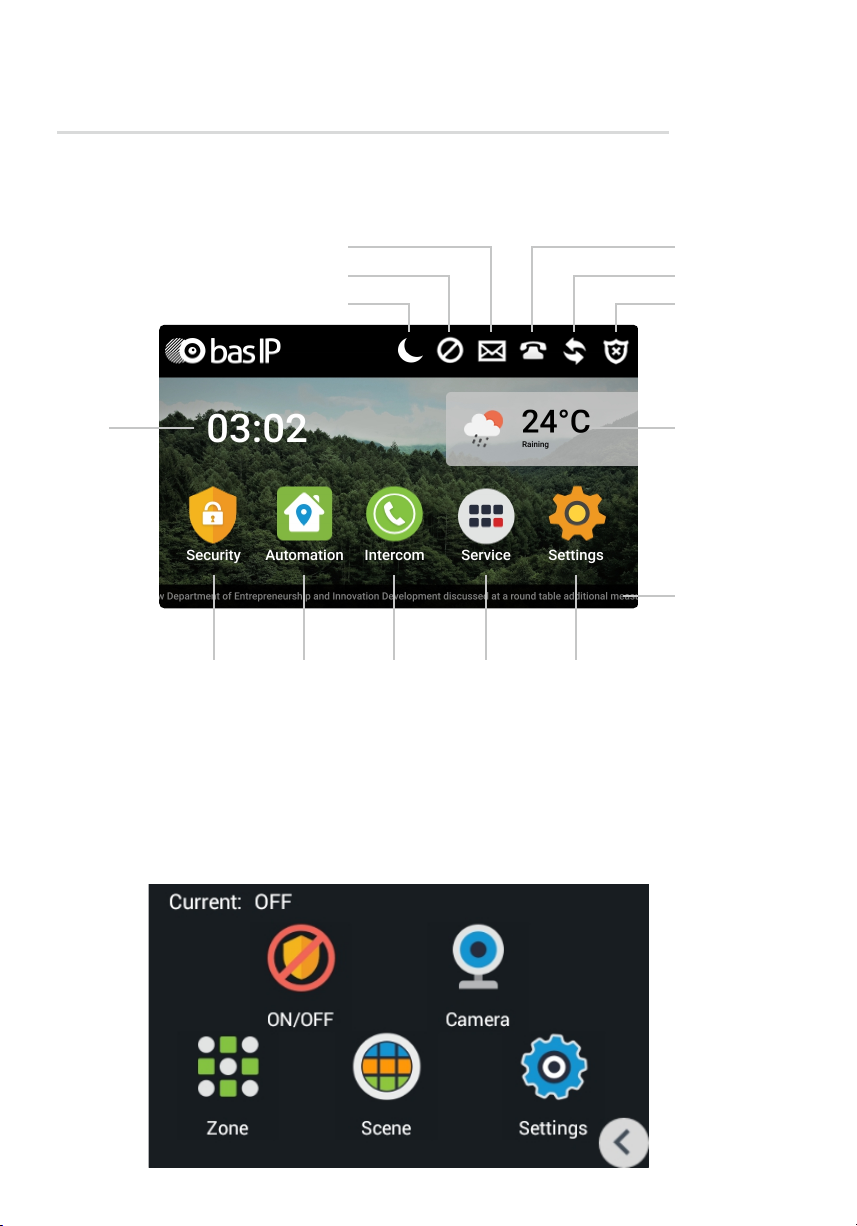

MAIN SCREEN AND SECURITY MENU

Time

DND menu

DND status

Message status

Security menu

SIP status

Missed calls

Weather

Security

menu Home

automation

Intercom

menu Service

menu Settings

News line

Main screen

Security menu

In this menu, you can turn on / oﬀ the alarm, make settings for loops,

scripts and go to the IP Camera view menu.

Security ON/OFF IP camera settings

There is from 1 to 8 IP cameras available

for display.

Select a camera in the list

by scrolling through the list and clicking

on the camera name.

Stop button

Play button

Zone settings

• №: Number of the sensor.

• Type: Type o the sensor.

Normal mode - the sensor is activated only when the system

is armed and if this sensor is selected in the paragraph above.

Usually this type is used for door and window sensors.

Emergency and 24 hours - is active constantly.

These types can be selected when ﬂood sensors, gas, volume,

smoke and heating are connected to the loops.

• Mode: Mode of the sensor.

It depends on the sensor used.

• 3C - activation is performed when switching position

NO - normally open sensor, activation is performed when•

the contacts are closed

NC - normally closed sensor, activation is performed when•

the contacts open

Bell - doorbell connection mode. When the contacts are•

closed, the monitor will start playing the incoming call melody.

• Delay: Delay before activating a speciﬁc sensor.

• Sensor: Selects the display type of the sensor

for additional informativity when triggered.

Display during an alarm

By setting the required value for the

connected sensor, the sensor number

and its name will be displayed on the

monitor when the alarm is triggered.

Display with zone settings

Main security display

To disable alarm you need to enter password.

By default, password is 1234.

Scene settings

After clicking this button, the following

interface will be displayed like here.

A total of 3 scenarios are available:

Outside the house, Home and Sleep.

Depending on each scenario, you can customize

the logic of the triggering of various loops.

Activation time: The time after which a particular

scenario is activated.

Settings

Old password: Current password input ﬁeld.

By default, user password is 1234.

New password: New password input ﬁeld.

Conﬁrm: New password conﬁrmation ﬁeld.

Home automation menu

Scenes

You can choose one of the scripts, previosly

deﬁned and written in automation modules

through software in advance.

Lights

This menu allows diﬀerent groups of lights

to be controlled in separate rooms

(using module SH-62).

Air conditioning

This menu allows controlling air

conditioners in separate rooms.

Curtains

This menu allows controlling curtains

in separate rooms.

Main screen

The automation menu looks like this

and includes ﬁve submenus.

Elevator

In this menu, you can call the elevator

(when using the elevator control module

EVRC IP).

Intercom menu

Main screen

CALL

Calls between intercoms

To call between internal monitors in diﬀerent

apartments, you need to enter from 1 to 4 digits

of the house number and press the «Building»

button, then enter 2 digits of the front room

number and press the «Door» button, then enter

from 1 to 4 digits of the apartment number and

press the button call To delete an incorrectly

entered digit, use the «Delete» button.

Calls between additional monitors

To call additional intercoms, or to call the main

intercom, you must select the desired one

from the list (Main, Alt. 1 - Alt.9) and press

the call button.

Answer the incoming call

During the incoming call the following interface

will appear:

Decline call

Make a snapshot

Send lock release

command

Monitoring

In this menu you can monitor outdoor panels

which are connected in the same LAN.

Lock release

Starting viewing

button

Pause viewing

button

Switching between viewing

of individual and multiapartment

panels.

Switchnig between panel is going

by pressing Left and Right arrow

buttons.

In this mode, communication will take place in one-way mode, i.e. You will hear what is happening at the panel,

but you will not be heard.

Records

Incoming calls

Outgoing calls

Missed calls

• Number: Number of dialer.

Date: Date and time of the call.•

Lenght: Conversation lenght.•

In order to highlight the desired call, you need to press it once.

By pressing the buttons below you can call back to the selected number, scroll through

the list or delete the entry.

Services menu AND SETTINGS

SMS

This menu dispalys messages which was sent

from LINK software.

Browser

In this menu a pre-set web page apperas.

You can set up a desired page through

web interface.

SERVICES MENU

Password

• Old password: Current password

input ﬁeld.

• New password: New password input

ﬁeld.

Conﬁrm: New password conﬁrmation•

ﬁeld.

By default, user password is 1234.

System

• Volume: The volume of the system

sounds.

Communication: Speaker volume•

during a call.

Language: System Language.•

Time Zone: Select Time Zone.•

Auto Answer: Automatically receive•

all incoming calls.

Device settings

• Building number: 0001-9999

Unit: 00-99•

Floor number: 00-99•

Room number: 01-99•

Device: The sequence number•

of the monitor in the system.

If the monitor is one, it is necessary to set «0»

in this line. If there are several monitors, then

the numbering should begin with «0» and end

with «8».

• Sync code: Synchronization code

between monitors and panels for

intercom.

settings

Communication

• Camera: Activates / deactivates the

camera when it is called (the current

model is not installed).

Answering Machine: Activates / •

deactivate the answering machine.

To record messages in the intercom,

an SD card must be installed.

Auto Answer: Activates / deactivates•

the automatic reception of an incoming

call in 10 seconds.

Volume: Adjusts the volume of the•

speaker.

Network settings

• DHCP: Enable / disable mode to get

network settings automatically.

IP: Internal monitor IP address.•

By default, internal monitor can have a static

IP address 192.168.1.90 or 192.168.1.91.

• Mask: Subnet mask.

Gateway: The main gateway.•

DNS: DNS server address.•

Version

This menu displays the current ﬁrmware

version, the IP address and the MAC

address of the device.
