USER MANUAL
INDIVIDUAL ENTRANCE PANEL
AV-04SD
Main features
• Panel type: Individual.
• Camera: 1/4”.
• Resolution: 2 Мp.
• Сamera angle: 100° (horizontal).
• Output video: HD (1280 × 720), H.264 Main Profile.
• Night backlight: 6 LEDs.
• Light sensitivity: 0,01 LuX.
• Protection class: IP65.
• IK-Code: IK09.
• Working temperature: -40 — +65 °С.
• Power consumption: 6,5 W, in standby — 3,6 W.
• Power supply: PoE, +12 V DC.
• Body: Aluminum.
• Colors: Silver.
• Dimensions: 84 × 170 × 31 mm.
• Installation: Surface mount.
AV-04SD
BAS-IP AV-04SD — stylish vandal-proof panel with installation by the wall
mount method.
There is also the possibility of individual text or logo appliance on the panel
(through in the service center).
Full User Manual
Appearance
Device description
wiki.bas-ip.com
Mechanical call button.
Microphone.
Backlight.
Camera.
Loudspeaker.
1
2
3
4
5
-
-
-
-
-
INDIVIDUAL ENTRANCE PANEL
1
2
4
5
3
EAN: 5060514913468 (SILVER)
Completness check of the product
Before installation of the outdoor panel, it is necessary to check that
it is complete and all components are available.
Outdoor panel kit includes:
1 pc
1 pc
1 pc
1 pc
1 pc
After verifying the device's completeness, you can switch to the outdoor panel
connection.
For connection you will need:
Electrical connection
An Ethernet UTP CAT5 or higher cable connected to a network
switch / router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,
according to the IEEE 802.3 standard.
Outdoor panel
Manual
Surface mounting bracket
Set of wires with connectors for connection of power supply,
lock, and additional modules
Wrench set screws
Power Peripheral Interface LAN (PoE)
RJ45
DC12V
+12V GND 485+ 485- NC COM NO EXIT DS DIN
SH-45 Door Sensor
Exit Button
GND
+12V
SH-42
(optional)
Power supply at +12 V, 2 amps, if there is no PoE.
Connection scheme of electromechanical lock
using external power supply for panel and the lock.
You can connect any type of electromechanical or electromagnetic lock for which the switched current
does not exceed 1 Amp.
+12V
DC
+-+12V
DC
+-
Connection scheme of electromagnetic lock
using external power supply for panel and the lock.
+12V
DC
+-+12V
DC
+-
Power supply
for the panel Power supply
for the lock Power supply
for the lock
Power supply
for the panel
Electromechanical
lock Electromagnetic
Lock
Power Peripheral Interface LAN (PoE)
RJ45
DC12V
+12V GND 485+ 485- NC COM NO EXIT DS DIN
SH-45 Door Sensor
Exit Button
GND
+12V
SH-42
(optional)
Mechanical mounting
Before mounting the door panel, location on the wall with dimensions
It is also necessary to provide supply of a power cable, additional modules and
the local network.
of 84 × 170 mm must be provided.
Screws Outdoor Panel
84 mm
170 mm
Bracket
Outdoor Panel
80 mm 27 mm
165 mm
Surface Bracket
120-140 cm
84 mm
170 mm
Warranty
The warranty card number
Model name
Serial number
Seller name
With following stated terms of warranty is familiar, functional test was
performed in my presence:
Customer signature
Warranty conditions
The warranty period of the product — 36 (thirty-six) months from
the date of sale.
Transportation of product must be in its original packaging or supplied one
by the seller.
The product is accepted in warranty repair only with a properly filled warranty
card and the presence of intact stickers or labels.
The product is accepted for examination in accordance with the cases
provided by law, only in the original packaging, in a full complete set,
appearance corresponding to the new equipment and presence of all relevant
properly filled documents.
This warranty is in addition to the constitutional and other consumer rights
and in no way restrict them.
Terms of warranty
The warranty card must indicate the name of the model, serial number,
purchase date, name of the seller, seller company stamp and
the customer’s signature.
Delivery to the warranty repair is carried out by the buyer himself.
Warranty repairs carried out only during the warranty period specified
in the warranty card.
The service center is committed to do everything possible to carry out
the repair warranty products, up to 24 working days. The period spent
on the restoration of product functionality is added to the warranty period.
EAN: 5060514913468 (SILVER)

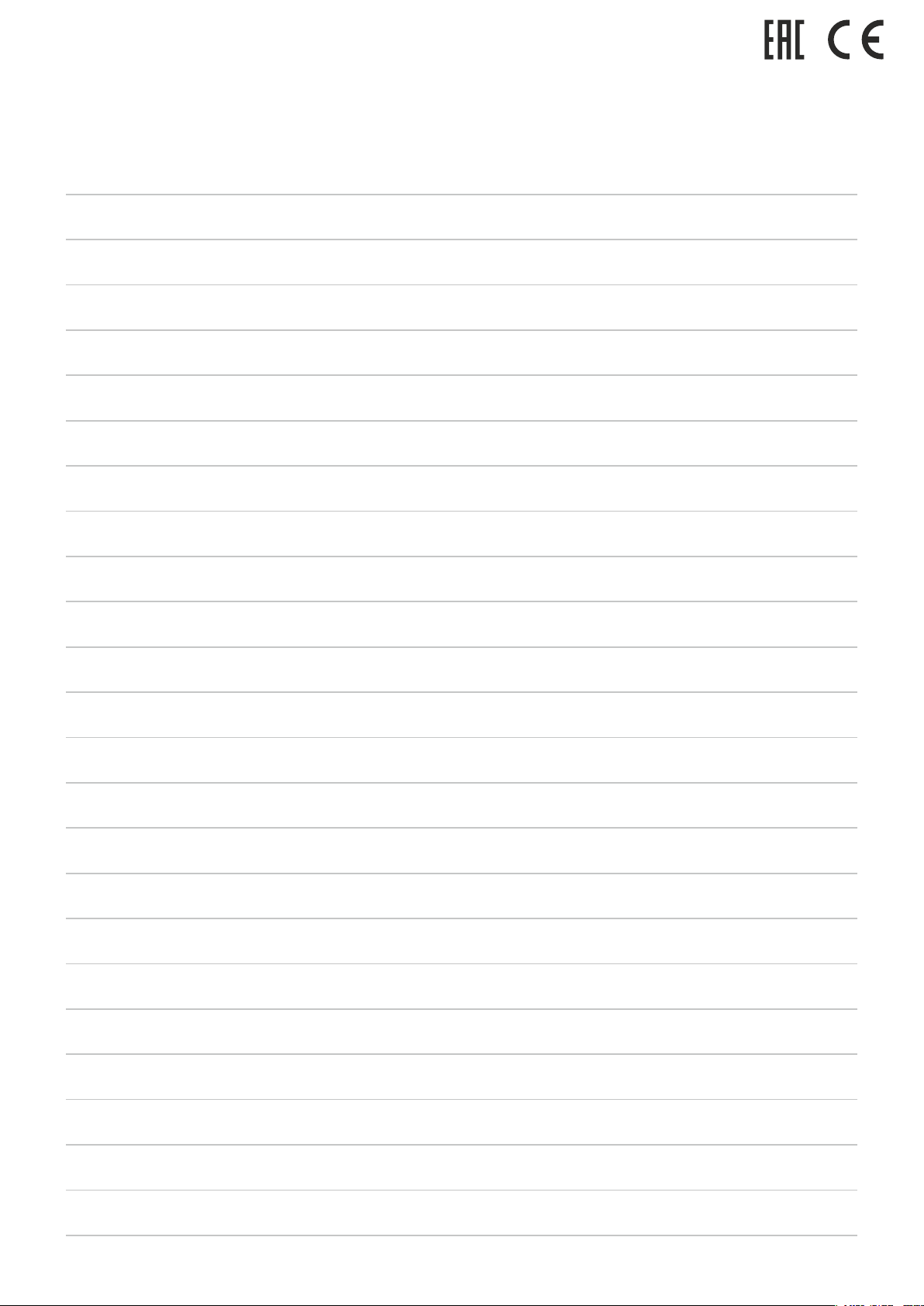

Notes
Notes
EAN: 5060514913468 (SILVER)
