BasIP AT-10 Manuel utilisateur

quickstart guide

AT-10

IP INDOOR VIDEO ENTRY PHONE

Full User Manual

The indoor video entry phone works on the Android 6.0 operating

system.

It comes in 3 color variations: White, Gold, Black and has two installation

options: wall mount and ﬂush mount, using a special bracket.

10" IP indoor video entry phone with IPS screen, Wi-Fi, resolution

1280x800 and the ability to connect alarm sensors.

wiki.bas-ip.com

2Loudspeaker

4Microphone

5MicroSD slot

6MicroUSB port

3Screen

1Camera

An indoor video phone (monitor) home screen consists of the main

desktop and 2 additional (by default).

In addition, you can add an unlimited number of custom desktops and

ﬂexibly conﬁgure them (set the number of application icons and their

layout). Up to 8 application icons can be placed on each desktop.

Main screen

FIRST SCREEN

The ﬁrst desktop displays the current

date and time.

Second SCREEN

On the desktop are displayed:

Date•

Time•

Weather widget•

Main sections of the monitor menu:•

Calls •

Messages •

Outdoor panels view menu •

IP cameras view menu •

third SCREEN

On the third desktop, additional system

menus and applications are displayed:

Quad splitter•

Security alarms•

Smart home menu•

Clamp any of the icons on the additional

desktop for one second, after which the

desktop will go into edit mode

Click on the button to add a new desktop

in the lower right corner

Select the required number of icons

displayed on this desktop:

2 x 2 / 3 x 2 / 4 x 2

Click on the add application icon and select

the necessary ones in a new window

After adding the necessary applications

to the desktop, you must click on the «Ok»

button to return to normal mode.

To remove the desktop, go to edit mode

and click on the «Delete» icon

in the lower-left corner.

To add a new desktop, you must:

How to change an application on the main desktop

You can change the main sections of the monitor menu (calls, messages, entrance panel

monitoring menu, IP camera viewing menu) into any other app.

To do this you must:

Press the app icon to be replaced and hold for a few seconds.•

Select the desired application in the opened tab.•

Press the new icon and hold for a few seconds to return the default app. •

Adding a new desktop and apps

The navigation bar is used for quick access to some features.

To open the bar, you need to swipe down at the top of the screen

or press any empty space.

In the bar, you have access to the following features:

Call elevator

EVRC IP controller is required

for functioning.

Adjusting the sound modes

Normal - a mode in which all sounds

are turned on.

Mute - a mode in which all sounds except

the alarm are turned oﬀ. You can also

adjust the time while mute mode will

be enabled.

Do Not Disturb - a mode in which all

sounds except the alarm are turned oﬀ

and incoming calls from other devices

are not displayed on the screen.

Concierge quick call to speciﬁed number

of concierge, another monitor, or SIP

number of any other device.

You can enable the feature in the monitor

settings or via the web interface.

concierge quick call

For «system settings» access is possible only

after entering the admin password).

Navigation bar

Call menu

When the Motion detection feature is enabled,

missed calls are displayed in the right corner

of the call icon, and notiﬁcations of videos

recorded when motion sensors are triggered

are displayed in the left corner.

By pressing the icon, the call history is displayed:

- missed call;•

- оutgoing call;•

- incoming call. •

An entry about a call contains the following info:

date and time when a call was made;•

subscriber number;•

сonversation duration.•

To open additional options, tap the entry.

Icons meaning:

- to call the selected number;•

- to view photos/videos taken during the call;•

- to save photos/videos taken during the call•

to SD card;

- to delete the entry.•

With the button in the lower right corner

of the screen, you can open the keypad for dialing

the number.

By pressing this button for a few seconds, you can

clear the call history.

On the main desktop, next to the call

icon, you can check the number

of missed calls.

Call menu

If the EVRC-IP is installed in your house,

you can call the elevator from the monitor

during the conversation between the monitor

and the panel.

If you hold lock Key 1/Key 2, the elevator call

button will appear. The elevator will be called

to the ﬂoor where the panel is installed

to move up / down;

During the incoming call, the following

screen will be displayed this screen.

Icons meaning:

- to answer a call;•

- to decline a call/end a conversation;•

- to open the keyboard;•

- to open the lock/s; •

- to turn on / oﬀ the microphone;•

- to record the video of the•

conversation;

- to take a photo of the screen.•

Call display

For quick access, you can save up to

10,000 contacts. They can be inner

numbers of panels, concierges, another

monitors or SIP number of any device.

You can add contacts in this monitor

menu or in the web interface.

Contacts

• Open the Call menu and go to the Contacts tab.

Press plus icon in the left low corner.•

Enter contact name.•

Specify number type: inner or SIP (required•

for entering a number in the correct format).

Select device type: multi-apartment panel,•

individual panel, or regular device (monitor

or any other device). This data is also necessary

for the correctcontact display in various

sections of the monitor.

Enter a number in the corresponding format.•

Press Add contact after entering all data. •

How to add contact via a monitor:

Number formats:

An inner number of a multi-apartment

panel consists of Building No., Unit No.,

and Device No. For example, 0001-01-1

is the number of the panel located

in the 1st unit of building No. 1.

An inner number of an individual panel

consists of Building No., Unit No., Floor No.,

Apartment No., and Device No. For example,

0001-01-02-04-1 is the number of the ﬁrst

individual panel located in apartment No. 4

on the 2nd ﬂoor of the ﬁrst unit of building No. 1.

An inner number of a regular device

consists of Building No., Unit No.,

Floor No., and Apartment No.

For example, 0001-01-00-01 is the

number of the monitor located in the

1st apartment on the 1st ﬂoor in the

1st unit of the 1st house.

SIP number must be entered in the format

sip:callee SIP number@address of the SIP

server or device IP address.

For example, sip:[email protected].bas-ip.com,

where 3925 is a SIP number, us.sip.bas-ip.com

is the address of the SIP server.

You also have several additional options:

• to add the contact to favorites and it will be displayed at the top of the list;

to add the contact to the blacklist and not receive notiﬁcations about calls from this contact•

(but a call will be displayed as missed in the list);

to accept calls from this contact automatically (autoanswer);•

for multi-apartment and individual panels, you can select the Use as default option.•

In this mode, the selected panel will be displayed by default when opening panel monitoring

menu.

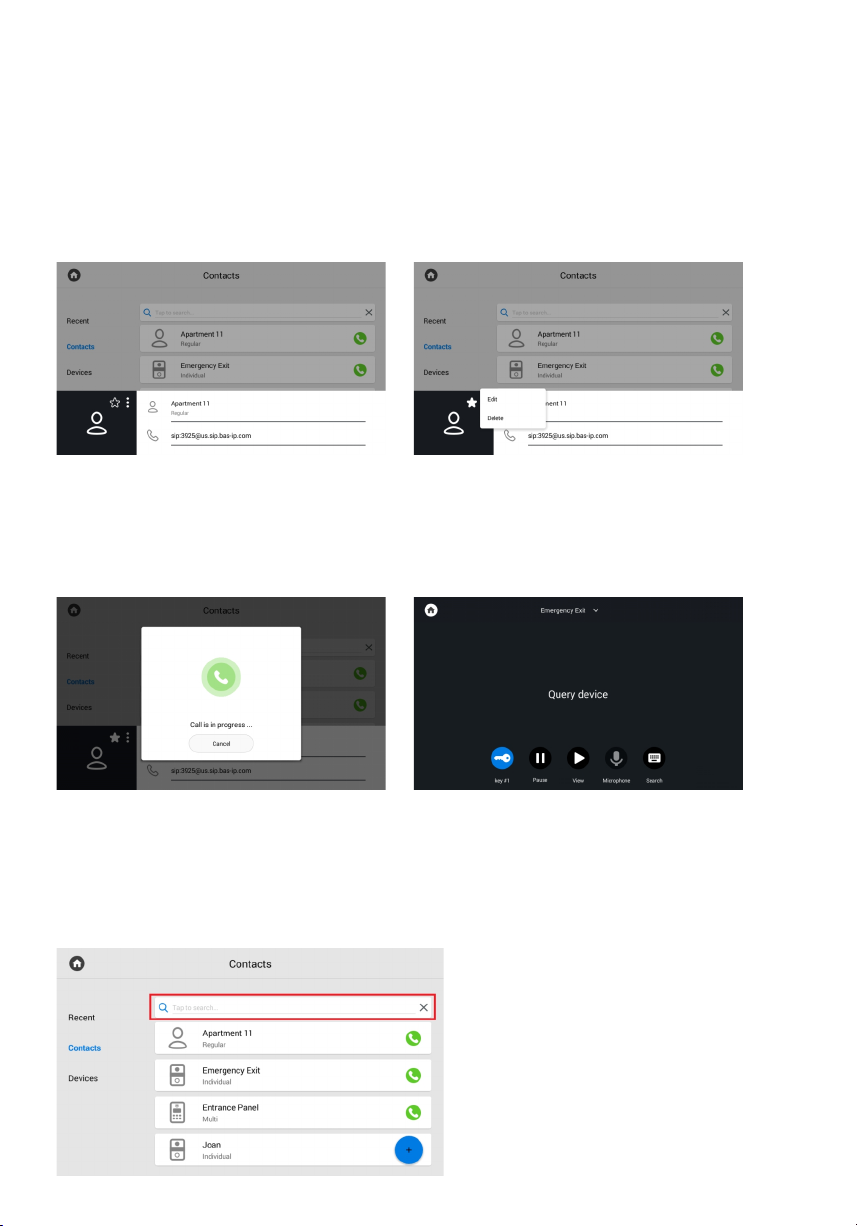

If you tap a contact card, its detailed

info will be displayed.

By pressing the star icon, you can add

a contact to favorites so that it appears

at the top of your contacts list.

Press the button with three dots, to edit

or delete a contact.

To make a call, press the call button

on the right.

When you call the entrance panel, there

will be a search and connection

to the device.

The panel automatically accepts the call

for 30 seconds, and after the call ends

automatically.

To quickly ﬁnd a required contact, enter

its name in the search bar.

Contacts search

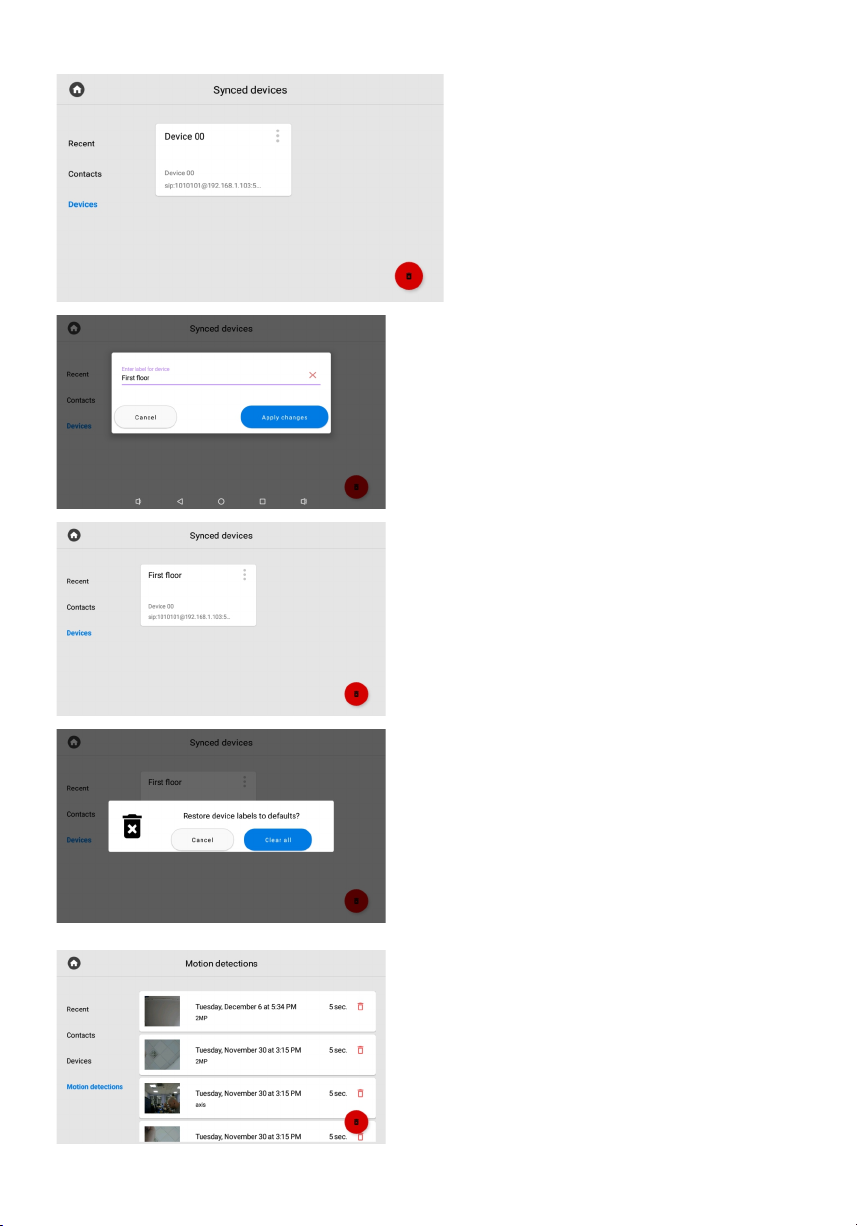

This menu displays additional monitors

that have the same logical address,

but diﬀerent device numbers.

Devices

This tab will appear in the menu if you have

enabled and conﬁgured the feature of recording

video when a motion sensor is triggered. Here you

can view the recorded videos. The tab contains

information about the date, time, duration of the

recording and the name of the camera from which

the video was recorded.

If necessary, you can delete a video by pressing

the corresponding button on its card or delete all

videos using the button in the lower right corner.

Motion detections

If you press the button in the upper left corner

near the device, the menu for editing the name

will be displayed. In the new window, you can

enter the name of the additional monitor you

want to display.

After pressing the Apply changes button,

the updated device name will be displayed.

You can also refresh the page by dragging

the page down.

By pressing the Delete button (in the lower right

corner), you can restore the default device names.

Messages menu

This menu displays messages received

from the concierge or management

company (via the Link). When a message

is got, you will hear a notiﬁcation sound

and when unlocking the screen,

the counter above the application

icon will change.

If you go to the Messages menu,

the following interface will be displayed:

To read a message, double-tap it.

You can select showing all messages, only new or read ones at the top of the screen.

There are 2 types of messages:

• Info mail with information that does not require feedback.

• Poll with the help of which a management organization can gather feedback by giving

users a choice of options or the ability to enter their own reply.
