BasIP AZ-07LL Manuel utilisateur

USER MANUAL

IP INDOOR VIDEO ENTRY PHONE

AZ-07LL

IP INDOOR VIDEO ENTRY PHONE

7” IP video indoor monitor with overhead horizontal and vertical mounting

options, the ability to control the lift, display messages from the management

company, PoE, connection of 8 cameras, memory for photos/videos

and an autoresponder. OS - Linux.

Main features

• Display: 7” TFT LCD, capacitive

touchscreen.

• Screen resolution: 800 x 480.

• Built-in camera: No.

• Power: PoE and + 12 V DC

(PSU not included).

• Power consumption: 6 W,

standby 2.5 W.

• Dimensions: 195 x 127 x 27 mm.

• Colors: Black, Gray.

• Body: Plastic.

• Installation Type: Wall mount.

• Mounting options: Horizontal

and vertical.

Full User Manual

Device description

wiki.bas-ip.com

Appearance

Unlock button.

Screen

Microphone.

Completness check of the product

Before installing the monitor, be sure to check that it is complete and all

components are available.

The monitor kit includes:

Monitor

Manual

Wall mounting bracket

Set of wires with connectors for connection of alarm loops, doorbell

and home automation

Resistors for alarm loops

Installation screws

1 pc

8 pcs

2 pcs

After verifying the device's completeness, you can switch to the monitor

connection.

To connect monitor you will need:

Electrical connection

An Ethernet UTP CAT5 or higher cable connected to a PoE switch or

to a normal switch/router.

Cable length recommendations

The maximum length of the UTP CAT5 cable segment shouldnot exceed 100 meters,

according to the IEEE 802.3 standard.

Power supply at +12 Volts DC if there isn't PoE.

Wires must be brought for the connection of alarm loops and home

automation (optional).

EAN: 5060514915264 (WHITE)EAN: 5060514915233 (BLACK)

Power supply

12V, 2A

Using the siren output as a controlled output, to control devices

or any other external load with high current consumption

Supply

Power supply

for external load

Powerful external load with

a current consumption

of more than 0.35A

VD K1

K1.1

External relay 12 Volt,

current consumption

less than 0.35A

Switch

Supply

Bell button

normal

+12V

Button SH-45

+12V

Button SH-45T

Lock

+12V

Bell button

SH-46T

Lock

+12V

Universal button

SH-47T

Lock

+12V

485+

485-

Expansion module

SH-16

Power supply

12V, 2A

Switch

EAN: 5060514915264 (WHITE)EAN: 5060514915233 (BLACK)

Wiring diagram using various types of buttons connected

to alarm loops, and using them as a «Call Button»

Supply

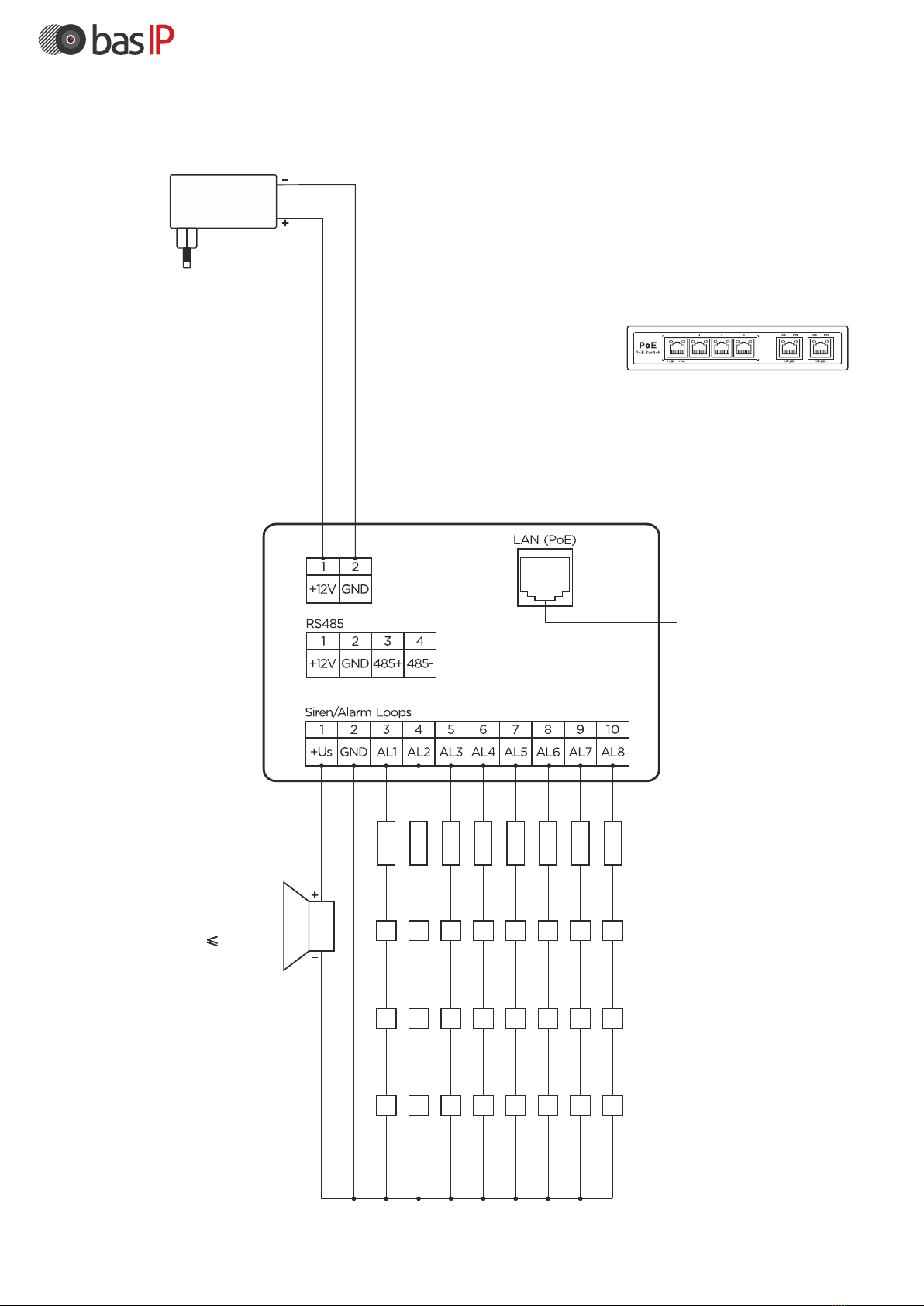

Wiring diagram for security alarm sensors with NC -

normally closed contact types

0,35A

Siren

12V

Sensor

1.2

2.2 kOhm

Sensor

2.2

3.2

4.2

5.2

6.2

7.2

Sensor Sensor

8.2

1.1

2.1

3.1

4.1

5.1

6.1

7.1

8.1

1.n

2.n

3.n

4.n

5.n

6.n

7.n

8.n

2.2 kOhm

Switch

Power supply

12V, 2A

Sensor

0,35A

Supply

Wiring diagram for security alarm sensors with NO - normally open contact types

Power supply

12V, 2A

Switch

Siren

12V

Sensor

1.1

1.2

1.n

2.2 kOhm

2.1

3.1

4.1

5.1

6.1

7.1

8.1

2.2

3.2

4.2

5.2

6.2

7.2

8.2

2.n

3.n

4.n

5.n

6.n

7.n

8.n

Sensor

2.2 kOhm

Sensor

2.2 kOhm

Sensor

2.2 kOhm

Sensor

2.2 kOhm

Sensor

2.2 kOhm

Sensor

2.2 kOhm

Sensor

2.2 kOhm

EAN: 5060514915264 (WHITE)EAN: 5060514915233 (BLACK)

Appearance and mechanical mounting

Before installation of a monitor, it is necessary to drill a hole or a recess into

a wall with a 68 mm (2.68in) diameter under the standard mounting box for

a 65x45 mm (2.56x2.13in) socket. It is necessary for switching of wires and

installation of the monitor.

Installation of the monitor on the bracket is done from top to bottom.

Attach the bracket in the outlet box using set screws and a phillips head

screwdriver.

127 mm

195 mm

27 mm

Surface bracket MonitorNiche

195 mm

127 mm

27 mm

150-160 cm

60 mm

Surface bracket MonitorNiche

150-160 cm

60 mm

Vertical mounting

Horizontal mounting

Warranty

The warranty card number

Model name

Serial number

Seller name

With following stated terms of warranty is familiar, functional test was

performed in my presence:

Customer signature

Warranty conditions

The warranty period of the product — 36 (thirty-six) months from

the date of sale.

Transportation of product must be in its original packaging or supplied one

by the seller.

The product is accepted in warranty repair only with a properly ﬁlled warranty

card and the presence of intact stickers or labels.

The product is accepted for examination in accordance with the cases

provided by law, only in the original packaging, in a full complete set,

appearance corresponding to the new equipment and presence of all relevant

properly ﬁlled documents.

This warranty is in addition to the constitutional and other consumer rights

and in no way restrict them.

Terms of warranty

The warranty card must indicate the name of the model, serial number,

purchase date, name of the seller, seller company stamp and

the customer’s signature.

Delivery to the warranty repair is carried out by the buyer himself.

Warranty repairs carried out only during the warranty period speciﬁed

in the warranty card.

The service center is committed to do everything possible to carry out

the repair warranty products, up to 24 working days. The period spent

on the restoration of product functionality is added to the warranty period.

EAN: 5060514915264 (WHITE)EAN: 5060514915233 (BLACK)
