BAFANG DP C15.CAN Manuel utilisateur

BF-UM-C-DP C15-EN November 2019

USER MANUAL FOR DISPLAY

CONTENT

7.1 Important Notice 

7.2 Introduction of Display 2

7.3 Product Description 3

7.3.1 Specifications 3

7.3.2 Functions Overview 3

7.4 Display 4

7.5 Normal Operation 4

7.5.1 Switching the System ON/OFF 4

7.5.2 Selection of Support Levels 4

7.5.3 Headlights / backlighting 5

7.5.4 Walk Assistance 5

7.5.5 Selection Mode 5

7.5.6 SERVICE 5

7.6 Settings 6

7.6.1 "Display Setting" 6

7.6.2 "Information" 7

7.7 Error Code Definition 10

7 USER MANUAL FOR

DP C15.CAN

2BF-UM-C-DP C15-EN November 2019

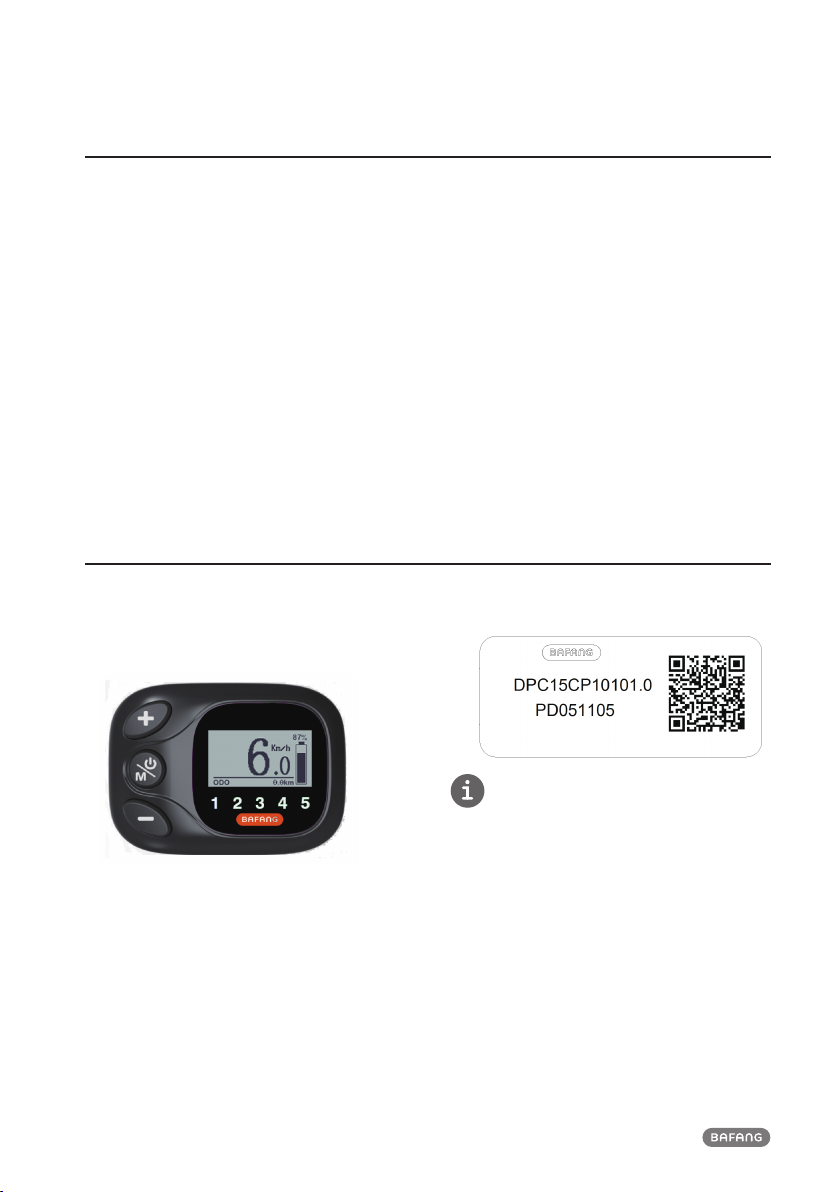

7.2 INTRODUCTION OF DISPLAY

• Model: DP C15.CAN BUS

• The housing material is PC and Acrylic, and

the button material is made of silicone.

• The label marking is as follows:

Note: Please keep the QR code label attached

to the display cable. The information from the

Label is used for a later possible software

update.

7.1 IMPORTANT NOTICE

• If the error information from the display

cannot be corrected according to the inst-

ructions, please contact your retailer.

• The product is designed to be waterproof. It

is highly recommended to avoid submerging

the display under water.

• Do not clean the display with a steam jet,

high-pressure cleaner or water hose.

• Please use this product with care.

• Do not use thinners or other solvents to

clean the display. Such substances can

damage the surfaces.

• Warranty is not included due to wear and

normal use and aging.

BF-UM-C-DP C15-EN November 2019

USER MANUAL FOR DISPLAY

7.3 PRODUCT DESCRIPTION

7.3.1 Specifications

• Operating temperature: -20℃~45℃

• Storage temperature: -20℃~50℃

• Waterproof: IP65

• Storage room Humidity: 30%-70% RH

7.3.2 Functional Overview

• Battery capacity indicator

• Indication of performance support

• Switching between km and mile

• Motor output power indicator

• Travel time indication

• Kilometer stand (including single-trip

distance, total distance and remaining

distance).

• Speed display (including top speed and

average speed)

• Walk assistance

• Headlighting control

• Information View (battery, controller, HMI

and sensor)

• Error messages view

• Energy consumption indicator CALORIES

(Note: If the display has this function)

• Display for the remaining distance (Depends

on your riding style)

4BF-UM-C-DP C15-EN November 2019

7.4 DISPLAY

1Up

2System On/Off / Mode

3Down

4Display of battery capacity in real time.

5Speed display in real-time (km/h or MPH)

6Trip: Daily kilometers (TRIP) - Total kilome-

ters (ODO) - Top speed (MAX) - Average speed

(AVG) - Range (RANGE) - Energy Consumption

(CAL(only with torque sensor ﬁtted)) - Travel time

(TIME) - Motor output power(POWER).

7Support level/ Walking assistance

7.5 NORMAL OPERATION

7.5.1 Switching the System ON/OFF

Press and hold (>2S) on the display to

turn on the system. Press and hold (>2S)

again to turn off the system.

If the "automatic shutdown time" is set to

5 minutes (it can be reset with the "Auto

Off" function, See "Auto Off"), the display

will automatically be turned off within the

desired time when it is not in operation.

7.5.2 Selection of Support Levels

When the display is turned on, press the

or button (<0.5S) to switch to the sup-

port level, the lowest level is 0, the highest

level is 5. When the system is switched on,

the support level starts in level 1. There is no

support at level 0. As following:

BF-UM-C-DP C15-EN November 2019

USER MANUAL FOR DISPLAY

7.5.3 Headlights / backlighting

Turn on the lights: press and hold button

to darken the backlight and turn on the

lights.

Turn off the lights: press and hold button

again to brighten the backlight and turn off

the lights.

The brightness of the backlight can be set in

the display settings "Brightness".

7.5.4 Walk Assistance

The Walk assistance can only be activated

with a standing pedelec.

Activation: Press the button until this

symbol appears. Next press and hold

down the button whilst the symbol

is displayed, now the Walk assistance will

activate. The symbol will blink and

the pedelec moves approx. 6 km/h. After

releasing the button, the motor stops

automatically and switches back to level

0.(as following):

7.5.5 Selection Mode

Brieﬂy press the button (0.5s) to see the

different trip modes.

Trip: daily kilometers (TRIP) - total kilometers

(ODO) - Maximum speed (MAX) - Average

speed (AVG) - Range (RANGE) - Energy

consumption (CAL(only with torque sensor

ﬁtted)) - Travel time (TIME) - Motor output

power(POWER).

7.5.6 SERVICE

The display shows "Service" as soon as a cer-

tain number of kilometers or battery charges

has been reached. With a mileage of more

than 5000 km (or 100 charge cycles), the

“Service" function is displayed on the dis-

play. Every 5000 km the display "SERVICE"

is displayed every time. This function can be

set in the display settings.

6BF-UM-C-DP C15-EN November 2019

7.6 SETTINGS

After the display is turned on, press and hold

and button (at the same time) to enter

into the Setting menu. By pressing the or

button (<0.5S) , you can select: Display,

Settings, Information or EXIT. Then press the

(<0.5S) button to conﬁrm your selected option.

Or select "EXIT" and press (<0.5S) the button

to return to the main menu, or select "BACK"

and press (<0.5S) the button to return to the

Settings interface.

If no button is pressed within 20 seconds, the

display will automatically return to the main

screen and no data will be saved.

SETTING option

“Display Setting” option

“Information” option

You can press and hold and button at

any time, to return to the main screen.

7.6.1 "Display Setting"

Press the or button (<0.5S) to select

"Display Setting", and then brieﬂy press the

button (<0.5S) to access the following

selections.

7.6.1.1 "TRIP Reset" Reset mileage

Press the or button (<0.5S) to

highlight “Trip Reset” in the Display setting

menu, and then press button (<0.5S)

to select. Then with the or button

choose between “YES” or “NO”. Once you

have chosen your desired selection, press

the button (<0.5S) to save and exit to

the "Display setting".

7.6.1.2 "Unit" Selections in km/Miles

Press the or button (<0.5S) to

highlight “Unit” in the Display setting menu,

and then press button (<0.5S) to select.

Then with the or button choose

between “Metric” (kilometer) or “Imperial”

(Miles). Once you have chosen your desired

selection, press the button (<0.5S) to

save and exit to the "Display setting".

BF-UM-C-DP C15-EN November 2019

USER MANUAL FOR DISPLAY

7.6.1.3 "Brightness" Display brightness

Press the or button (<0.5S) to

highlight “Brightness” in the Display setting

menu, and then press button (<0.5S)

to select. Then with the or button

choose between "100%" / "75%" / "50%"

/" 30%"/"10%". Once you have chosen

your desired selection, press the button

(<0.5S) to save and exit to the "Display

setting".

7.6.1.4 "Auto Off" Set Automatic system

switch off time

Press the or button (<0.5S) to

highlight “Auto Off” in the Display setting

menu, and then press button (<0.5S)

to select. Then with the or button

choose between “OFF”, "9"/"8"/"7"/"6"/ "5"/

"4"/"3"/"2"/"1", (The numbers are measured

in minutes). Once you have chosen your de-

sired selection, press the button (<0.5S)

to save and exit to the "Display setting".

7.6.1.5 "Service" Switching the

notiﬁcation on and off

Press the or button (<0.5S) to

highlight “Service” in the Display setting

menu, and then press button (<0.5S)

to select. Then with the or button

choose between “NO” or “YES”. Once you

have chosen your desired selection, press

the button (<0.5S) to save and exit to

the "Display setting".

7.6.2 "Information"

Once the display is turned on, press and

hold the and buttons (at the same

time) to enter into the setting menu, press

the or button (<0.5S) to select

“Information”, then press the button

(<0.5S) to conﬁrm and enter into "Informa-

tion".

Note: All information here cannot be changed, it is

to be viewed only.

7.6.2.1 Wheel Size

Press the or button (<0.5S) to

highlight “Wheel Size”, then press the

button (<0.5S) to conﬁrm and view the

wheel size. To return, press the button

(<0.5S) to exit back to the "Information".

8BF-UM-C-DP C15-EN November 2019

7.6.2.2 Speed Limit

Press the or button (<0.5S) to

highlight “Speed Limit”, then press the

button (<0.5S) to conﬁrm and view the

speed limit. To return, press the button

(<0.5S) to exit back to the "Information".

7.6.2.3 Battery Information

Press the or button (<0.5S) to high-

light “Battery Info”, then press the but-

ton (<0.5S) to conﬁrm. Now press the or

button (<0.5S) to view the contents.

To return, press the button (<0.5S) to

exit back to the "Information".

Content Explanation

b01 Current temperature (°C)

b04 Voltage (V)

b06 Discharge (A)

b07 Remaining Capacity (A/h)

b08 Total Capacity (A/h)

b09 Relative SOC (%)

b10 Absolute SOC (%)

b11 Charging cycles (number)

b12 Maximum not charging time (Hr)

Content Explanation

b13 Recently not charging time (Hr)

d00 Number of battery cell

d01 Voltage of cell 1 (m/V)

d02 Voltage of cell 2 (m/V)

dn Voltage of cell n (m/V)

e01 Hardware Version

e02 Software Version

NOTE: If no data is detected, "--" is displayed.

7.6.2.4 Controller Information

Press the or button (<0.5S) to high-

light “Ctrl Info”, then press the button

(<0.5S) to conﬁrm. Now press the or

button (<0.5S) to view "Hardware Ver"

or "Software Ver".

To return, press the button (<0.5S) to

exit back to the "Information".

7.6.2.5 Display Information

Press the or button (<0.5S) to

highlight “Display Info”, then press the

button (<0.5S) to conﬁrm. Now press the

or button (<0.5S) to view "Hard-

ware Ver" or "Software Ver".

To return, press the button (<0.5S) to

exit back to the "Information".

BF-UM-C-DP C15-EN November 2019

USER MANUAL FOR DISPLAY

7.6.2.6 Torque Information

Press the or button (<0.5S) to

highlight “Torque Info”, then press the

button (<0.5S) to conﬁrm. Now press the

or button (<0.5S) to view "Hard-

ware Ver" or "Software Ver".

To return, press the button (<0.5S) to

exit back to the "Information".

NOTE: If your Pedelec has not torque sensor, "--"

is displayed.

7.6.2.7 Error Code

Press the or button (<0.5S) to

highlight “Error code”, then press the

button (<0.5S) to conﬁrm. Now press the

or button (<0.5S) to view “E-Code0”

to “E-Code9”. It shows information for the

last ten errors of the pedelec. The error code

"00"means that there is no error.

To return, press the button (<0.5S) to

exit back to the "Information".

10 BF-UM-C-DP C15-EN November 2019

7.7 ERROR CODE DEFINITION

The HMI can show the faults of Pedelec. When a fault is detected, one of the following error codes will be

indicated too.

Note: Please read carefully the description of the error code. When the error code appears, please ﬁrst restart the

system. If the problem is not eliminated, please contact your dealer or technical personnel.

Error Declaration Troubleshooting

04 The throttle is not back in its correct

position.

Check the throttle can adjust back into its

correct position, if the situation does not

improve, please change to a new throttle.(only

with this function)

05 The throttle has fault.

1. Check the connector of throttle whether

they are correctly connected.

2. Disconnect the throttle, If the problem still

occurs, please contact your retailer.

(only with this function)

07 Overvoltage protection

1. Remove the battery.

2. Re-Insert the battery.

3. If the problem persists, please contact your

retailer.

08 Error with the hall sensor signal

inside the motor Please contact your retailer.

09 Error with the Engine phase’s Please contact your retailer.

The temperature inside the engine

has reached its maximum protection

value

1. Turn off the system and allow the Pedelec

to cool down.

2. If the problem persists, please contact your

retailer.

11 The temperature sensor inside the

motor has an error Please contact your retailer.

12 Error with the current sensor in the

controller Please contact your retailer.

13 Error with the temperature sensor

inside of the battery Please contact your retailer.

Table des matières

Autres manuels BAFANG Accessoires pour vélos

BAFANG

BAFANG MM G333.250.C Manuel utilisateur

BAFANG

BAFANG DP C01.CAN BUS Manuel utilisateur

BAFANG

BAFANG DP C18.CAN Manuel utilisateur

BAFANG

BAFANG DP C10.UART Manuel utilisateur

BAFANG

BAFANG CR A101.C 1.0 Manuel utilisateur

BAFANG

BAFANG E-SYSTEM Manuel utilisateur

BAFANG

BAFANG DPC-10 Biktrix Manuel utilisateur

BAFANG

BAFANG BT C01.340.UART Guide de référence

BAFANG

BAFANG DP C171.UART Manuel utilisateur

BAFANG

BAFANG H600 Manuel utilisateur

BAFANG

BAFANG DP E170.CAN Manuel utilisateur

BAFANG

BAFANG DP C240.CAN Manuel utilisateur

BAFANG

BAFANG DP C18.UART Manuel utilisateur

BAFANG

BAFANG DP C240.CAN Manuel utilisateur

BAFANG

BAFANG DP C07.UART Manuel utilisateur

BAFANG

BAFANG BT C01.340.UART Guide de référence

BAFANG

BAFANG C965 Manuel utilisateur

BAFANG

BAFANG DP C231.CAN Manuel utilisateur

BAFANG

BAFANG DP C01.RS 232.7 Manuel utilisateur

BAFANG

BAFANG DP E161.CAN Manuel utilisateur

BAFANG

BAFANG DP C15.UART Manuel utilisateur

BAFANG

BAFANG DP E08.CAN Manuel utilisateur

BAFANG

BAFANG DP C10.CAN Manuel utilisateur

BAFANG

BAFANG DP C13.CAN Manuel utilisateur

Manuels Accessoires pour vélos populaires d'autres marques

Sigma

Sigma BC 16.16 Manuel utilisateur

Playcore

Playcore Dero Setbacks Manuel utilisateur

VDO Cyclecomputing

VDO Cyclecomputing x3dw Manuel utilisateur

Cateye

Cateye RAPID X2 Manuel utilisateur

buratti meccanica

buratti meccanica Clorofilla Trail Manuel utilisateur

Shimano

Shimano SG-8R20 Mode d'emploi

BOB

BOB YAK Manuel utilisateur

APLIC

APLIC 303303/20190717TW012 Manuel utilisateur

SRAM

SRAM AXS BlipBox Manuel utilisateur

Garmin

Garmin EDGE 500 Manuel utilisateur

Shimano

Shimano FD-RX810 Manuel utilisateur

Cateye

Cateye V2C - Manuel d'instructions

KMART

KMART 43115907 Manuel utilisateur

SIGMA SPORT

SIGMA SPORT Buster 2000 Manuel utilisateur

NVO Components

NVO Components STEM Manuel utilisateur

DAXYS

DAXYS BP188 Manuel utilisateur

XLC

XLC BV-W17 Manuel utilisateur

Deda Elementi

Deda Elementi SUPERBOX Manuel utilisateur
