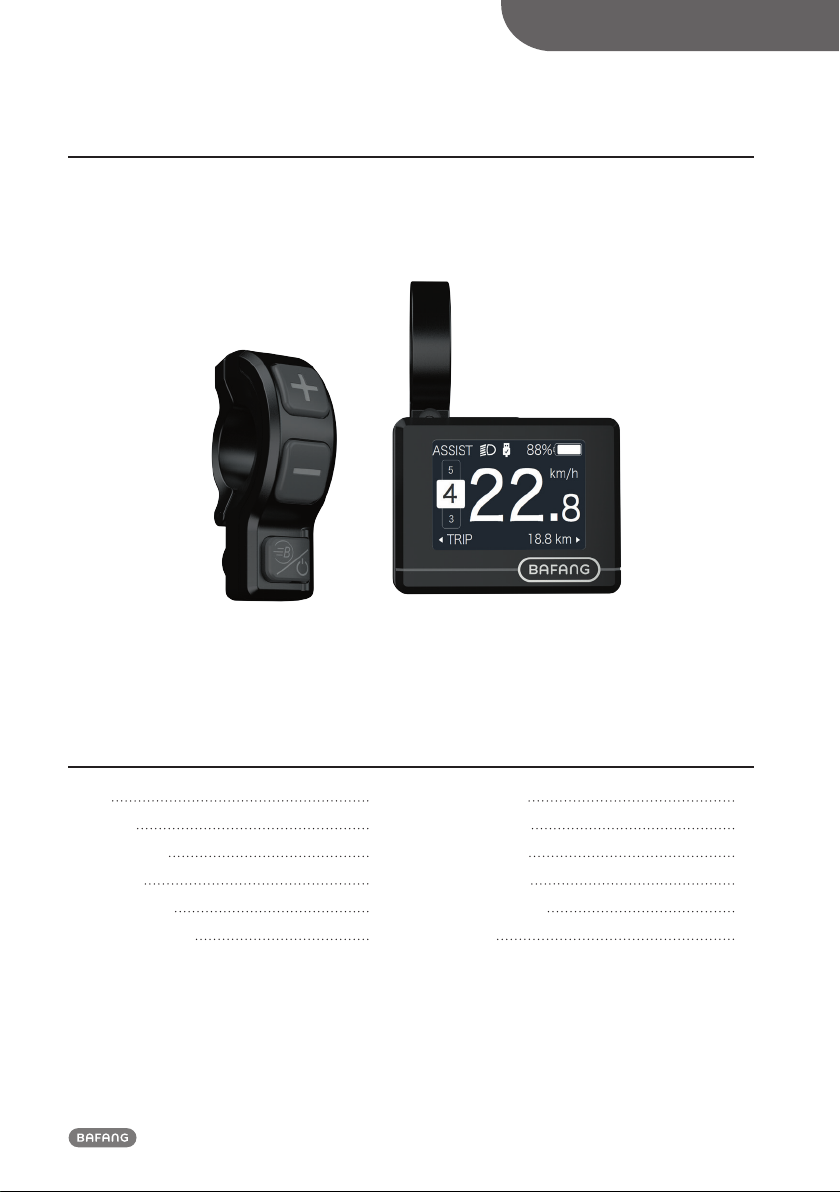

BAFANG DP C240.CAN Manuel utilisateur

DISPLAY MANUAL DP C240.CAN

CONTENT

Content 1

Introduction 2

Overview drawing 3

Speciﬁcations 4

Functions overview 5

Normal indication area 6

Button deﬁnition 7

Normal operation 7

Functions setting 10

BESST connection 14

Error code deﬁnition 15

Installation 16

DP C240.CAN

CONTENT

2DISPLAY MANUAL DP C240.CAN

INTRODUCTION

• Name: Intelligent display

• Model: DP C240.CAN

• Scope: EN15194 electrical power assistance

cycle

• Appearance: Black ABS housing body, acrylic

top cover, silicon rubber button.

• Number rule on the back of the display

Number on the middle of display back,

number is divided into two lines:

A. Up line (as below)

DP C240.C 1.0

①DP C240.C: BAFANG display mode

②1.0: Hardware version number

B. Down line (as below)

607K1Q7280001

①607: Wire length and connector model

is 750mm M5.2

②K1: Internal identity number

③Q7280001: Production date is

28st July, 2016; SN is 0001

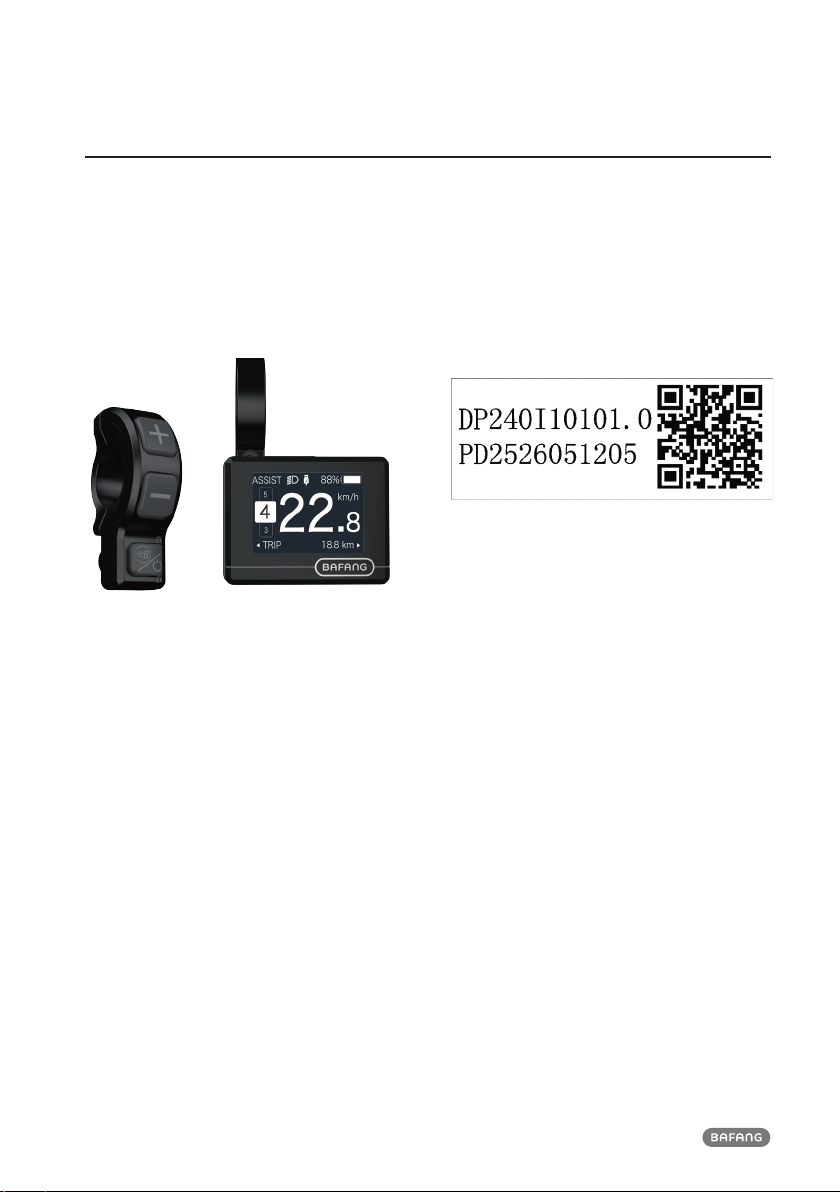

• Display P type wire label number rule:

Number on the middle of P type label, num-

ber is divided into up row and down row

and QR code is at right side (as shown in the

below ﬁgure)

Content of QR code:

DPC240I10101.0

PD2526051205

DP C240.C 1.0

607K1Q7280001

The ﬁrst line:

DPC240I10101.0 - Software version

The second line:

PD2526051205 - Parameter code

The last two lines:

DP C240.C 1.0 / 607K1Q7280001 - SN

DISPLAY MANUAL DP C240.CAN

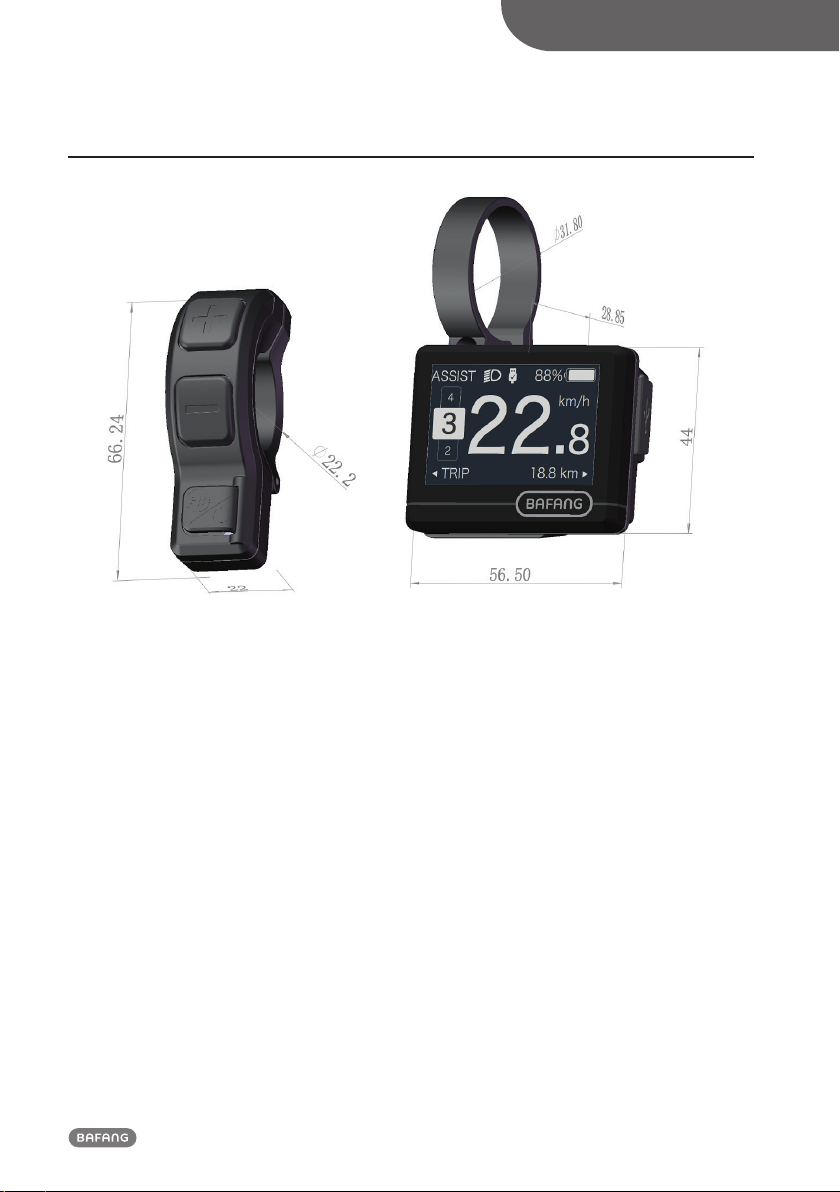

OVERVIEW DRAWING

4DISPLAY MANUAL DP C240.CAN

SPECIFICATIONS

• Rated voltage: 36V/43V/48V DC

• Rated current: 10mA

• Maximum operating current: 30mA

• Power-off leakage current: <1uA

• Operating current supplied to controller:

50mA

• Operation temperature: -20℃~45℃

• Storage temperature: -30℃~70℃

• IP level: IP65

• Storage ambient humidity: 30%-70%

DISPLAY MANUAL DP C240.CAN

FUNCTIONS OVERVIEW

• CAN bus communication platform, Three-

button console which is with BOOST mode

is more user-friendly.

• Speed indication: Includes maximum speed,

average speed.

• Unit switch between imperial and metric.

• Intelligent battery capacity indication.

• Control and indication for the headlight.

• 5 levels of backlight brightness setting.

• Indication for power assistance level with 6

levels:0/1/2/3/4/5.

• Indication for trip: To indicate single-trip dis-

tance, total distance and remaining distance.

• Multiple data indication: Indication for the

remaining distance, Indication for the con-

sumption of energy CALORIES. (Note: If the

display has this function.)

• Record and indication for the error informa-

tion.

• Button with feedback of haptic vibration.

• Control and indication for push assistance.

• Parameters resettable with BESST BOX.

• USB charging port: ≤5V, ≤1A.

• Dual Bluetooth integrated.

FUNCTIONS OVERVIEW

6DISPLAY MANUAL DP C240.CAN

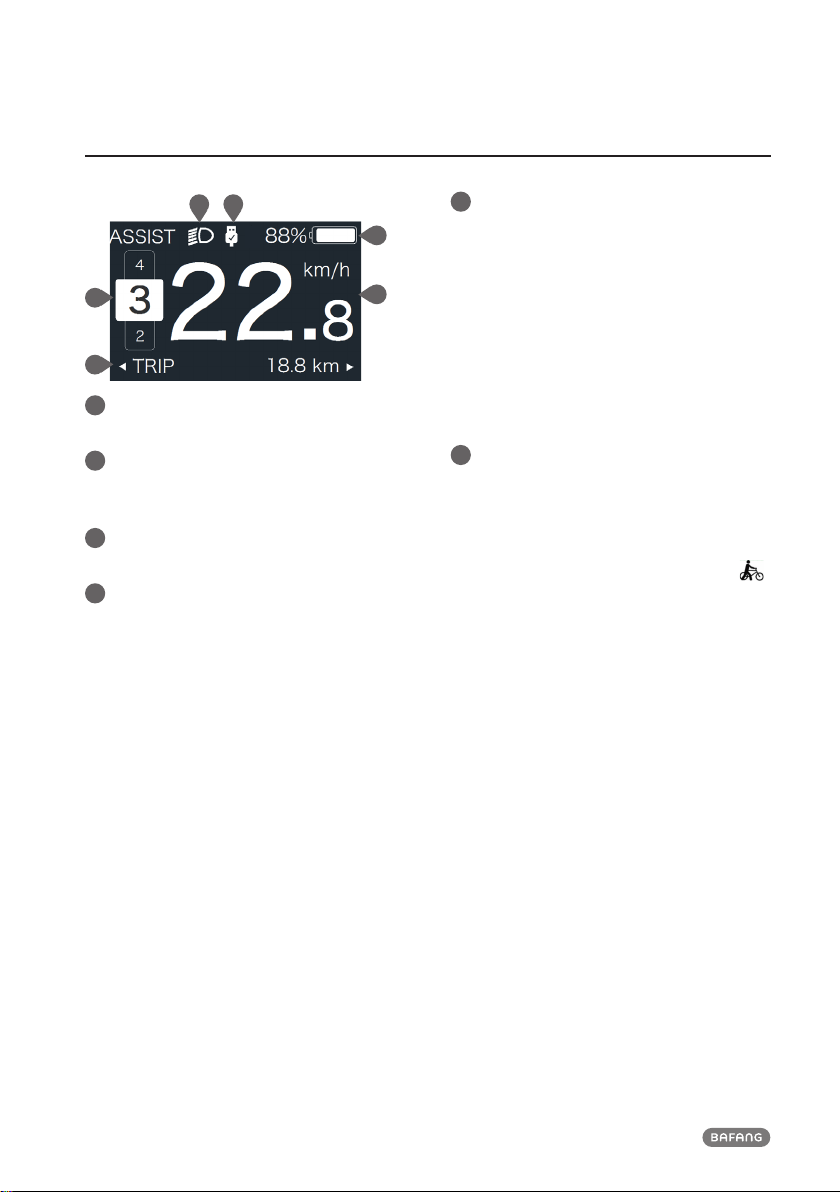

NORMAL INDICATION AREA

1 2

1Headlight indication:

Indicate the working status of headlight.

2USB connection indication:

Indicate the status of USB connection to

peripheral device.

3Battery capacity indication:

Indicate the current remaining capacity.

4Real-time speed indication:

To indicate the real-time speed.

5Multiple data indication:

To indicate single (TRIP), Total range (ODO),

max speed (MAX), average speed (AVG),

remaining distance(RANGE), output power

(POWER), energy consumption(Cal), riding

time(TIME); (Notice: Calory data will only

come out when the display recognize the

sensor as torque sensor or the signal of

torque in 10s after switch on;Remaining

distance will only come out when the display

get the data of range.)

6Assistance level indication:

To indicate the current support level, this dis-

play has 0/1/2/3/4/5 mode, the chosen level

will be indicated in amplifying and reverse

color Arabic number; No chosen level indica-

tion means level 0, no power assistance,

means push assistance mode.

DISPLAY MANUAL DP C240.CAN

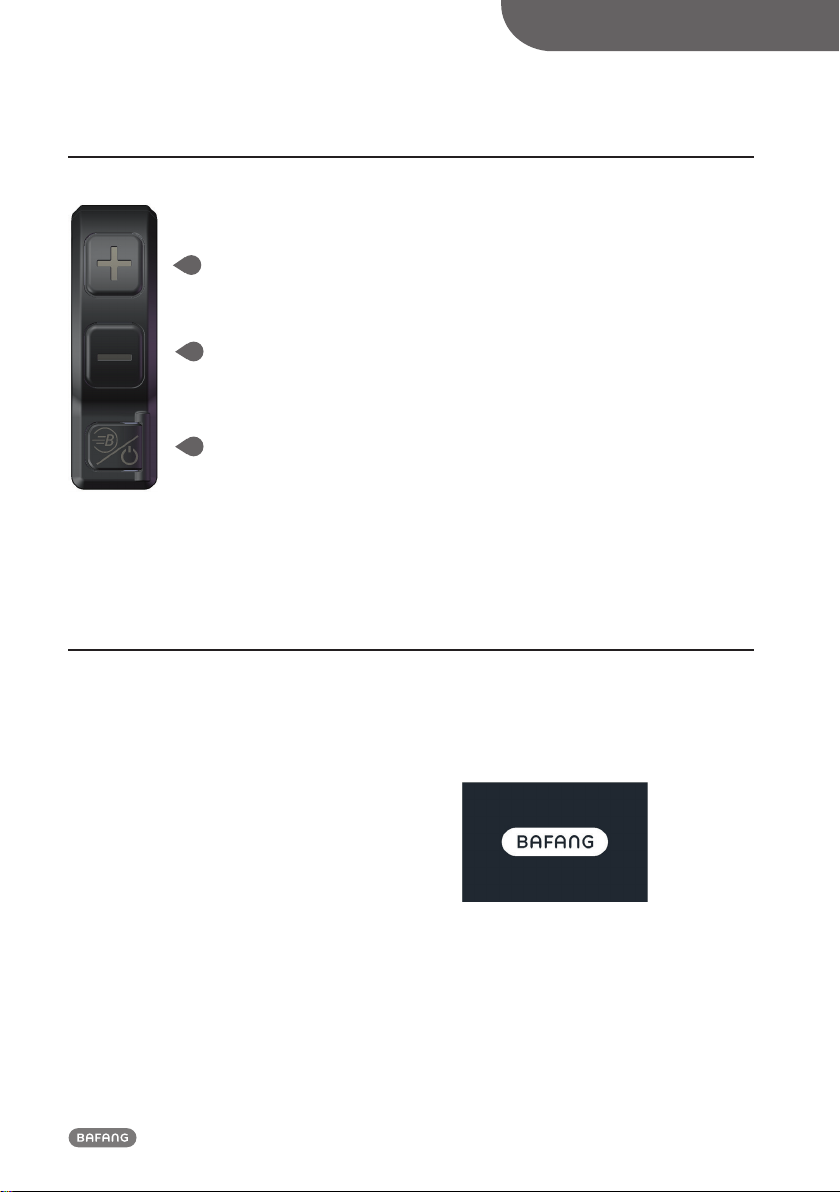

BUTTON DEFINITION

NORMAL OPERATION

“Press and hold” means press and hold for

more than two seconds, brieﬂy press means

press for less than 0.5 second.

• ON/OFF:

Press and hold” ON/OFF” button, then

display is working and offering power to

controller; On the contrary, press and hold

this button,then display is off and the cur-

rent consumption is less than 1uA .

Welcome interface

BUTTON DEFINITION

Down

BOOST / ON-OFF

8DISPLAY MANUAL DP C240.CAN

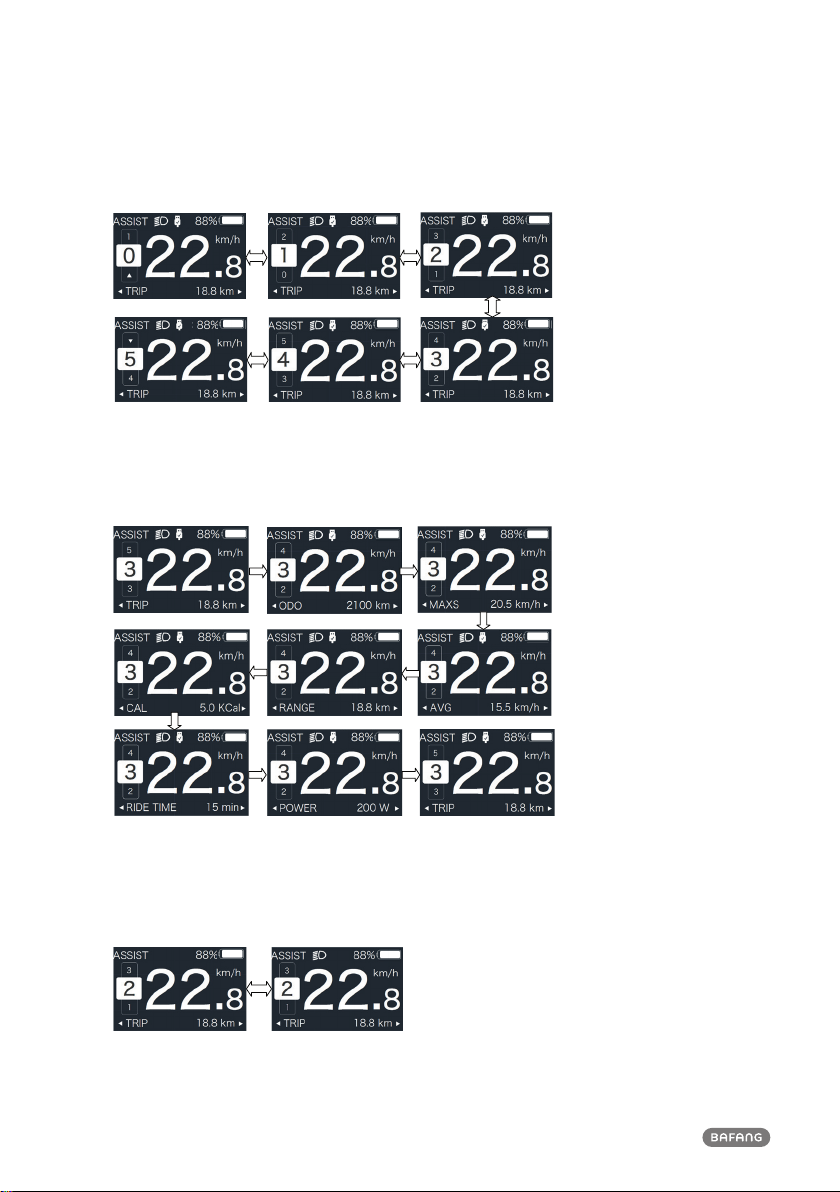

• Power assistance level switch:

After switching on the display, brieﬂy press ”+” or ”-” to switch the level to change the assistance

output power. The weakest level is 0, the most powerful level is 5. When the display is on, the de-

fault mode is level 1, here “0” means no power assistance. (as shown in the ﬁgure below)

• Multiple function interfaces switch:

Brieﬂy press ”BOOST” button to switch to different data interfaces,then circularly to show single

trip distance (Trip,km) → total distance (ODO,km) → maximum speed (MAX,km/h) → average speed

(AVG,km/h) → remaining distance (RANGE,km) → energy consumption (CALORIES/CAL,KCal) → riding

time (TIME,min) → real-time output power (POWER,w).

• Headlight/Display backlight switch:

Press and hold ”+” to turn on the display backlight as well as headlight, this moment you will see the

symbol of headlight in the screen; On the contrary, press and hold ”+” again to turn off the display

backlight and the headlight (If the display is turned on in a dark environment.the display backlight/

headlight are turned off manually, they also need to be turned on manually afterwards).

Interface of headlight and backlight

DISPLAY MANUAL DP C240.CAN

NORMAL OPERATION

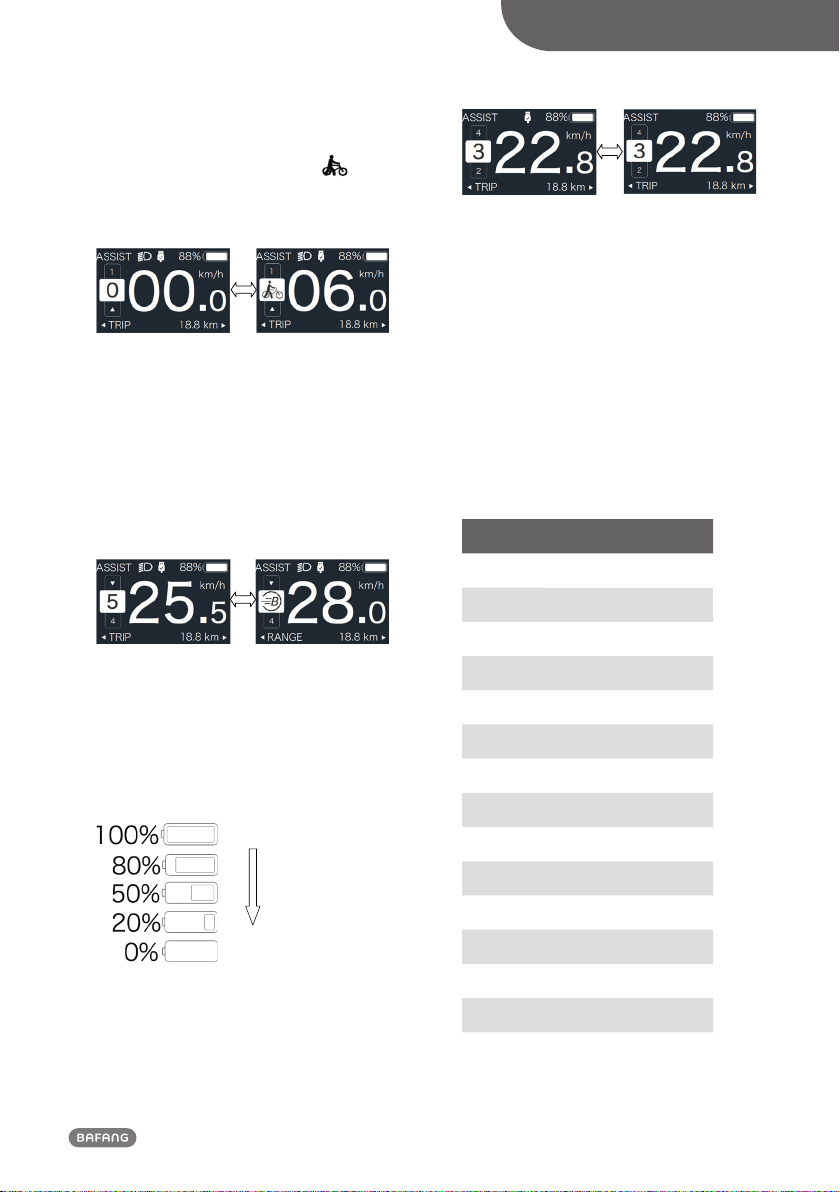

• Push assistance mode:

Press and hold ”-” button to enter into

push assistance mode, the symbol is

displayed, when release ”-” button, will exit

the push assistance mode and go back to

the current assistance level.

Push assistance function

• BOOST mode:

While riding and speed reaching to 25km/h,

press and hold “ BOOST” button with 2 sec-

onds to activate, then motor will give 100%

output power and ﬂowing without pedaling,

it feels more like a constant strong push in

the back; On the contrary, release the button

and exit from BOOST mode.

BOOST mode

• Battery capacity indication:

The battery remaining capacity will be indi-

cated as the exact percentage, in addition,

the frame of the symbol will ﬂash at 1Hz

when capacity is less than 5%, means the

battery needs to be charged.

• USB charging:

Plug the USB cable to display and smart

peripheral devices to charge,but the display

must be switched on.(≤5V, ≤1A)

USB charging indication

• Bluetooth connection:

①This display has Bluetooth module inte-

grated and connectable to BAFANG’s own

smart phone application “BAFANG GO”. In

addition, the SDK is open for customer to

develop APP individually.

②This display is also connectable to the

chest belt and catch real-time heart beat

data from the chest belt and display it and

send the data to smart phone.

③The list of data transmit from display to

smartphone as below:

Item Data

1 Speed

2 Capacity

3 Support level

4 Data of battery

5 Output of sensors

6 Remaining range

7 Calory

8 Component info.

9 Current

10 Heart beat

11 Trip

12 ODO

13 Headlight status

14 Error code

10 DISPLAY MANUAL DP C240.CAN

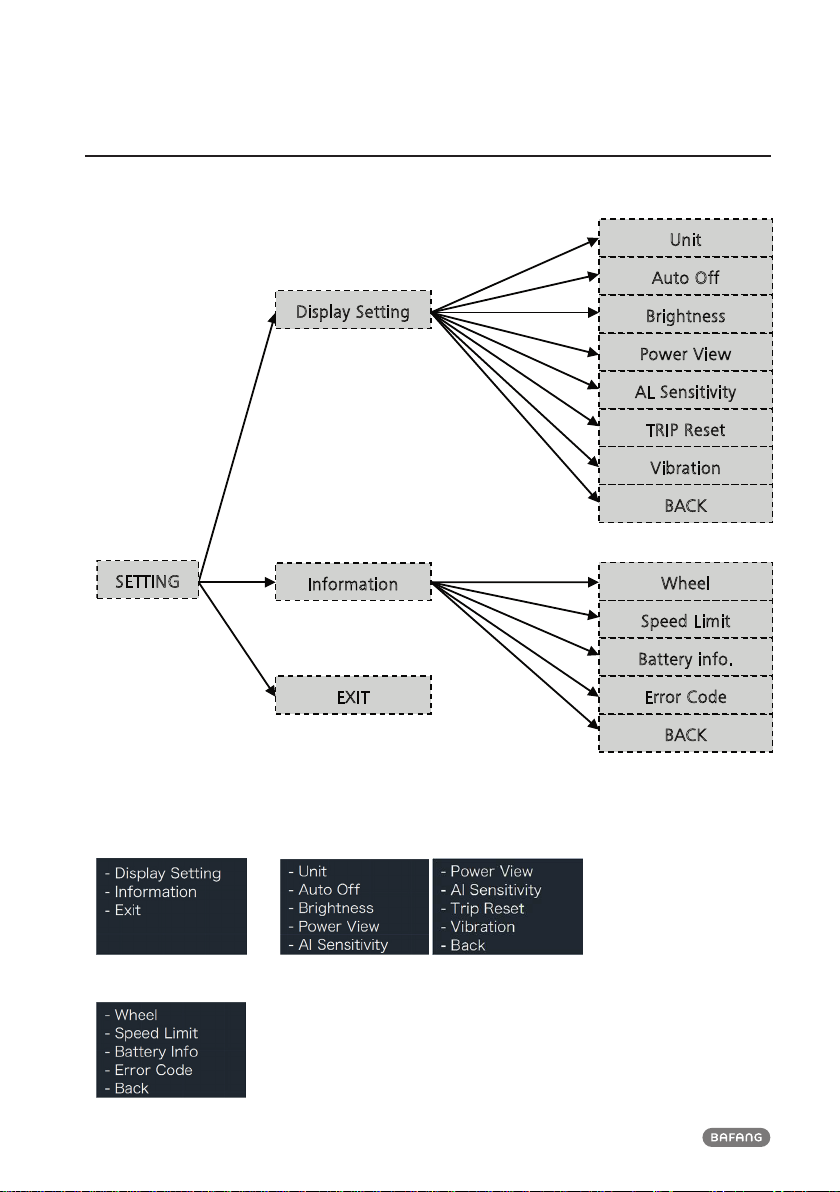

FUNCTIONS SETTING

• Preference setting

EXIT

SETTING

Display Setting

sSetting

Information

BACK

Speed Limit

Battery info.

Error Code

Wheel

Power View

Default Mode

Unit

Auto Off

Brightness

AL Sensitivity

TRIP Reset

Vibration

BACK

Press and hold “+” & “-” button synchronously to enter into Display Setting interface, and brieﬂy press

“+” or “-” to switch to from “Setting” to “EXIT“ and then brieﬂy press “ON/OFF” button to conﬁrm the

operation.

Switch interface Settable menus

Viewable data
