BAFANG E-SYSTEM Manuel utilisateur
MANUAL
BAFANG E-SYSTEM
EN
EN
INHALT
Display DP C11.CAN 3
Display DP C240.CAN 21
Motor H300 (RM G010.250.D) 37
Motor H400B (RM G020.250/350.DC) 41
Motor H600 (RM G370.250.DC) 45
3
DISPLAY DP C11.CAN
CONTENT
1.1 Important Notice 4
1.2 Introduction of Display 4
1.3 Product Description 5
1.3.1 Specifications 5
1.3.2 Functions Overview 5
1.4 Display 6
1.5 Key Definition 6
1.6 Normal Operation 7
1.6.1 Switching the System On/Off 7
1.6.2 Selection of Support Levels 7
1.6.3 Selection mode 7
1.6.4 Headlights / backlighting 8
1.6.5 Walk Assistance 8
1.6.6 Service 9
1.6.7 Battery capacity indication 9
1.7 Settings 10
1.7.1 "Display Setting" 10
1.7.2 "Information" 13
1.8 Error Code Definition 16
DP C11.CAN
4
1.2 INTRODUCTION OF DISPLAY
• Model: DP C11.CAN BUS
• The housing material is PC and Acrylic, and
the button material is made of silicone.
• The label marking is as follows:
Note: Please keep the QR code label attached to the
display cable. The information from the Label is used
for a later possible software update.
1.1 IMPORTANT NOTICE
• If the error information from the display
cannot be corrected according to the inst-
ructions, please contact your retailer.
• The product is designed to be waterproof. It
is highly recommended to avoid submerging
the display under water.
• Do not clean the display with a steam jet,
high-pressure cleaner or water hose.
• Please use this product with care.
• Do not use thinners or other solvents to
clean the display. Such substances can
damage the surfaces.
• Warranty is not included due to wear and
normal use and aging.
5
DISPLAY DP C11.CAN
1.3 PRODUCT DESCRIPTION
1.3.1 Specifications
• Operating temperature: -20℃~45℃
• Storage temperature: -20℃~50℃
• Waterproof: IP65
• Storage room Humidity: 30%-70% RH
1.3.2 Functional Overview
• Speed display (including top speed and aver-
age speed, switching between km and miles)
• Battery capacity indicator
• Lighting control
• Brightness setting for backlight
• Walk assistance
• Indication of performance support
• Motor output power indicator
• Time display for single journeys
• Kilometer stand (including single-trip dis-
tance, total distance and remaining distance)
• Setting the support levels
• Energy consumption indicator CALORIES
(Note: If the display has this function)
• Display for the remaining distance (Depends
on your riding style)
• Information View (battery, controller, HMI
and sensor)
• Error messages view
6
1.4 DISPLAY
1
2
3
4
6
5
1Display of battery capacity in real time.
2Support level
3The display shows this symbol , When
the lights are turned on.
4Unit of speed
5Digital speed display
6Trip: Daily kilometers (TRIP) - Total kilometers
(ODO) - Top speed (MAX) - Average speed
(AVG) - Rremaining distance (RANGE) - Ener-
gy Consumption (CALORIES) - Output power
(POWER)- Travel time (TIME).
Service: Please see the service section
1.5 KEY DEFINITION
up
up
down
down
System On/Off
7
DISPLAY DP C11.CAN
1.6 NORMAL OPERATION
1.6.1 Switching the System ON/OFF
Press and hold (>2S) on the display to turn on the system. Press and hold (>2S) again to turn
off the system.
If the "automatic shutdown time" is set to 5 minutes (it can be reset with the "Auto Off" function,
See "Auto Off"), the display will automatically be turned off within the desired time when it is not
in operation.If the password function is enabled, you must enter the correct password to use the
system.
1.6.2 Selection of Support Levels
When the display is turned on, press the or button (<0.5S) to switch to the support level, the
lowest level is 0, the highest level is 5. When the system is switched on, the support level starts in
level 1. There is no support at level 0.
For different assist levels please see part "Assist Mode".
1.6.3 Selection mode
Briefly press the button (<0.5s) to see the different trip modes.
Trip: daily kilometers (TRIP) - total kilometers (ODO) - Maximum speed (MAX) - Average speed (AVG)
- Rremaining distance (RANGE) - Energy consumption (CALORIES) - Output power (POWER) - Travel
time (TIME).
8
1.6.4 Headlights / backlighting
Hold the button (>2S) to activate the headlight and taillights.
Hold the button (>2S) again to turn off the headlight. The brightness of the backlight can be set
in the display settings "Brightness".
1.6.5 Walk Assistance
The Walk assistance can only be activated with a standing pedelec.
Activation: Press the button until this symbol appears. Next press and hold down the
button whilst the symbol is displayed, now the Walk assistance will activate. The symbol
will blink and the pedelec moves approx. 5 km/h. After releasing the button, the motor stops
automatically and switches back to level 0.
The Walk assistance can only be activated with a standing pedelec.
9
DISPLAY DP C11.CAN
1.6.6 Service
The display shows "SERVICE" as soon as a certain number of kilometers or battery charges has been
reached. With a mileage of more than 5000 km (or 100 charge cycles), the “SERVICE" function is
displayed on the display. Every 5000 km the display "SERVICE" is displayed every time. This function
can be set in the display settings.
1.6.7 Battery capacity indicator
The battery capacity is shown in the top left of the display. Each full bar represents a remaining
capacity of the battery in a percentage.
(as shown in the diagram below):
Capacity Range Indicator
80%-100%
60%-80%
40%-60%
20%-40%
5%-20%
<5% blinking
10

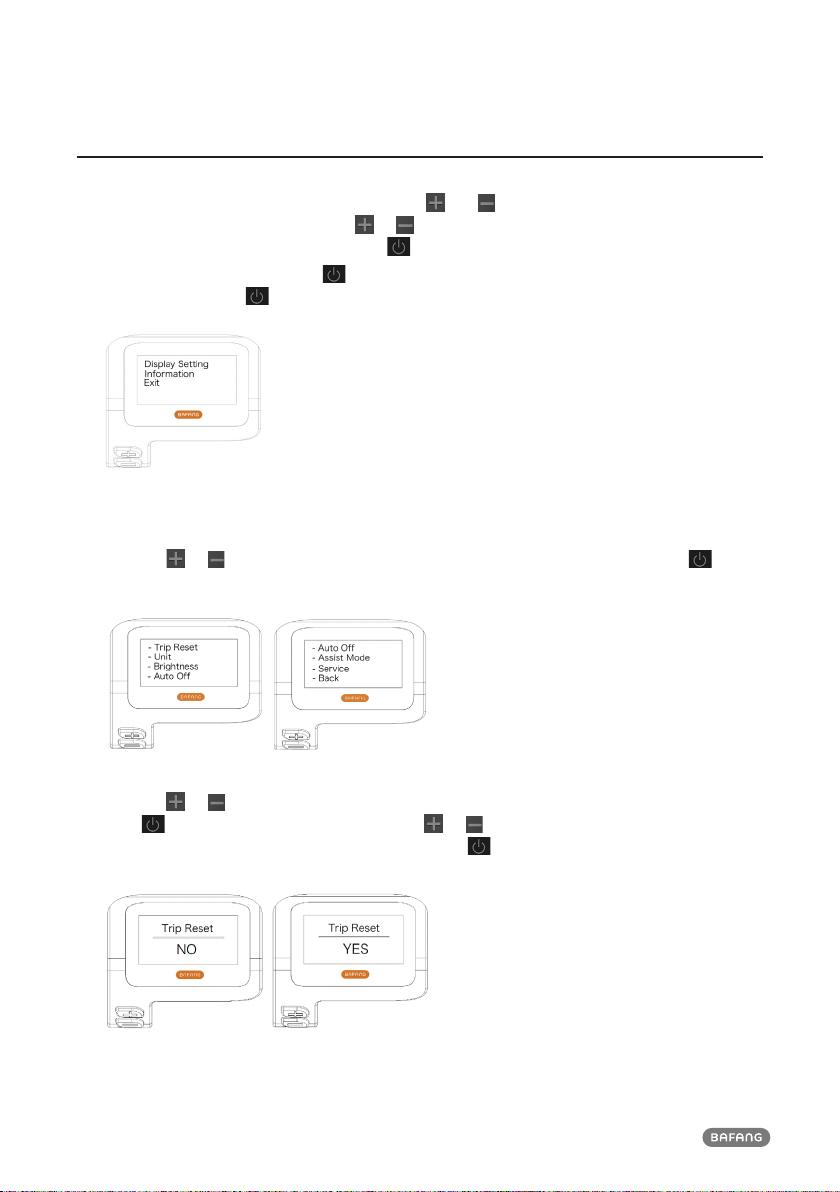

1.7 SETTINGS
After the display is turned on, press and hold the and buttons (at the same time) to enter
into the setting menu, By pressing the or button (<0.5S), you can highlight and select Display
Setting, Information or Exit. Then press the button (<0.5S) to confirm your selected option.
Or highlight "EXIT" and press the button (<0.5S) to return to the main menu, or highlight "BACK"
and press (<0.5S) the button (<0.5S) to return to the Settings interface.
1.7.1 "Display Setting"
Press the or button (<0.5S) and highlight Display Setting, and then briefly press the button
(<0.5S) to access the following selections.
1.7.1.1 "TRIP Reset" Reset mileage
Press the or button (<0.5S) to highlight “Trip Reset” in the Display setting menu, and then
press button (<0.5S) to select. Then with the or button choose between “YES” or “NO”.
Once you have chosen your desired selection, press the button (<0.5S) to save and exit to the
"Display setting".
