BAFANG DP C10.CAN Manuel utilisateur

C10.CAN C15.CAN E10.CAN

LOVE AT FIRST RIDE

DISPLAY MANUALS

BIM A S BIKES

BF-DM-C-DP C10-EN November 2019

DEALER MANUAL FOR DISPLAY

CONTENT



DP C10.CAN

7.1 Important Notice

7.2 Introduction of Display

7.3 Product Description 3

7.3.1 Specifications 3

7.3.2 Functions Overview

7.4 Display Installation

7.5 Display

7.6 Key Definition

7.7 Normal Operation 6

7.7.1 Switching the System ON/OFF 6

7.7.2 Selection of Support Levels 6

7.7.3 Selection mode 7

7.7.4 Headlights / backlighting 7

7.7.5 Walk Assistance 8

7.7.6 Battery capacity indication 8

7.7.7 USB charge function 8

7.8 Settings 9

7.8.1 Setting 9

7.8.2 View Information 11

7.9 Error Code Definition 15

7 DEALER MANUAL FOR DP

0

DP C15.CAN

7.1 Important Notice

7.2 Introduction of Display

7.3 Product Description 21

7.3.1 Specifications

7.3.2 Functions Overview

7.4 Display Installation

7.5 Display

7.6 Normal Operation 23

7.6.1 Switching the System ON/OFF 23

7.6.2 Selection of Support Levels

7.6.3 Headlights / backlighting

7.6.4 Walk Assistance

7.6.5 Selection Mode

7.6.6 SERVICE 24

7.7 Settings 25

7.7.1 "Display Setting" 25

7.7.2 "Information"

7.8 Error Code Definition 29

DP E10.CAN

7.1 Important Notice

7.2 Introduction of Display

7.3 Product Description 35

7.3.1 Specifications 35

7.3.2 Functions Overview

7.4 Display Installation

7.5 Display

7.6 Key Definition 36

7.7 Normal Operation 37

7.7.1 Switching the System ON/OFF

7.7.2 Selection of Support Levels

7.7.3 Headlights / backlighting

7.7.4 Walk Assistance

7.7.5 Battery Capacity Indication

7.7.6 USB Charge Function 38

7.8 Error Code Definition 39

C10.CAN C15.CAN E10.CAN

2BF-DM-C-DP C10-EN November 2019

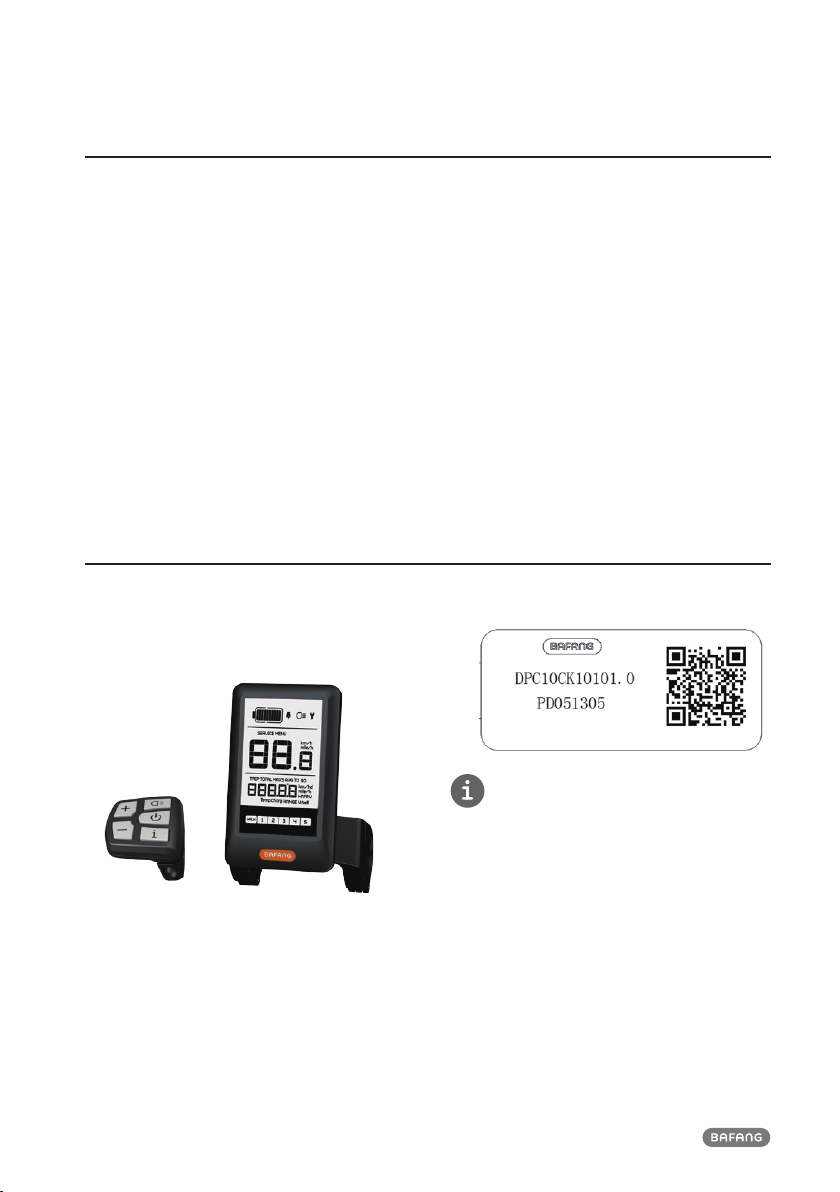

7.2 INTRODUCTION OF DISPLAY

• Model: DP C10.CAN BUS

• The housing material is PC and Acrylic, and

the button material is made of silicone.

• The label marking is as follows:

Note: Please keep the QR code label attached

to the display cable. The information from the

Label is used for a later possible software

update.

7.1 IMPORTANT NOTICE

• If the error information from the display

cannot be corrected according to the inst-

ructions, please contact your retailer.

• The product is designed to be waterproof. It

is highly recommended to avoid submerging

the display under water.

• Do not clean the display with a steam jet,

high-pressure cleaner or water hose.

• Please use this product with care.

• Do not use thinners or other solvents to

clean the display. Such substances can

damage the surfaces.

• Warranty is not included due to wear and

normal use and aging.

BF-DM-C-DP C10-EN November 2019

DEALER MANUAL FOR DISPLAY

7.3 PRODUCT DESCRIPTION

7.3.1 Specifications

• Operating temperature: -20℃~45℃

• Storage temperature: -20℃~50℃

• Waterproof: IP65

• Bearing humidity: 30%-70% RH

7.3.2 Functional Overview

• Speed display (including speed in real time

(SPEED), top speed (MAXS) and average

speed (AVG), switching between km and

miles)

• Switching between km and miles

• Battery capacity indicator

• Automatic sensors explanation of the light-

ing system

• Brightness setting for backlight

• Indication of performance support

• Walk assistance

• Kilometer stand (including single-trip dis-

tance, total distance)

• Display for the remaining distance.(Depends

on your riding style)

• Motor output power indicator

• Energy consumption indicator CALORIES

(Note: If the display has this function)

• Error messages view

• Service

• USB charge function

4BF-DM-C-DP C10-EN November 2019

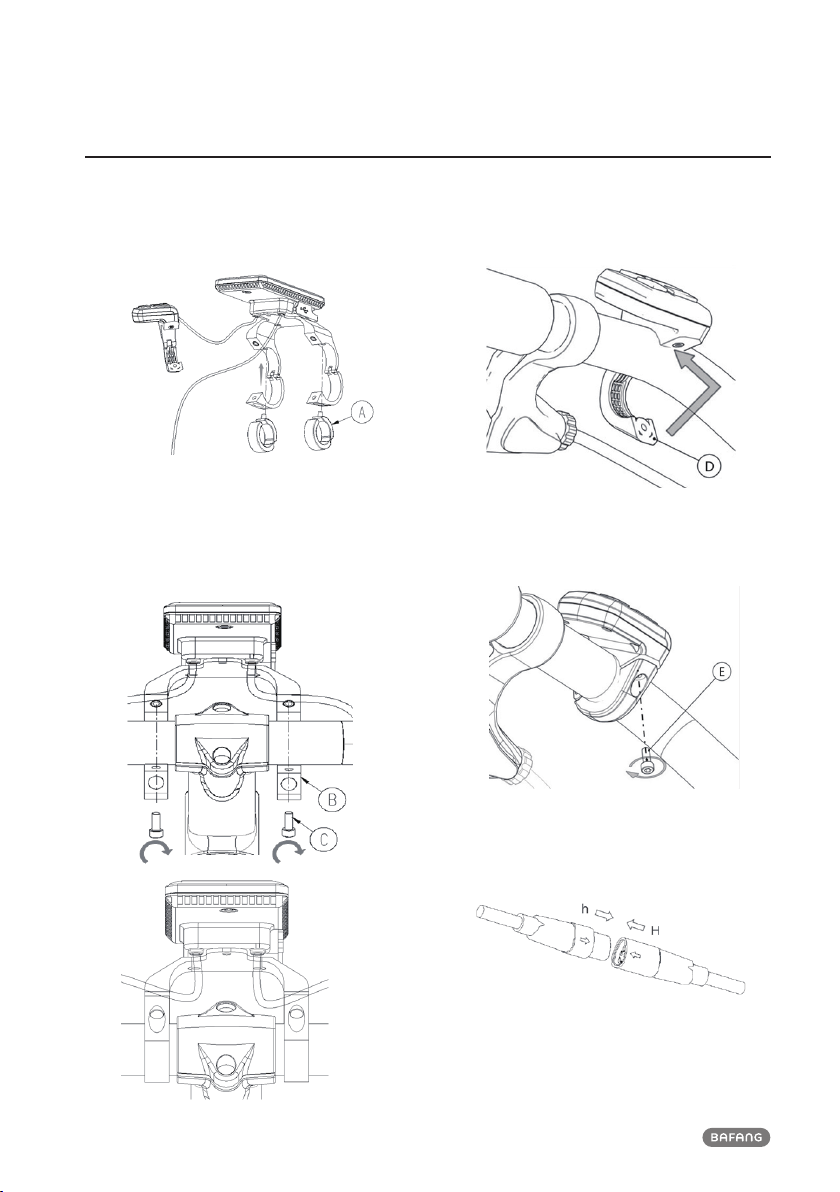

7.4 DISPLAY INSTALLATION

1. Open the clamps of display and insert

the rubber rings A on the handlebar.

(it is suitable for handlebar ∮22.2 or

∮31.8)

2. Now place the display on to the handlebar

in the correct position, with two M4*8

screws (C), tighten the display (B the

clamps) into position. Torque requirement:

1N.m.

3. Open the clamp (D) on the controller pad

and place it in the correct position (it is

suitable for handlebar: ∮22.2).

4. Using a M3*10 screw (E) tighten the

controller pad onto the handlebar. Torque

requirement: 1N.m.

5. Please link the display to the EB-BUS cable.

h:The male connector from display.

H: The female connector from EB-BUS.

BF-DM-C-DP C10-EN November 2019

DEALER MANUAL FOR DISPLAY

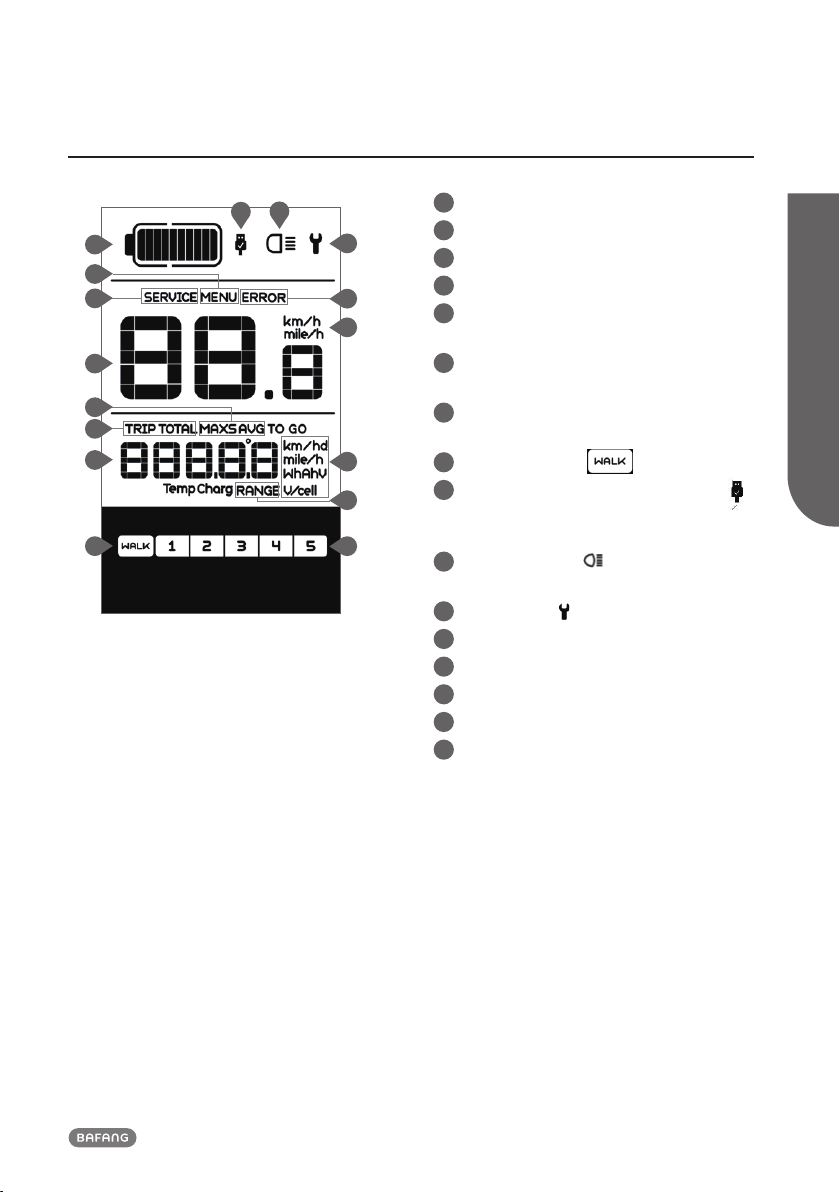

7.5 DISPLAY

111

1Display of battery capacity in real time.

2Menu.

3Service: please see the service section.

4Digital speed display.

5Speed mode , top speed (MAXS) - Average

speed (AVG).

6Kilometer stand, Daily kilometers (TRIP) -

Total kilometers (TOTAL).

7Data: Display data, which corresponds to the

current mode.

8Walking assistance .

9USB charging indicator displays the icon ,

if an external USB device is connected to the

display.

10 The display shows this symbol, if the

light is on.

11 Error indicator .

12 Error code indicator.

13 Speed unit.

14 Unit indicator.

15 Remaining distance (RANGE).

16 Support level

6BF-DM-C-DP C10-EN November 2019

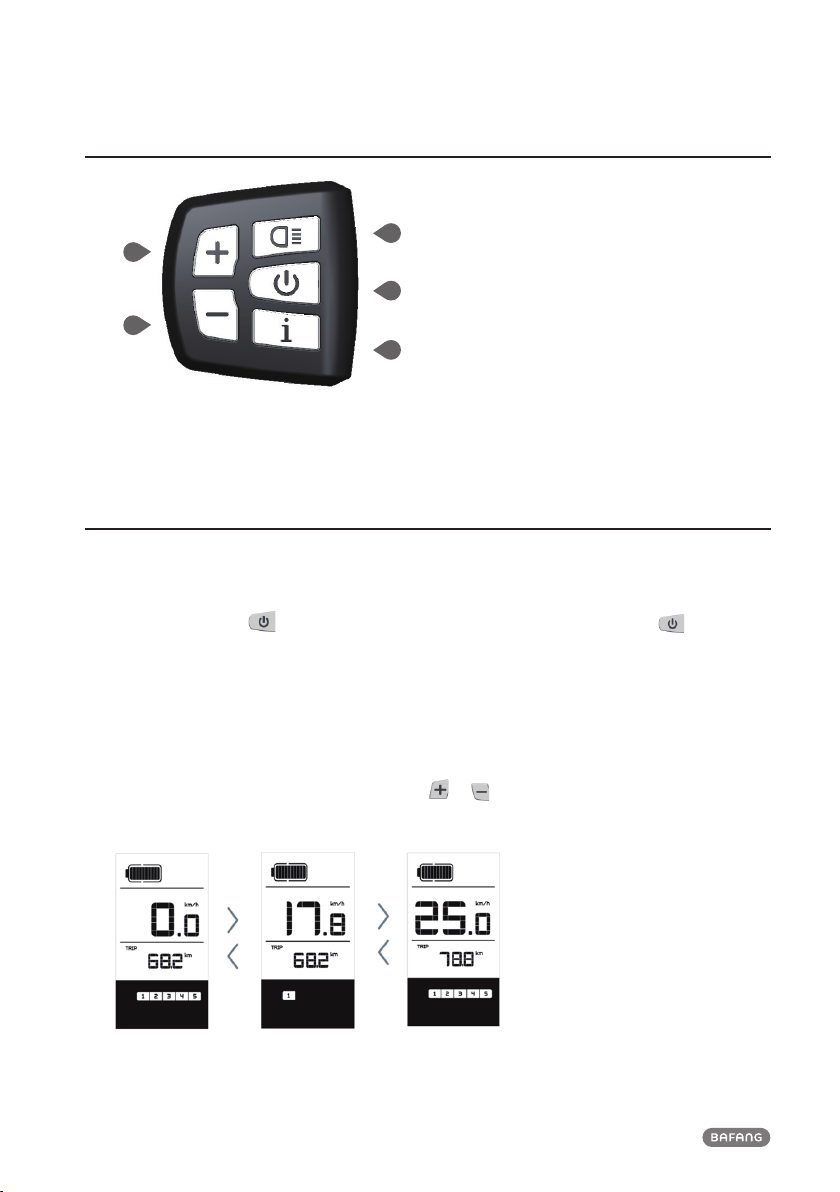

7.6 KEY DEFINITION

Light On/Off

System On/Off

OK/Enter

Down

7.7 NORMAL OPERATION

7.7.1 Switching the System ON/OFF

Press and hold (>2S) on the display to turn on the system. Press and hold (>2S) again to

turn off the system.

If the "automatic shutdown time" is set to 5 minutes (it can be set with the "Auto Off" function, See

"Auto Off"), the display will automatically be turned off within the desired time when it is not in

operation.

7.7.2 Selection of Support Levels

When the display is turned on, press (<0.5S) the or button to switch to the support level, the

lowest level is 1, the highest level is 5. When the system is switched on, the support level starts in

level 1. There is no support at level null.

BF-DM-C-DP C10-EN November 2019

DEALER MANUAL FOR DISPLAY

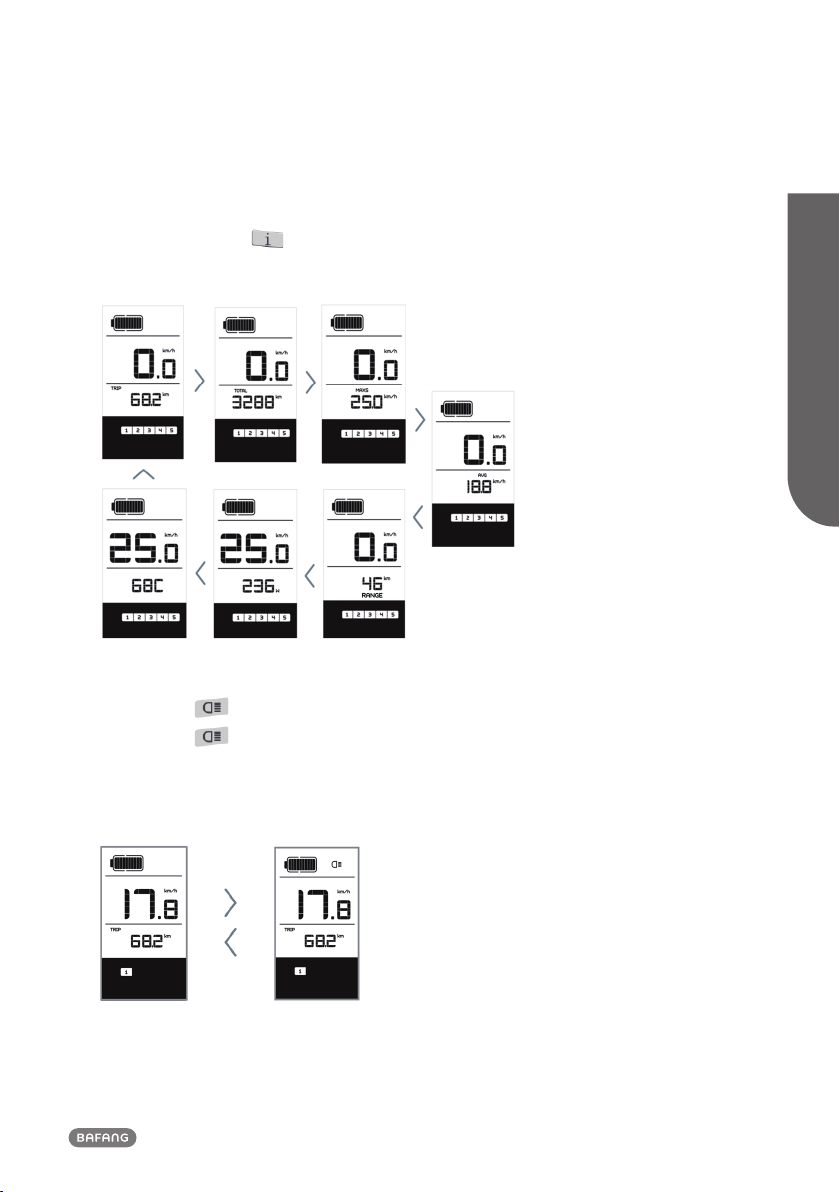

7.7.3 Selection mode

Brieﬂy press (<0.5s) the button to see the different trip modes. Trip: daily kilometers (TRIP) - to-

tal kilometers (TOTAL) - Maximum speed (MAXS) - Average speed (AVG) - Remaining distance

(RANGE) - Output power (W) - Energy consumption (C (only with torque sensor ﬁtted)).

7.7.4 Headlights / backlighting

Hold (>2S) the button to activate the headlight and taillights.

Hold (>2S) the button again to turn off the headlight. The brightness of the backlight can be

set in the display settings "Brightness". (If the display /Pedelec is switched on in a dark environment,

the display backlight/headlight will automatically be switched on. If the display backlight/headlight

has been manually switched off, the automatic sensor function is deactivated. You can only turn on

the light manually after switching on the system again.)

8BF-DM-C-DP C10-EN November 2019

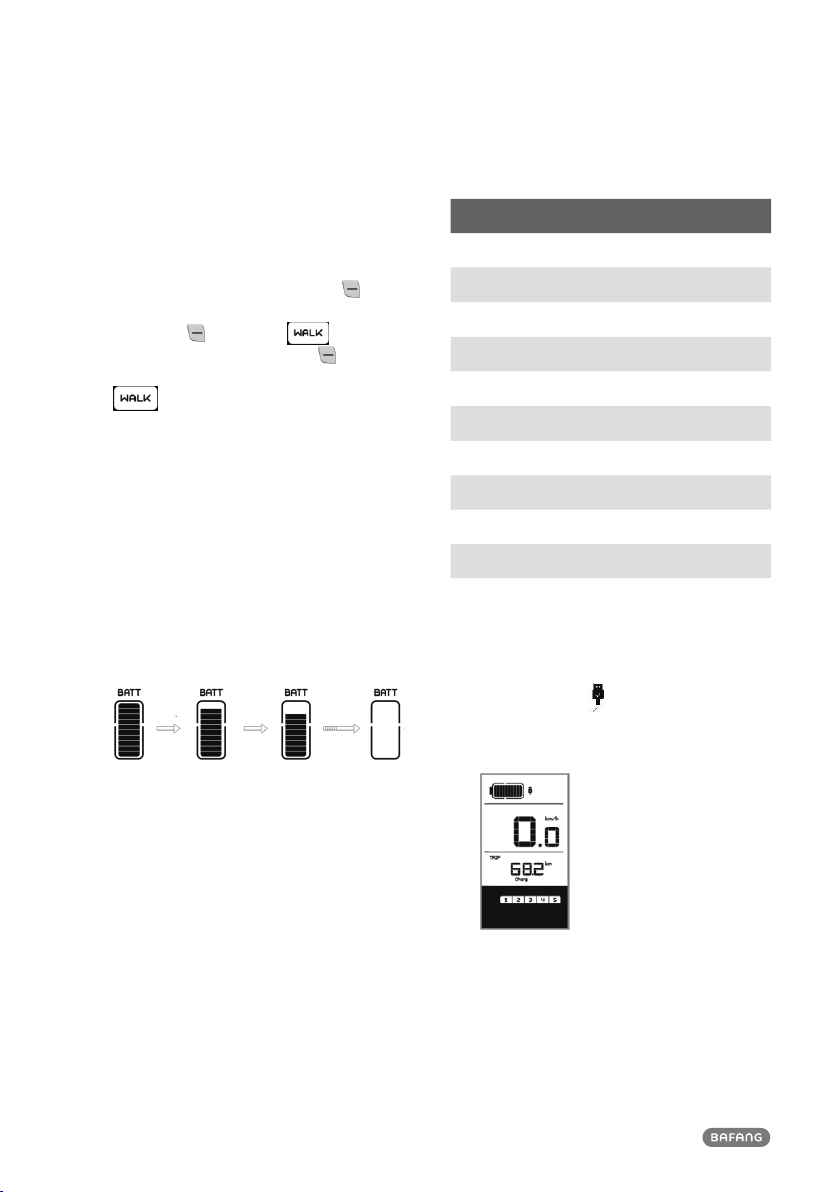

7.7.5 Walk Assistance

The Walk assistance can only be activated

with a standing pedelec.

Activation: Brieﬂy press (<0.5S) the

button until to level null, and then press

(<0.5s) the button, the symbol is

displayed. Now hold down the button

and the Walk assistance will activate. The

symbol will ﬂashes and the pedelec

moves approx. 6 km/h. After releasing the

button, the motor stops automatically and

switches back to level null (if no any option

be activated in 5 second). If no speed signal

is detected, it shows 2.5km/h.

7.7.6 Battery capacity indication

The battery capacity is showed in ten bars.

Each full bar represents a remaining capacity

of the battery in a percentage, if the frame

of indicator blinks that means to charge. (as

shown in the ﬁgure below):

Bars Charge in Percentage

10 ≥90%

9 80%≤C<90%

8 70%≤C<80%

7 60%≤C<70%

6 50%≤C<60%

5 40%≤C<50%

4 30%≤C<40%

3 20%≤C<30%

2 10%≤C<20%

1 5%≤C<10%

Blinking C<5%

7.7.7 USB charge function

If an external USB device is connected to the

display, the icon appears, the device will

be charged. The maximum charging voltage

is 5V and the maximum charging current is

500mA.

BF-DM-C-DP C10-EN November 2019

DEALER MANUAL FOR DISPLAY

7.8 SETTINGS

After the display is turned on, quickly press

(<0.3S) the button twice to access the

“MENU” interface. pressing the or

button, you can select and reset the options.

Then press (<0.3S) the button twice to

conﬁrm your selected option and to return

to the main screen. If no button is pressed

within 10 seconds in “MENU” interface, the

display will automatically return to the main

screen and no data will be saved.

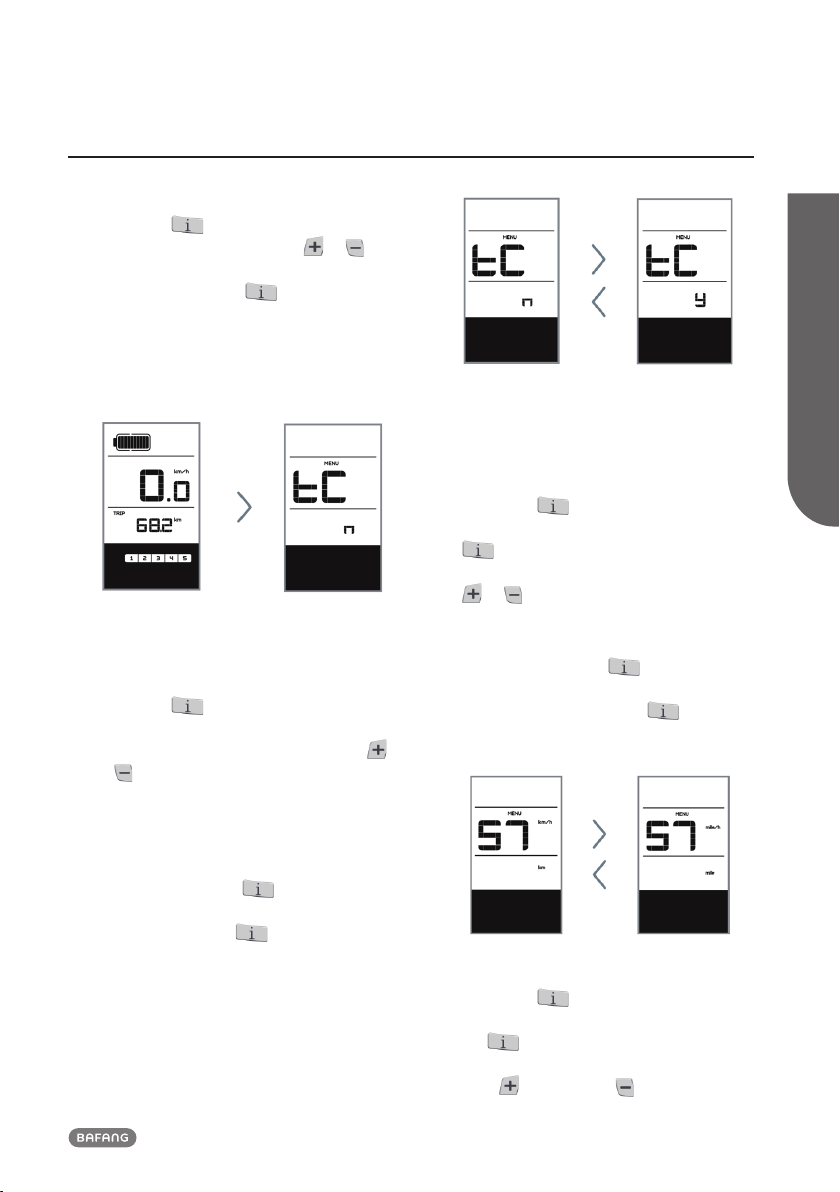

7.8.1 Setting

7.8.1.1 Reset mileage

When the system is on, quickly press

(<0.3S) the button twice to access the

“MENU” interface and “tC” appears on the

display (as shown below). Now using the

or button, choose between “y”(YES) or

“n”(NO). If choose “y”, the Daily kilometers

(TRIP), Maximum speed (MAX) and Average

speed (AVG) will be reset.

Once you have chosen your desired selec-

tion, press (<0.3S) the button twice to

save and return to the main screen, or you

can press (<0.3S) the button once to

save and enter next item "Selection of unit

in km/Miles".

NOTE: If the daily kilometers accumulate

99999km, the daily kilometers will be reset

automatically.

7.8.1.2 Selection of unit in km/Miles

When the system is on, quickly press

(<0.3S) the button twice to access

the “MENU” interface, repetitively press the

button until the “S7” appears on the

display (as shown below). Now using the

or button, choose between “km/h”

or “mile/h”.

Once you have chosen your desired selec-

tion, press (<0.3S) the button twice

to save and return to the main screen,

or you can press (<0.3S) the button

once to save and enter next item "Set light

sensitivity".

7.8.1.3 Set light sensitivity

When the system is on, quickly press

(<0.3S) the button twice to access

the “MENU” interface, repetitively press

the button until the “bL0” appears

on the display (as shown below). And then

press to increase or to reduce (light

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BAFANG Accessoires pour vélos

BAFANG

BAFANG H400 Manuel utilisateur

BAFANG

BAFANG DP C171.UART Manuel utilisateur

BAFANG

BAFANG DP C15.CAN Manuel utilisateur

BAFANG

BAFANG H500F Manuel utilisateur

BAFANG

BAFANG CR A101.C 1.0 Manuel utilisateur

BAFANG

BAFANG DPC-10 Biktrix Manuel utilisateur

BAFANG

BAFANG DP C231.CAN Manuel utilisateur

BAFANG

BAFANG DP E08.CAN Manuel utilisateur

BAFANG

BAFANG H600 Manuel utilisateur

BAFANG

BAFANG MM G31.250 Manuel utilisateur

BAFANG

BAFANG BT C01.340.UART Guide de référence

BAFANG

BAFANG C965 Manuel utilisateur

BAFANG

BAFANG DP C18.CAN Manuel utilisateur

BAFANG

BAFANG DP C01.RS 232.7 Manuel utilisateur

BAFANG

BAFANG DP C181.CAN Manuel utilisateur

BAFANG

BAFANG C961 Manuel utilisateur

BAFANG

BAFANG DP C10.UART Manuel utilisateur

BAFANG

BAFANG DP E170.CAN Manuel utilisateur

BAFANG

BAFANG C961 Manuel utilisateur

BAFANG

BAFANG DP C01.CAN BUS Manuel utilisateur

BAFANG

BAFANG DP C171.UART Manuel utilisateur

BAFANG

BAFANG DP C230.CAN Manuel utilisateur

BAFANG

BAFANG UB40 Manuel utilisateur

BAFANG

BAFANG DP E161.CAN Manuel utilisateur

Manuels Accessoires pour vélos populaires d'autres marques

Sigma

Sigma BC 16.16 Manuel utilisateur

Playcore

Playcore Dero Setbacks Manuel utilisateur

VDO Cyclecomputing

VDO Cyclecomputing x3dw Manuel utilisateur

Cateye

Cateye RAPID X2 Manuel utilisateur

buratti meccanica

buratti meccanica Clorofilla Trail Manuel utilisateur

Shimano

Shimano SG-8R20 Mode d'emploi

BOB

BOB YAK Manuel utilisateur

APLIC

APLIC 303303/20190717TW012 Manuel utilisateur

SRAM

SRAM AXS BlipBox Manuel utilisateur

Garmin

Garmin EDGE 500 Manuel utilisateur

Shimano

Shimano FD-RX810 Manuel utilisateur

Cateye

Cateye V2C - Manuel d'instructions

KMART

KMART 43115907 Manuel utilisateur

SIGMA SPORT

SIGMA SPORT Buster 2000 Manuel utilisateur

NVO Components

NVO Components STEM Manuel utilisateur

DAXYS

DAXYS BP188 Manuel utilisateur

XLC

XLC BV-W17 Manuel utilisateur

Deda Elementi

Deda Elementi SUPERBOX Manuel utilisateur
