AXIOMTEK DSP300-318 Series Manuel utilisateur

Version A2 August 2020

Printed in Taiwan

9 12K300010E

d. Raise the front part of the main board by slightly

pressing the bottom side down.

Remove the main board from the back cover by

lifting the board upward

(as illustrated in the figure below)

WARNING!

To prevent damaging the main board and its delicate

components, DO NOT forcefully pull the main board forward or

backward without lifting the board first.

DSP300-318 Quick Installation Guide

Version A2 August 2020

Printed in Taiwan

9 12K300010E

Packing List

System Unit x 1 DVD/CD x 1 (for Driver & Manual)

Quick Installation Guide x 1 36W power adapter x 1

US power cord x 1 or

EU power cord x 1 Foot Pad x 4



Do not try to apply power to the system if any damaged components.

Dimensions

DSP300-318 Series Digital Signage Player

Version A2 August 2020

Printed in Taiwan

9 12K300010E

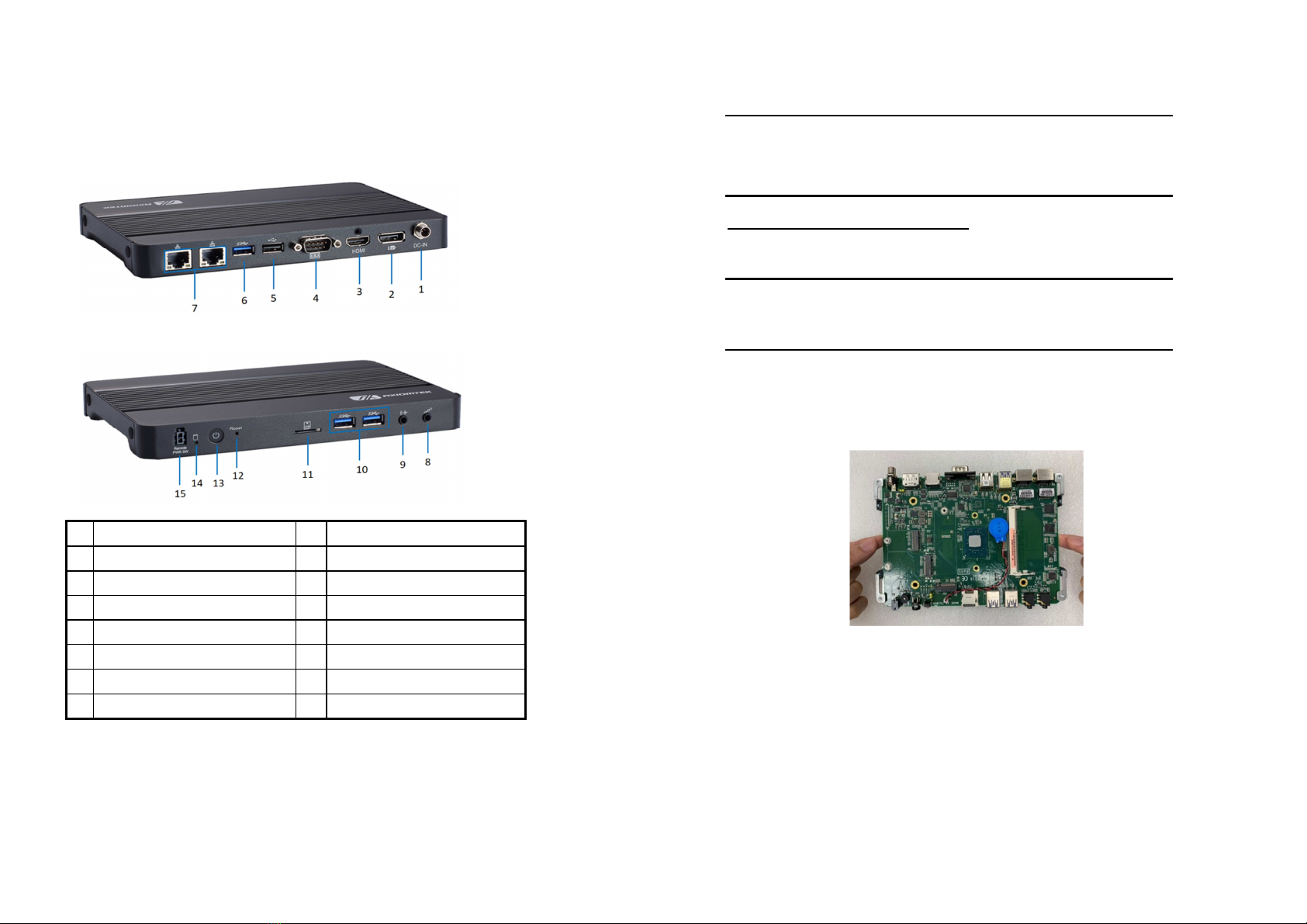

I/O Outlets

The following figures show I/O outlets on the DSP300-318.



Front View



Rear View

12VDC power input 9

Line-out

DP 10

USB 3.0

HDMI 11

SIM card

Serial Port 12

Reset switch

USB 2.0 13

Power switch

USB 3.0 14

HDD LED

GbE LAN ports 15

Remote power switch

MIC-in

Version A2 August 2020

Printed in Taiwan

9 12K300010E

Installation of SO-DIMM Memory

To save your installation effort, we recommend purchasing all

memory modules from Axiomtek, and we will have them fully

installed in the system unit prior to delivery.

* Before assembly, please adjust screw torque force to 4.0~6.0 kgf-cm.

Installation of Memory SDIMM1 Device

Please refer to User manual, if you like to know the installation with

detail.

CAUTION:

The main board contains delicate components and can

be easily damaged during removal. To prevent damaging the main

board and its components, follow the instructions below to remove the

main board.

a. Identify the positioning openings on the main board,

as highlighted in the picture below. Also notice the

positioning posts underneath that come through the

openings from the back.

b. Use both hands to hold the main board by the left and

right sides.

c. To prevent the positioning posts underneath from

scratching the main board, gently lift the board

vertically upwards; until all openings are completely

separate from the posts underneath. Then slightly pull

the main board backward, until the board’s top left and

right edges have left the back cover frame (as marked

in the figure below).
