AXIOMTEK CAPA848 Manuel utilisateur

4 9418E848000E

Version A1 September 2015

Printed in Taiwan

Quick Start

The basic procedures required to power on CAPA848:

(1). Require power at minimum 1A. Ensure that power supply is

OFF before connecting to CAPA848 and that all necessary

peripheral devices are plugged properly.

(2). Ensure all of the jumpers are at default settings; especially

JP10 (1-2 close).

(3). Firmly install DDR3L memory modules into connector

SSODIMM1 until fully seated.

Note: It must be DDR3L memory module.

(4). Firmly insert power to ATX1.

(5). Install a momentary on/off button/switch onto CN1, pin 9 and

10.

(6). Turn on the power supply.

(7). Press the on/off button/switch to power on CAPA848

CAPA848 Series Quick Installation Guide

9418E848000E 1

Version A1 September 2015

Printed in Taiwan

Checklist

CPU Board x1 Product Information CD x1

Quick Installation Guide x1

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Connectors

Connector Description

CN1 Front Panel Connector

CN2 Inverter Connector

CN3 LVDS Connector

CN4 Audio Connector

CN5 Digital I/O Port Connector

CN7 Fan Connector

CN8 SMBus Connector

CN9 USB Wafer Port 2 and 3

CN10 HDMI Connector

CN11 COM3 and COM4 Connector

CN12 SATA Power Connector

CN14 VGA Connector

ATX1 Power Connector

SATA1 SATA Connector

USB1 USB Port 0 and 1

LAN1 Ethernet Port 1

COM1 COM1 Connector

COM2 COM2 Connector

BAT1 CMOS Battery Connector

SCN1 Half-size PCI-Express Mini Card Connector

SCN2 Full-size PCI-Express Mini Card Connector

SCN3 SIM Card Slot

SSODIMM1 DDR3L SO-DIMM Connector

CAPA848 Intel®Celeron®Processor N2807 Capa Board

2 9418E848000E

Version A1 September 2015

Printed in Taiwan

Jumper Settings

Before applying power to the CAPA848, please make sure all of the

jumpers are in factory default positions.

Jumper Description Setting

JP1 LVDS +3.3V/+5V Voltage Selection

Default: +3.3V 1-2 Close

JP3 LVDS Brightness Control Mode Setting

Default: PWM Mode 1-2 Close

JP4 Restore BIOS Optimal Defaults

Default: Normal Operation 1-2 Close

JP6 LVDS +12V Voltage Selection

Default: N/A N/A

JP10 Auto Power On

Default: Disable 1-2 Close

Note: Please refer to the CAPA848 series product information CD for the

complete user’s manual, drivers and utilities. User’s manual and related

documents are in Acrobat PDF format.

Board Layout

Top View

9418E848000E 3

Version A1 September 2015

Printed in Taiwan

Bottom View

Side View

Autres manuels pour CAPA848

Table des matières

Autres manuels AXIOMTEK Matériel informatique

AXIOMTEK

AXIOMTEK AIE100-ONA Series Manuel utilisateur

AXIOMTEK

AXIOMTEK rBOX111-FL Manuel utilisateur

AXIOMTEK

AXIOMTEK CEM520 Manuel utilisateur

AXIOMTEK

AXIOMTEK AIE900A-AO Series Manuel utilisateur

AXIOMTEK

AXIOMTEK eBOX532-100-FL Series Manuel utilisateur

AXIOMTEK

AXIOMTEK AX92918 Series Manuel utilisateur

AXIOMTEK

AXIOMTEK rBOX204-FL Manuel utilisateur

AXIOMTEK

AXIOMTEK AIE100-ONX Series Manuel utilisateur

AXIOMTEK

AXIOMTEK AIE900-XNX Series Manuel utilisateur

AXIOMTEK

AXIOMTEK PICO313 Manuel utilisateur

AXIOMTEK

AXIOMTEK UST210-83K-FL Series Manuel utilisateur

AXIOMTEK

AXIOMTEK CAPA841 Manuel utilisateur

AXIOMTEK

AXIOMTEK SBC8243 Manuel utilisateur

AXIOMTEK

AXIOMTEK eBOX532-100-FL Series Manuel utilisateur

AXIOMTEK

AXIOMTEK eBOX560-300-FL Manuel utilisateur

AXIOMTEK

AXIOMTEK PICO841 Manuel utilisateur

AXIOMTEK

AXIOMTEK FAB116-8B3P3 Manuel utilisateur

AXIOMTEK

AXIOMTEK eBOX710-521-FL Series Manuel utilisateur

AXIOMTEK

AXIOMTEK AIE800-904-FL-DC Series Manuel utilisateur

AXIOMTEK

AXIOMTEK TBOX313-835-FL Series Manuel utilisateur

AXIOMTEK

AXIOMTEK CAPA318 Manuel utilisateur

AXIOMTEK

AXIOMTEK CEM880 Manuel utilisateur

AXIOMTEK

AXIOMTEK tBOX324-894 Manuel utilisateur

AXIOMTEK

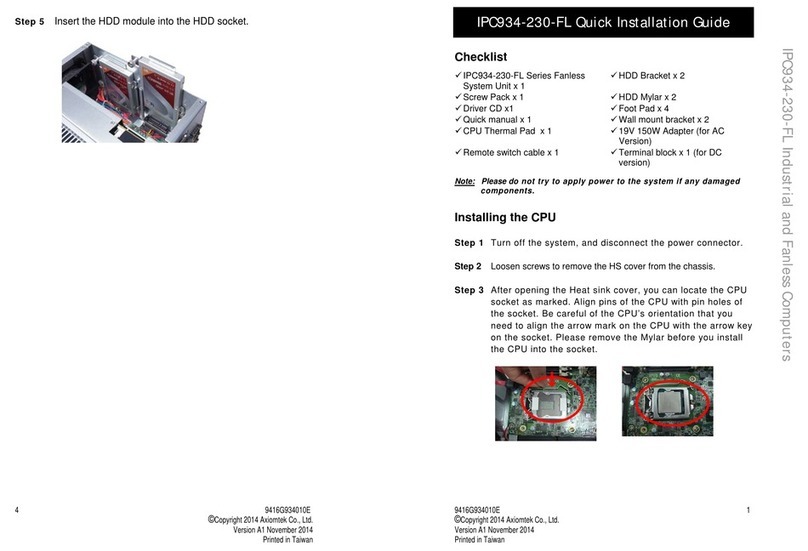

AXIOMTEK IPC934-230-FL Manuel utilisateur
