AWS CP5-100 Manuel utilisateur
CP5-100 (100g x 0.01g)
CP5-650 (650g x 0.1g)
User Manual
CP5-Series
Copyright © 2010 American Weigh Scales, Inc.
All rights reserved. Rev. 2.0
CP5-Series
Thank you for purchasing the American Weigh
CP5-Series digital pocket scale. Please read all operating
instructions carefully before use. Scales are precision
measuring devices and should always be handled with
proper care. To ensure years of reliable service, keep these
simple tips in mind:
• Do not exceed the scale’s maximum capacity.
Overloading your scale can permanently damage it!
• Avoid exposure to extreme heat or cold. Scales
perform best at normal room temperature. If
temperatures have changed dramatically, calibration
and adjustment may be necessary.
• Allow your scale to warm up for 30-60 seconds before
performing calibration and adjustment(if available).
• Store your scale in a clean, dry location. Dust, dirt,
and moisture can accumulate on the weighing
sensors and electronics causing inaccuracy or
malfunction.
• Avoid using your scale in close proximity to strong
radio wave emitting devices such as computers, cash
registers, and cordless phones.
• Alwaysweighonaatandlevelsurface,freefrom
vibrations and drafts. The corner of a room is usually
the most stable.
• Gently apply all items to be weighed. Do not drop
items onto the weighing platform.
• Avoid dropping your scale. The warranty does not
cover damage due to rough treatment or overload.
• Checkthebatteriesrstifyouarehavinganytrouble
with your scale. This simple step can remedy most
scale issues.
• Do not disassemble your scale. This product contains
no user serviceable parts.
I. Part List
1. Scale
2. Cover/Expansion Tray
3. CR2032 Lithium Batteries (x2)
II. Key Description
III. Battery Installation
1. Beforeusingthescaleforthersttime,check
the battery compartment and remove any plastic
insulation strips or packaging that may be in place to
prevent battery drainage during shipping/storage.
2. If you are replacing the batteries, make sure the
positive and negative contacts are properly aligned.
Install Negative
Side Up
Install Positive
Side Up
Negative Terminal
Postive Terminal
CR2032 (Button Cell) Battery Installation
+
-
+
-
Install Negative
Side Up
Install Positive
Side Up
Negative Terminal
Postive Terminal
CR2032 (Button Cell) Battery Installation
+
-
+
-
M T
Mode Key
Tare Key
Weight Indicator
Unit Indicator
ON/OFF Key
CP5-Series
IV. Operation
1. Placethescaleonaat,levelsurfaceandpressthe
ON/OFF key to turn the scale on.
2. Once the start-up process completes and the scale
goes to zero you are ready to weigh.
3. Place the quantity to be weighed onto the weighing
platform.
4. Wait a couple seconds for the display to stabilize
before taking a weight reading.
V. Changing the Unit of Measure
1. Press the Mkey to change the scales displayed unit
of measure.
2. If the scale is turned off then back on, it will default
to the last unit used.
• CP5-100 Units: g (gram) oz (ounce) ct (carat)
gn (grain)
• CP5-650 Units: g (gram) oz (ounce) ozt (troy
ounce) dwt (pennyweight)
VI. Using the Tare Feature
You can use this scale’s tare feature to subtract the weight
of an empty container or vessel for net weight determination.
NOTE: The weight of the container will subtract from the
available capacity.
1. Place the empty container or vessel on the weighing
platform.
2. Press the Tkey once. The display will then reset to
zero. If the container is removed, it’s weight will be
displayed as a negative number.
3. Youmaynowllthecontainerwiththequantityto
be weighed. The display will show the net weight of
the contents.
4. To return to normal weight display (gross weight),
remove any items from the weighing platform and
press the T key again to re-zero the scale.
VII. Calibration
Calibration and adjustment are performed at the factory.
However, the weighing range can shift slightly during
shipping. Also, due to changes in local acceleration of gravity
around the world, adjustment is recommended when moving
the scale from one location to another. To check calibration:
1. Place the required calibration weight on the scale
and note the displayed value.
2. If the displayed value is not within acceptable
tolerance (see chart below), adjustment is required.
Model Acceptable
Tolerance (±)
Calibration
Weight
Recommended
Accuracy Class
CP5-100 0.02g 100g OIML M2
CP5-650 0.2g 500g OIML M2
VIII. Adjustment
1. Press and hold the Mkey until the display shows
“CAL”.
2. Press the Mkeyagain.Thedisplaywillash“CAL”
followed by the calibration weight value (see chart).
3. Place the calibration weight on the center of the
weighing platform. Make sure you are using the
correctweightforyourspecicmodel.
4. Once the weight is accepted, the display will show
“PASS” then return to normal operation.
CP5-Series
IX. Troubleshooting
• Problem: Scale will not turn on
• Solution: Check the batteries
• Problem: Displayedweightuctuatesrandomly
• Solution: Make sure your workspace is stable and
free of any air currents or vibration
• Problem: Displayed weight is inaccurate
• Solution: Perform a calibration adjustment
X. Error Codes
1. OUTZ - Zero range has shifted. Perform calibration
adjustment. If the problem persists, the load cell may
be permanently damaged due to overloading.
2. 88888 - Maximum capacity exceeded. Remove the
extra weight to avoid damaging the load cell.
3. L - Batteries are low. Replace the batteries.
CP5-100 CP5-650
Max. Capacity 100g 650g
Readability 0.01g 0.1g
Min. Weight 0.03g 0.2g
Power 2 x CR2032 Lithium Batteries
Dimensions 0.5 x 2.4 x 4.5”
Platform Dimensions 2.0 x 2.7”
Warranty 10 Year Limited Warranty
XI. Capacity/Readability Charts
CP5-100 CP5-650
100g x0.01g
3.528oz x 0.001oz
500ct x 0.05ct
1543gn x 0.2gn
650.0g x 0.1g
22.92oz x 0.01oz
20.89ozt x 0.01ozt
417.9dwt x 0.1dwt
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels AWS Échelle
AWS
AWS Gemini-20 Manuel utilisateur
AWS
AWS AMWSHIP-150 Manuel utilisateur
AWS
AWS CP5-100 Manuel utilisateur
AWS
AWS CP2-300 Manuel utilisateur
AWS
AWS BCM-100 Manuel utilisateur
AWS
AWS LS-110 Manuel utilisateur
AWS
AWS PV-650 Manuel utilisateur
AWS
AWS LB-SERIES Manuel utilisateur
AWS
AWS TL-330 (330lb x 0.2lb) Manuel utilisateur
AWS
AWS DIA-20 Manuel utilisateur
AWS
AWS 396LUMA Manuel utilisateur
AWS
AWS H-11 Manuel utilisateur
AWS
AWS 330LPW Instructions de montage
AWS
AWS 5K-BOWL Manuel utilisateur
AWS
AWS MERCURY PRO MPR-180 Manuel utilisateur
AWS
AWS MERCURY MRC-200 Manuel utilisateur
AWS
AWS HX Series Manuel utilisateur
AWS
AWS CQ-350 Manuel utilisateur
AWS
AWS CV-100 Manuel utilisateur
AWS

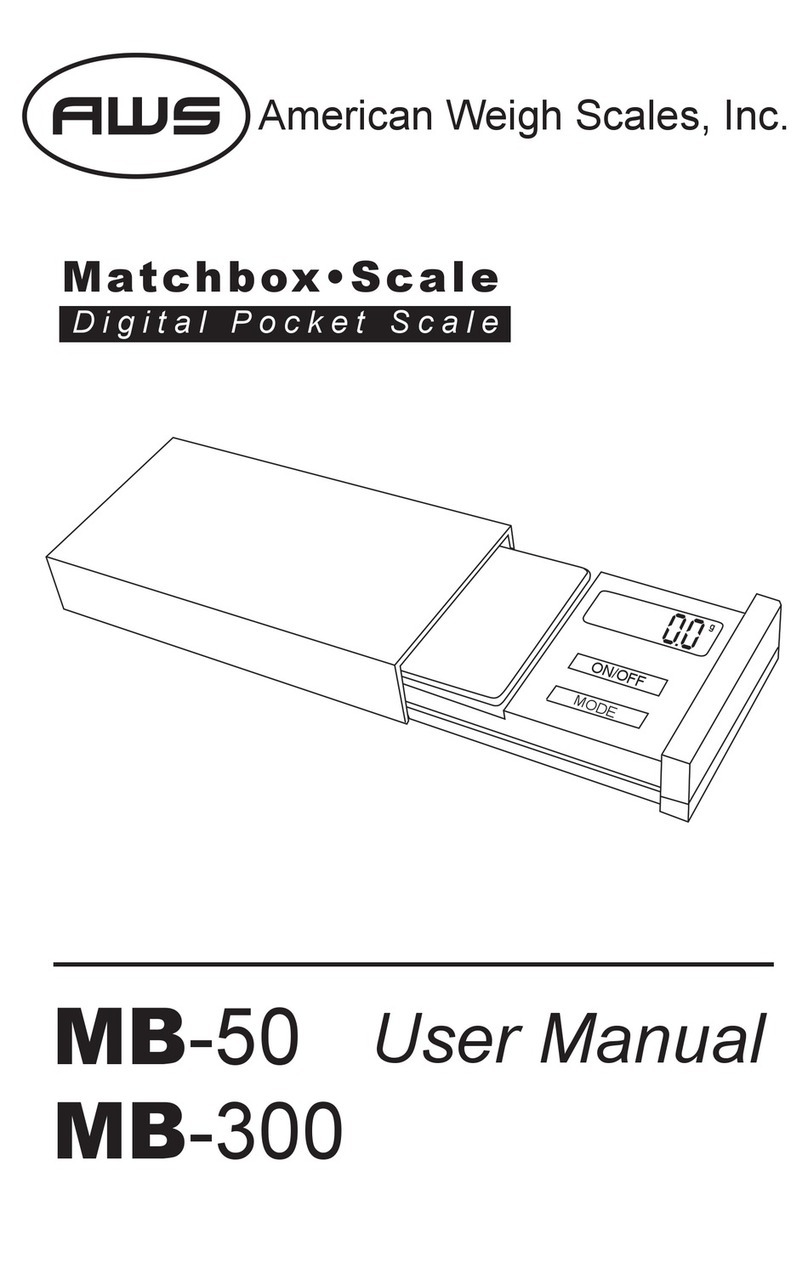

AWS MB-50 Manuel utilisateur
