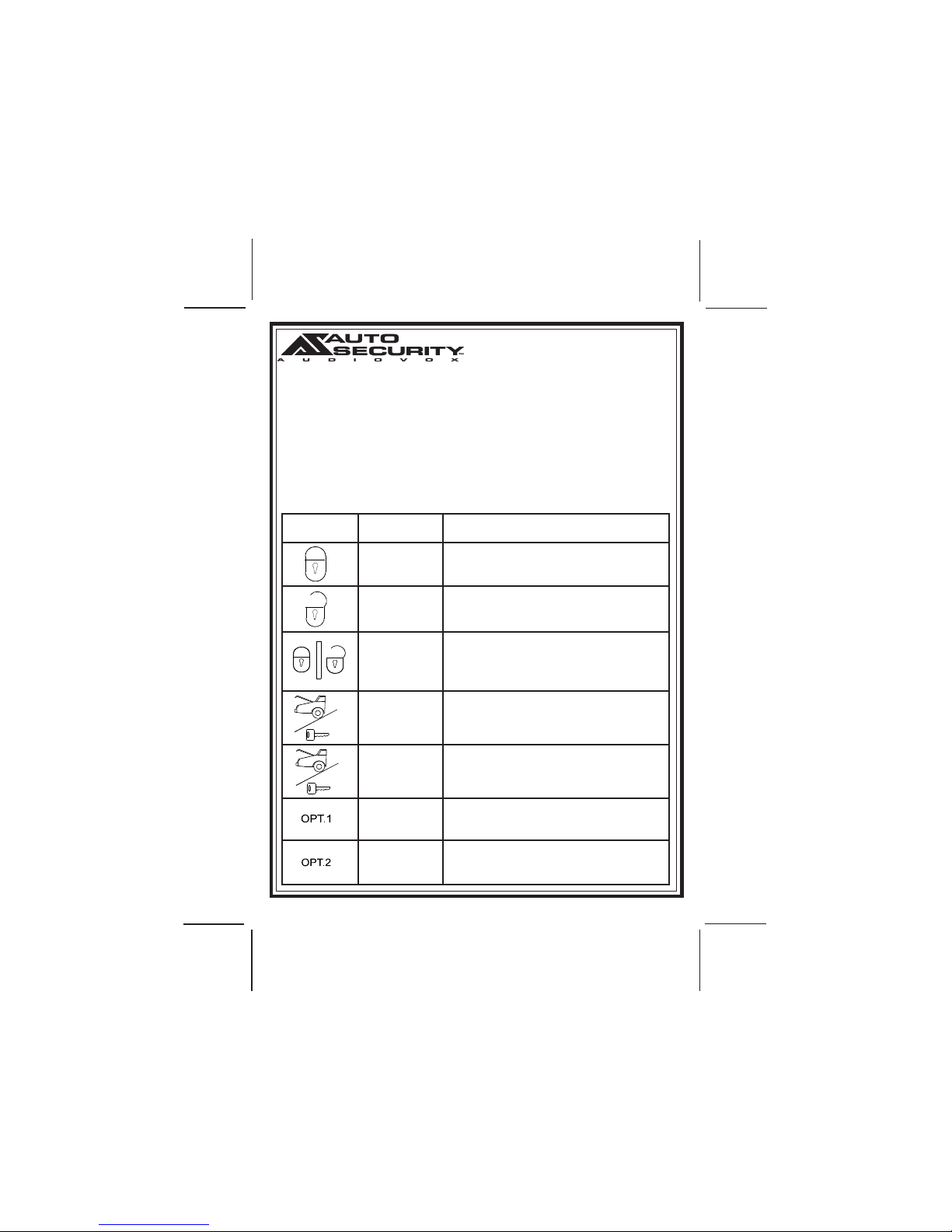

BUTTON RECEIVER

CHANNEL SYSTEM FUNCTION

Lock And Arm Alarm, also initiate and

terminates *Panic

Unlock And Disarm, also initiates and

terminates *Panic. Programmable to

unlock drivers door and or all doors.

Lock and arm/unlock and disarm. May

be programmed to unlock driver's door

or all doors. Also will initiate and

terminate *Panic.

Pulsed or switched output to control

Remote Trunk Release or optional

device connected to channel 3.

When pressed and release two times,

will provide pulsed output or activate the

Remote Start option when installed.

When so equipped, this button can be

used to operate an optional device

connected to channel 4.

When so equipped, this button can be

used to operate an optional device

connected to channel 5.

These transmitters makes use of icons (symbols) to identify the reac-

tion your security system/keyless entry/and or remote start system,

where applicable, will have when any icon (button) is pressed.

These icons are programmed at time of installation to meet the needs of

the individual and to complement the vehicle that the system is installed

in. To replace a transmitter or add transmitters, please follow the

programming instructions listed on the pages of this manual.

Transmitter Programming Guide

* Where So Equipped

Model SS91

128-8840

2 of 8

Although the most common use of the transmitter buttons are shown

on the front page of this guide, any button or button combination can be

programmed into any receiver channel. Additionally, if all 4 buttons are

used and you require access to a 5th channel, you would program a

combination of buttons to control the 5th function. i.e... you have

programmed lock for arm, unlock for disarm, trunk for trunk release,

and OPT1 Sliding Door where applicable, and you've added a win-

dow up module that you want independent control of, you would pro-

gram unlock and trunk buttons pressed simultaneously into the receiver

to control this function independently. Also, if you do not program a

transmitter button into channel 2 which is the separate unlock/dis-

arm channel, then whatever button is programmed into channel 1

will serve as both lock/arm & unlock/disarm.

PROGRAMMING TRANSMITTERS:

NOTE: It is important to remember that during the programming mode,

each individual step must be completed within 15 seconds of

the previous step. If the 15 second time limit expires between

steps, the unit will automatically exit the program mode. This

is indicated by a long chirp from the siren.

Non alarm models will flash the parking lights only to confirm the

transmitter code has been learned and stored.

NOTE: Because the system may be capable of sounding a siren, the

vehicle horn, or both, where the siren chirp is referenced be-

low, the siren may chirp, the horn may beep, or both devices

may sound.

TO PROGRAM ADDITIONAL TRANSMITTERS:

1) Enter the vehicle, and turn the ignition switch to the on position.

2) Press and release the valet push button switch three times.

NOTE: Some systems may use a combination push-button LED

switch, others may use an intergrated push-button LED receiver. In

these systems the push-button and the dash mounted LED, or the

receiver, push-button,LED are one and the same.

3) The LED will flash 1x, and the siren will chirp 1x, indicating that the

system is ready to accept programming of channel #1 which is arm/

lock, disarm/unlock/unlock 2, and panic functions.

4) Press and hold the lock or lock/unlock symbol button of the transmit-

ter you wish to program for 4 seconds or until a long chirp is heard

from the siren.

"Repeat step 4 for each transmitter you wish to program".

NOTE: If your transmitter button has the Lock/Unlock icon on one

button, press and release the valet push button switch 2 times

then move on to step #8.

5) Press and release the valet push button switch one time to advance to

channel 2. The siren will chirp 2 times and the dash mounted LED will

128-8840

3 of 8

Flash 2 times, indicating that the unit is ready to accept programming

for channel # 2 which is only used for separate lock and unlock

button transmitters, and is the disarm/unlock/unlock 2 and panic.

6) Press and hold the unlock symbol button of the transmitter you wish

to program for 4 seconds or until a long chirp is heard from the

siren.

"Repeat step 6 for each transmitter you wish to program".

7) Press and release the valet push button switch one time to ad-

vance to channel 3.The siren will chirp 3 times and the dash mounted

LED will Flash 3 times, indicating that the unit is ready to accept

programming for channel # 3 which is the trunk release/alternate

output channel of the system.

8) Press and hold the trunk/key symbol button of the transmitter you

wish to program for 4 seconds or until a long chirp is heard from the

siren.

"Repeat step 8 for each transmitter you wish to program".

9) Press and release the valet push button switch one time to advance

to channel 4 if so equipped. The siren will chirp 4 times and the

dash mounted LED will Flash 4 times, indicating that the unit is ready

to accept programming for channel # 4, optional device (where

equipped)

10) Press and hold the Option button of the transmitter you wish to

program for 4 seconds or until a long chirp is heard from the siren.

"Repeat step 10 for each transmitter you wish to program".

11) Press and release the valet push button switch one time to ad-

vance to channel 5 if so equipped. The siren will chirp 5 times and

the dash mounted LED will Flash 5 times, indicating that the unit is

ready to accept programming for channel # 5 optional device (where

equipped)

12) Press and hold the second Option button of the transmitter you

wish to program for 4 seconds or until a long chirp is heard from the

siren.

"Repeat step 12 for each transmitter you wish to program".

13) Within 10 seconds, press and release the valet program switch

one time. (Siren emits 6 short chirps indicating channel 6 has

been entered)

14) Within 10 Seconds, Press and hold the unlock button, (or any

unused button(s)), of the first transmitter you wish to control

Channel 6 output, (Driver Priority 1) until a long chirp is heard

from the siren. (Repeat this for each transmitter you wish to

operate the Channel 6 output, Driver Priority 1)

15) Within 10 seconds, press and release the valet program switch

one time. (Siren emits 7 short chirps indicating channel 7 has

been entered)

128-8840

4 of 8

16) Within 10 Seconds, Press and hold the unlock button (or any

unused button(s)) of the first transmitter you wish to control

Channel 7 output, (Driver Priority 2) until a long chirp is heard

from the siren.

(Repeat this for each transmitter you wish to operate the Channel 7

output, Driver Priority 2)

NOTE: Channels 6 and 7 can be used as a separate output to

control a function other than driver priority. Simply program-

ming any unused transmitter button other than the unlock

button will allow complete independent control of these

outputs.

ERASING TRANSMITTERS IF THEY HAVE BEEN LOST OR STOLEN:

NOTE: Before you begin to erase the lost or stolen transmitter(s), have

all transmitters available that you wish to remain programmed.

These will be used during the program process to identify

transmitters that will continue to be used.

Enter the transmitter program mode:

1. Turn the ignition switch to the “ON” position.

2. Within 10 seconds, press and release the valet/program switch

three times. (Siren emits 1 short chirp indicating channel 1 has

been entered)

3. Within 10 Seconds, press and hold the ARM or ARM/DISARM

button of the first transmitter you wish to remain stored into the

control unit until a single chirp is heard from the siren.

(Repeat this for each transmitter you wish to remain stored in the control

unit).

The receiver stores up to four transmitters. To be certain all transmitter

slots in the receiver are occupied with transmitters you wish to con-

tinue to use, and all others are erased, you will have to fill all four

receiver slots. If in step 3 you identified one transmitter, you will have

to fill the additional 3 slots. If in step 3 you identified two transmitters,

you will have to fill the additional two slots, etc...

4. Press and hold any unused button or combination of buttons until a

long chirp is heard from the siren. Release and press the button or

button combination again and again until all remaining slots are full.

NOTE: The button or combination of buttons entered will also control

the arm or arm/disarm function until additional transmitters are

added. All unwanted transmitters are now deleted.

REPRIORITIZING A TRANSMITTER’S PROGRAMMING:

To reprogram a receiver channel with a different transmitter button

once a code has been stored, there will be two options:

1. Enter the transmitter program mode of the receiver channel to be

reprogrammed. Using any unused button or combination of but-

tons, push out the stored code by pressing the unused button until

a long chirp is heard, then repeat 3 additional times. After this, you

128-8840

5 of 8

can add any desired unused transmitter button. This action erases

only the button stored of the transmitter you are programming. All

other codes will remain stored.

2. Enter the transmitter program mode. Using any transmitter button

press and hold until a long chirp is heard. If a single chirp or multiple

chirps, (up to 7 chirps), are heard, the unit is indicating that the

transmitter has already been programmed elsewhere in the re-

ceiver. Release the transmitter button and within 5 seconds press

and hold until a long chirp is heard. This action forces the unit to

erase all stored codes of that transmitter.

The unit then exits the program mode the siren emits the program mode

exit chirp pattern. All transmitter buttons for that transmitter must now

be reprogrammed. Any other transmitter stored in the unit’s memory still

remain operational. If the button is released and not pressed again

within the 5 second period, no change in programming has been made

to the receiver channel. The programmer can move onto a different

channel or erase the transmitter codes as described in 1 above.

BATTERY REPLACEMENT:

The transmitter incorporates a small LED visible through the case which

is used to indicate battery condition. You will notice a decrease in

transmitter range as the battery condition deteriorates. Transmit-

ter battery replacement is recommended at least every 10 to 12 months,

depending upon how frequently the transmitter is used.

To replace the battery:

1) Remove the 3 small # 0 Phillips head screw from the rear of the

case.

2) Remove the rear cover to access the discharged battery paying

attention to the proper polarity orientation.

3) Carefully remove and properly dispose of the discharged battery.

4) Insert the new battery, close the case, then reinstall the 3 small case

screw removed in step 1.

5) If you accidently dislodge the circuit board from the transmitter hous-

ing, be certain that the rubber membrane is seated properly, and the

buttons are properly exposed from the front view of the case,

then insert the circuit board, and return to step #4.

SS91P uses CR2032 Coin Cell Type Batteries.

SEE ASSOCIATED DIAGRAMS ON FOLLOWING PAGE

128-8840

6 of 8

Remove three #0 philips head screws

where indicated to gain access to the

CR 2032 battery. Carefully remove

transmitter back cover.

Carefully remove the discharged battery by

sliding it out from under the clip in the

direction indicated by the arrow in the

diagram below.

Properly dispose of the exhausted battery and

insert a new CR2032 taking care to arrange it

so that the + is facing up toward the + symbol

on the battery clip.

This device complies with FCC Rules Part 15 Operation is subject to

the following two conditions:

1. This device may not cause harmful interference and

2. This device must accept any interference that may be received,

including interference that may cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV

interference caused by unauthorized modifications to this

equipment. Such modifications could void the user’s

authority to operate the equipment.

128-8840

7 of 8

1) Name: _______________________________________

2)Address: ______________________________________

3) City: ________________ State: _____ Zip Code: ________

4) Telephone Number: (_____) _______________

5) Total Number Of Transmitters Required:

Cost Per Transmitter is: $75.00

Multiply By Number Of Transmitters X ______

6) Enter Total Amount Enclosed _________________

(New York State Residents must include the appropriate sales tax)

7) Method of Payment:

Mastercard Visa Check or Money Order (do not send cash)

Make Checks Payable To Audiovox Corporation

CreditCard Number: _________________________________

Credit Card Expiration Date: ____ / _____ / _____

8) Mail this form along with your payment to:

ORDER FORM FOR SS 91 Transmitter

Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y., 11788

Attn.: TRANSMITTER DEPARTMENT

Credit card purchasers can order additional or replacement

transmitters by phone. Simply dial 1 - 800 - 645 - 4994, and

follow the instructions from the operator interface.

Attention: Transmitter Ordering Department

Important: To help us expedite your order, please print all of the

information legibly and mail this form and your payment

according to the instructions below.

Indicate the pad number of your transmitter selected from the

pads shown above.

Note: Transmitter model number found on back of case.

128-8840

8 of 8

128-8840

Table des matières

Autres manuels Audiovox Émetteur

Audiovox

Audiovox Pursuit PRO-OE3 Mode d'emploi

Audiovox

Audiovox AA923-AA94BT Manuel du propriétaire

Audiovox

Audiovox PurSuit 08SPr Mode d'emploi

Audiovox

Audiovox Prestige 101BP Manuel du propriétaire

Audiovox

Audiovox Pursuit 093BPr Mode d'emploi

Audiovox

Audiovox Prestige 103BP Mode d'emploi

Audiovox

Audiovox AA-99BT2 Mode d'emploi

Audiovox

Audiovox AVX01BT3CL3 Mode d'emploi

Audiovox

Audiovox ACA300 Manuel utilisateur

Audiovox

Audiovox Pursuit PRO-OE3B4 Mode d'emploi

Audiovox

Audiovox Prestige APS-2K4MS Mode d'emploi

Audiovox

Audiovox A1BTX Mode d'emploi

Audiovox

Audiovox PurSuit 09XR1Pr Mode d'emploi

Audiovox

Audiovox PRO94BT2 Mode d'emploi

Audiovox

Audiovox AUTO SECURITY Prestige OE3B4 Mode d'emploi

Audiovox

Audiovox UltraGuard UG-OE3 Mode d'emploi

Audiovox

Audiovox AA-95BT3S Mode d'emploi

Audiovox

Audiovox PRO-OE3B370 Mode d'emploi

Audiovox

Audiovox Pursuit Series Manuel utilisateur

Audiovox

Audiovox PRO-94FR Mode d'emploi

Audiovox

Audiovox PRO-OE3C Guide de dépannage

Audiovox

Audiovox PSI 95BT3 Mode d'emploi

Audiovox

Audiovox S1BTXA Mode d'emploi

Audiovox

Audiovox Pursuit 095BPr Mode d'emploi

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
